- Model: GL3112L-CD10
- Form Factor: SFP
- Data Rate: 1.25Gb/s
- Connector: LC Duplex
- DDM/DOM:Supported
- Distance:10Km
- Media: SMF
- Warranty Period:5years
- Fast Delivery Time
- 100% Testing Before Shipment

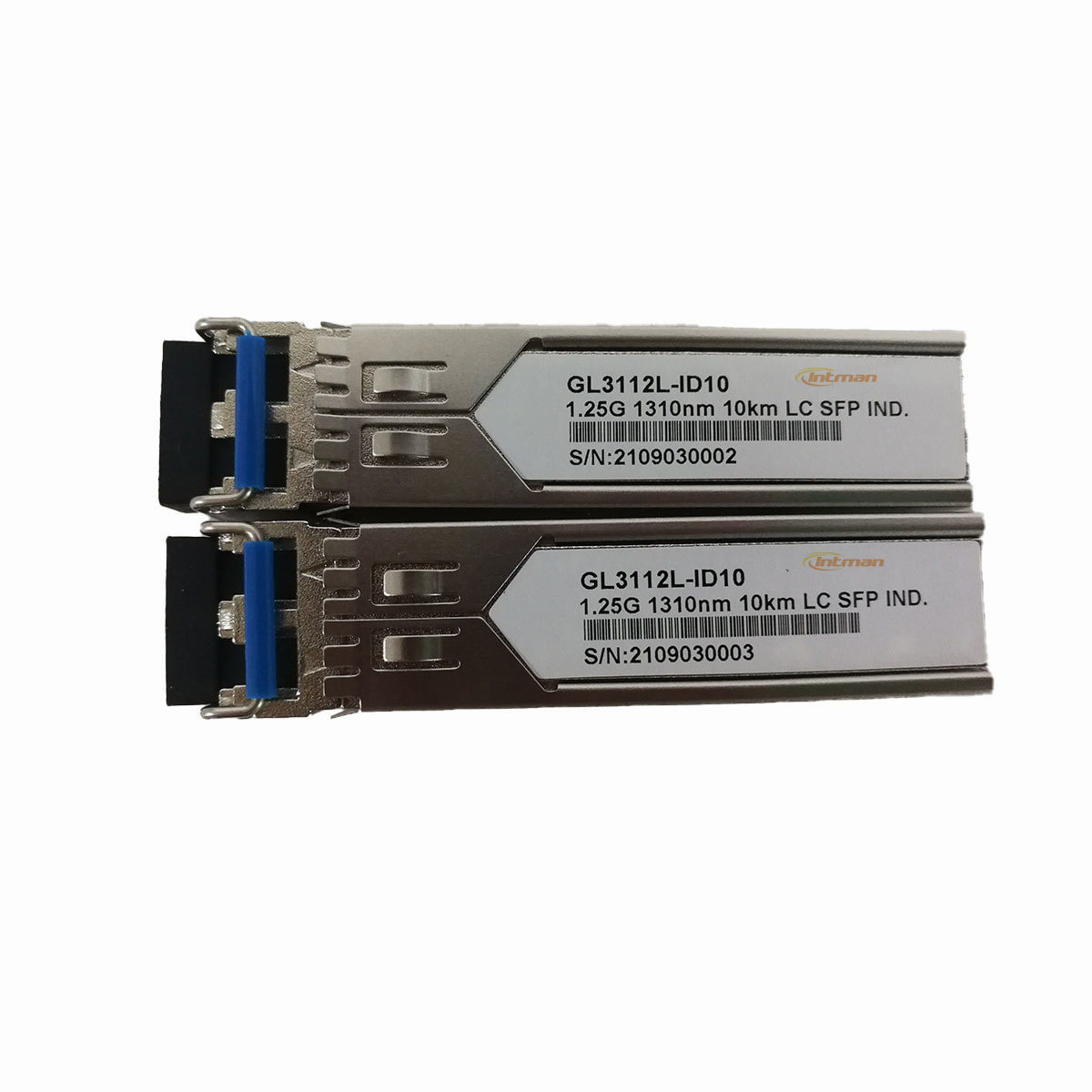

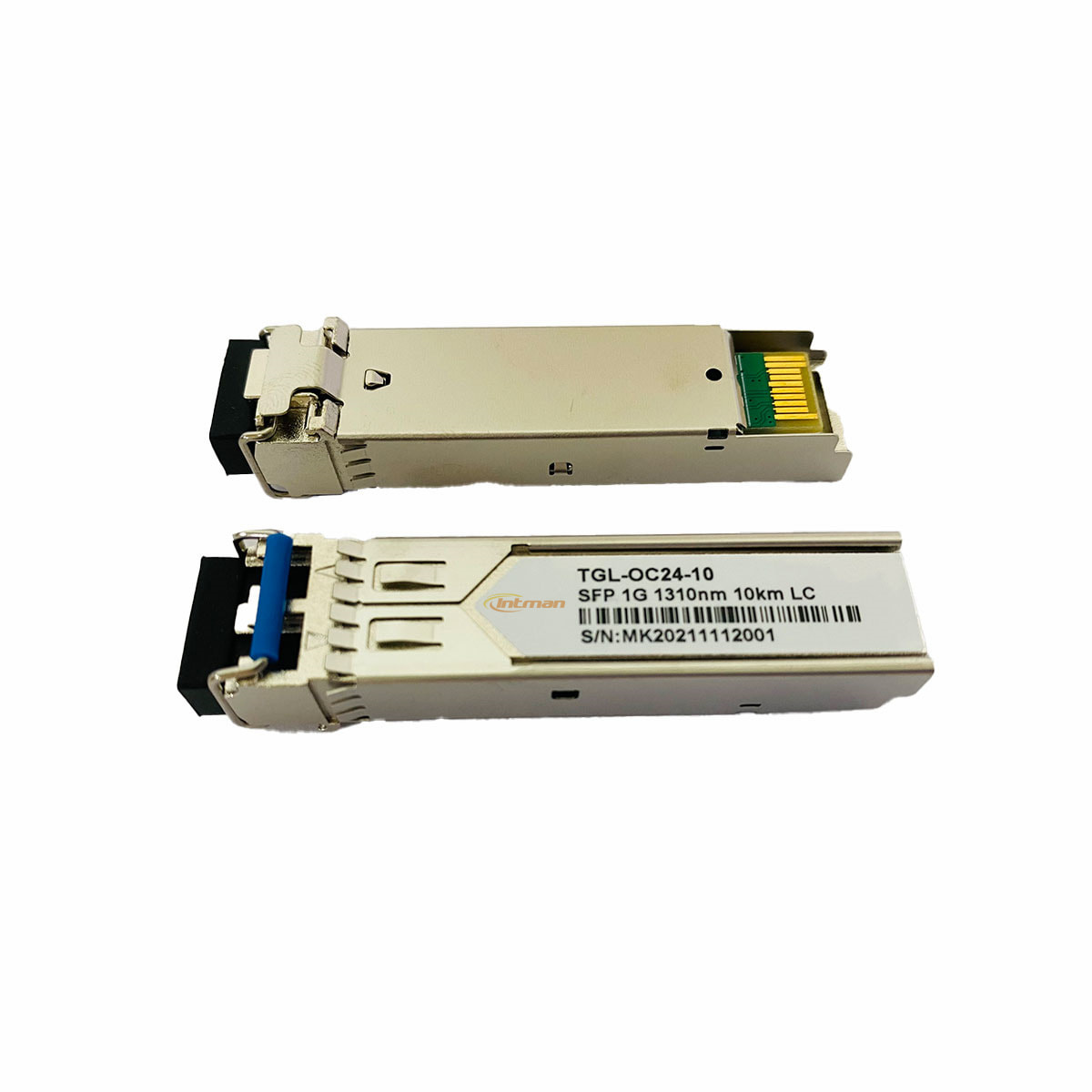

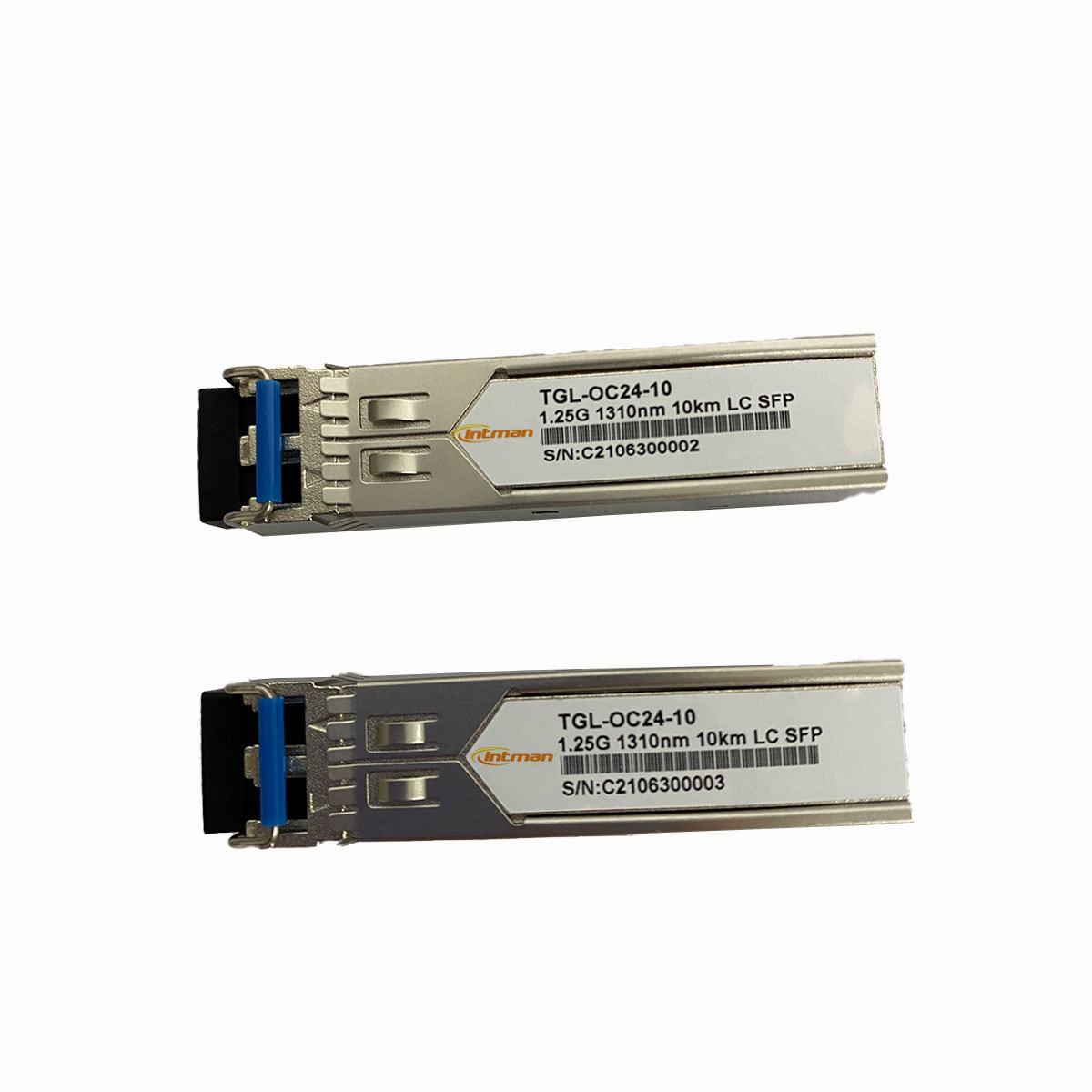

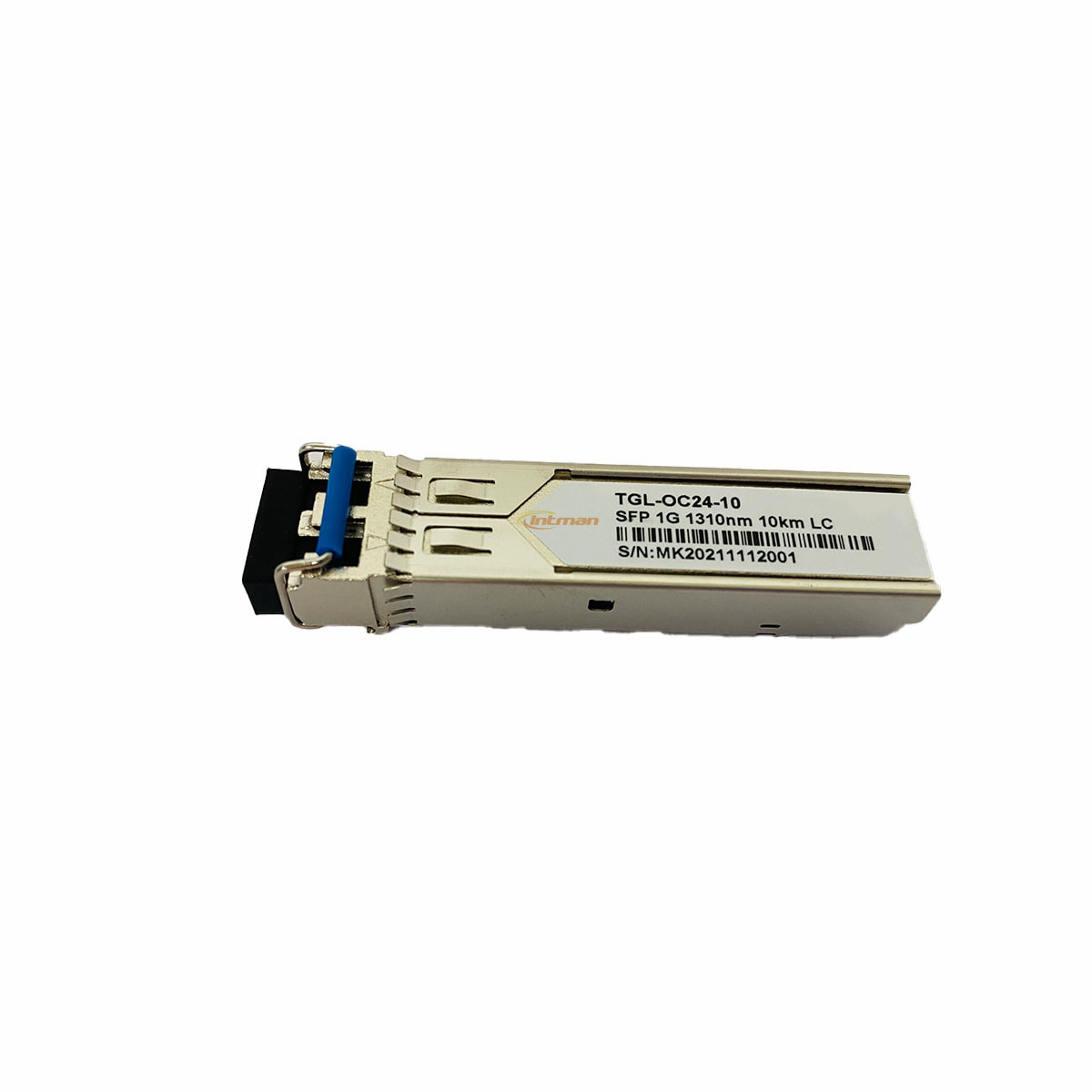

1.25G Single fiber 1310nm 1km SFP LC Duplex Fiber Optic Module
Description
1.25Gbps SFP transceiver 1310nm 10km Reach Description
GL3112L-CD10 Transceivers 1.25G and 10km transmission distance with SMF 1310nm ,consists of three sections: a FP laser transmitter ,a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class 1 laser safety requirements. Compatible with Cisco GLC-LH-SM
Specification Table
| Data Rate (Mbps) | 1.25Gbps | Form Factor | SFP |
| Wavelength | 1310nm | Media | SMF |
| Connector Type | LC Duplex | Distance | 10KM |
| EMC | Supported | DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70℃ | Warranty | 5Years |
Key Features
- Data-rate of 1.25Gbps operation
- 1310nm FP laser and PIN photodetector for 10km transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring
- Internal Calibration or External Calibration
- Compatible with SONET OC-24-LR-1
- 3.3V single power supply
- Operating Case temperature:
- Standard: 0 to+70℃
- Extended: -20 to +85℃
- Industrial: -40 to +85℃
Application
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems

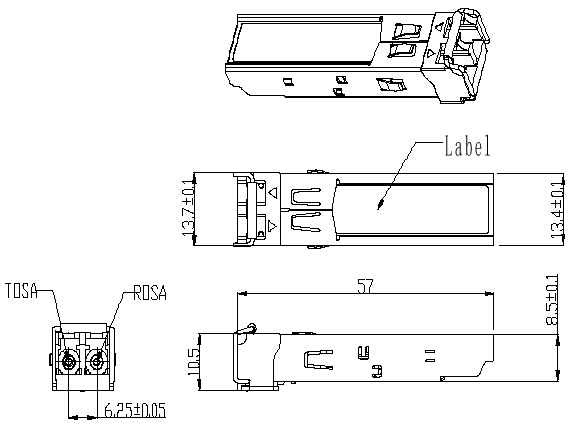

Mechanical Dimensions
1.25G SFP Mechanical Dimensions
Ordering Information
| Part Number | Product Description |
| GL3112L-CD01 | 1.25G Single fiber 1310nm 1km SFP LC Duplex Transceiver |
| GL3112L-CD10 | 1.25G Single fiber 1310nm 10km SFP LC Duplex Transceiver |
