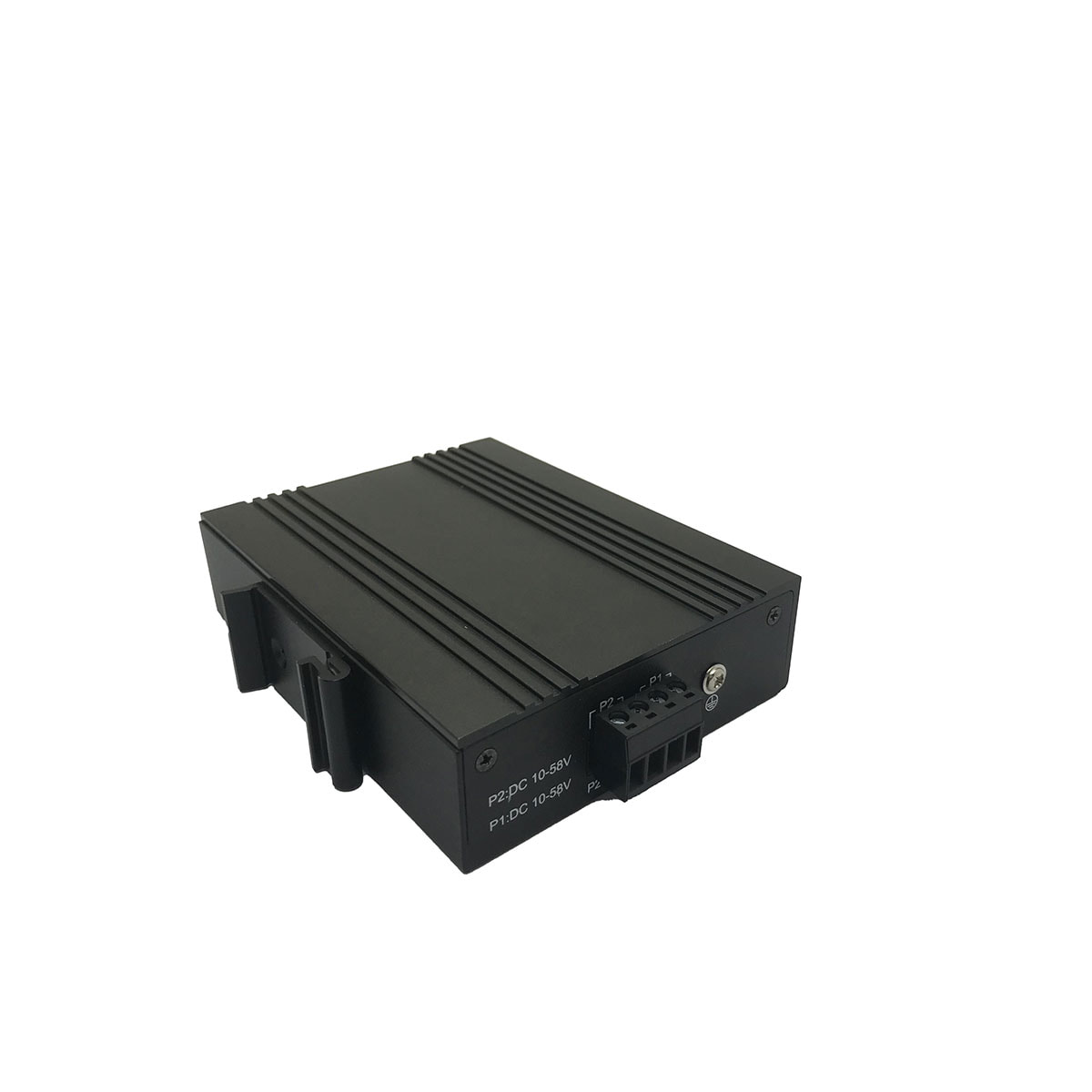

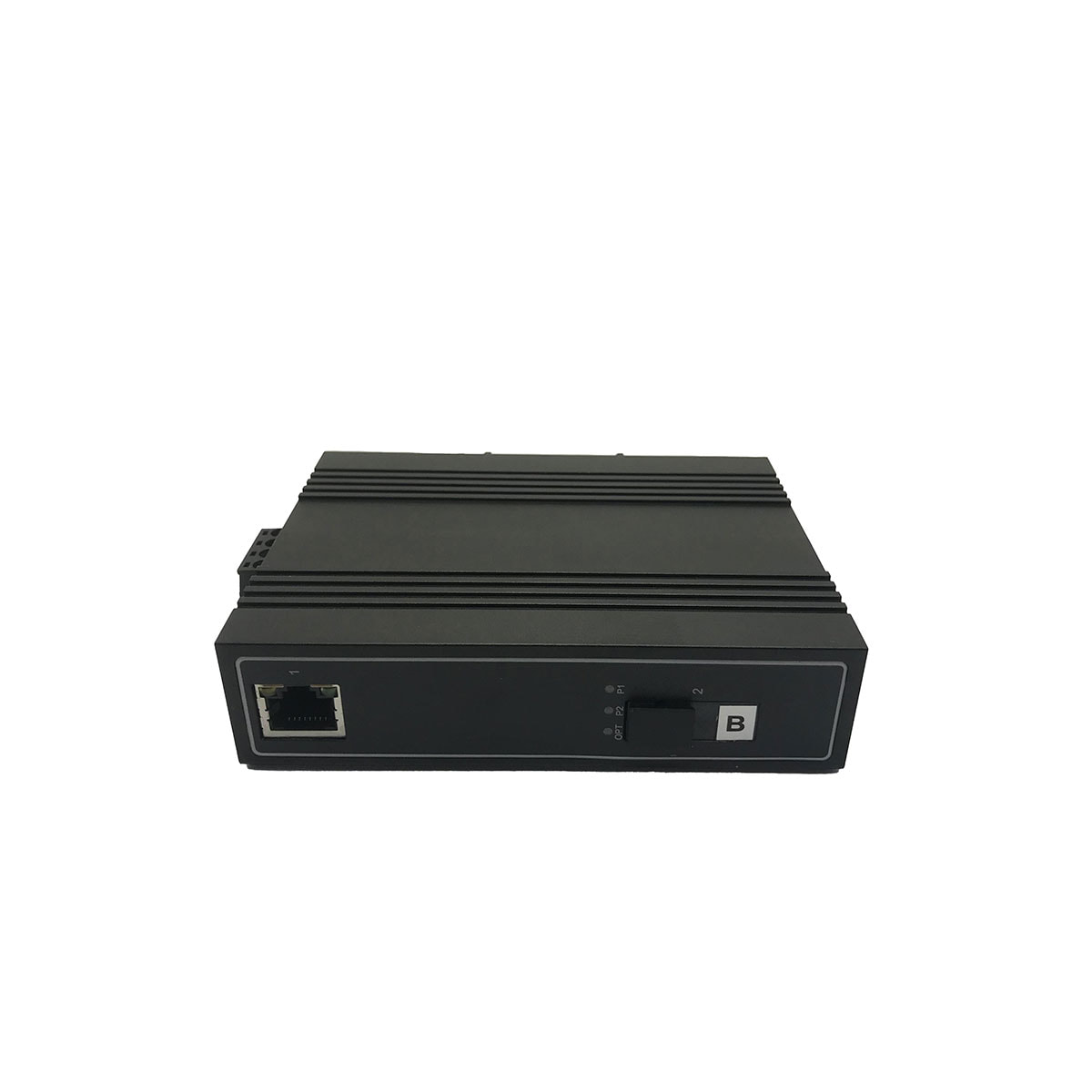

10/100Mbps DIN Rail Industrial Ethernet Media Converter

Description

Industrial Media Converter

The industrial ethernet converter uses store-forward architecture,fan-less and energy-saving design. The design complies with the ethernet standard with lightning and anti-static protection. They apply to a wide range of operating temperatures from -30℃ to + 75℃ with stable and reliable performance. They can be widely applied to various broadband data transmission fields, such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy, and oil fields.

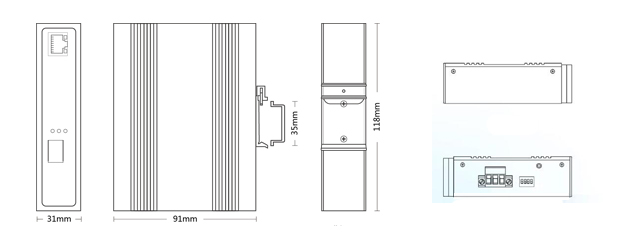

Structure and Dimension

DIN Rail Industrial Ethernet Media Converter Specification Table

Fiber Port	1*100Base-X	RJ45 Port	1*100Base-T
Optical wavelength(nm)	1310nm	Fiber Type (micron)	Single Mode 9/125
Connector Type	1 Dual Fiber+1RJ45	Max Distance	25km
Power	Phoenix terminal blocks, redundant	Led Indicator	P1/P2/OPT

Key Features

1*100Base-FX, 1*10/100Base-T

Input Voltage: DC10~58V (Redundant)
Operating Temperature: -40℃ ~ +85℃
Case: IP40 protection, fan-less design
Anti-static level: 8KV-15KV
MTBF: 100000 Hours

Application Optical Cable

• Multimode optical cable: 50/125um,62.5/125um,100/140um
• Singlemode optical cable: 8.3/125um,8.7/125um,9/125um,10/125um
• UTP Cable: Cat5/5e,Cat6

1.For Networking

Standards Protocol

IEEE802.3 Ethernet Standard

IEEE802.3u fast Ethernet Standard

IEEE802.3d Spanning Tree Standard

Panel Structure Chart

Single fiber SC Media Converter Gigabit Single-mode

10/100Mbps Media Converter

 10/100/1000Mbps Media Converter

10/100Mbps Mini Type Media Converter

 Front Panel of SFP Media Converter

Packing List

Please check the following items from the package before installing the converter

1*Fiber Media Converter

1*Power Adapter

1*User Manual
