- Model: GLSPB273399L-60BD
- Form Factor: SFP+
- Data Rate: 10Gb/s
- Connector: LC Simplex
- Wavelength:1270nm TX/1330nm RX
- Distance:60km
- Transmitter Type: DFB BIDI
- Fiber Type: Singlemode
- Warranty Period:5years
- Fast Delivery Time
- 100% Testing Before Shipment
10G SFP+ BIDI Tx1270/Rx1330nm LC Simplex Optical Transceiver Modules
Description
10Gb/s BIDI(Bidirectional) 1270/1330nm LC SFP+ transceiver
This 1270/1330nm DFB 10Gigabit SFP+ (Small Form-factor Pluggable) transceiver is designed to transmit and receive optical data over single mode optical fiber for link lengths 20km,40km,60km, and 80km.
Specification Table
| Data Rate (Mbps) | 10G | Form Factor | SFP+ |
| Optical wavelength(nm) | 1270nm TX/1330nm RX | Fiber Type (micron) | SingleMode |
| Connector Type | LC Simplex | Distance | 10-80km |
| Max Data Rate | 10.3125Gbps | DOM | Supported |
| Optical Components | DFB BiDi | Warranty | 5Years |
Key Features
- Fiber Bi-Directional SFP+ Optical Transceiver
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- Up to 10.7 Gbps Data Links
- 1270/1330nm DFB LD Transmitter
- 1270/1330nm PIN Receiver
- Low power consumption
- Applicable for 10-80km SMF connection
Application Optical Cable
- 10Gbps Ethernet or SONET/SDH switches and routers
- 10G/8.5G/4.25G/2.125G/1.0625G Fiber Channel
- Other 10Gbps optical links
Mechanical Dimensions
10g sfp+ bidi dimensions
Ordering Information
| Part Number | Product Description |
| GLSPB273399L-10BD | 10Gb/s SFP+ 1270nmTX/1330nmRX 10km LC Simplex |
| GLSPB332799L-10BD | 10Gb/s SFP+ 1330nmTX/1270nmRX 10km LC Simplex |
| GLSPB273399L-20BD | 10Gb/s SFP+ 1270nmTX/1330nmRX 20km LC Simplex |

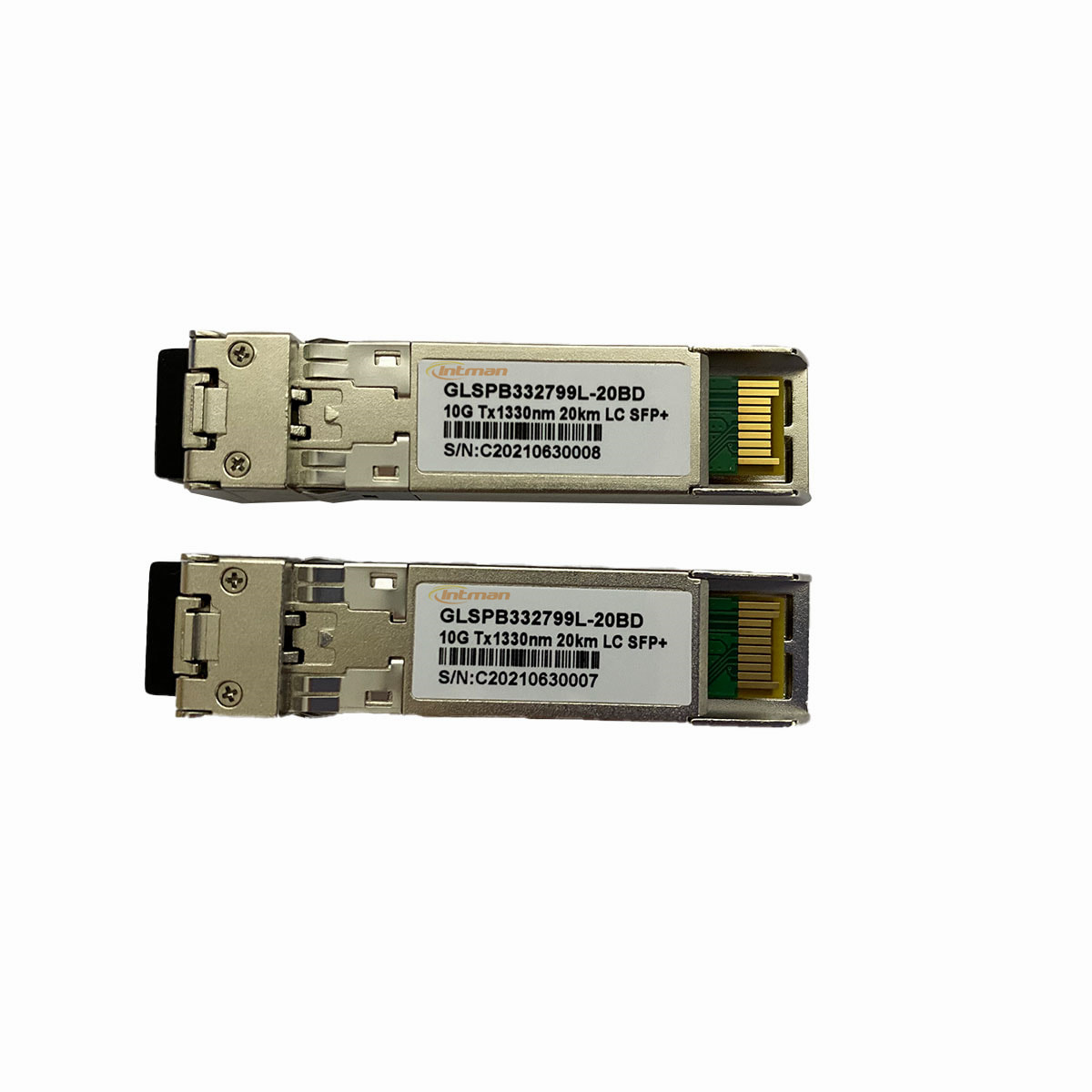

| GLSPB332799L-20BD | 10Gb/s SFP+ 1330nmTX/1270nmRX 20km LC Simplex |
| GLSPB273399L-40BD | 10Gb/s SFP+ 1270nmTX/1330nmRX 40km LC Simplex |

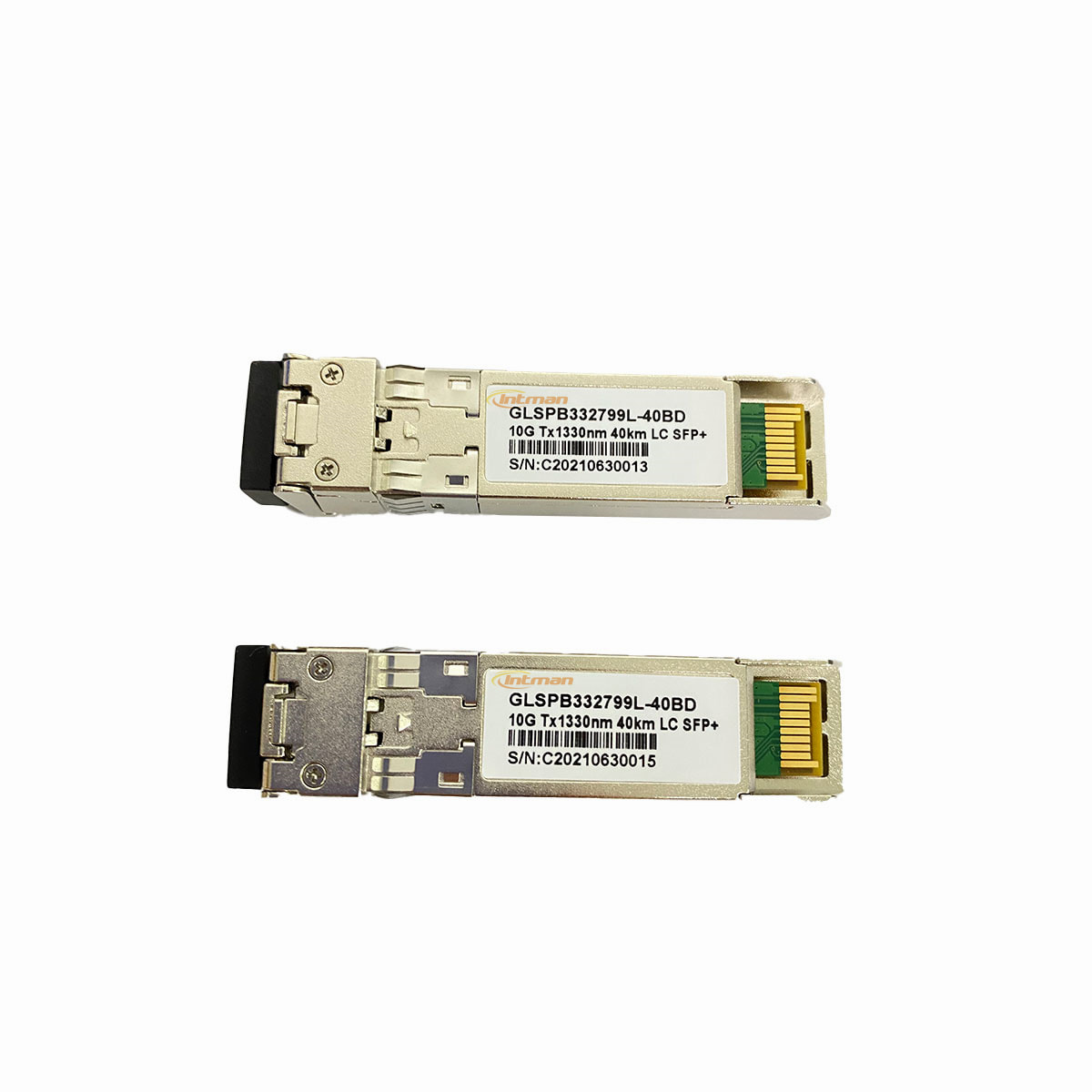

| GLSPB332799L-40BD | 10Gb/s SFP+ 1330nmTX/1270nmRX 40km LC Simplex |

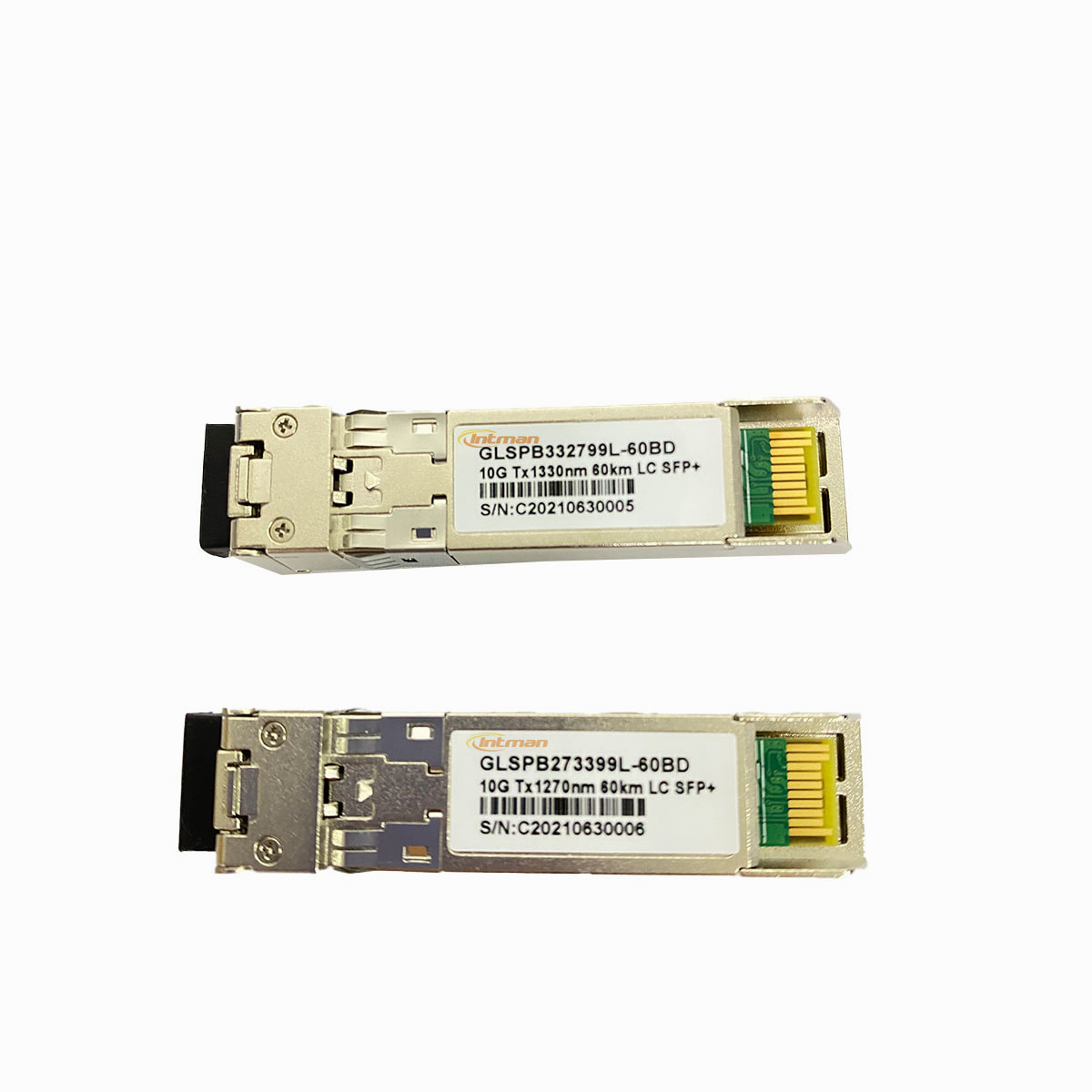

| GLSPB273399L-60BD | 10Gb/s SFP+ 1270nmTX/1330nmRX 60km LC Simplex |
| GLSPB332799L-60BD | 10Gb/s SFP+ 1330nmTX/1270nmRX 60km LC Simplex |

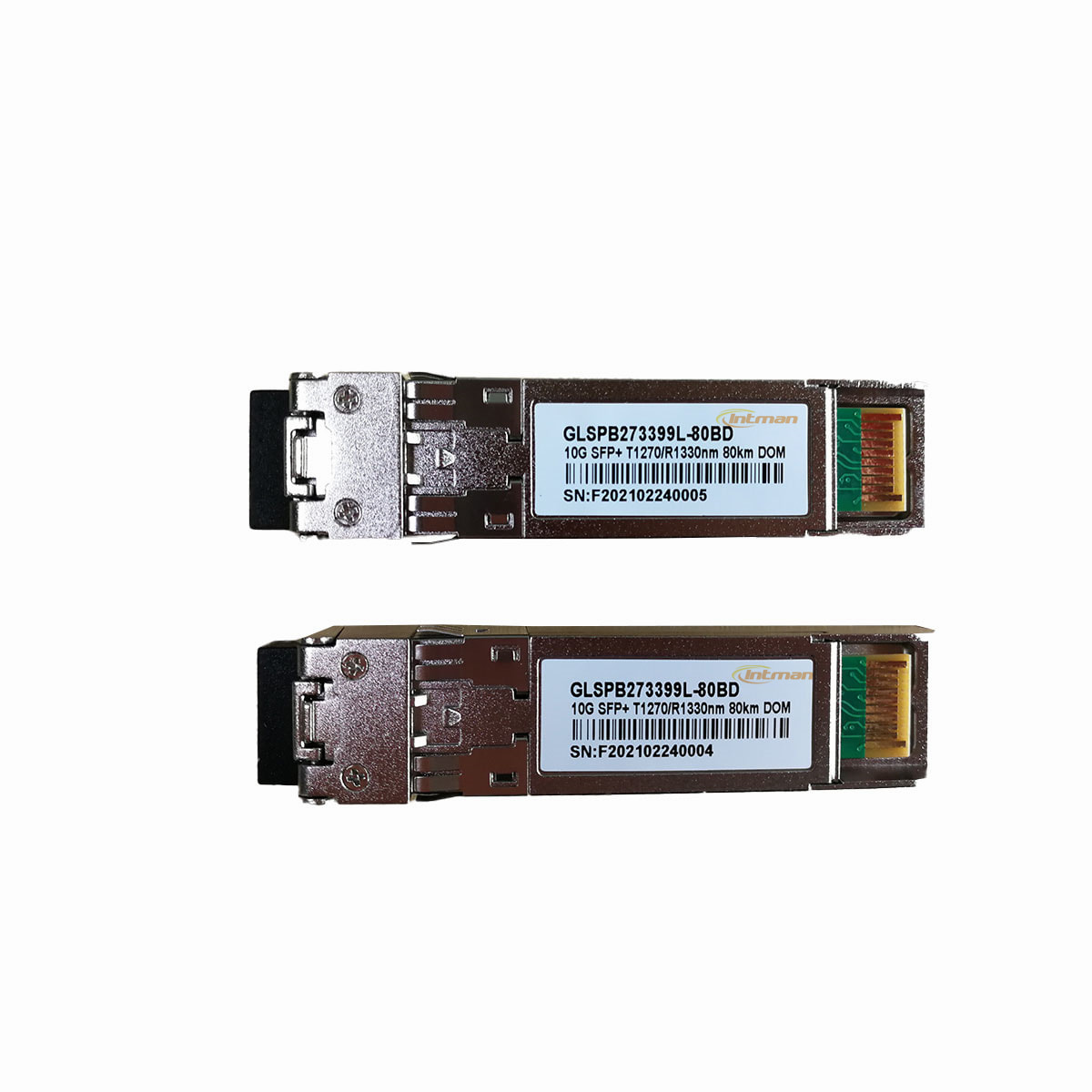

| GLSPB273399L-80BD | 10Gb/s SFP+ 1270nmTX/1330nmRX 80km LC Simplex |
| GLSPB332799L-80BD | 10Gb/s SFP+ 1330nmTX/1270nmRX 80km LC Simplex |
| GLSPB495510L-100BD | 10Gb/s SFP+ 1490nmTX/1550nmRX 100km LC Simplex |
| GLSPB554910L-100BD | 10Gb/s SFP+ 1550nmTX/1490nmRX 100km LC Simplex |
