- Model: INT-DAC10GB-1M
- Connector Type: SFP+ to SFP+
- Data Rate: 10Gb/s
- Cable AWG: 30AWG
- Jacket: PVC/LSZH
- Cable Type: Passive Twinax
- Min Bend Radius: 23mm
- Power Supply: 3.3V
- Warranty Period:5years
- Fast Delivery Time
- 100% Testing Before Shipment

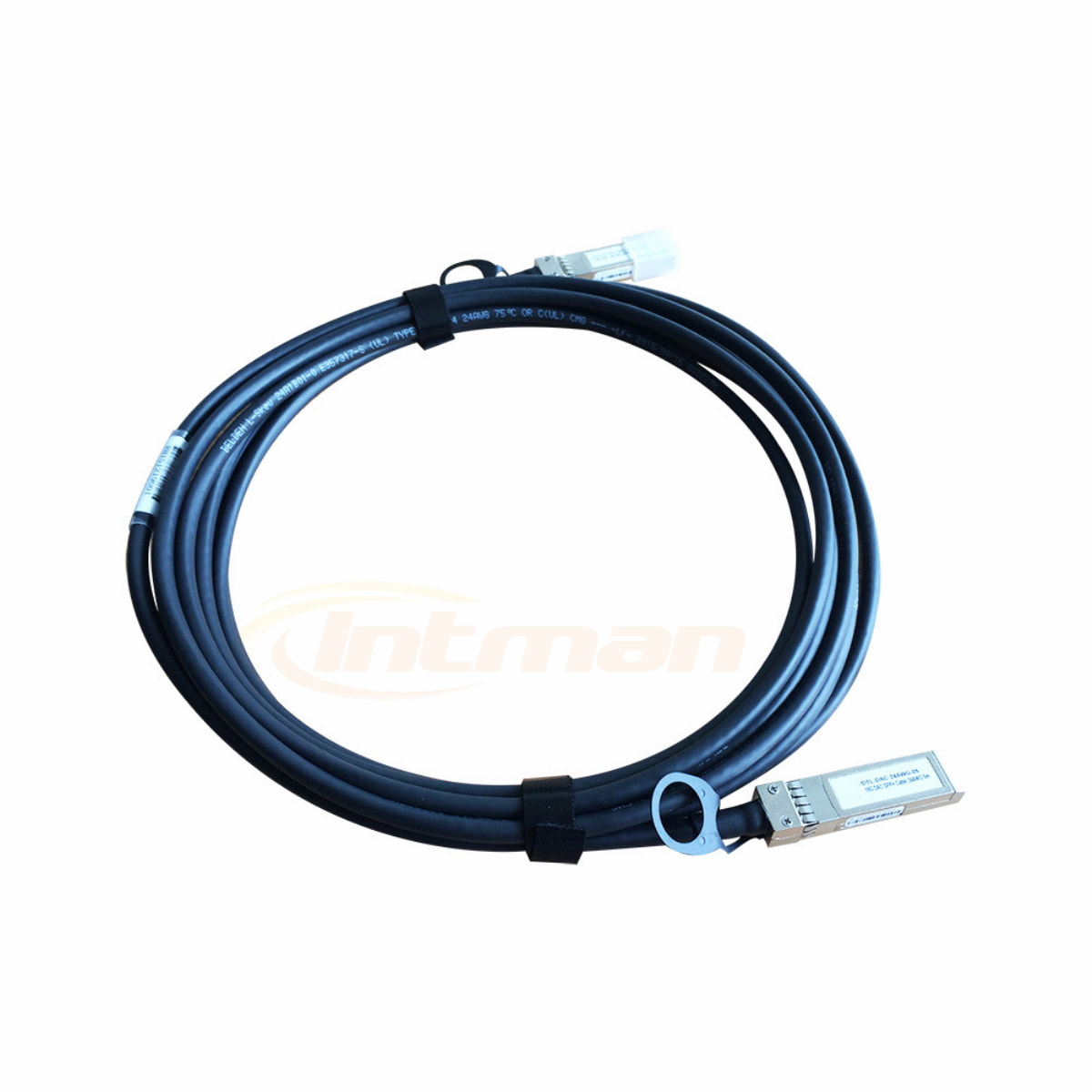

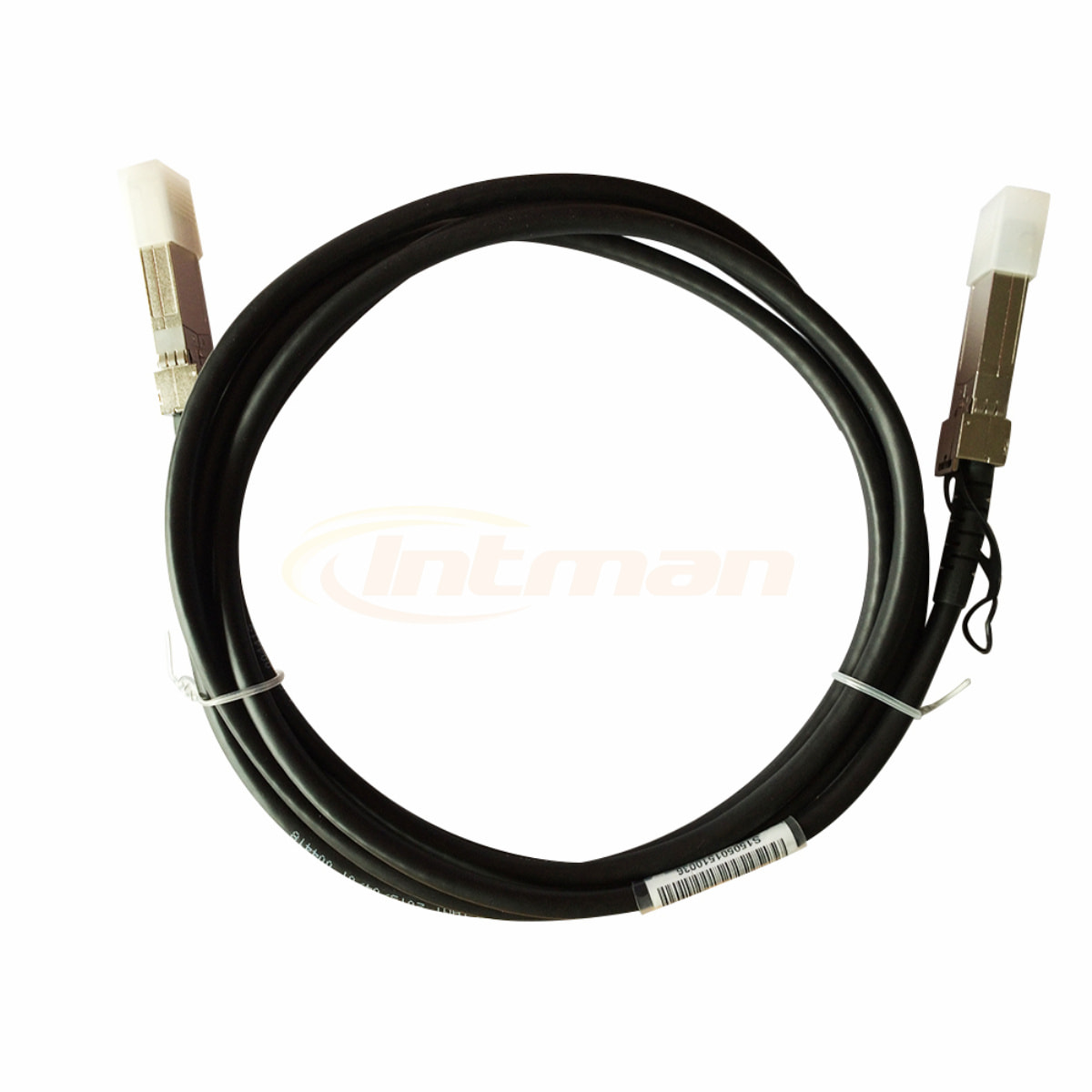

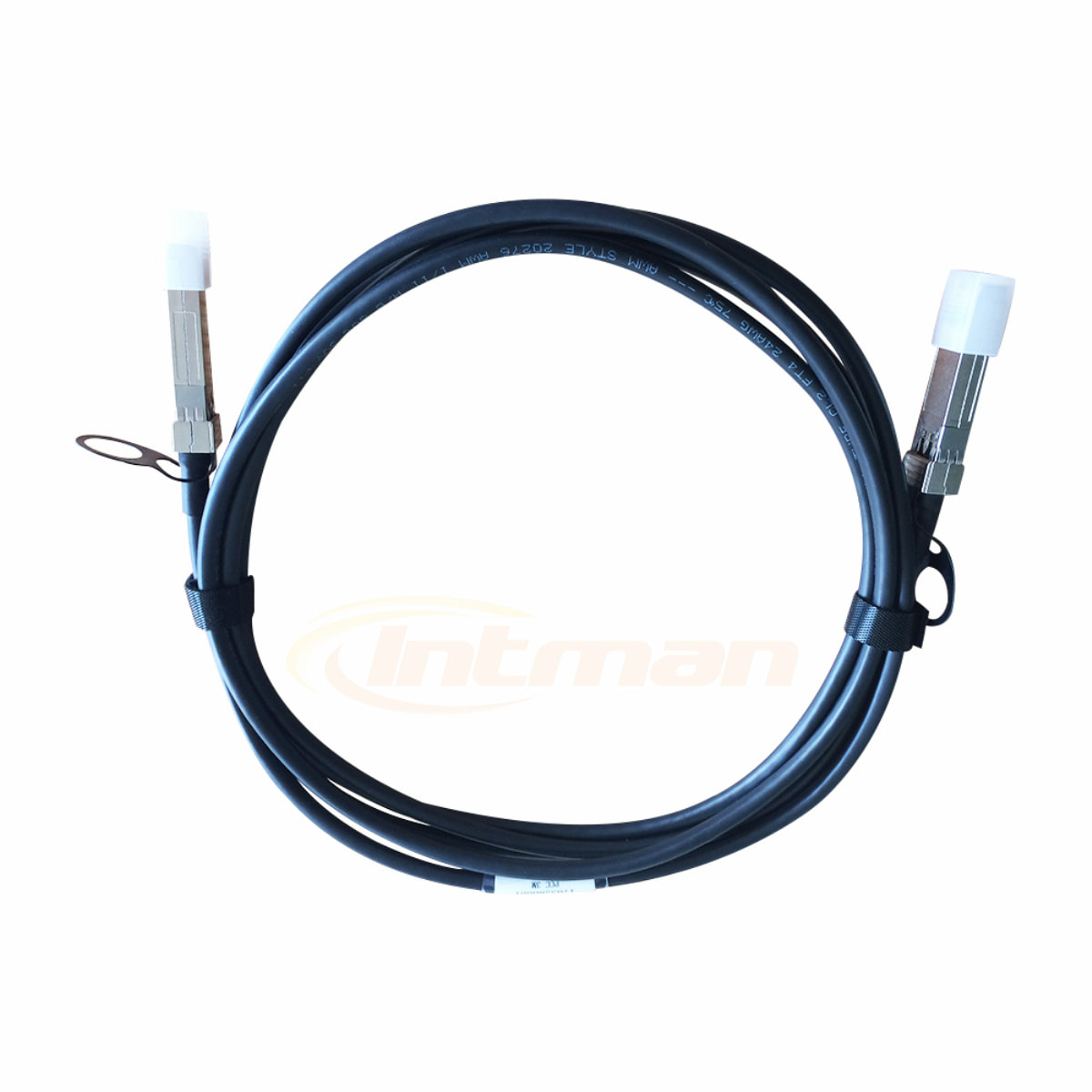

10G SFP+ to SFP+ 1m Twinax Direct Attach Copper Cables (DAC )
Description
10G SFP+ to SFP+ 1m Twinax Direct Attach Copper Cables (DAC )
High-Speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitter and receivers over a thin Twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.
Specification Table
| Data Rate (Mbps) | 10Gbps | Connector Type | SFP+ to SFP+ |
| Cable AWG | 30AWG | Cable Length | 1-10m |
| Jacket Material | PVC (OFNR)/LSZH | Cable Type | Passive Twinax |
| Power Consumption | ≤0.5W | Power Supply | 3.3V |
| Minimum Bend Radius | 23mm | Warranty | 5Years |
Key Features
- Active Copper (Equipped with chipset as a signal repeater) , cable length:0.5-15m
- Support for multi-gigabit data rates up to 10.5Gbps
- Data rates backward compatible to 1Gbps
- Hot-pluggable SFP 20PIN footprint
- I/O Connector designed for high-speed differential signal applications
- Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
- Compatible with industry-standard SFP cages+ switches
- EEPROM signature can be customized
- Low Power Consumption ＜ 0.5W
- Temperature Range: 0~70 ℃
Application Optical Cable
- 10Gigabit Ethernet
- InfiniBand, Fiber Channel 4G/8G/10G
- Sonet Multiplatform support
- High-Performance Computing Clusters
- High-End Servers
- Metro Network Switch/Cross Connect
Mechanical Dimensions
10G DAC Mechanical Dimensions
Ordering Information
| Part Number | Product Description |
| INT-DAC10GB-50CM | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 0.5M (2ft) |
| INT-DAC10GB-1M | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 1M (3ft) |
| INT-DAC10GB-2M | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 2M (7ft) |
| INT-DAC10GB-3M | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 3M (10ft) |
| INT-DAC10GB-4M | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 4M (13ft) |
| INT-DAC10GB-5M | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 5M (16ft) |
| INT-DAC10GB-6M | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 6M (20ft) |
| INT-DAC10GB-7M | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 7M (23ft) |
| INT-DAC10GB-10M | 10Gb SFP+ Direct Attach Copper Cable , 30AWG 10M (33ft) |
Important Notice
- Copper Type maximum length recommended at 15meters;
- Various cable lengths available for all types;
- Latch/tab available “on top” or “bottom” position;
