- Model: SFP-10G-SR
- Form Factor: SFP+
- Data Rate: 10Gb/s
- Connector: LC Duplex
- Wavelength: 850nm
- Distance: 300m
- Transmitter Type: VCSEL
- Fiber Type : Multimode
- Warranty Period:5years
- Fast Delivery Time
- 100% Testing Before Shipment

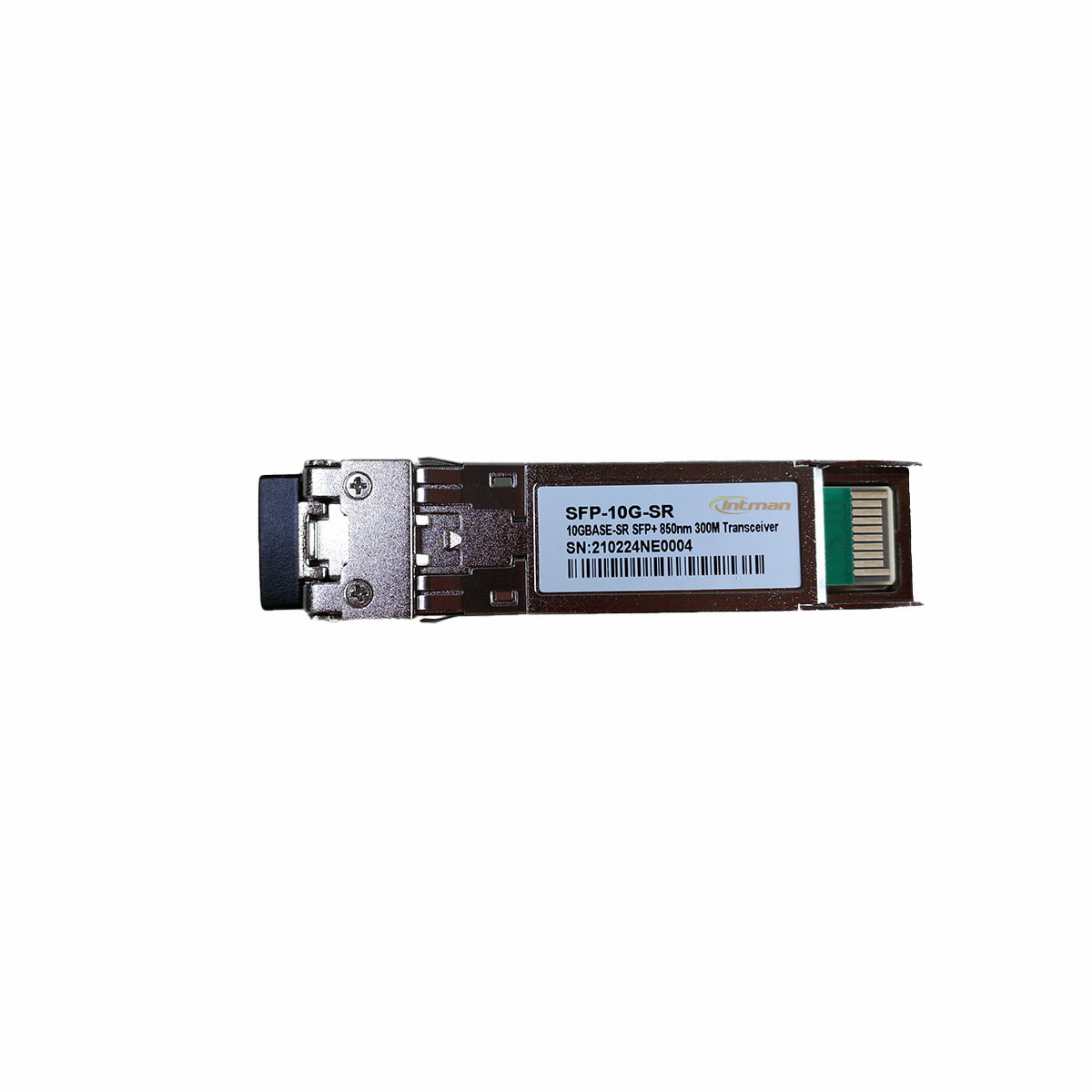

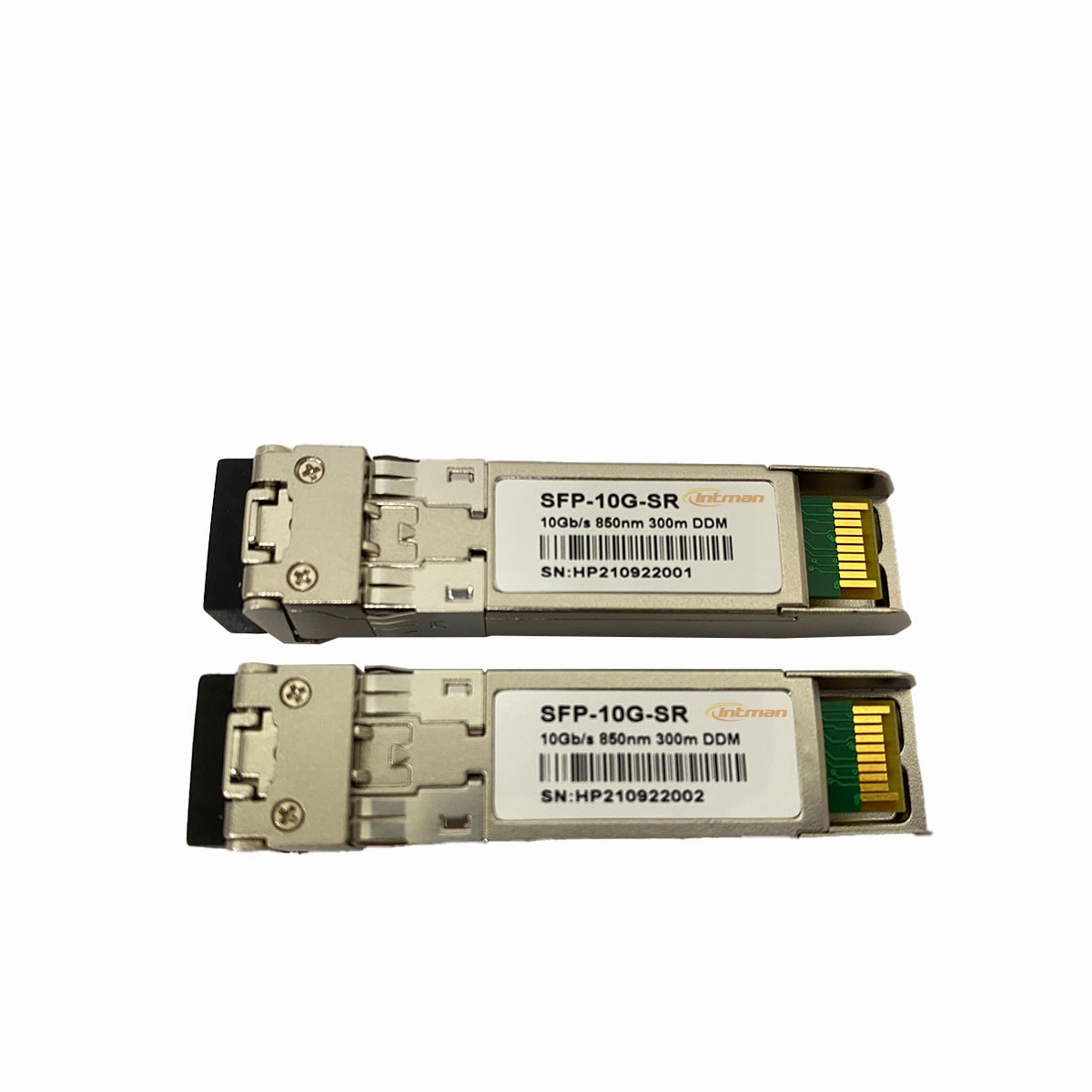

SFP-10G-SR 10Gigabit SFP+ SR Multimode 850nm 300m LC Transceiver
Description
SFP-10G-SR optical SFP+ transceiver
This SFP-10G-SR 850nm VCSEL 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125um or 62.5/125um multimode optical fiber. This transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-SR standard.
Specification Table
| Data Rate (Mbps) | 10G | Form Factor | SFP+ |
| Optical wavelength(nm) | 850nm | Fiber Type (micron) | MultiMode |
| Connector Type | LC DX | Distance | 300m OM3/400m OM4 |
| Max Data Rate | 10.3125Gbps | DDM/DOM | Supported |
| Receiver Type | PIN | Warranty | 5Years |
Key Features
- Optical interface compliant with IEEE 802.3ae 10GBASE-SR
- Electrical interface compliant with SFF-8431
- Hot Pluggable
- 850nm VCSEL transmitter, PIN photo-detector
- Maximum link length of 300m on 2000MHz/km MMF
- Operating case temperature: 0 to 70 ℃
- Low Power consumption
- Cost effective SFP+ solution enables higher port densities and greater bandwidth
Application Optical Cable
- 10GBASE-SR at 10.3125Gbps
- 10GBASE-SW at 9.953Gbps
- Other optical links
Mechanical Dimensions
SFP-10G-SR 10Gigabit SFP+ Dimensions
Ordering Information
| Part Number | Product Description |
| SFP-10G-SR | 10Gb/s SFP+ 850nm 300m SR DDM |
