- Name: MPO Patch Cord
- Fiber Count: 12fibers
- Cable Diameter: 3.0mm
- Fiber Type:OM3 50/125um
- Polarity: B
- Outer Sheath: LSZH
- Sheath Color: Aqua
- Pinless

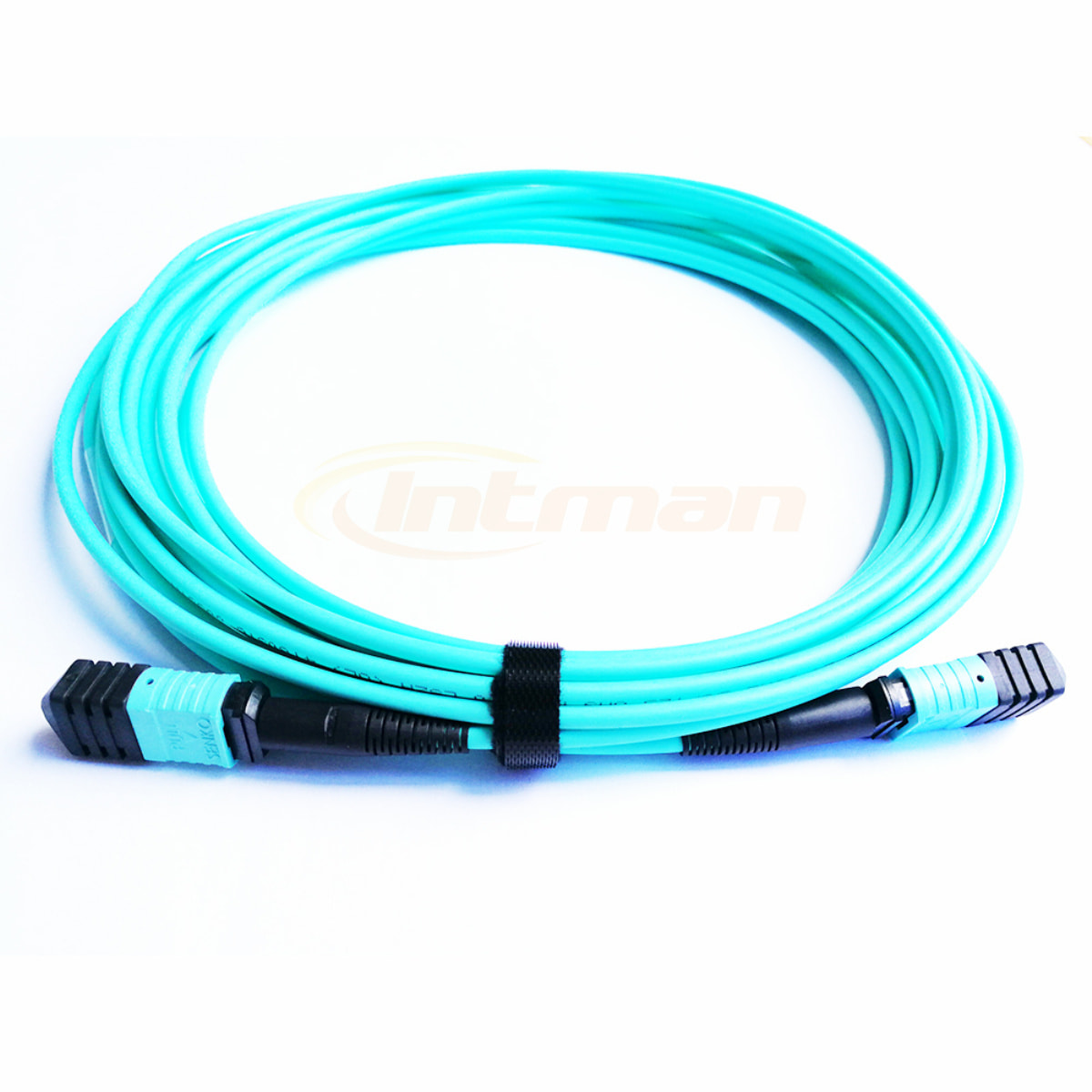

12 Fiber MPO Connector OM3 Multimode Fiber Optic Cable Assemblies
Description
1. OM3 12Fibers MPO connector fiber optic cable
MPO/MTP fiber patch cables allow high-density connections between network equipment in telecommunication rooms and data centers. MPO breakout cable,a cost-effective alternative to time-consuming field termination, is designed for high- density fiber patching in data centers which need space saving and reduce cable management troubles. With Senko MPO OM3 connectors and Corning Clearcurve fiber, it is optimized for 10/40/100G high-density data center applications.
Applications
- Telecom system
- Cabling system
- High density optical laser
- QSFP devices
Features
- MTP/MPO Push-pull connectors for Quick fiber optic connections
- Push/Pull tab connectors offer maximum accessibility in high density installations,install remove with one hand
- 12times the density of SC style connectors
- High denisty design cuts down on installation costs
- Plenum rated jacket
2.MPO OM3 Patch cord Specification Table
| Connector A | MPO Female Polarity B | Connector B | MPO Female (pinless) |
| Fiber Count | 12Fibers | Fiber Type | OM3 50/125um |
| Outer Jacket Material | LSZH | Jacket Colors | Aqua |
| Jacket OD | 3.0mm | Operating Temperature Range (℃） | –40 to +70℃ |

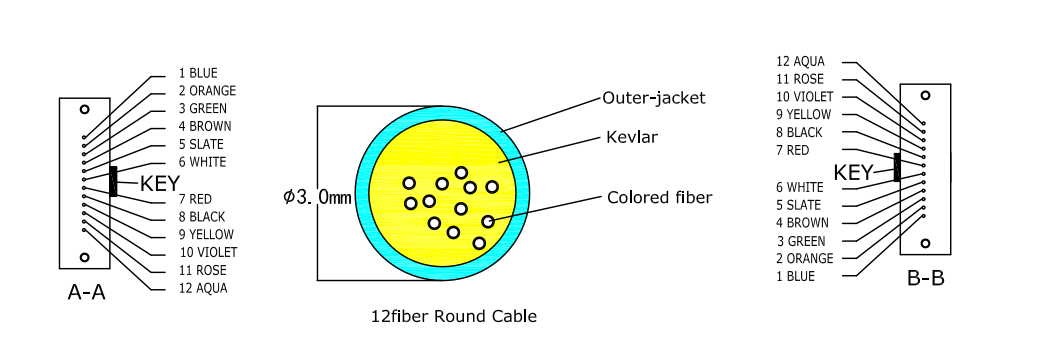

3. MPO Fiber Optic Patch cord Structure

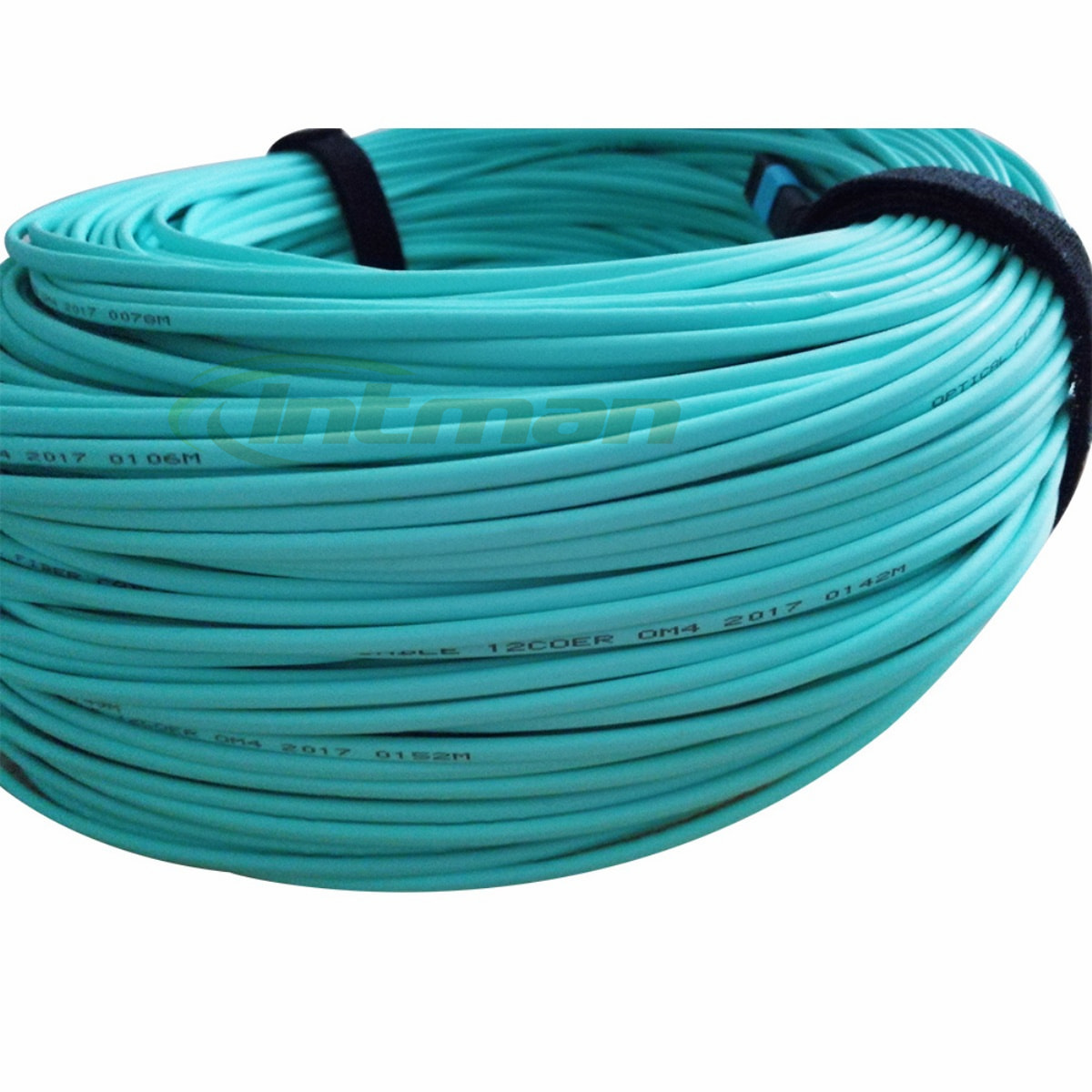

4. MPO OM3 12Fibers Fiber Optic Patch Cable Production Line

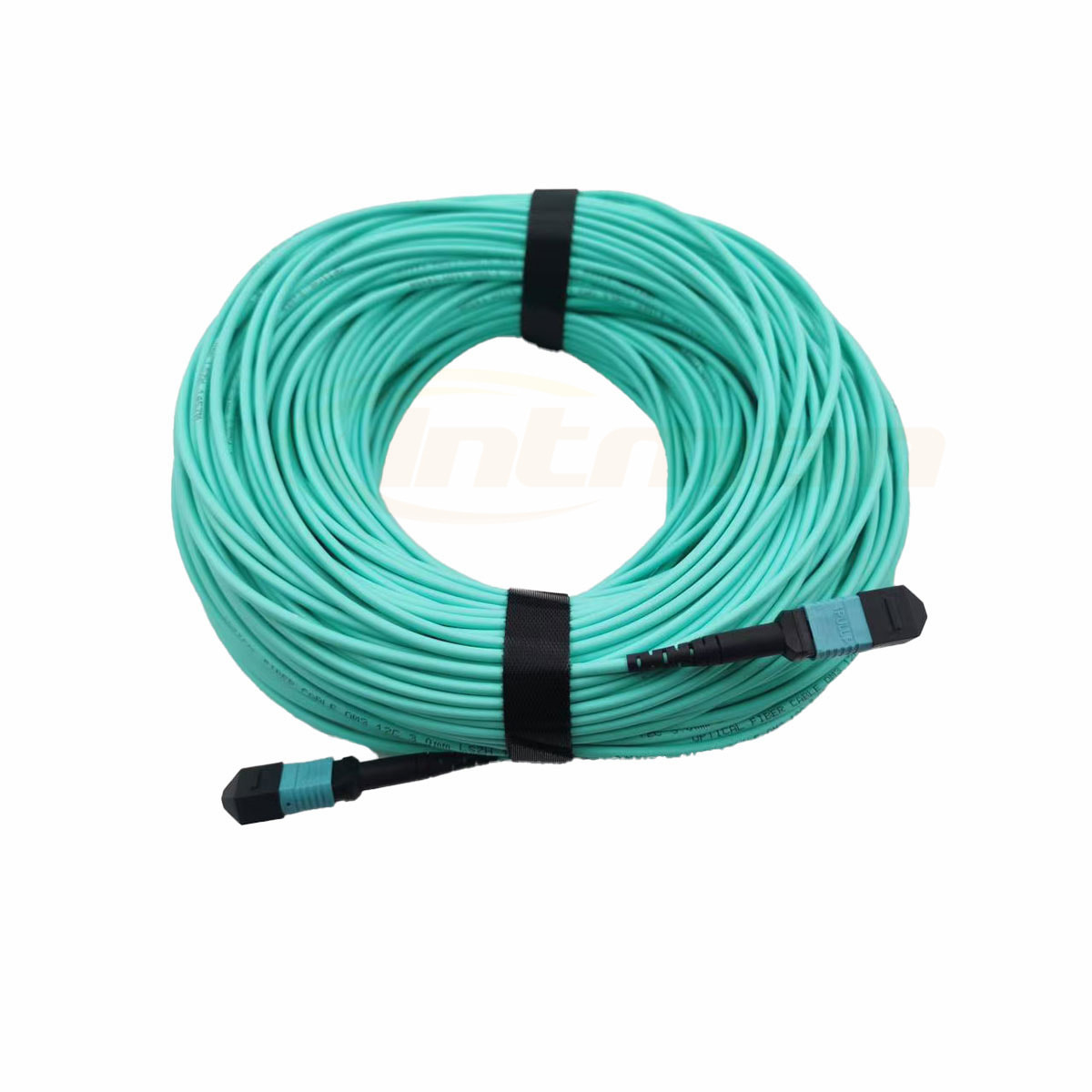

MPO Patch cord Assembly
