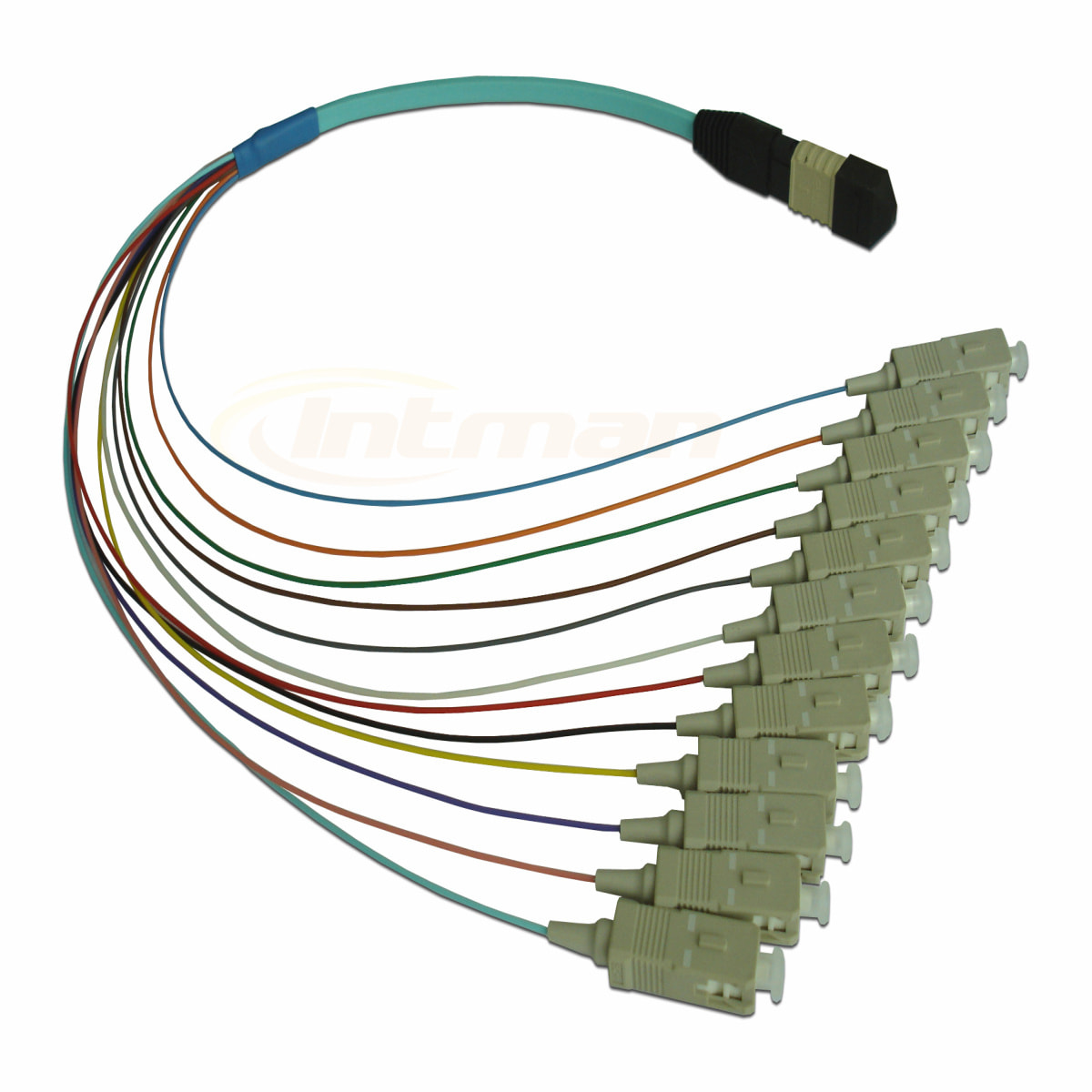

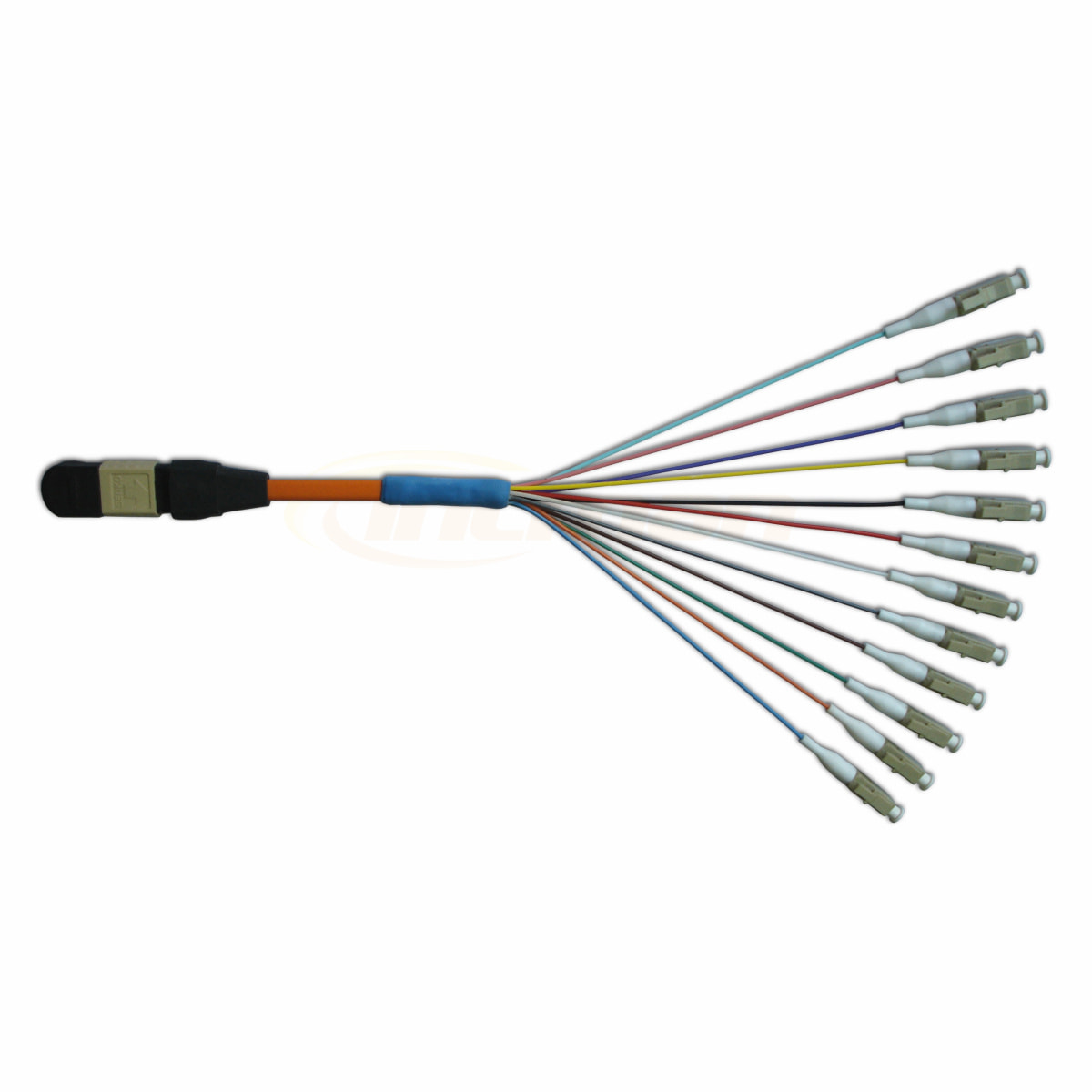

MPO to LC/SC Fanout Fiber Optic Cable Assembly

Description

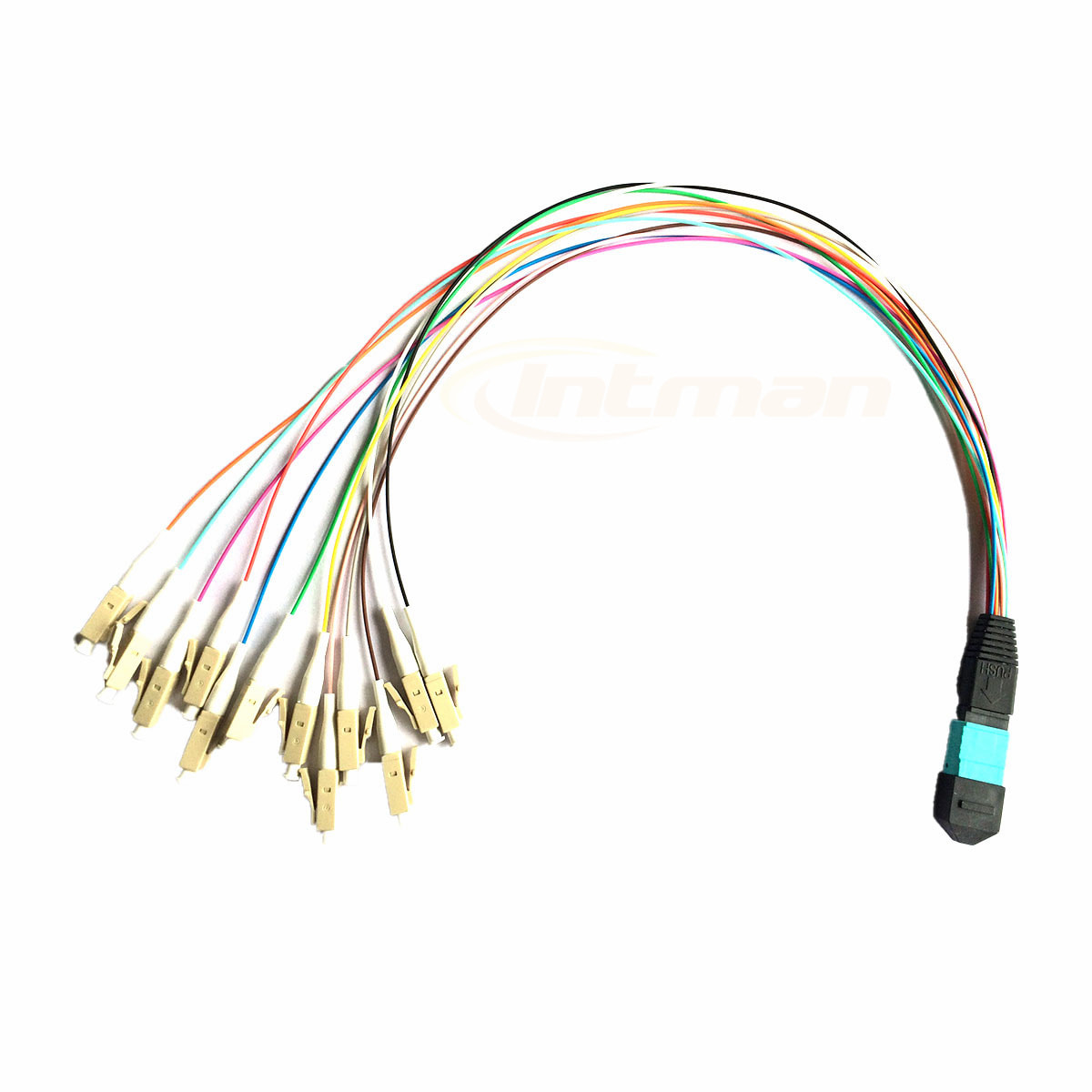

1. OM3 12Fibers MPO to LC 0.9mm fan out connector fiber optic cable

MPO/MTP fiber patch cables allow high-density connections between network equipment in telecommunication rooms and data centers. MPO breakout cable,a cost-effective alternative to time-consuming field termination, is designed for high- density fiber patching in data centers which need space saving and reduce cable management troubles. With Senko MPO OM3 connectors and Corning Clearcurve fiber, it is optimized for 10/40/100G high-density data center applications.

 Applications

• Telecom system
• Cabling system
• High-density optical laser
• QSFP devices

Features

1. MTP/MPO Push-pull connectors for Quick fiber optic connections
2. Push/Pull tab connectors offer maximum accessibility in high-density installations, install remove with one hand
3. 12times the density of SC-style connectors
4. High-density design cuts down on installation costs
5. Plenum rated jacket

2. MPO to LC Fan out OM3 Patch cord Specification Table

3. MPO Fiber Optic Patch cord Structure

MPO-LC 12fibers 0.9mm Drawing

4. MPO OM3 12Fibers LC /SC Fanout Fiber Optic Patch Cable Production Line

MPO Patch cord Assembly
