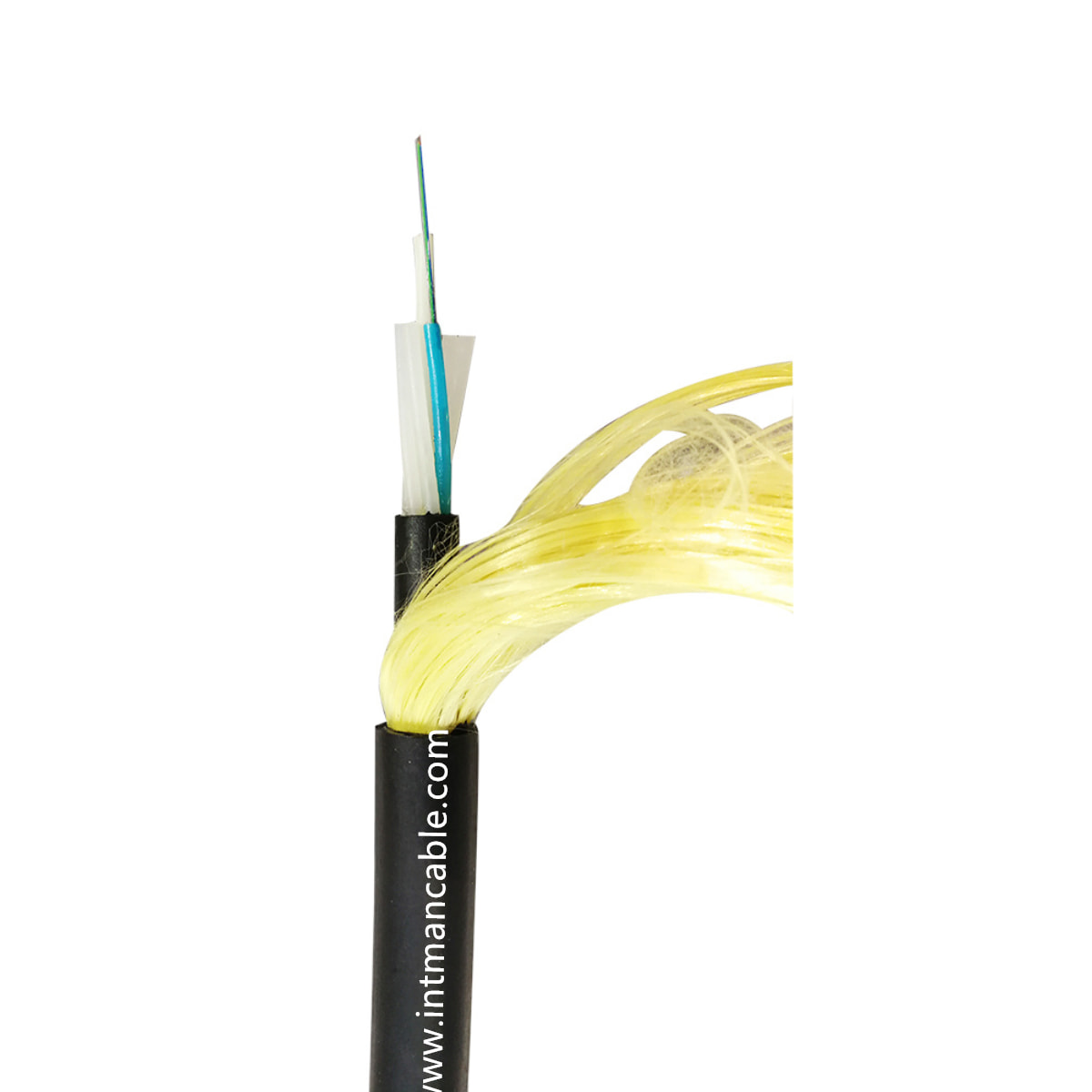

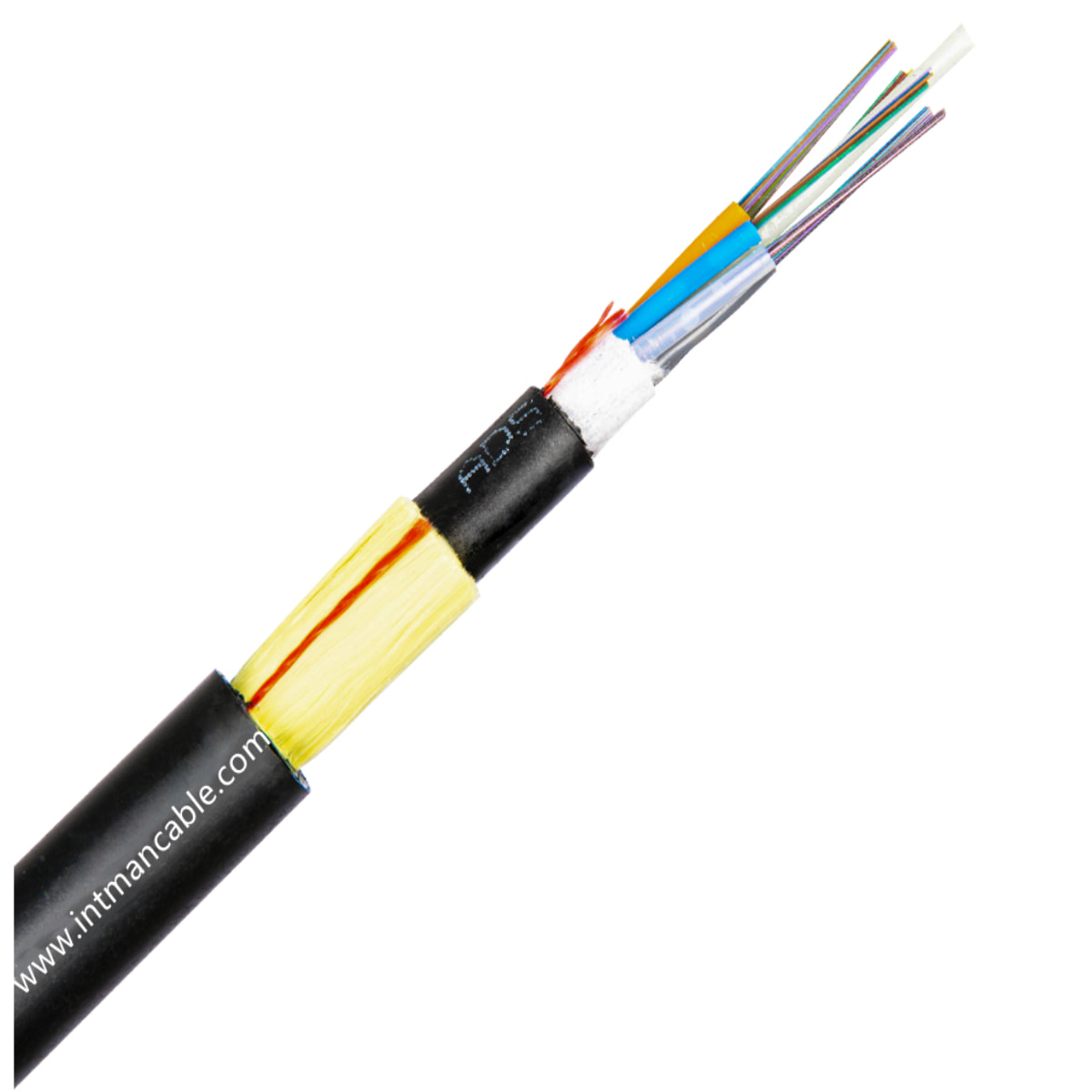

12core Outdoor ADSS Fiber Optic Cable Types

Description

1. 12core Outdoor ADSS Fiber Optic Cable Highlight & Performance

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.

Performance Indicators

No metal wires are used in an ADSS cable. Optical fibers are either supported in loose buffer tubes or arranged in a ribbon configuration. To prevent strain on the fibers, most types provide the fibers with excess slack length compared to the length of the supporting member.

12Core Outdoor ADSS Fiber Optic Cable’s Features

1. UV stabilised polyethelene jacket suitable for long life in a wide range of installations
2. Water swellable yarns provide protection again water ingress (dry core construction)
3. Non-metallic construction
4. Fibreglass reinforced polymer central strength member and aramid yarn peripheral strength member provide excellent strength
5. Flexible buffer tubes provide easy handling within termination enclosures
6. Single layer SZ stranding limits stress on fibre tubes
7. Fibre friendly thixotropic gel in tubes ensures fibre protection
8. TIA 598 standard colour code
9. 12 fibre tube constructions
10. 6 to 144 fibres

Outdoor ADSS Fiber Optic Cable’s Applications

• High voltage power lines
• Telephone poles
• Railway overhead  lines
• Utilility networks
• Rural long distance data transmission

2.FTTH Outdoor 2core Fiber Optic Drop Cable Specification Table

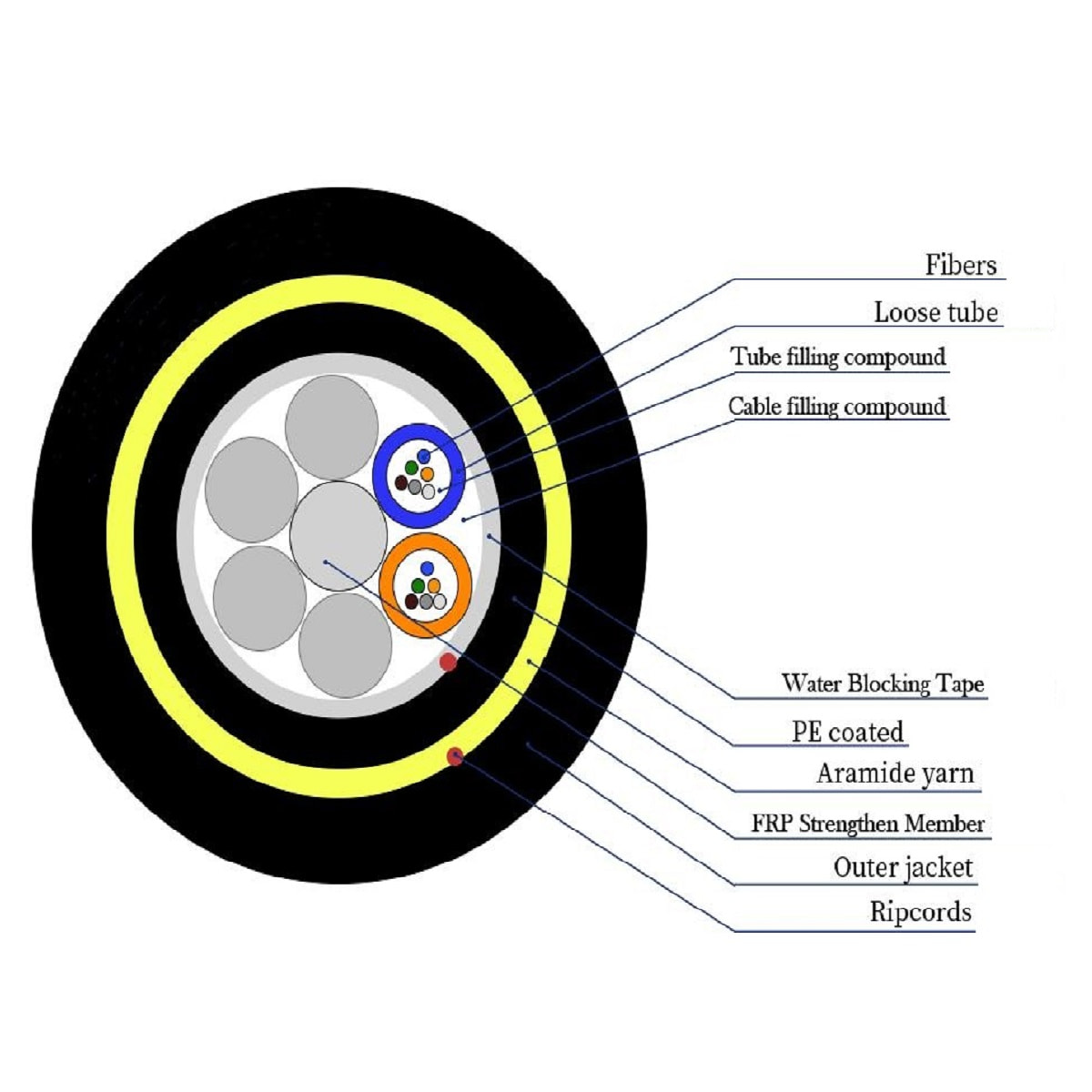

3. ADSS Outdoor Fiber Optic Cable’s Structure

adss fiber optic cable structures

4.ADSS 12Core Fiber Optic Cable Package Way

ADSS cable package drum
