- Name: Steel Tube Type PLC Splitter
- Connector : SC/LC/ST/FC
- Cable Diameter: 0.9mm
- Cable Color: Yellow
- Fiber Type: 9/125um
- Cable Length: 1m,1.5m,2m
- Cable Jacket: LSZH, PVC
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

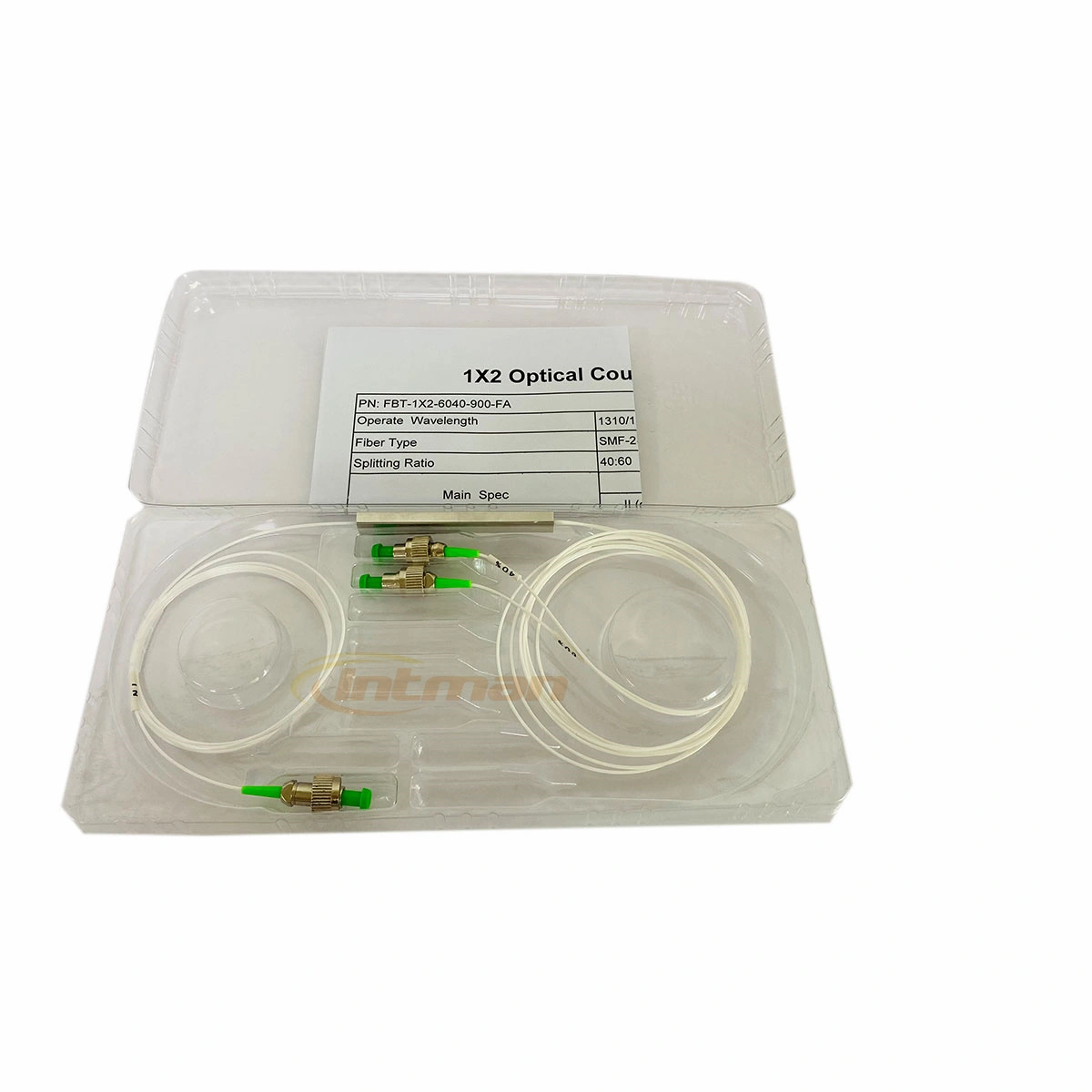

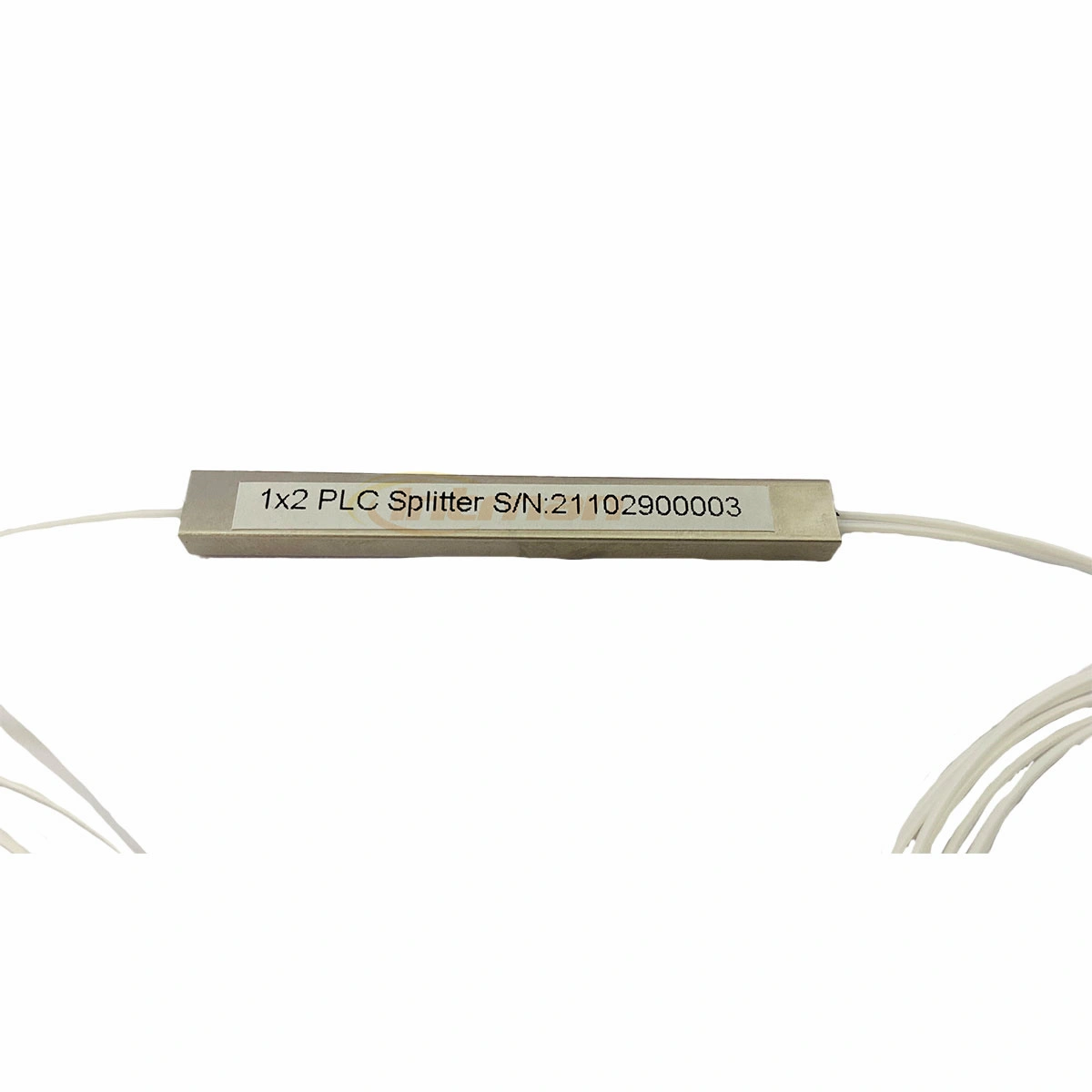

1×2 Steel Tube Fiber PLC Splitter
Description

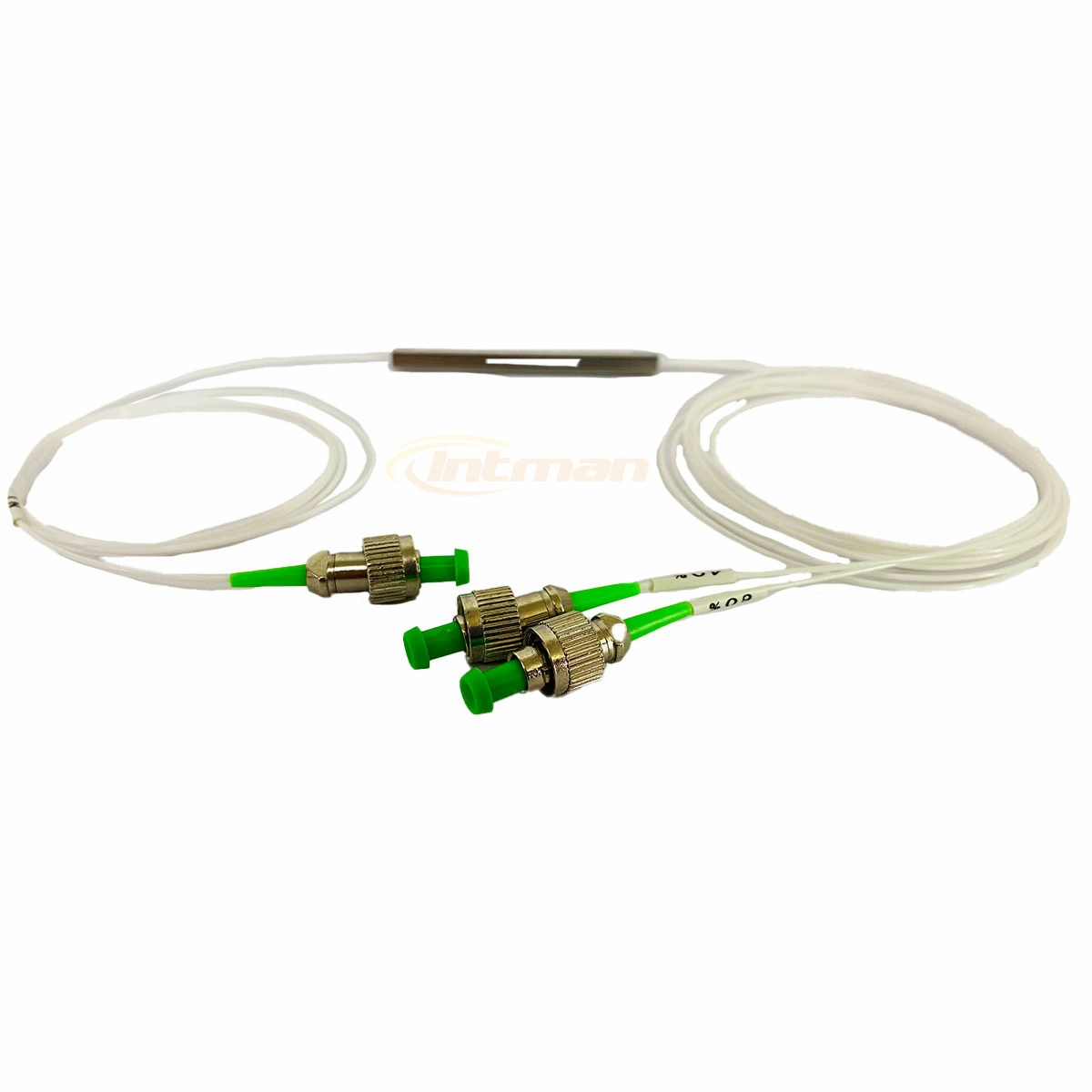

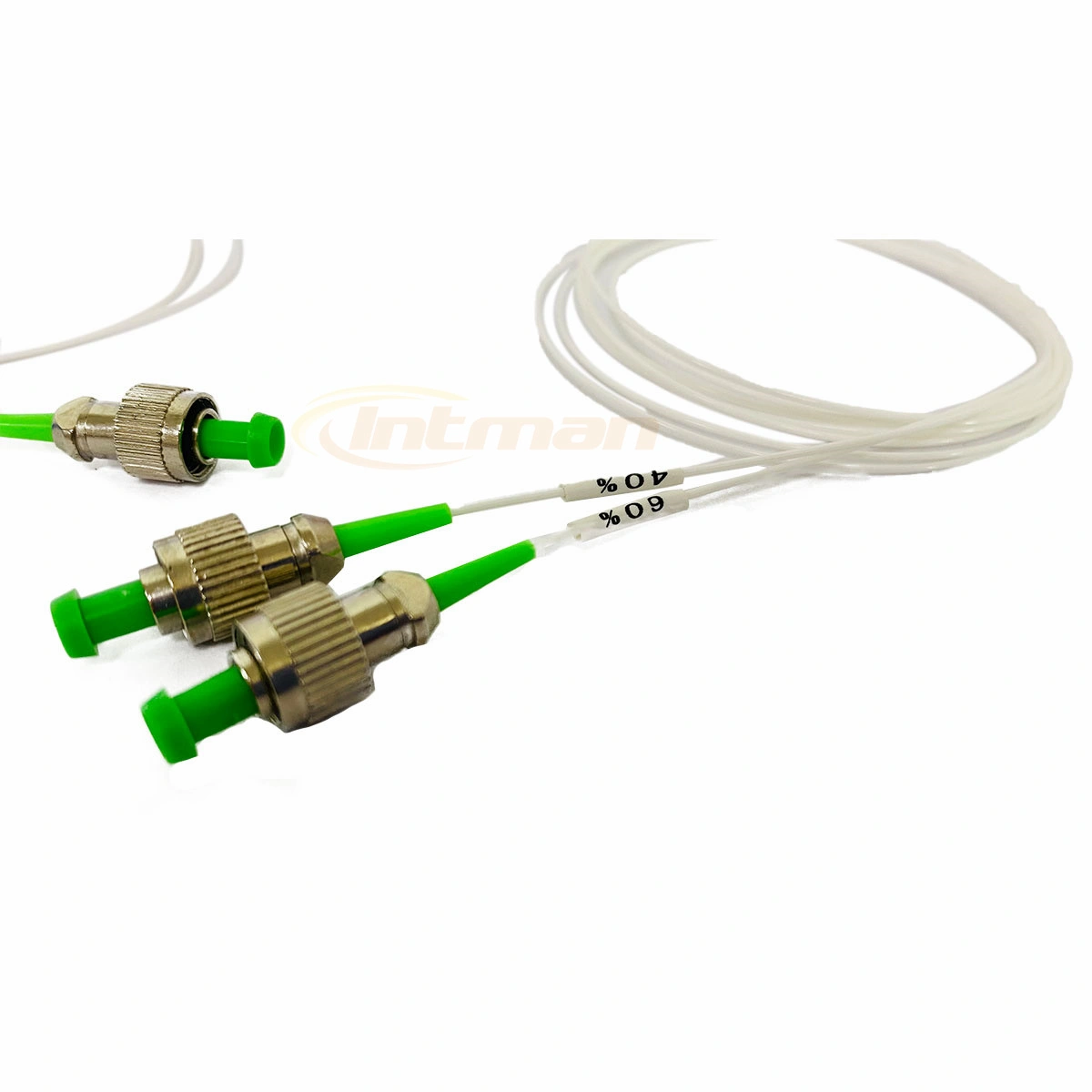

1×2 Steel Tube Fiber Splitter
PLC (Planar Lightwave Circuits) multimode splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. Intman PLC splitters provide a low-cost solution for optical signal distribution, with a small form factor and superb reliability. Intman offer 1×2, 2×2, 1×4, and 1×8 multimode fiber optic couplers, as well as customized structures of 2×4,2×32,2×64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirements.
Specification Table
| Connector | SC/LC/FC/ST | Cable Diameter | 0.9mm |
| Fiber Mode | Singlemode | Wavelength | 1260~1650nm |
| Jacket Color | White or 12colors | Jacket Material | LSZH |
| Length | 1m,1.5m,2m | Fiber Grade | 9/125um |
| Polarization Dependent Loss (dB) | ≤0.2dB | Return Loss(S/P) | 55/65dB |
| Micro Module Size(L×W×H) | 60×7×4mm | Device Package Size | 40×4×4mm |
| Operating Temperature | -40~85℃ | Storage Temperature | -40~85℃ |
Features
- Low insertion loss and high return loss
- Various coupling ratio
- Low Polarization dependent loss
- Environmental Stable
- Operation wavelength:1260nm to 1650nm
Applications
- FTTx Systems
- Optical LAN, Metro, and WAN networks
- Passive Optical Networks
- CATV networks

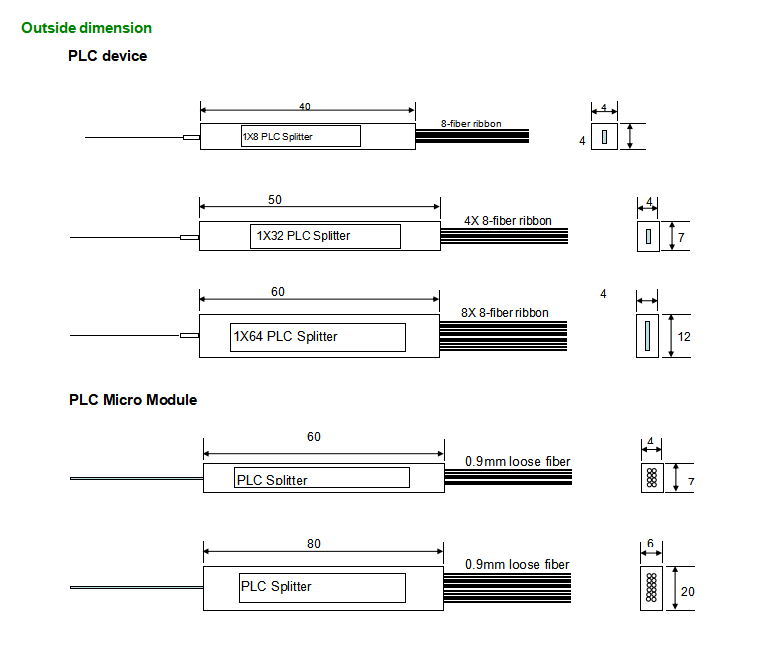

PLC Micro Module &PLC Module Box Dimensions
PLC Micro Module Size
