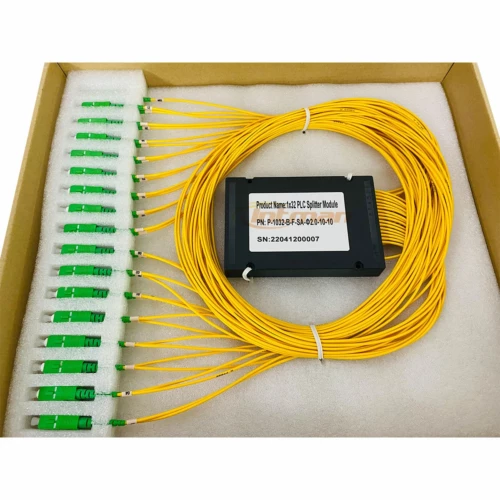

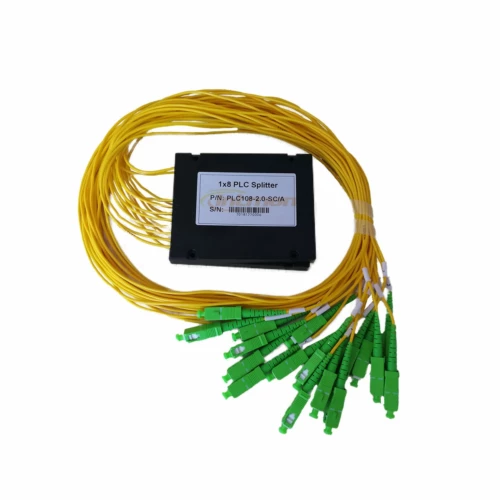

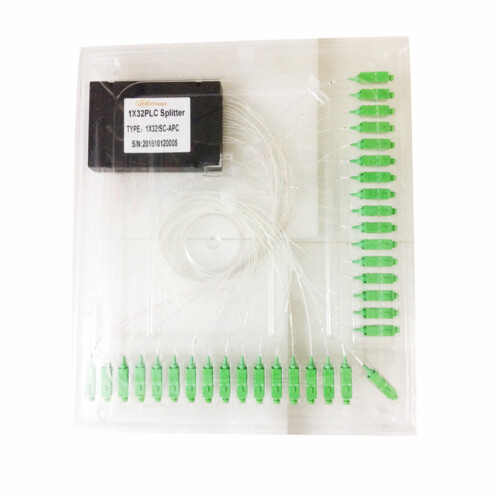

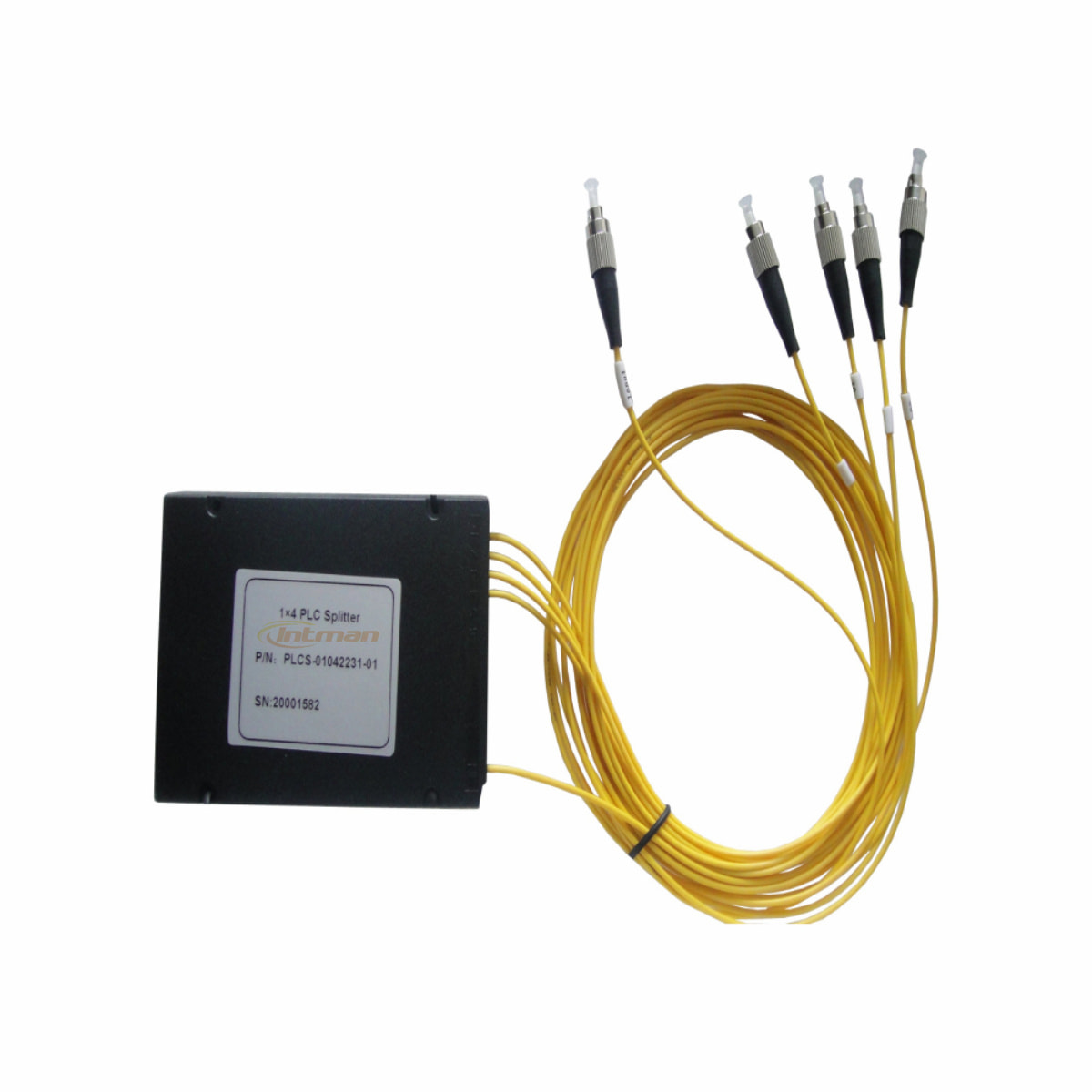

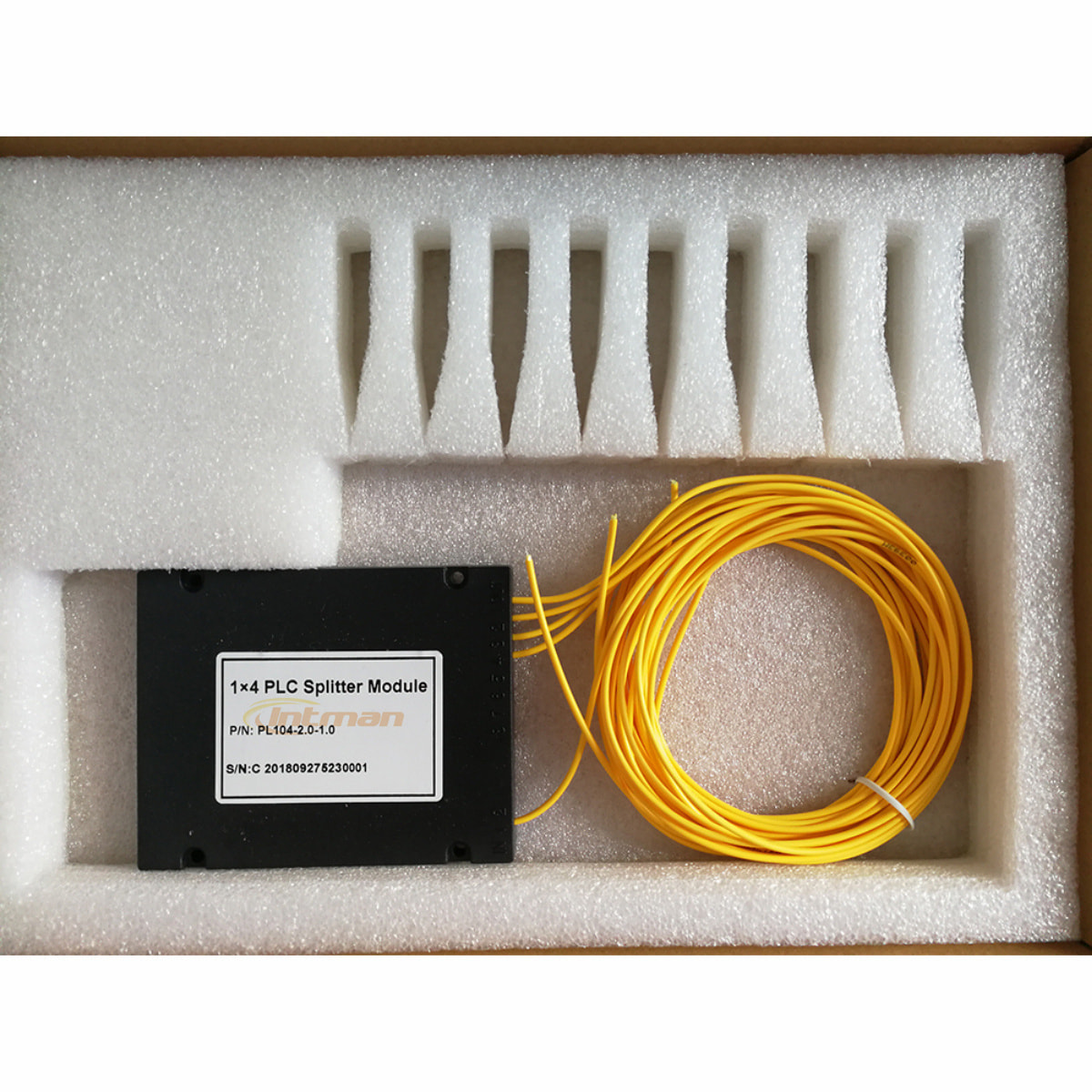

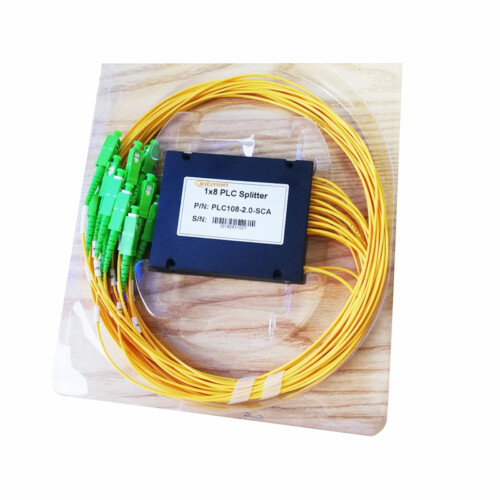

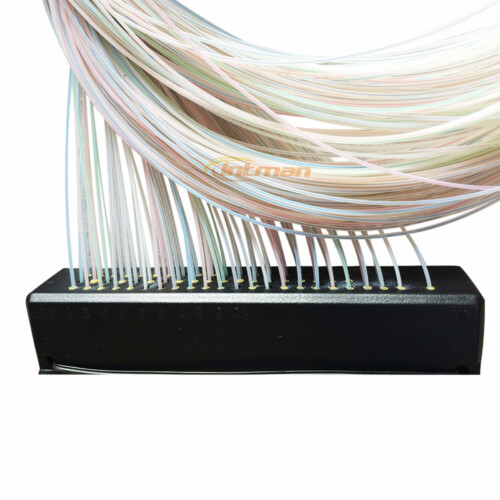

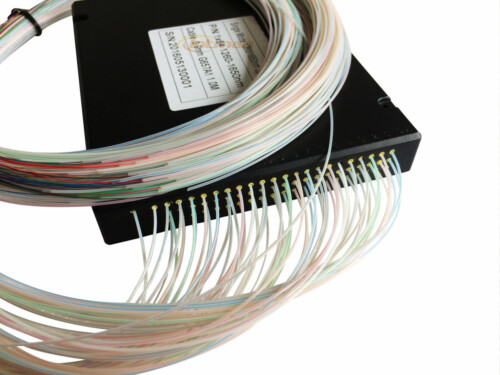

PLC (Planar Lightwave Circuits) splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. Intman PLC splitters provide a low-cost solutions for optical signal distribution, with a small form factor and superb reliability. Intman PLC devices have 1×4,1×8,1×16 and 1×32,1×64 standard configurations, as well as customized structures of 2×4,2×32,2×64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirements.
| Connector | SC/ST/FC/LC | Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Mode | OS2 9/125um | Wavelength | 1260~1650nm |
| Jacket Color | Yellow or 12colors | Jacket Material | LSZH,PVC |
| Length | 1m,1.5m,2m | Fiber Grade | G652D ,G657A1,G657A2 |
| Polarization Dependent Loss (dB) | ≤0.2dB | Return Loss(S/P) | 50/55dB |
| Module Box Dimensions(L×W×H) | 100×80×10mm | Device Package Size | 40×4×4mm |
| Operating Temperature | -40~85℃ | Storage Temperature | -40~85℃ |
