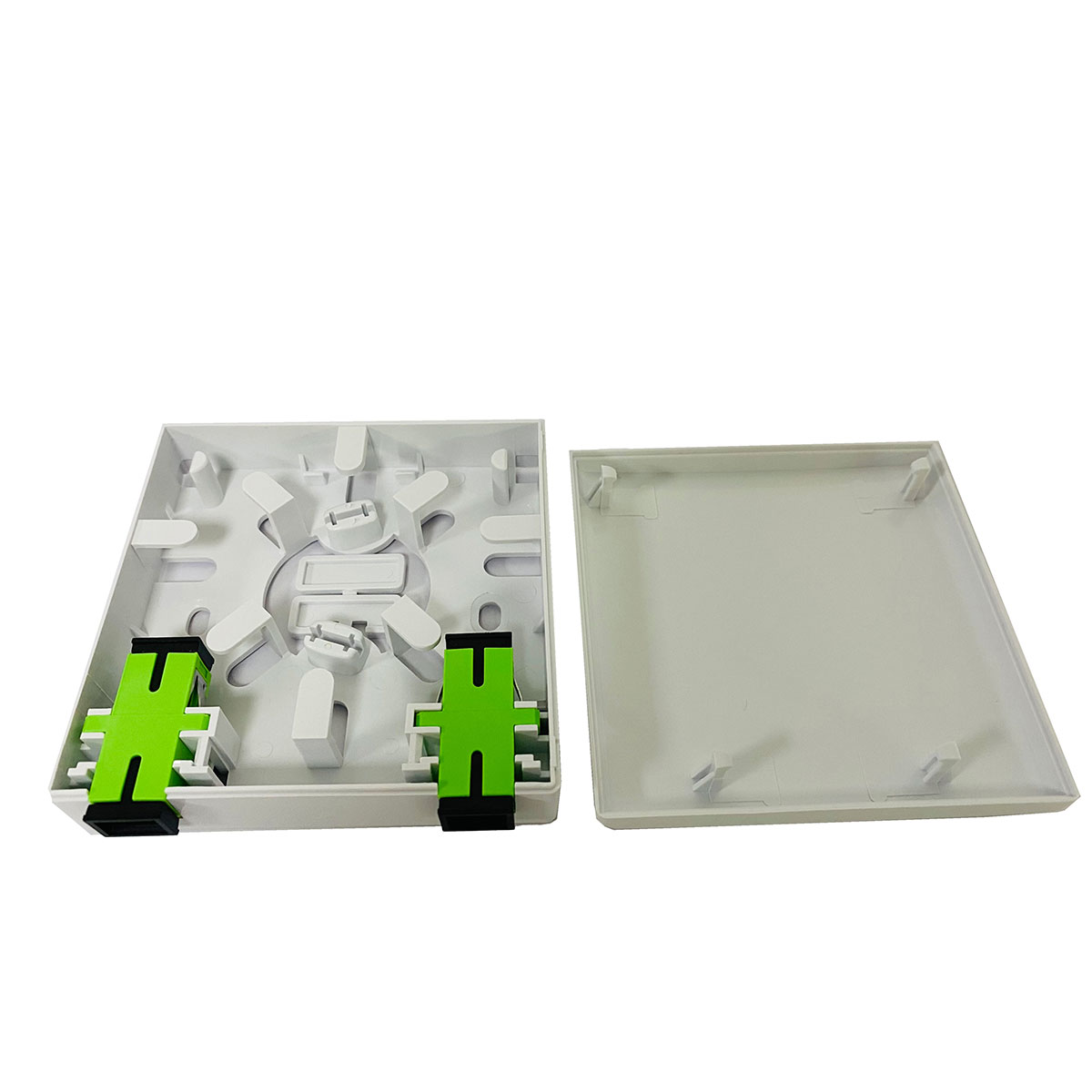

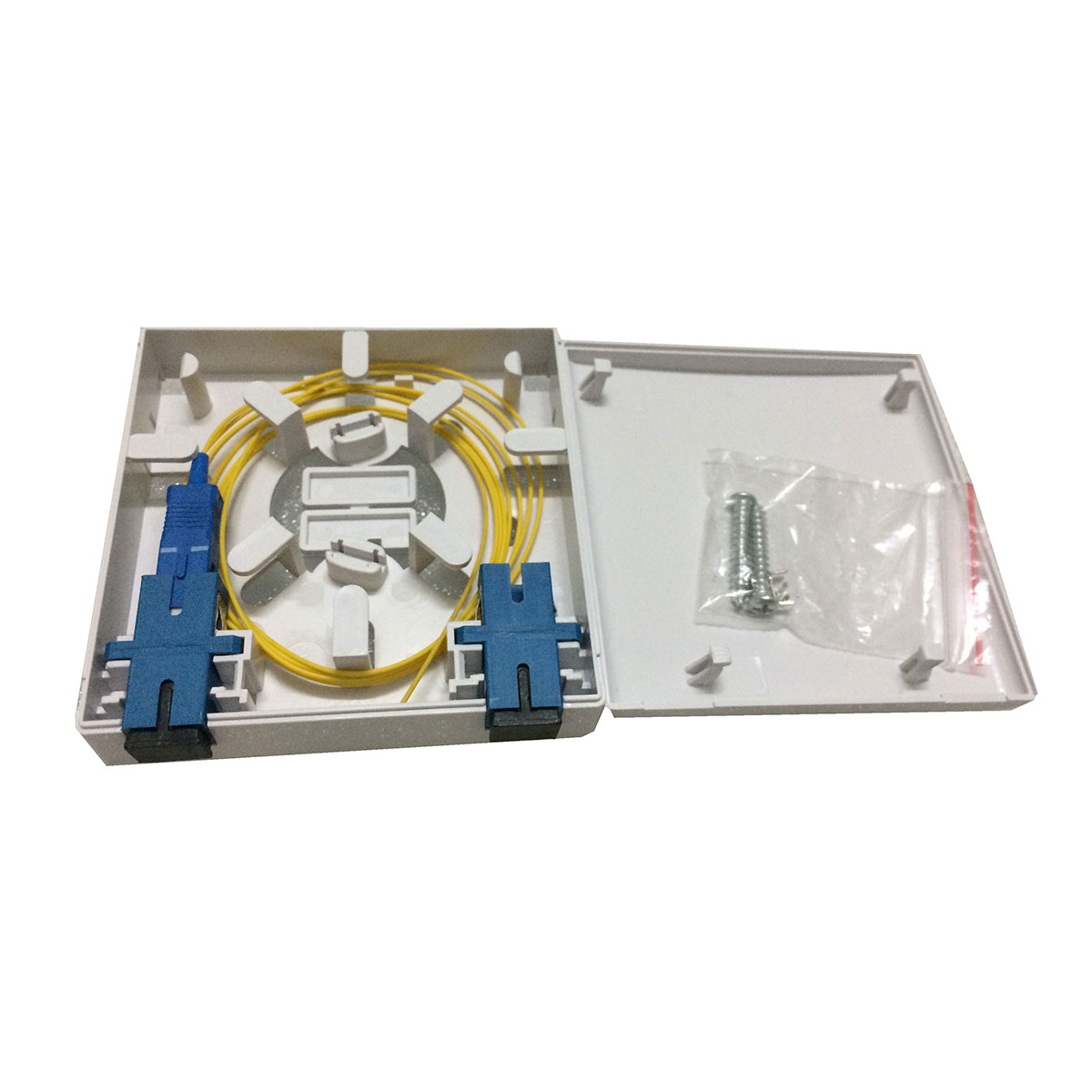

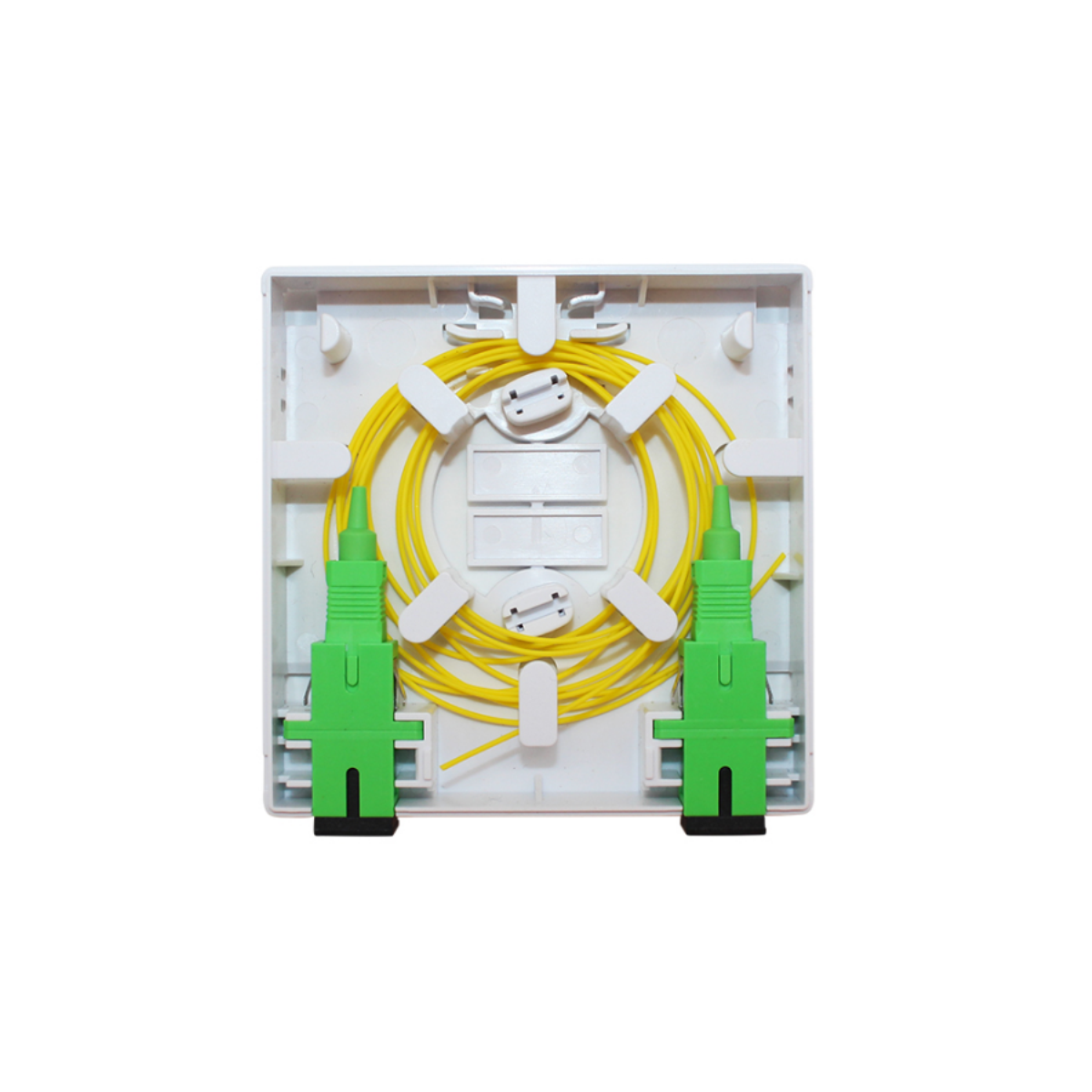

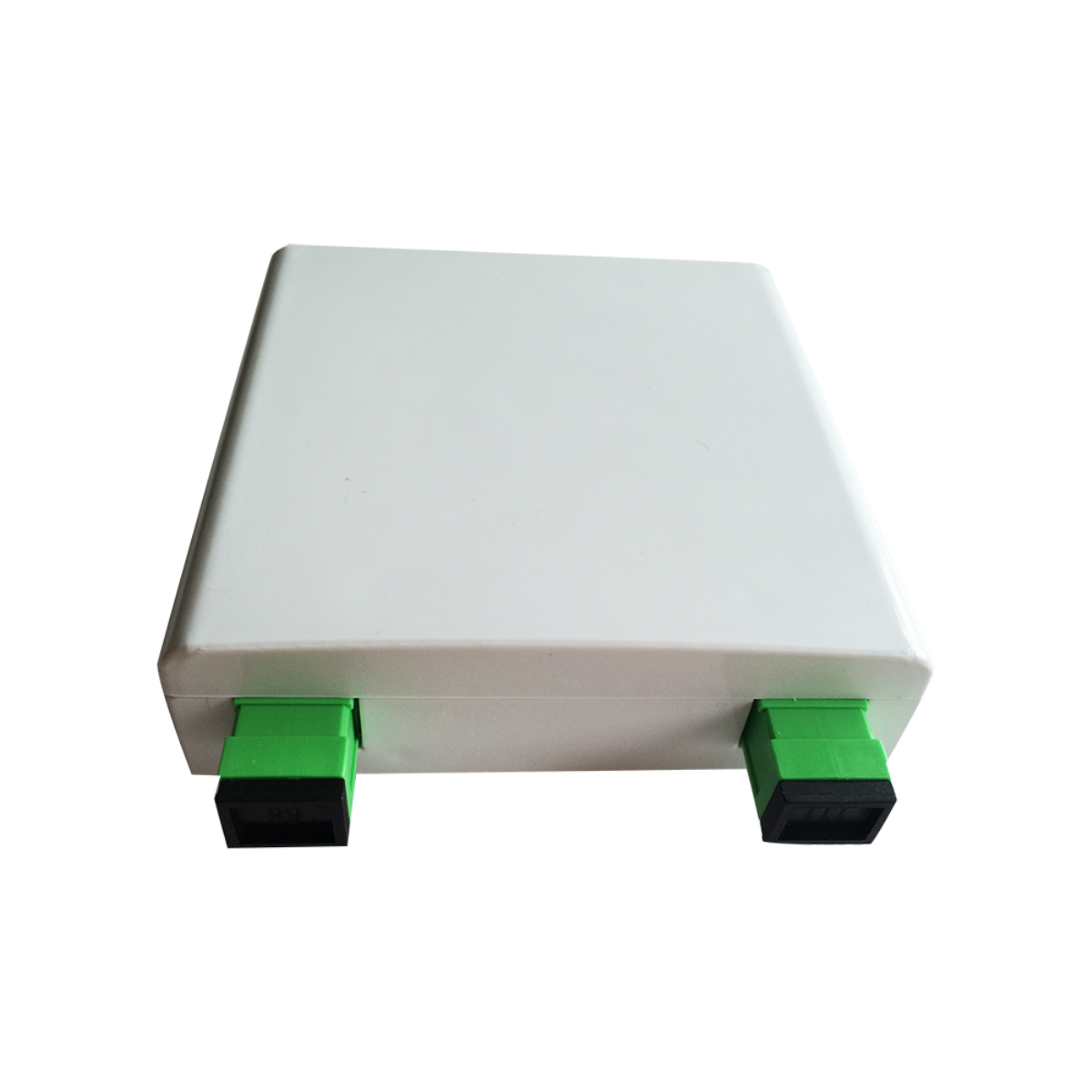

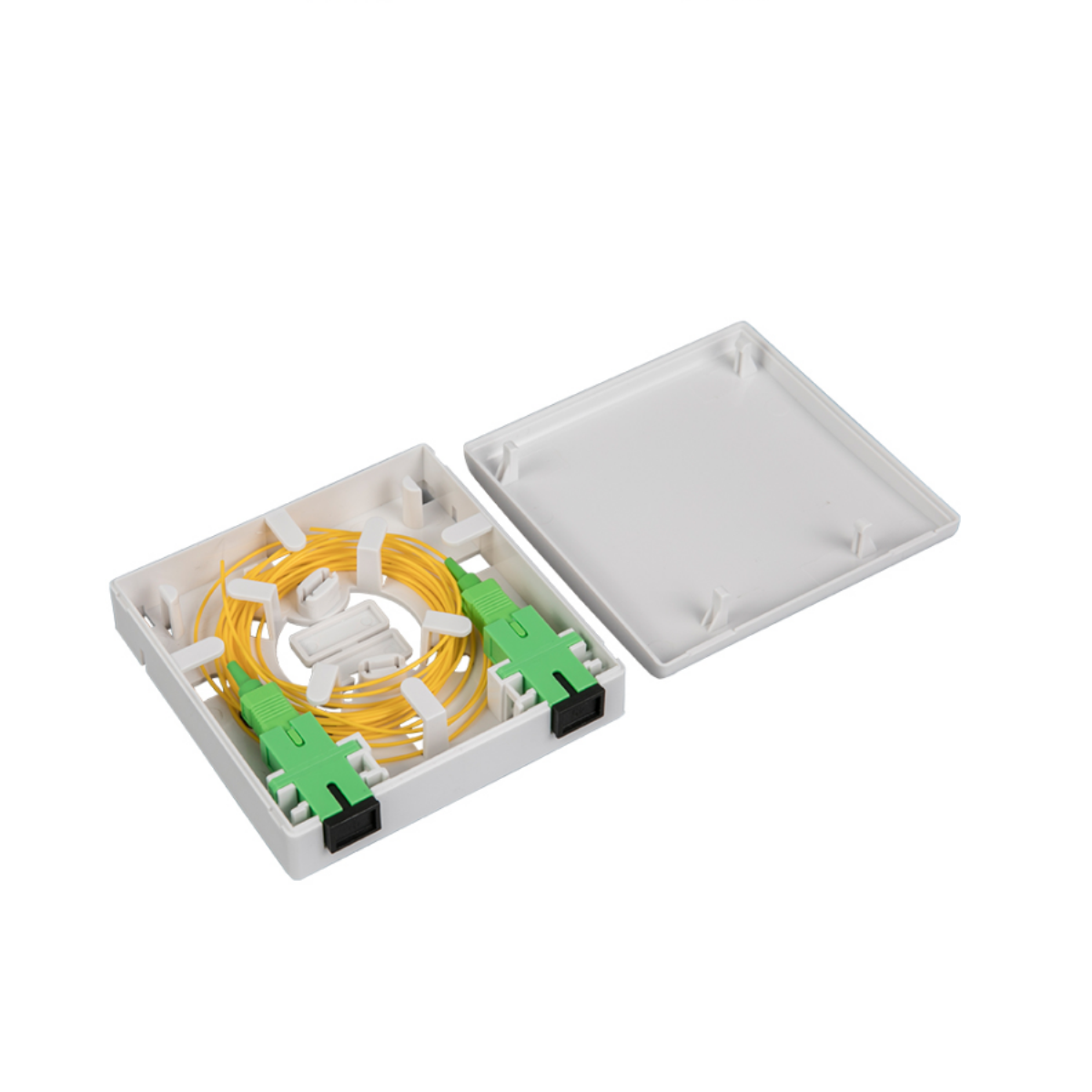

2 Cores FTTH Fiber Optic Faceplate Box ABS Material SC 86 Optical Plastic Socket

Description

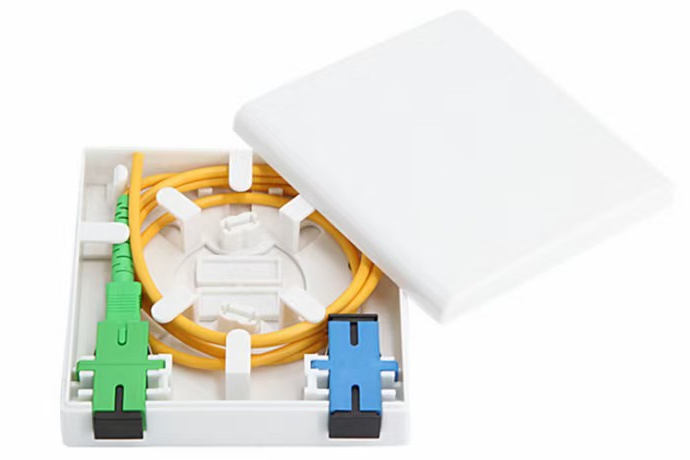

This Wall outlet termination box is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC duplex type. The termination box is used for wall-mounted or desktop applications. Made of plastic material, is easy to install in a home or office. Outlets are designed to fit the SC fiber optic cable patch cord adapter, used in the work location subsystem.



Product Features:

• Connecting Type: SC,LC with common model adapters
• Using high quality ABS material, has a certain fire resistance
• With dustproof device to prevent dust from entering
• Pull-off force is greater than 50N,fixed and reliable
• The wall outlet termination box is easy to operate and has low construction intensity
• Support MM or SM fiber connection
• 2Ports for SC simplex, LC duplex adapters





FTTH 2Core termination Box Application:

• Scope of application 3×2mm drop cable or patch cable
• For home or work area FTTD fiber interface
• Outdoor optical cable fixing, FTTH cable fixing, adapter fixing, fast connector fixing
• Telecommunication Networks
• FTTH, FTTX,FTTB
• Communication System
• Test equipment
• Fiber CATV





FTTH 2core Fiber Optic faceplate Types









Box Model	FPSCA-2P	Box Port	2SC Simplex

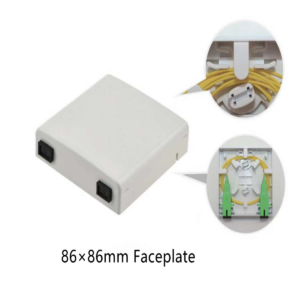

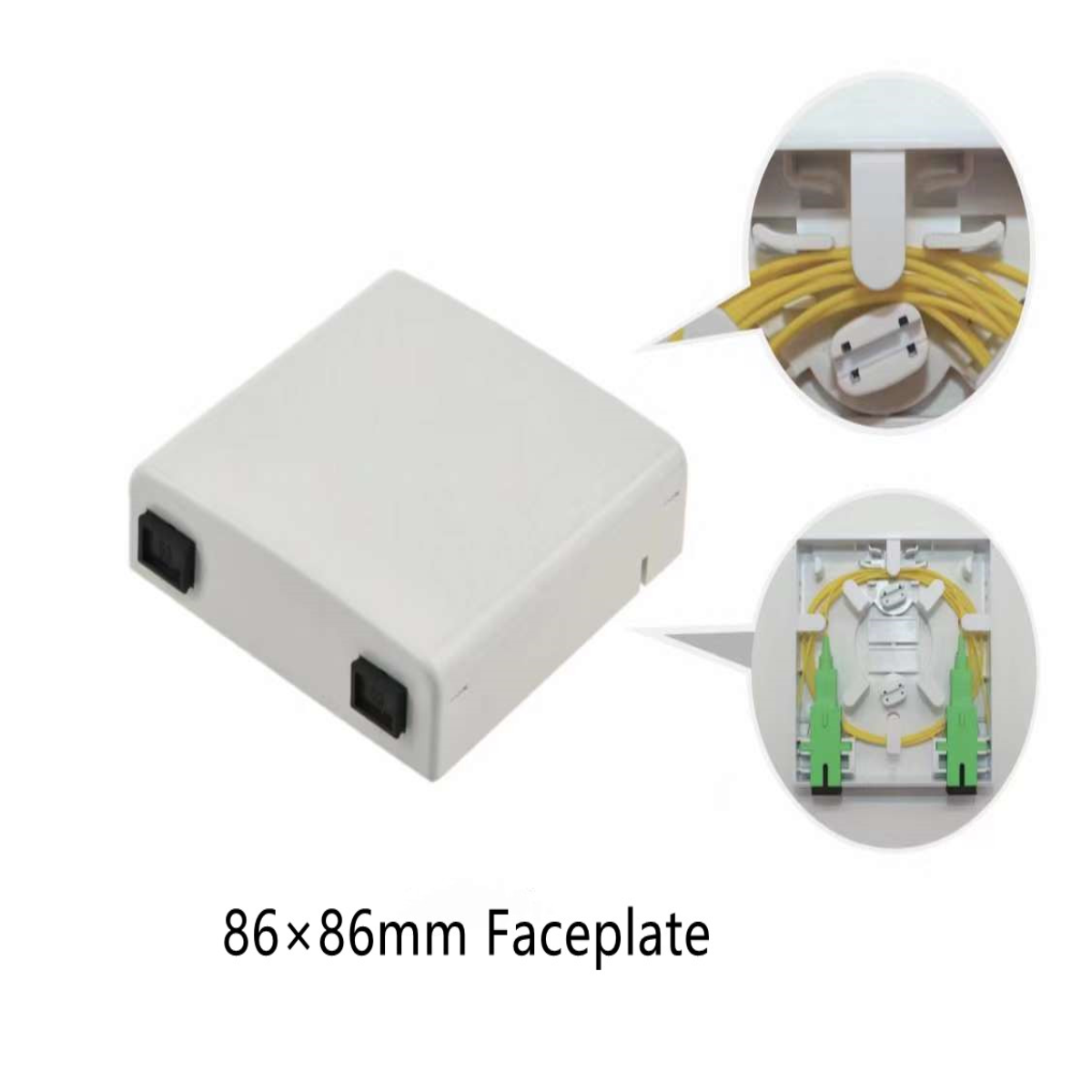

Box Dimension	86×86×24mm	Material	ABS
Color	White	Approximate Weight	0.05kg
Adapter Plate	SC Simplex	Adapter Capacity	2ports
Cable Ports	Input/Output	Mounting Type	Wall Outlet
Indoor/Outdoor	Indoor	Fiber Mode	SM/MM



Model Information :

Model	Material/Color	Capacity	Size
FPSCU-2P	ABS/White	2ports	86×86×24mm
FPSCA-2P	ABS/White	2ports	86×86×24mm

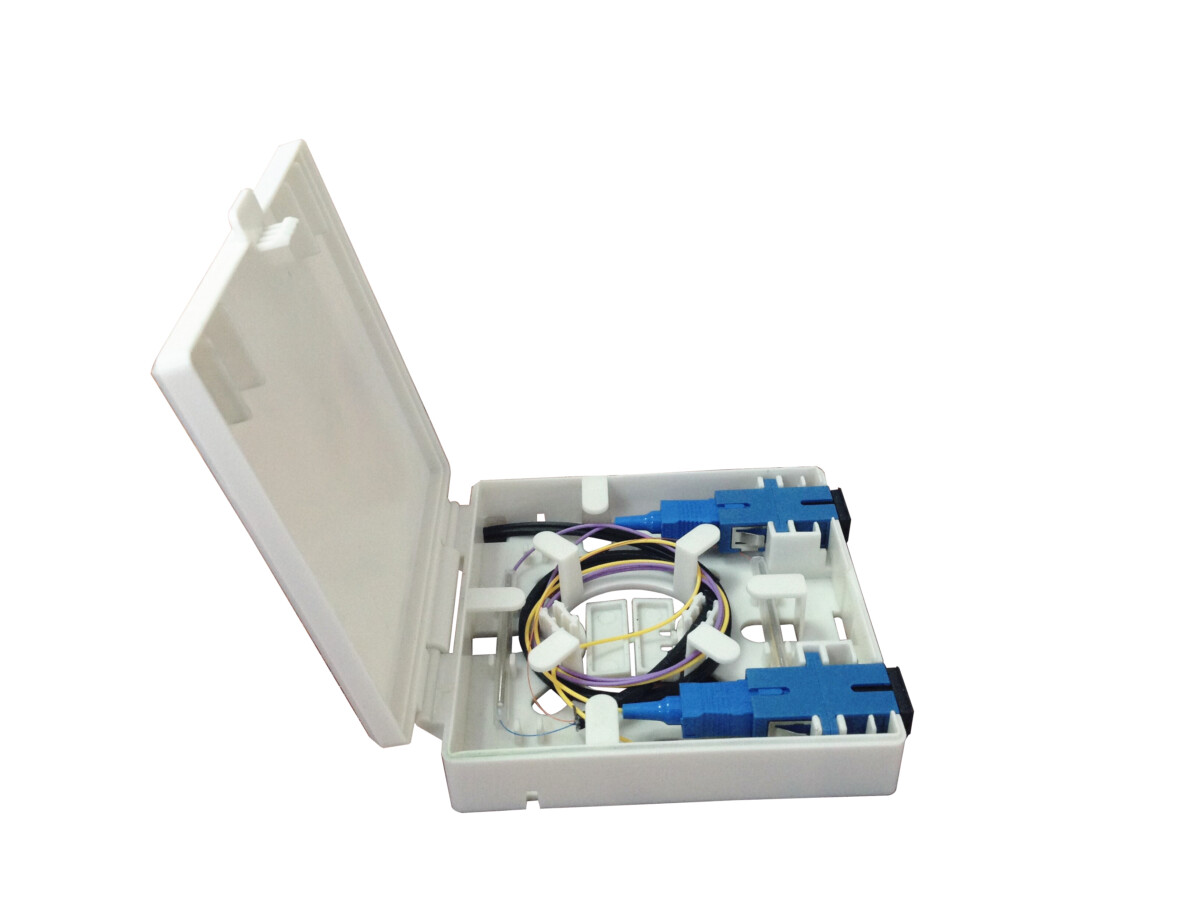

FPSC-2PA	ABS/White	2ports	86×86×24mm

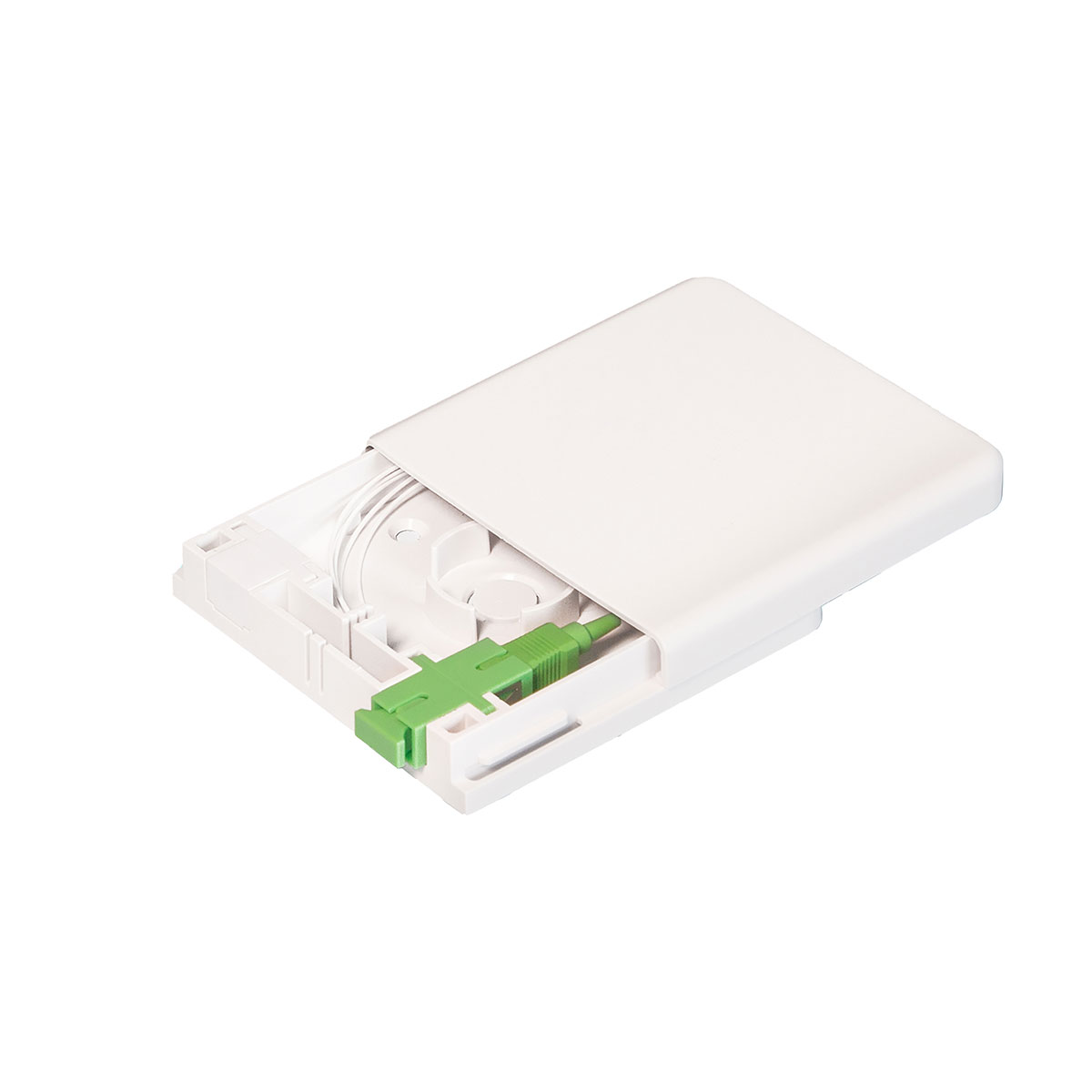

FPSC-2E	ABS/White	2ports	86×86×24mm
FTB104B	ABS/White	4ports	150×30×110mm
OTB-6C	ABS/White	6ports	210*140*40mm
OTB-8C	ABS/White	8ports	230*180*50mm
