3.5-inch TFT Color Screen 10G-EPON Power Meter

Description

1. 10G PON Power Meter JW3239

JW3239C 10G PON power meter is suitable for traditional or next-generation PON network testing. It can simultaneously measure the voice, data, and video signals on 1490nm/1550nm/1577nm (downlink spectrum) and 1270nm/1310nm (burst mode uplink spectrum) optical fiber, the same screen displays the signal power of each of the 5 wavelengths, which enables the maintenance personnel to truly master the power value of the single wavelength optical signal on the line. It is an ideal choice for PON network engineering, construction, and maintenance to detect and analyze optical fiber with the optional end-face detector and judge whether the signal power is up to the standard by threshold data set by the instrument itself.

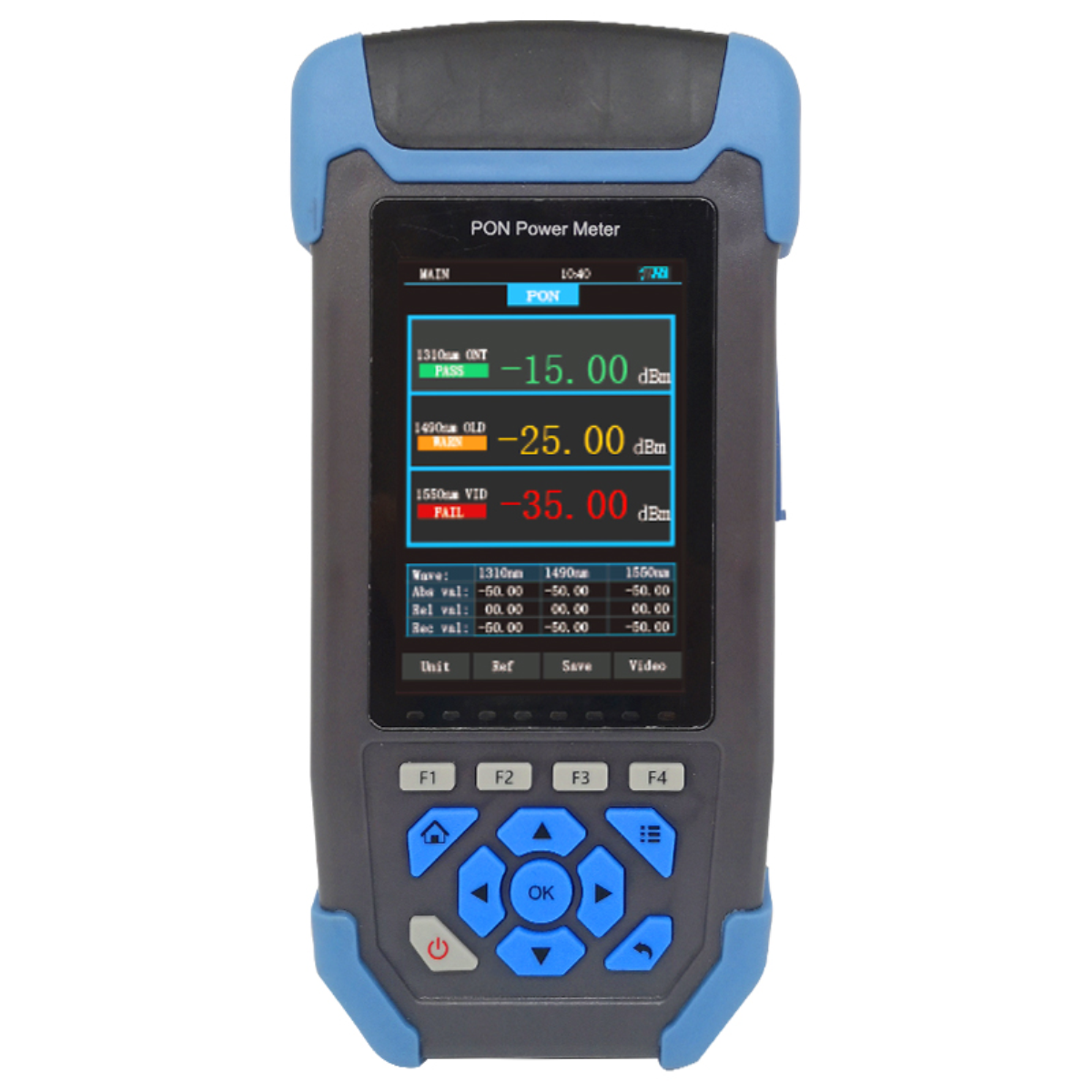

JW3239 10G PON Power Meter

Main Features:

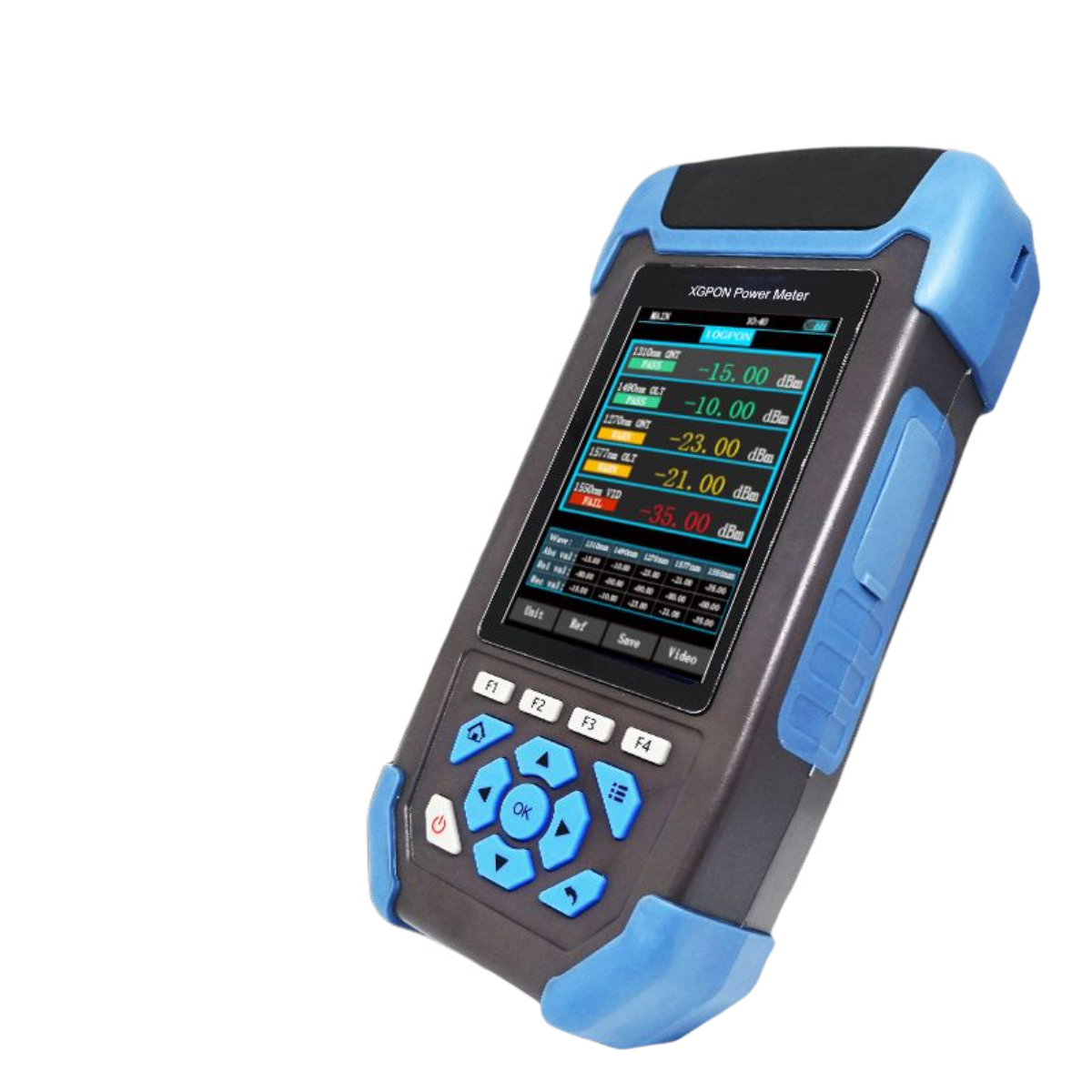

• 3.5-inch TFT color screen display

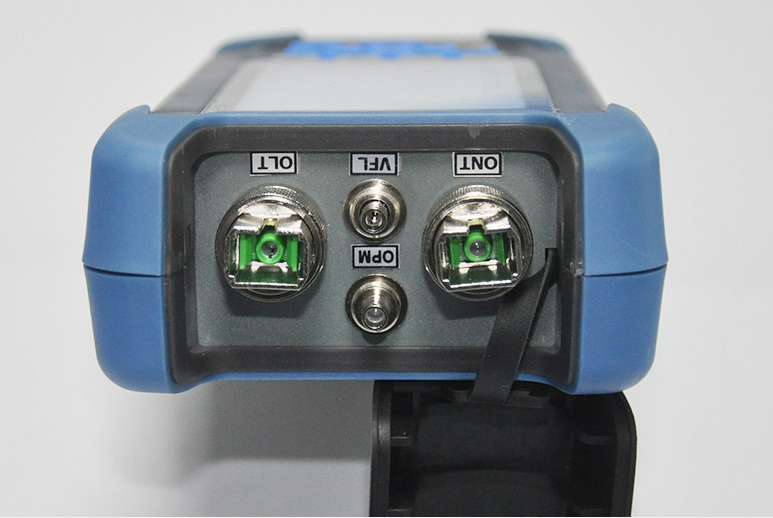

• Support VFL and standard OPM module functions
• Data storage functions up to 1000
• Optional end-face microscope tester

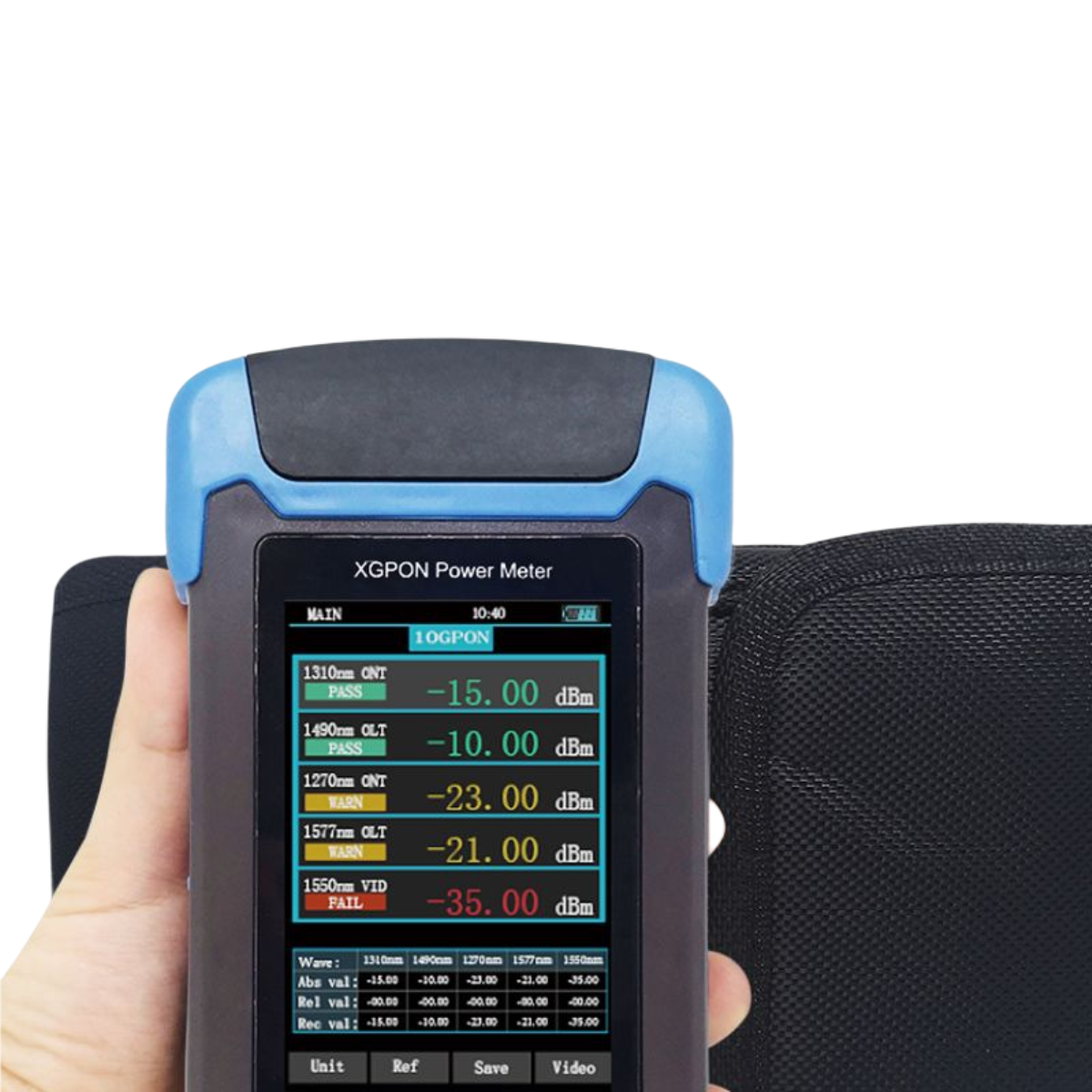

• 5 wavelength power value simultaneous measurement display
• The instrument can set the measurement threshold to determine the pass, warning, fail state
• Compatible with EPON, GPON, and next-generation 10G-EPON/XG-PON power measurement functions

2.JW3239 10G-EPON/XG-PON Power meter Specification Table

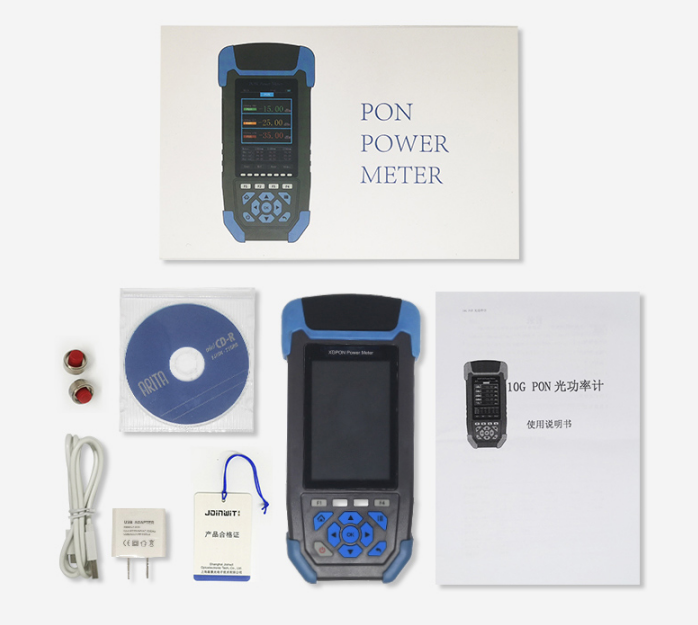

3. Package Detail

10G PON standard configuration
