- Name: 4core Termination Box
- Model: FTB-104B
- Color: White
- Dimension: 150×110×30mm
- Port: 4SC Simplex
- Material: ABS
- Weight: 0.05kg
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

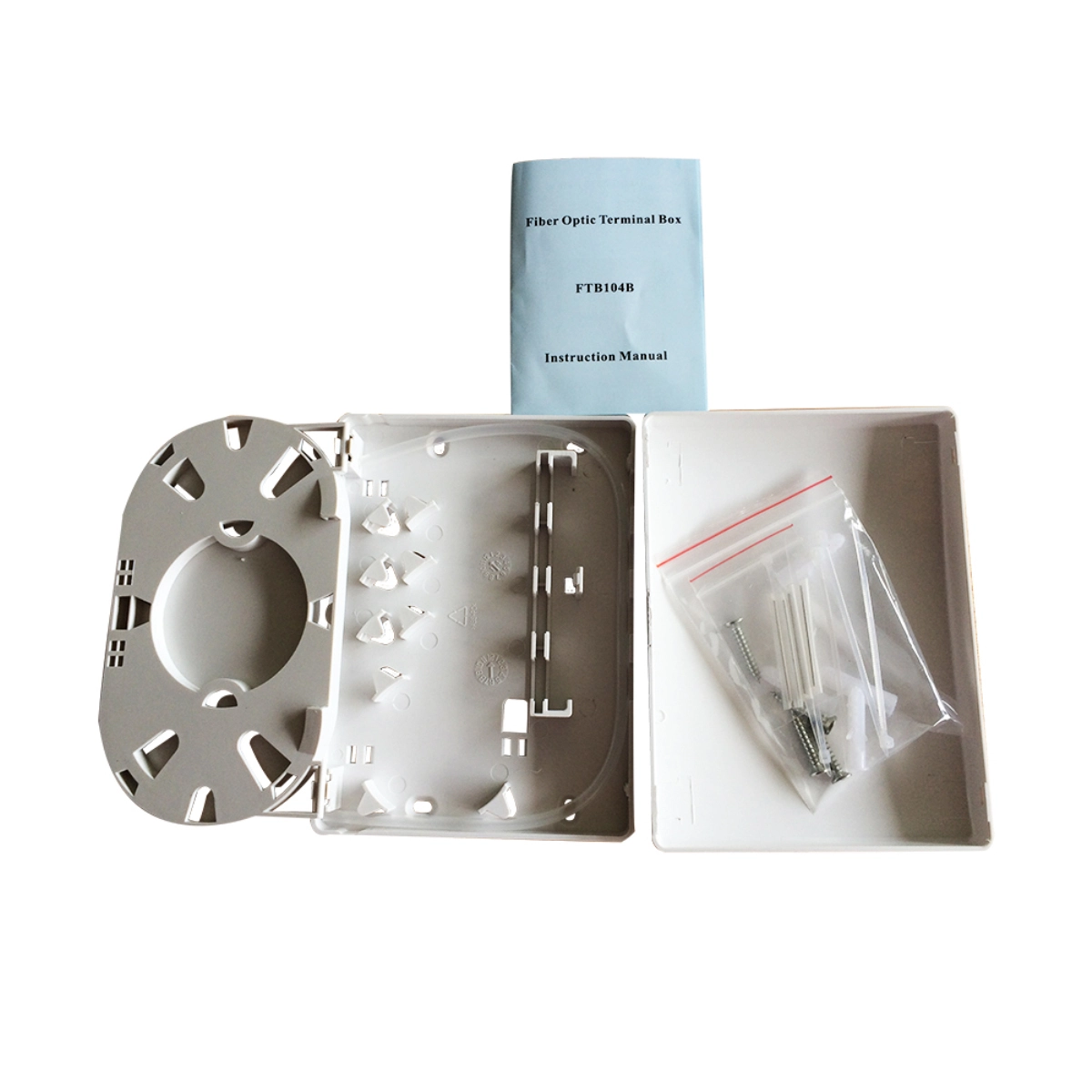

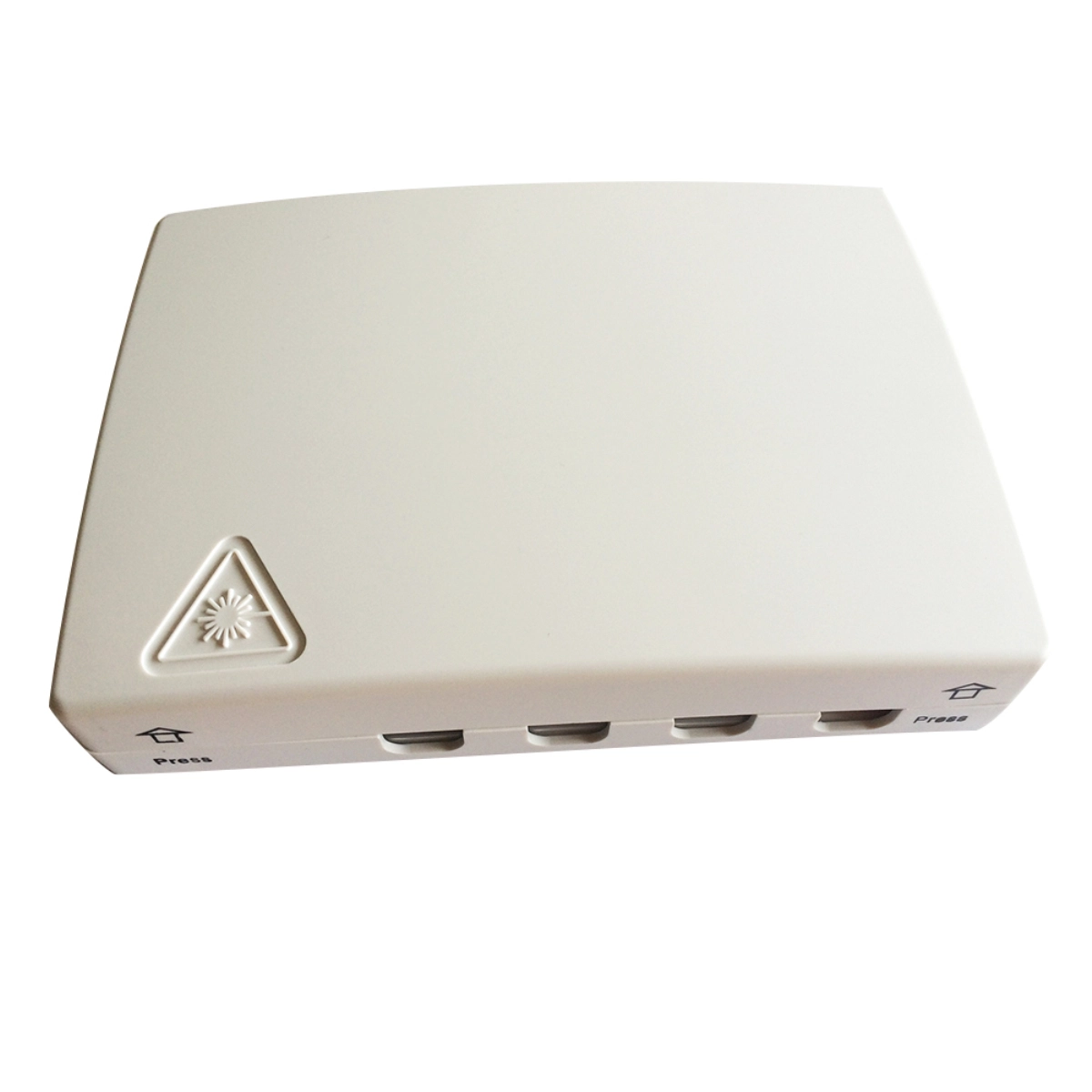

4 port Fiber Optic Termination Box FTB-104B Wall Mounted
Description
FTB104B is a newly developed by our company for the application of FTTH, the box is light and compact, especially suitable for the protective connection of fiber cables and pigtails in FTTH.
This Wall outlet termination box is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC duplex type. The termination box is used for wall-mounted or desktop applications. Made of plastic material, is easy to install in a home or office. Outlets are designed to fit the SC fiber optic cable patch cord adapter, used in the work location subsystem.

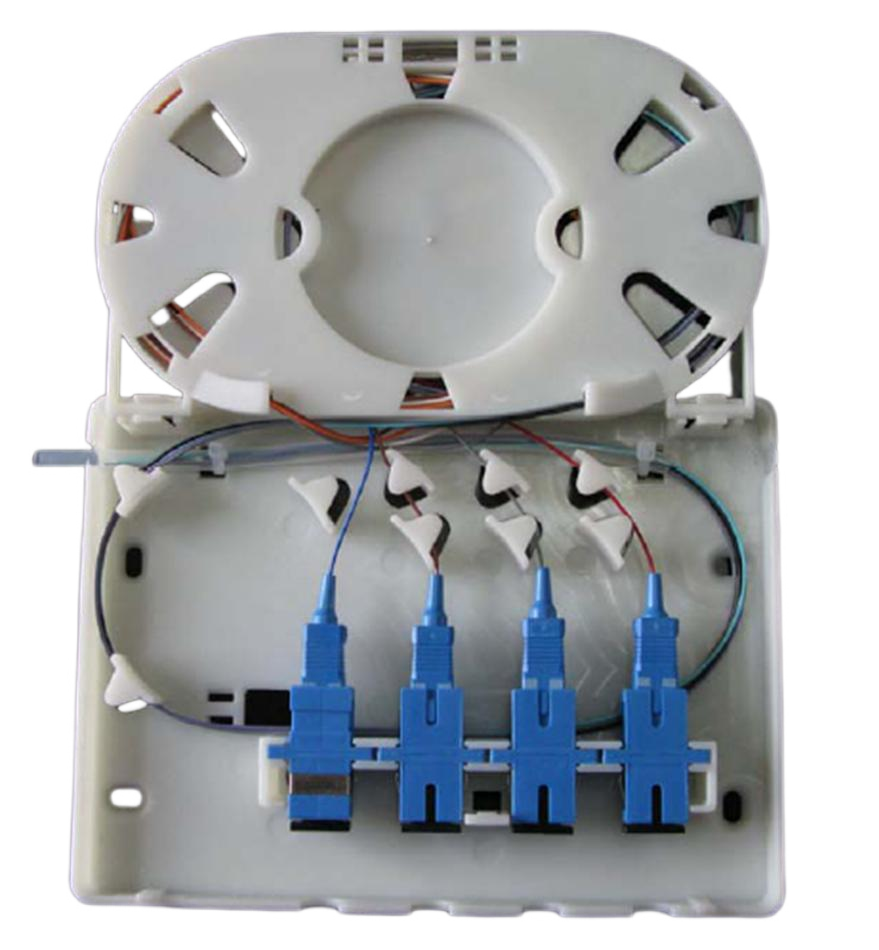

Fiber optic box FTB104B
Product Features:
- Connecting Type: SC, LC with common model adapters
- Using high-quality ABS material has a certain fire resistance
- With dustproof device to prevent dust from entering
- Pull-off force is greater than 50N, fixed and reliable
- The wall outlet termination box is easy to operate and has low construction intensity
- Support MM or SM fiber connection
- 4Ports for SC simplex, LC duplex adapters

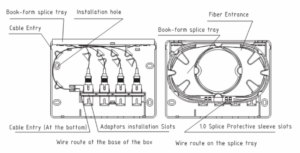

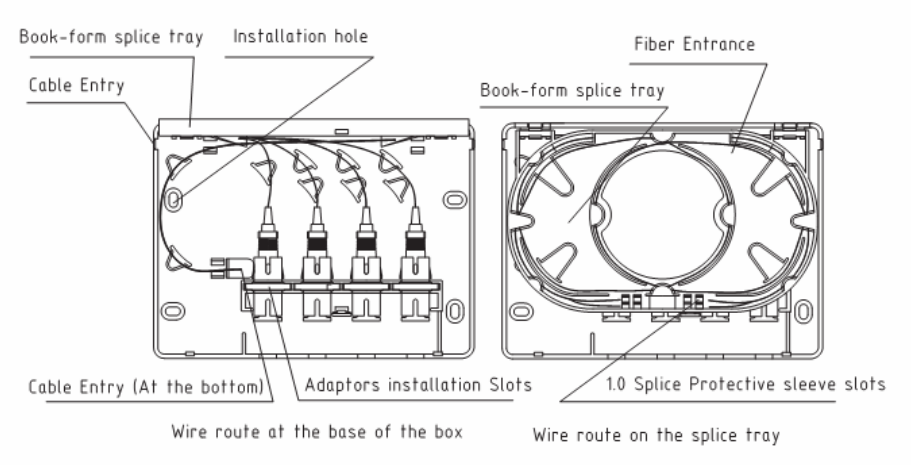

The fiber route and main components of the box
FTTH 4Core Termination Box Application:
- Scope of application 3×2mm drop cable or patch cable
- For home or work area FTTD fiber interface
- Outdoor optical cable fixing, FTTH cable fixing, adapter fixing, fast connector fixing
- Telecommunication Networks
- FTTH, FTTX, FTTD
- Communication System
- Test equipment
- Fiber CATV
FTTH Termination Box we can offer Types
FPSC-2E
FPSCU-2P
FPSCA-2P
FPSC-2PA
FTB104B
OTB-6C
OTB-8C
| Box Model | FTB-104B | Box Port | 4SC Simplex/4LC Duplex |
| Box Dimension | 150×110×30mm | Material | ABS |
| Color | White | Approximate Weight | 0.05kg |
| Adapter Plate | SC Simplex /LC Duplex | Adapter Capacity | 4ports |
| Cable Ports | Input/Output | Mounting Type | Wall Outlet |
| Indoor/Outdoor | Indoor | Fiber Mode | SM/MM |
Model Information :
| Model | Material/Color | Capacity | Size |
| FPSCU-2P | ABS/White | 2ports | 86×86×24mm |
| FPSCA-2P | ABS/White | 2ports | 86×86×24mm |
| FPSC-2PA | ABS/White | 2ports | 86×86×24mm |
| FPSC-2E | ABS/White | 2ports | 86×86×24mm |
| FTB-104B | ABS/White | 4ports | 150×30×110mm |
| OTB-6C | ABS/White | 6ports | 210*140*40mm |
| OTB-8C | ABS/White | 8ports | 230*180*50mm |
