- Model: 40G-QSFP-SR4
- Form Factor: QSFP+
- Data Rate: 40Gb/s
- Connector: MTP/MPO
- Wavelength: 850nm
- Distance: 300m
- Optical Components: DFB/PIN
- Fiber Type : Multimode
- Warranty Period:5years
- Fast Delivery Time
- 100% Testing Before Shipment

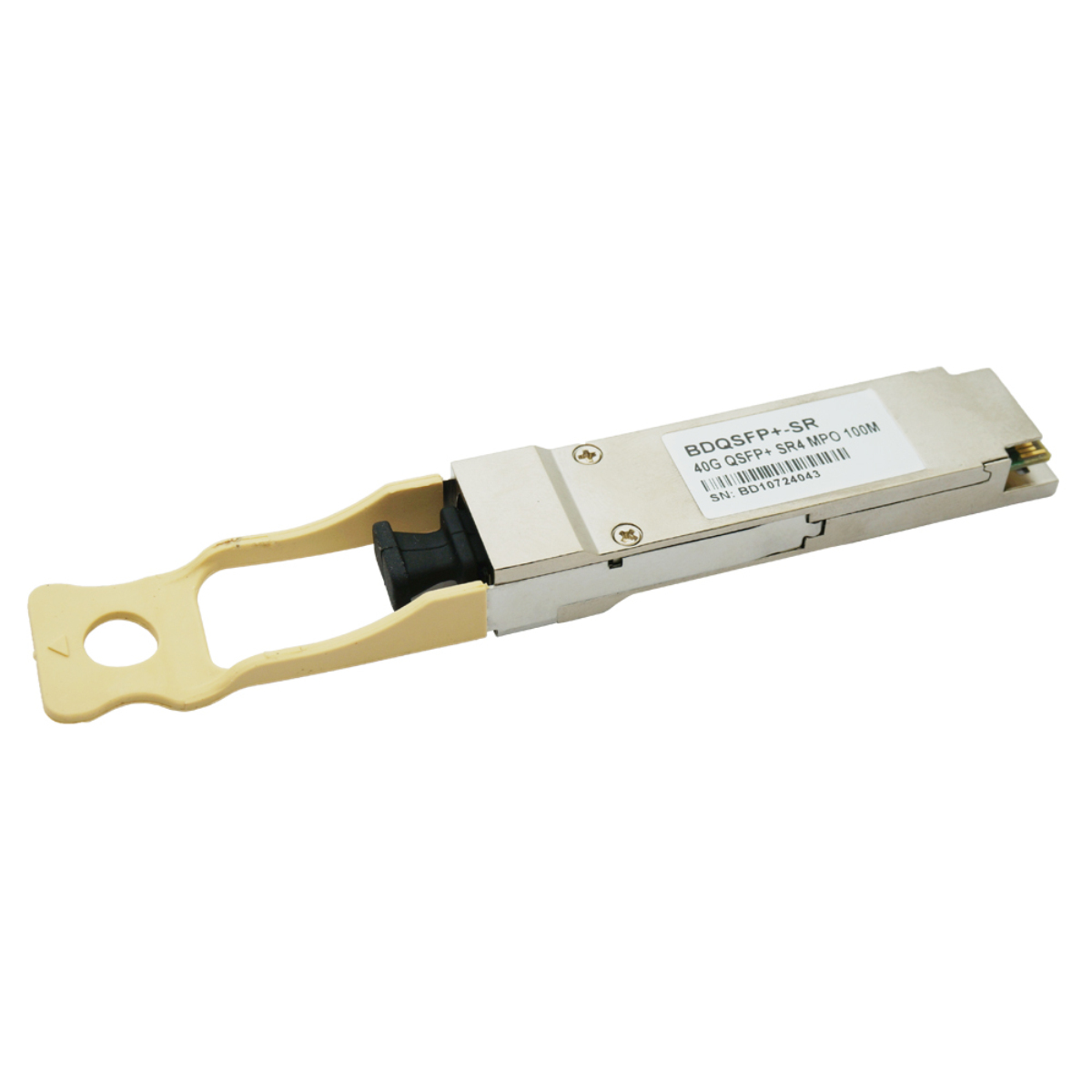

40GBASE-SR4 QSFP+ 850nm 300m MTP/MPO Transceiver
Description
40GBASE-SR4 QSFP+ SR4 optical transceiver
The 40G-QSFP-SR4 is a high-performance and cost-effective 40G QSFP+ SR4 transceiver designed for 40Gigabit Ethernet (40GBE) applications. The 40G QSFP+ SR4 transceiver complies with QSFP+ MSA and IEEE802.3 ba 40GBASE-SR4 specifications.
Specification Table
| Data Rate (Mbps) | 40G | Form Factor | QSFP+ |
| Optical wavelength(nm) | 850nm | Fiber Type (micron) | MultiMode |
| Connector Type | MTP/MPO-12 | Distance | 300m |
| Max Data Rate | 40Gbps | DDM/DOM | Supported |
| CDR | TX&RX Built-in CDR | Warranty | 5Years |
Key Features
- Transmission data rate up to 11.1 Gbps per channel
- Electrically hot-swappable
- 40G Ethernet,infiniband QDR,SATA/SAS3,IEEE 802.3ba,MSA compliant
- Compliant with QSFP+ MSA
- Compliant to INF-8438
- Operating temperature range:0~70℃
- Power dissipation ＜3.5W
- Supports Digital Diagnostics Monitoring
- RoHS6 Compliant
Application Optical Cable
- Local Area Network (LAN)
- Wide Area Network (WAN)
- Ethernet switches and router applications
- 40GBASE-SR4 40G Ethernet
- Data Center
Mechanical Dimensions
40G-QSFP-SR4
Ordering Information
| Part Number | Product Description |
| 40G-QSFP-SR4 | 40G QSFP+ 850nm 300m SR4 MPO |
