- Name: Steel Armored Indoor Cable
- Model: GJFJV
- Cable Diameter: 5.0mm
- Fiber Type : G657A1,G657A2,G652D ,G655
- Strength Member: Kevlar Yarn
- Outer Sheath: LSZH,PVC
- Sheath Color: Blue, Yellow
- Packing Material: Wooden drum
6 core Single mode Armoured Fiber Optic Cable
Description
1. 6Core Armored Fiber Optic Cable Highlight & Performance
Steel armored fiber optic indoor cables are made by covering a variety of Japan-made SUS-304 stainless steel banding on the tight tube of 0.9mm PVC. By adopting the processing technology of indoor soft optical fiber cable and fine workmanship for producing fiber optic patch cords, these special fiber optical patch cords are fully protected by steel armor outside the tight tube. They have high mechanical performance, reliable optical performance, and leading anti-ultraviolet radiation function.
Armored indoor cable Applications
- FTTH
- Defense communications
- Outdoor Emergency
- Building without protective cabling
Armored Fiber Optic Cable’s Features
- Full steel armored protection from ceramic ferrule
- High tensile resistance&anti-pressure
- Strong anti-ultraviolet radiation
- High flexibility
2. Armored Fiber Optic Cable’s Specification Table
| Cable Type | Armored Fiber Optic Cable | Fiber Count | 1-12 Fiber |
| Construction | Steel Armored | Fiber Type | G657A1,G657A2,G652D |
| Outer Jacket Material | LSZH/PVC | Jacket Colors | Blue,Yellow, or customized |
| Cable Rating | Indoor | Operating Temperature Range (℃） | –40 to +70℃ |
3. Steel Armored Fiber Optic Indoor Cable’s Structure

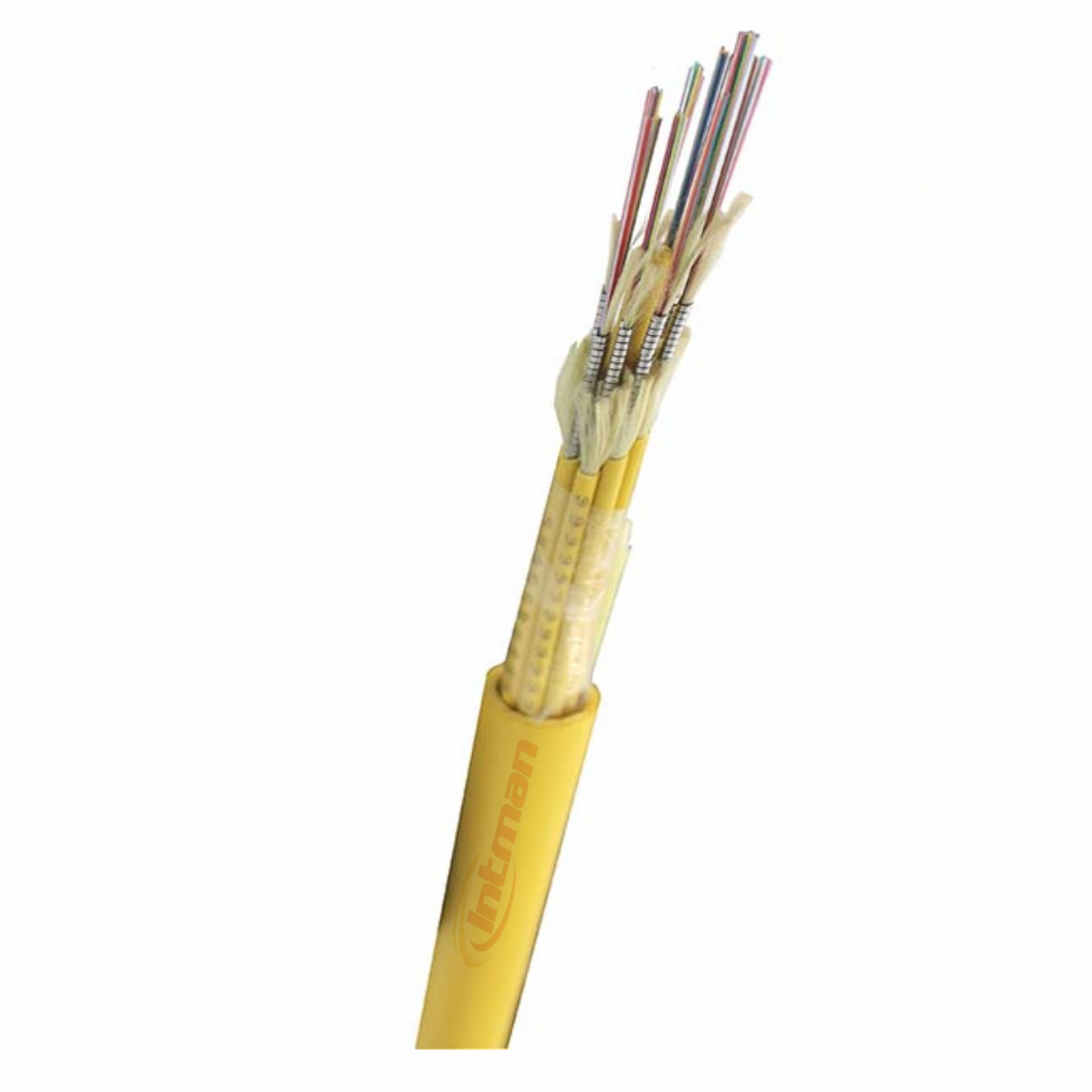

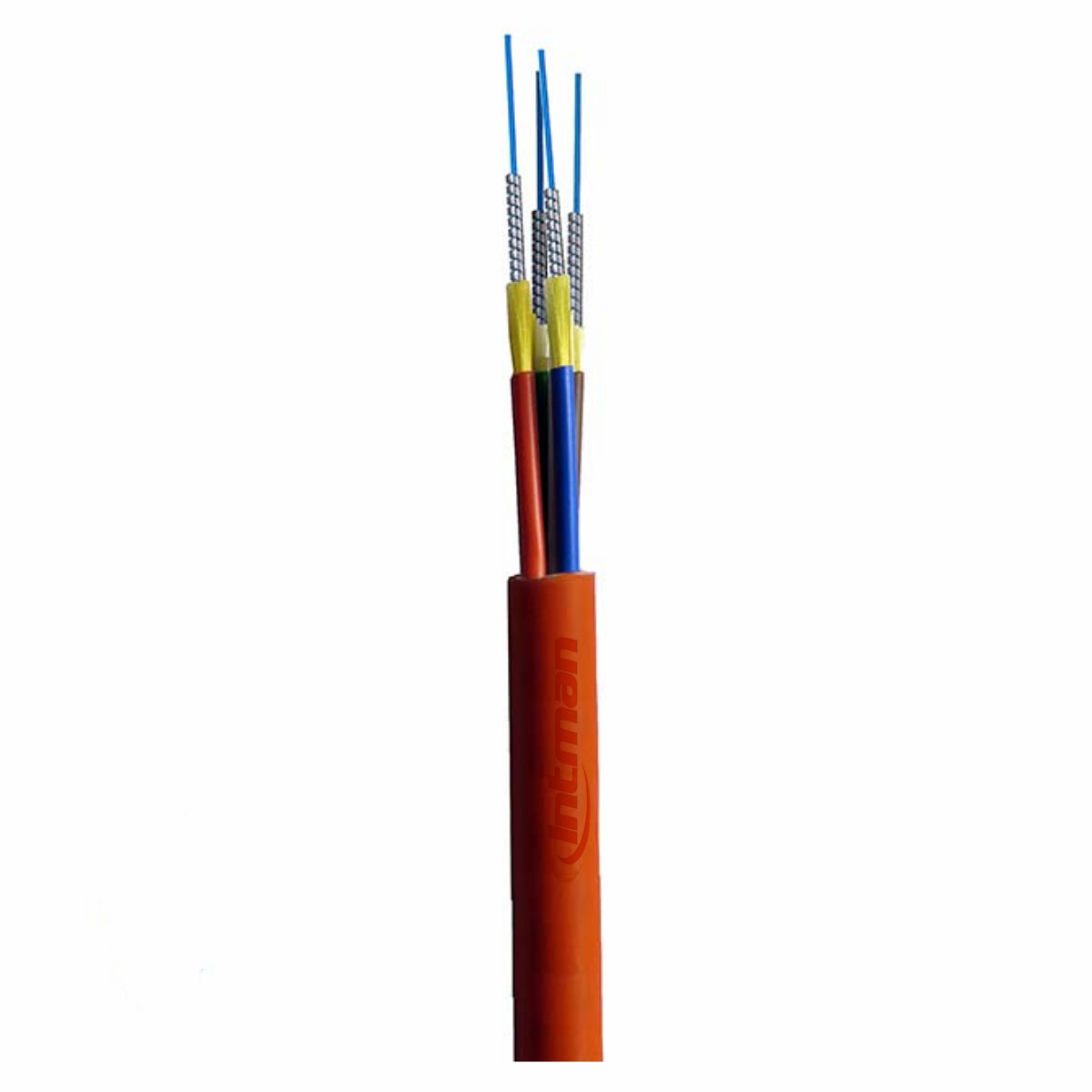

armored fiber optic cable single mode
indoor armored fiber optic cable
4. Steel Armored Fiber Optic Cable Package Way
Armored cable package drum
