6Port FTTH Fiber Optic Termination Box Price

Description

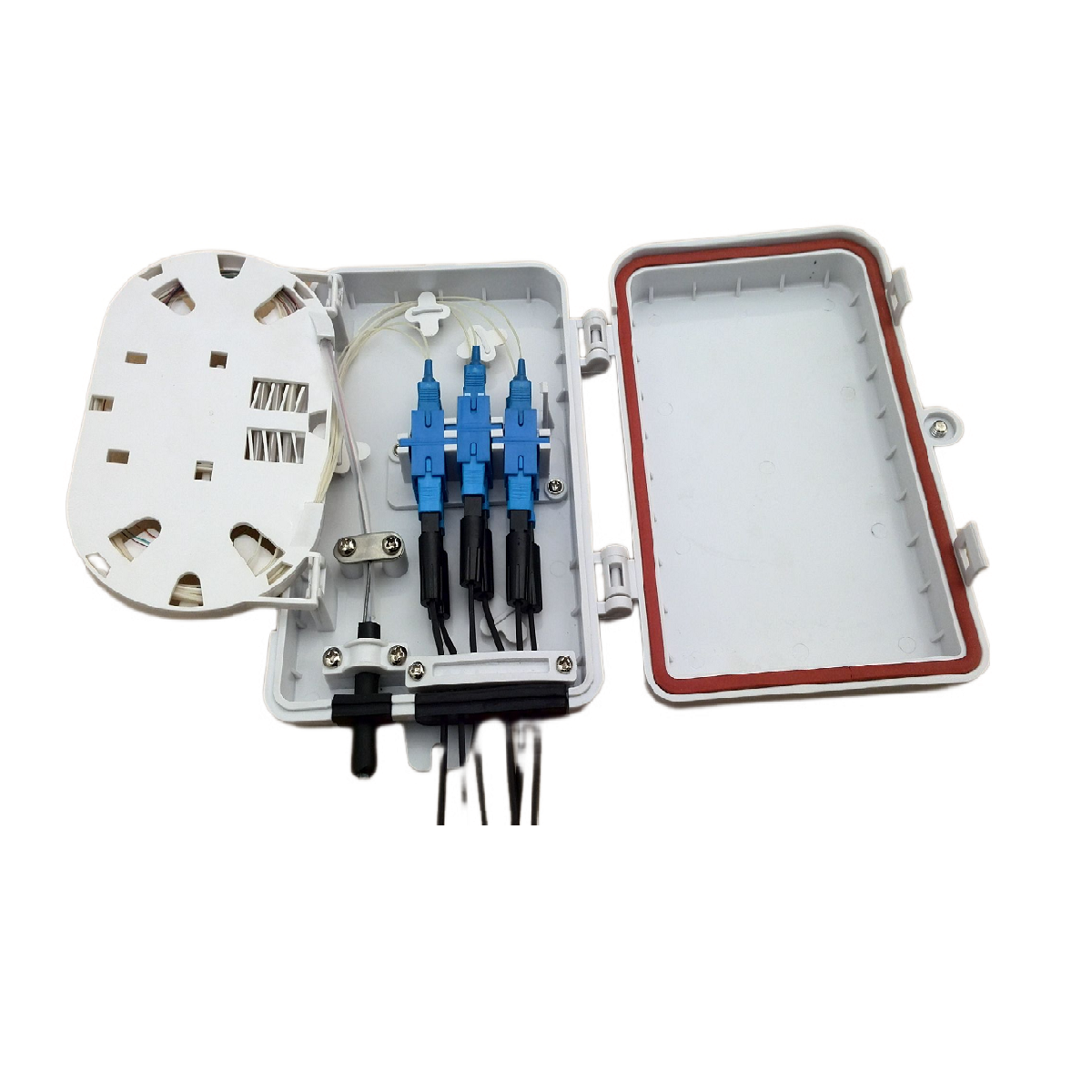

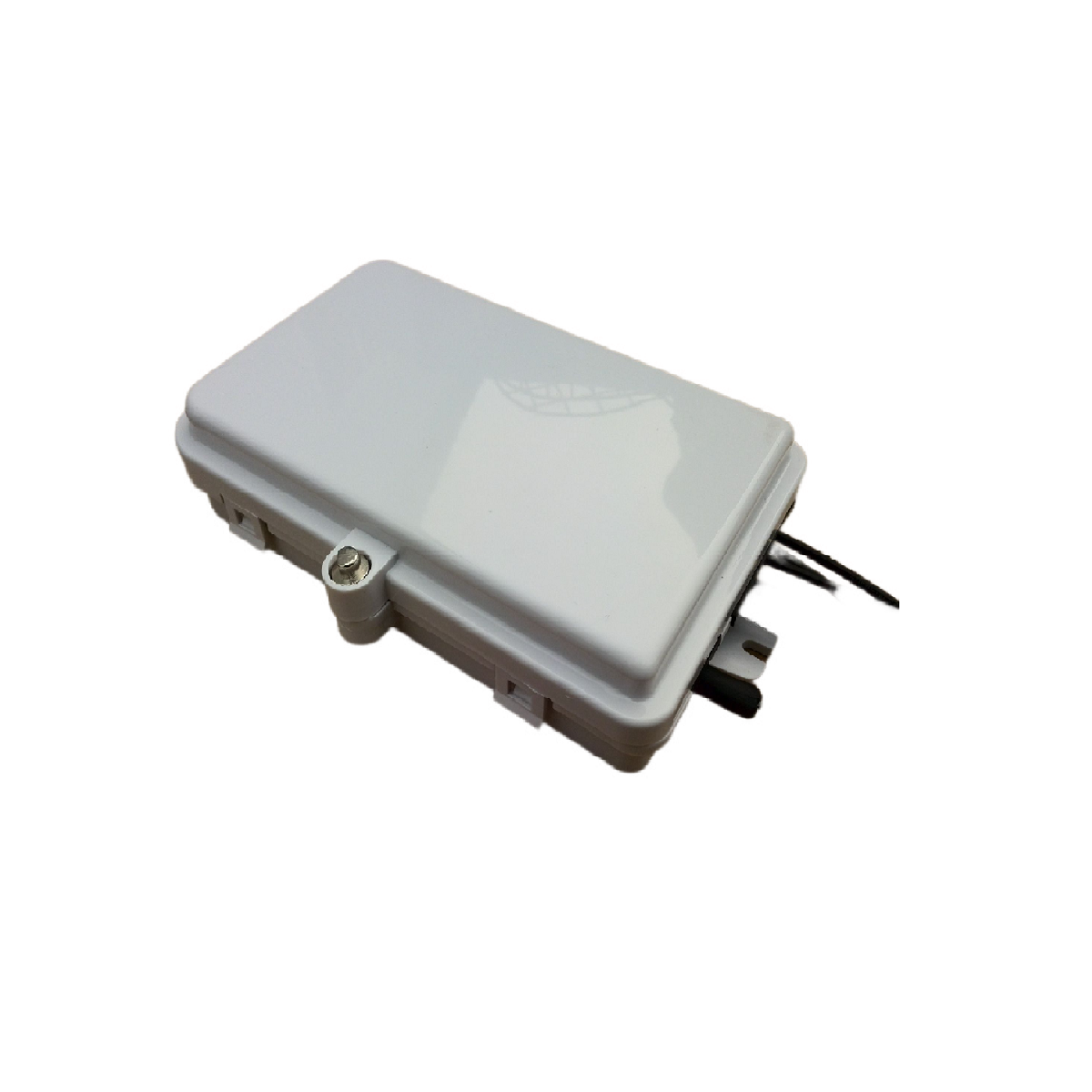

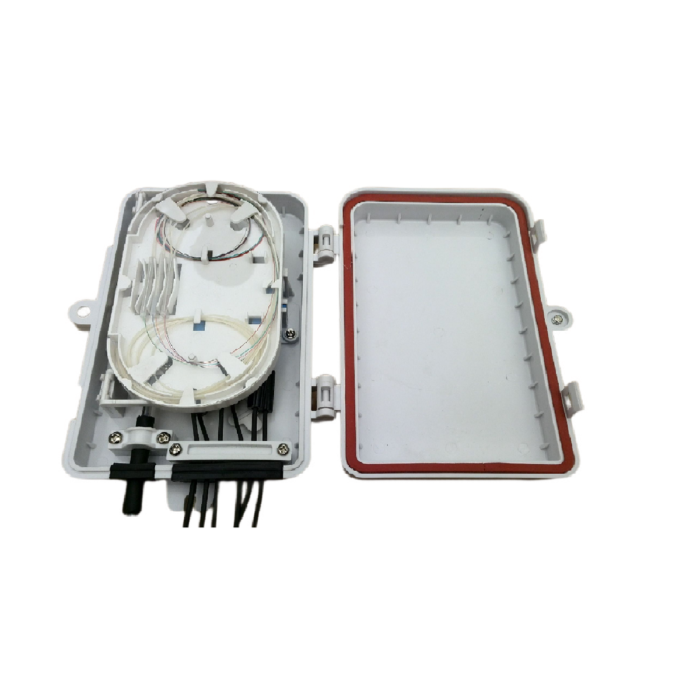

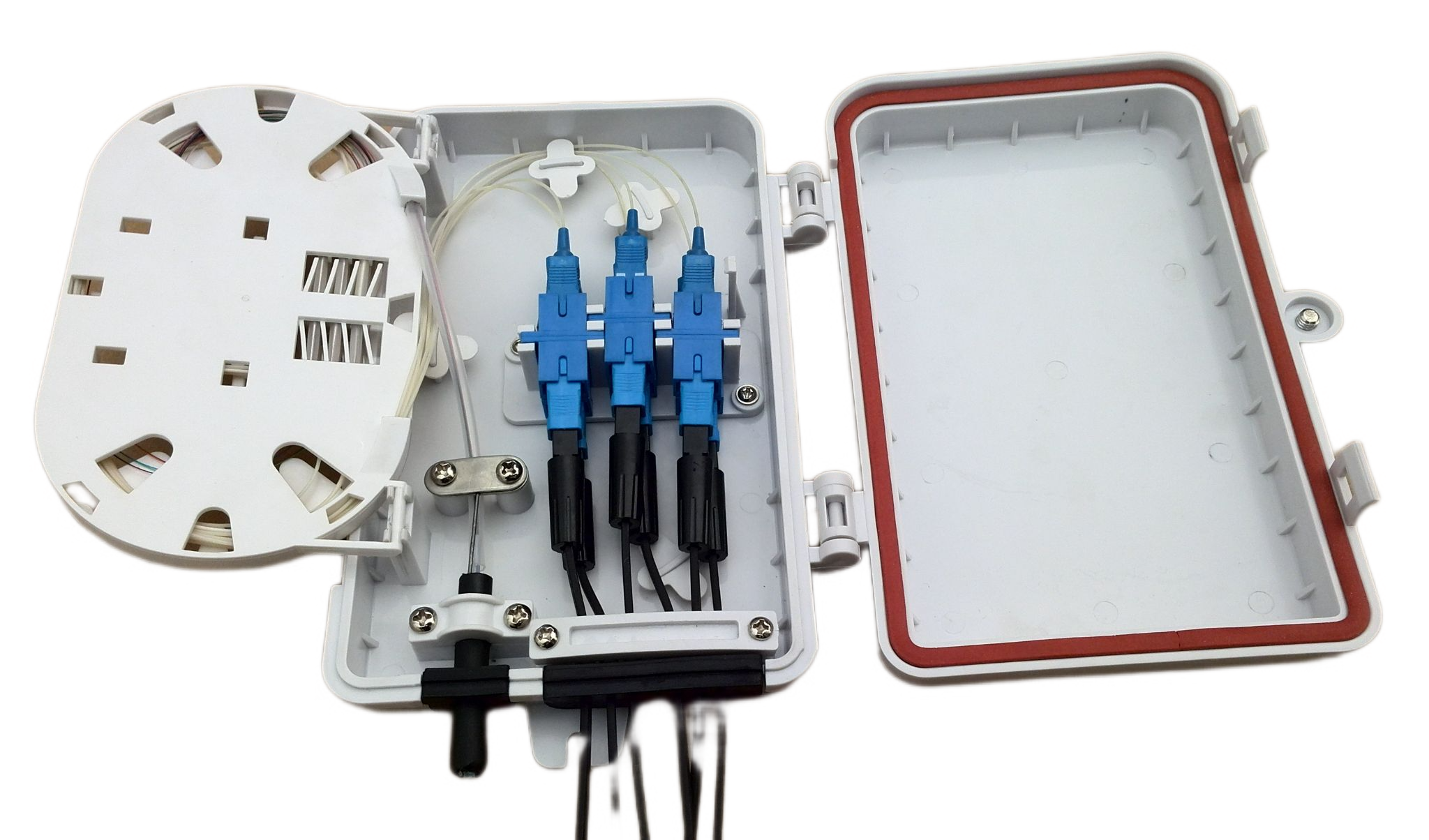

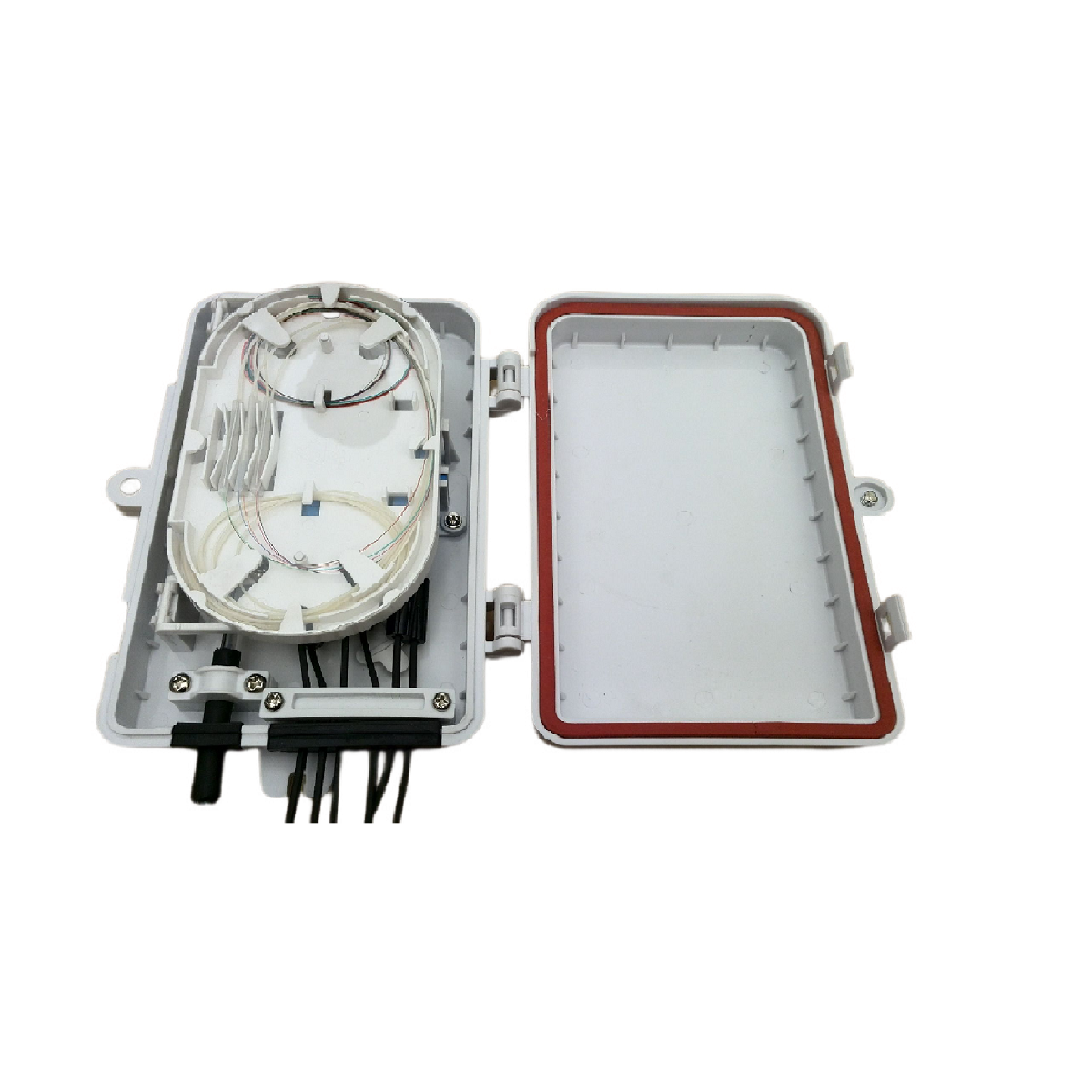

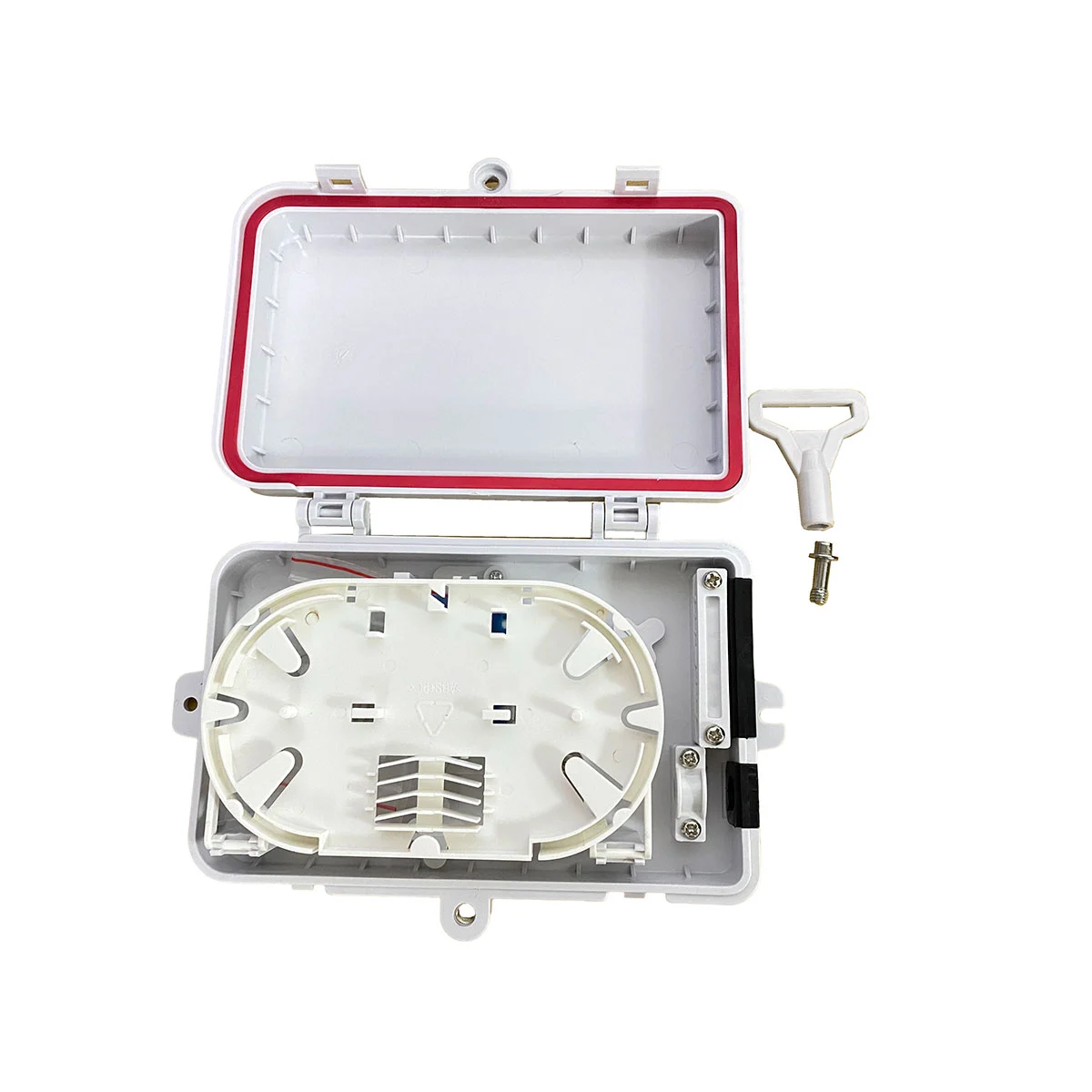

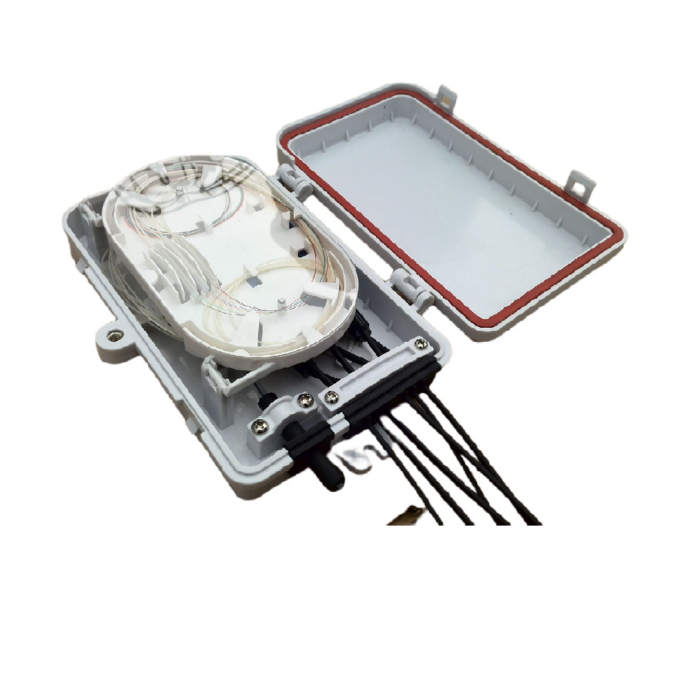

OTB-6C is made of high-quality engineering plastics, with a beautiful and exquisite appearance. It adopts an outdoor wall-mounted installation method and a reasonable internal structure, which makes installation and operation simple and convenient. The maximum capacity of this product is 4-6 core optical cable fusion. The fusion splicing tray adopts a diversified structure, which can be used to install 1:4 PLC splitters, and can also use heat pipe welding to weld optical cables, and can also use cold joints to connect optical cables and adapters. The installation bracket is at the bottom of the product, and the adapter is installed by pressing, which makes the adapter installation more stable and beautiful. The cable inlet and outlet holes adopt movable rubber blocking pieces, which shows more flexibility in operation.

Product Features:

• Connecting Type: SC, LC with common model adapters
• Using high-quality ABS material has a certain fire resistance
• With dustproof device to prevent dust from entering
• Pull-off force is greater than 50N, fixed and reliable
• The wall outlet termination box is easy to operate and has low construction intensity
• Support MM or SM fiber connection
• 6Ports for SC simplex, LC duplex adapters







FTTH 4Core Termination Box Application:

• Scope of application 3×2mm drop cable or patch cable
• For home or work area FTTD fiber interface
• Outdoor optical cable fixing, FTTH cable fixing, adapter fixing, fast connector fixing
• Telecommunication Networks
• FTTH, FTTX, FTTD
• Communication System
• Test equipment
• Fiber CATV



FTTH Termination Box we can offer Types





























Box Model	OTB-6C	Box Port	6SC Simplex/6LC Duplex
Box Dimension	210×140×40mm	Material	ABS
Color	White	Approximate Weight	0.5kg
Adapter Plate	SC Simplex /LC Duplex	Adapter Capacity	6ports
Cable Input/Output Ports	1+6 （1+4）	Max Splicing Core	4-6core
Cable Diameter	7~10mm	Waterproof	IP65

Model Information :

Model	Material/Color	Capacity	Size
FPSCU-2P	ABS/White	2ports	86×86×24mm
FPSCA-2P	ABS/White	2ports	86×86×24mm
FPSC-2PA	ABS/White	2ports	86×86×24mm
FPSC-2E	ABS/White	2ports	86×86×24mm

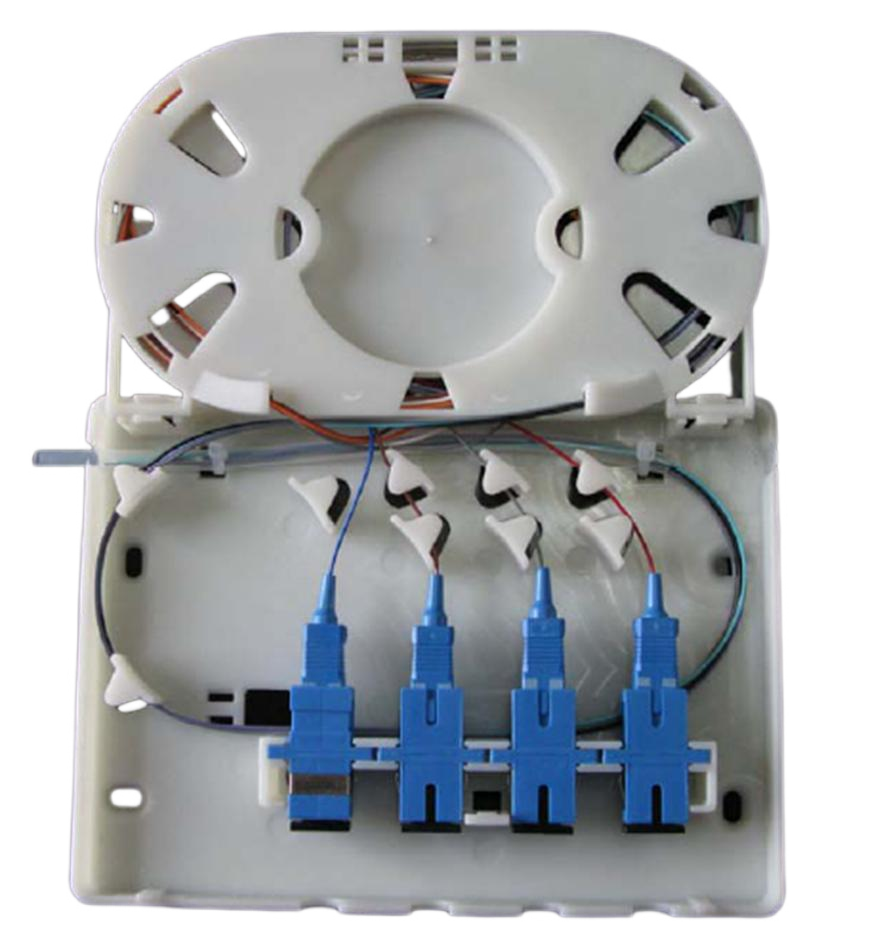

FTB-104B	ABS/White	4ports	150×30×110mm
OTB-6C	ABS/White	6ports	210*140*40mm

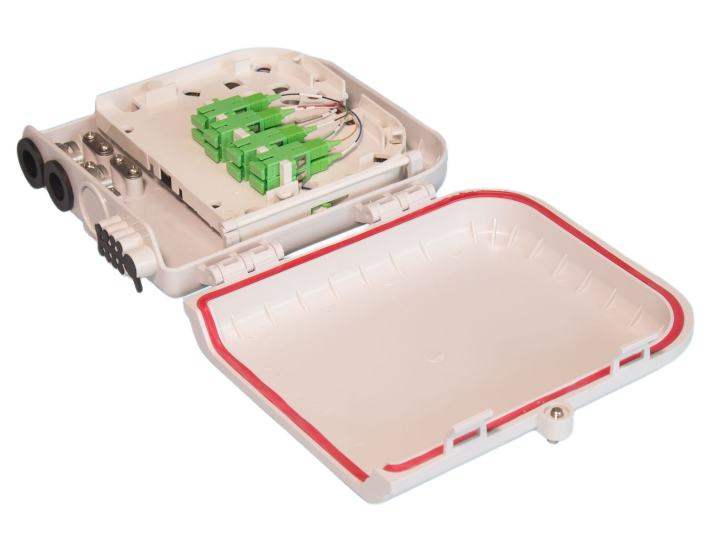

OTB-8C	ABS/White	8ports	230*180*50mm
