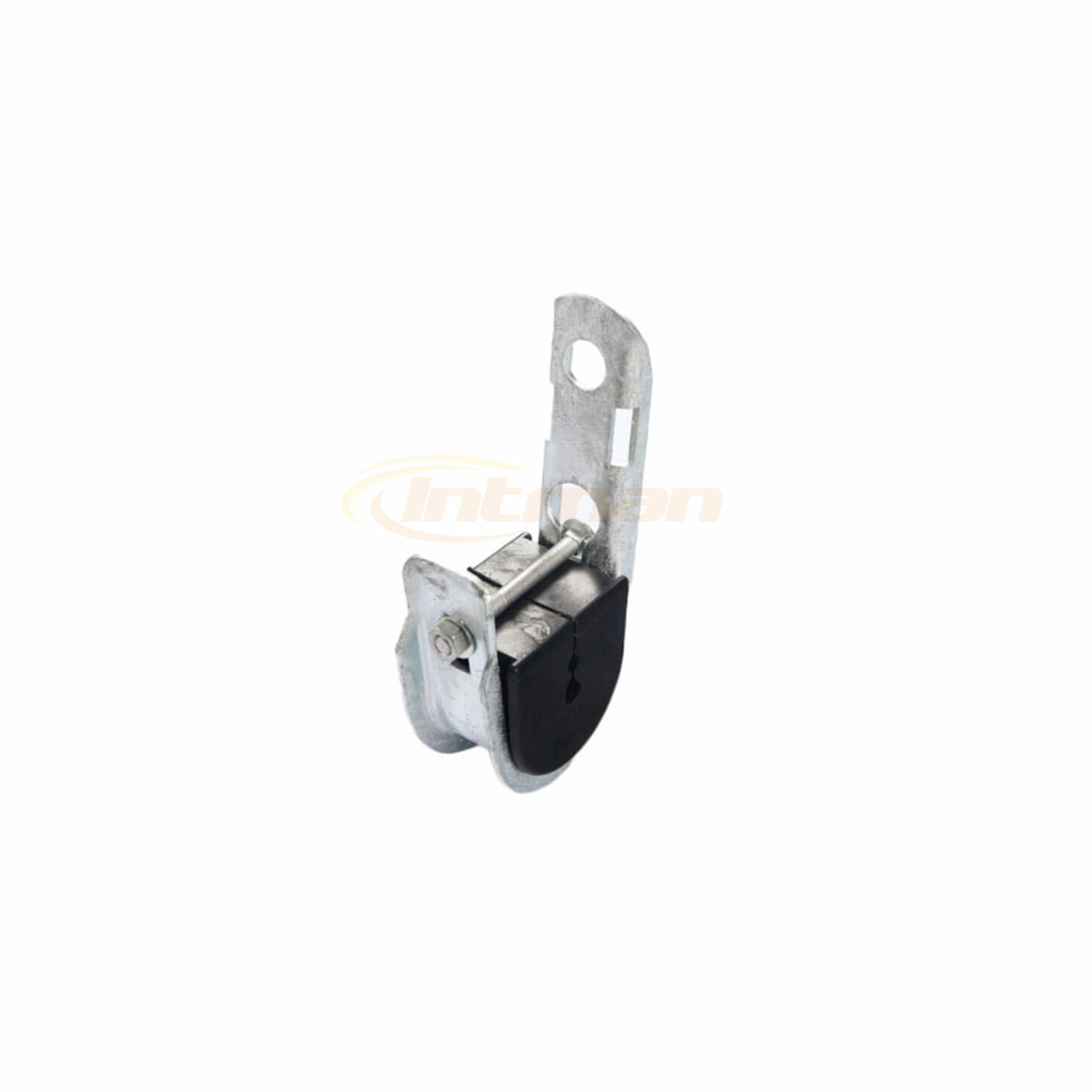

- Name:ADSS J Hook Suspension Clamp
- Model: PT1015
- Insert Material: Rubber
- Insert Color: Black
- Body Material:Galvanized Steel
- Screw and Nut: Steel
- Rubber Block Hole OD: 8-20mm
- Application:For Pole
- Weight: 1kg
- Cable Diameter: 8-20mm
- HS Code: 76109090
- Origin : China

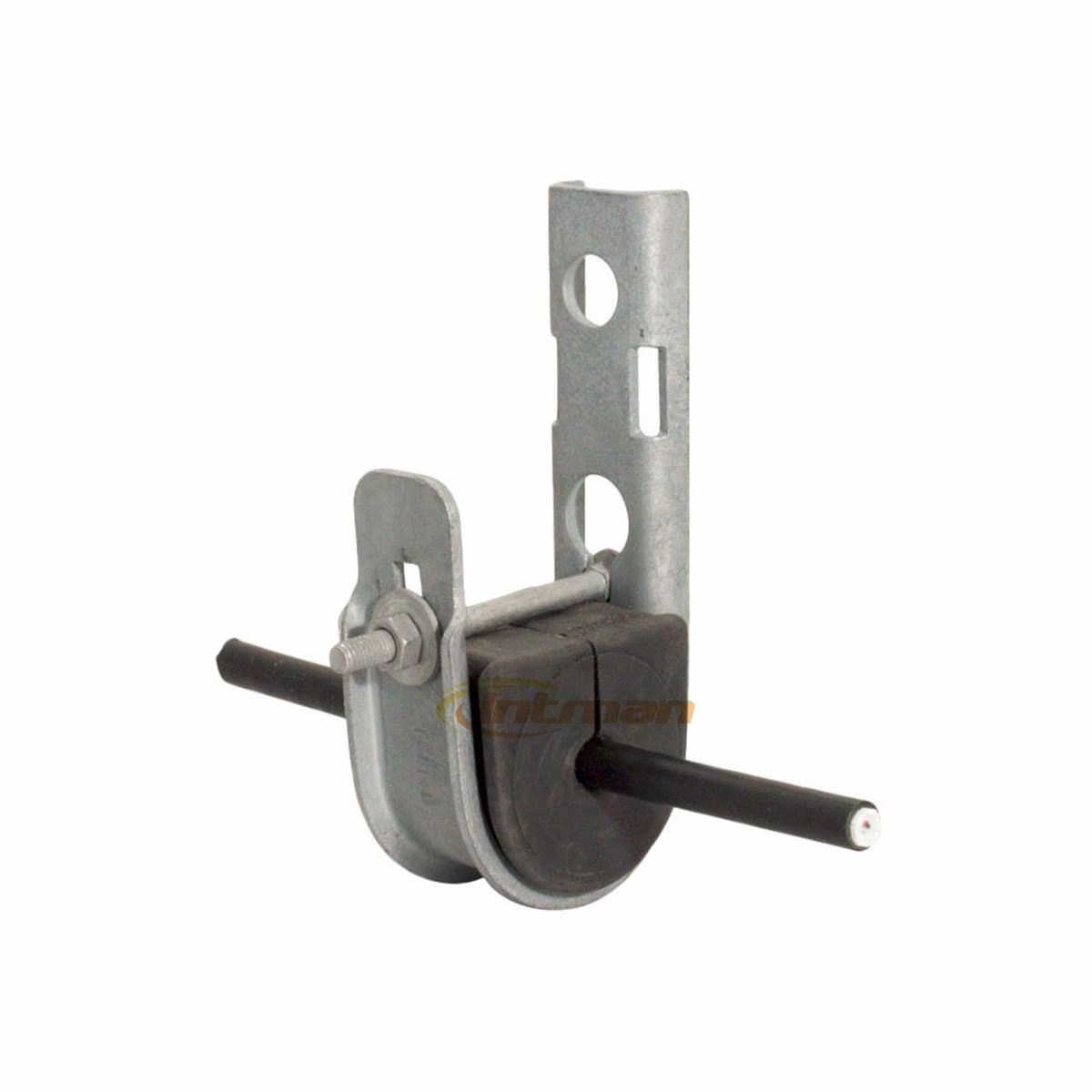

ADSS J Hook Suspension Clamp for Round Cable
Description
1. ADSS J Hook Suspension Clamp for ADSS Cables
ADSS J hook suspension clamps are designed to provide a suspension for aerial ADSS cable at intermediate poles on cable routes on the access network. Span up to 100 meters.
Key Features:
- Compact size and easy installation
- UV-proof plastic and galvanized steel
- Applied with stainless steel bands and pole bolts
- High mechanical tensile strength
- Perfect environment stability for long-time usage
- Competitive price with reliable quality
Applications
- Fixed ADSS optical fiber line head pole, terminal pole, connecting pole etc.
- Mainly used for pull-down equipment for ADSS and OPGW
- Fixed installation at the time of pull-up wire on the light tower.
2. Technical Specifications
| Name | ADSS J Hook Suspension Clamp |
| Model | PT1520 |
| Material | Galvanized Steel |
| Span | 100m |
| Scope of Application | ADSS cable |
| Maximum Cable OD | 15-20mm |
| Breaking Load | 8KN |

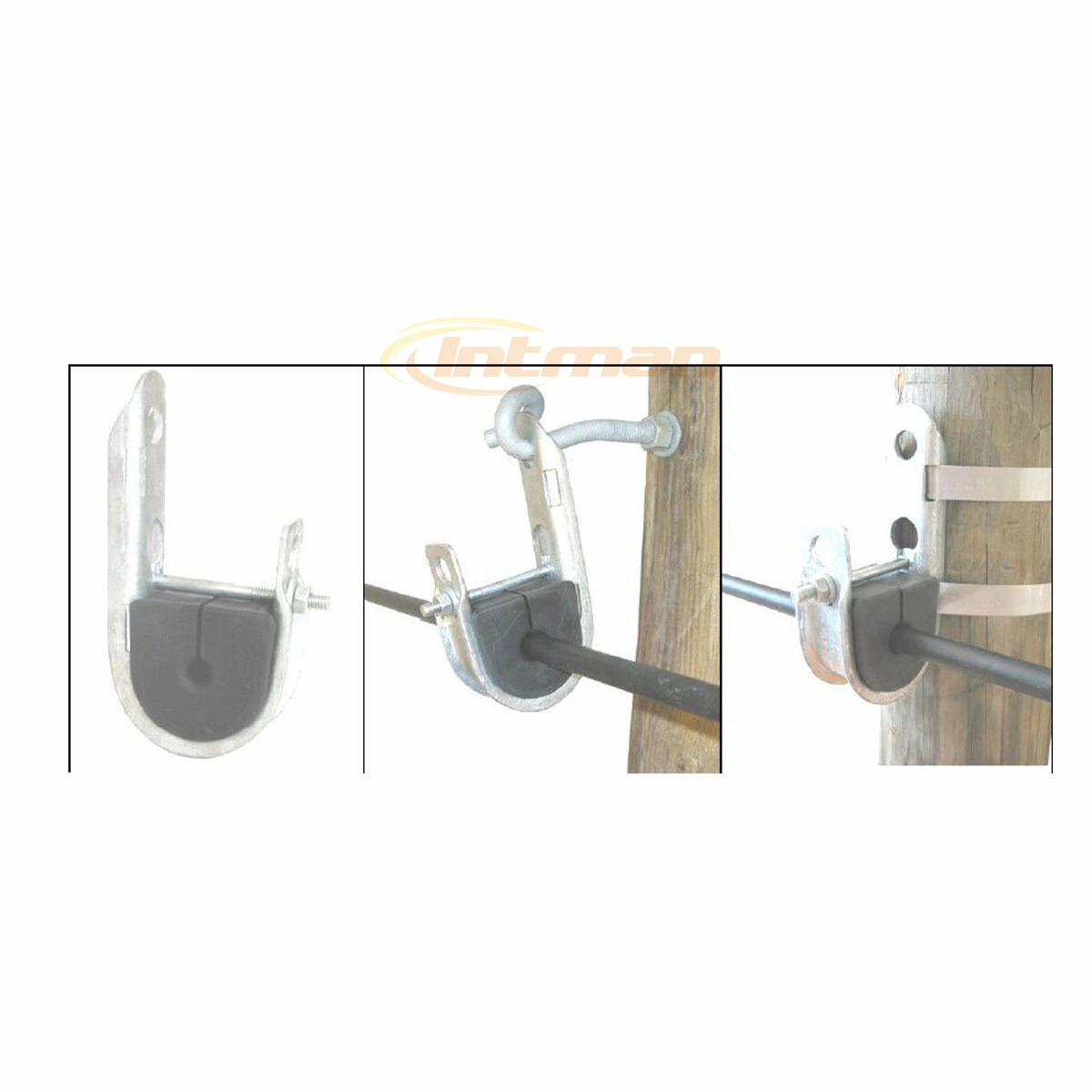

3. Installation
- Suspended from a hook bolt-the clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.
- Secured with Pole banding-the clamp can be installed on wood poles,round concrete poles and polygonal metallic poles using one or two 20mm pole bands and two buckles.
- Bolted-The clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.

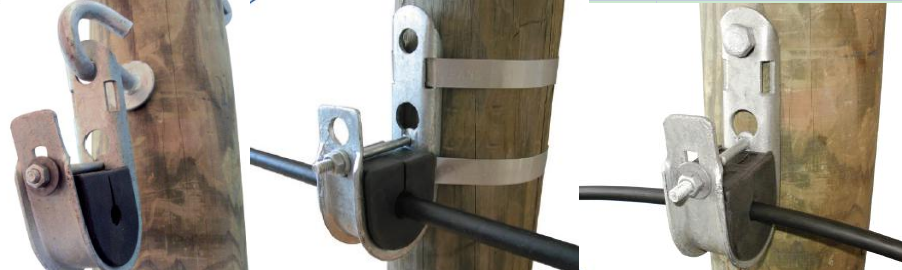

ADSS J Hook Suspension Clamp Installation
4. Ordering Information
| Name | Model | Cable Diameter (mm) | Weight (kg) | Remark |
| ADSS J Hook Suspension Clamp | PT0810 | 8~10mm | 1 | For ADSS and OPGW cable |
| PT1015 | 10~15mm | 1 | ||
| PT1520 | 15~20mm | 1 |
