Aluminum alloy Universal Pole Metal Bracket UPB

Description

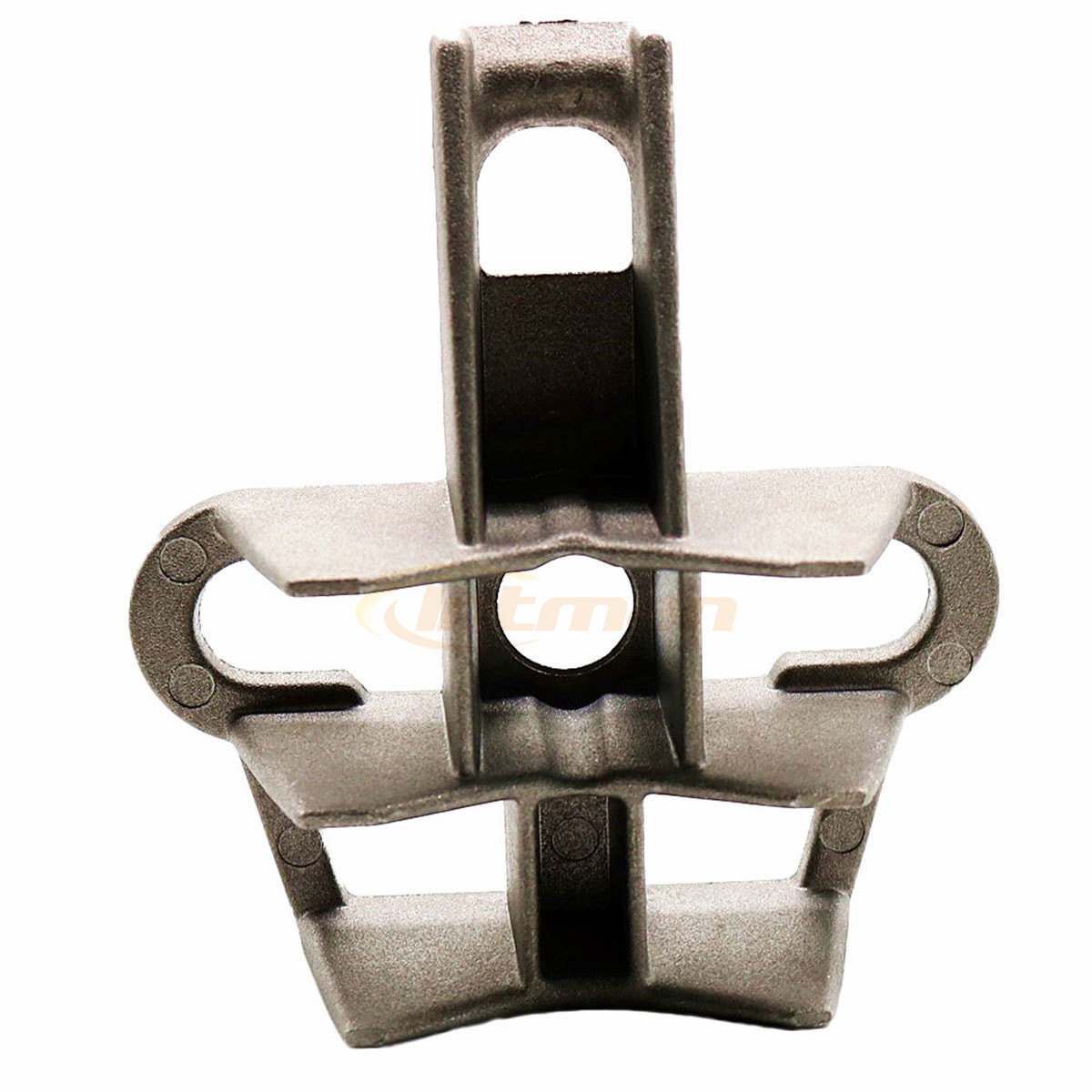

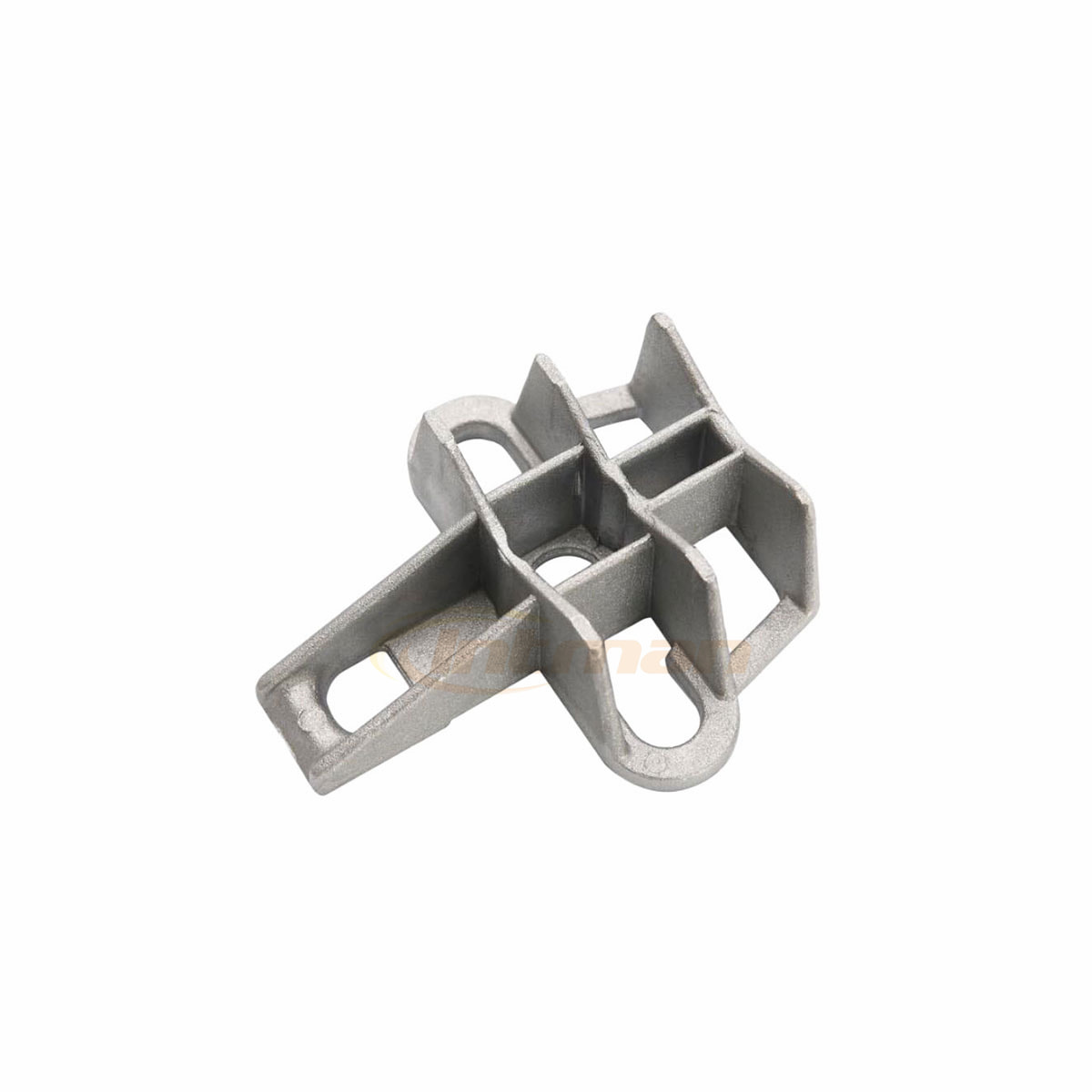

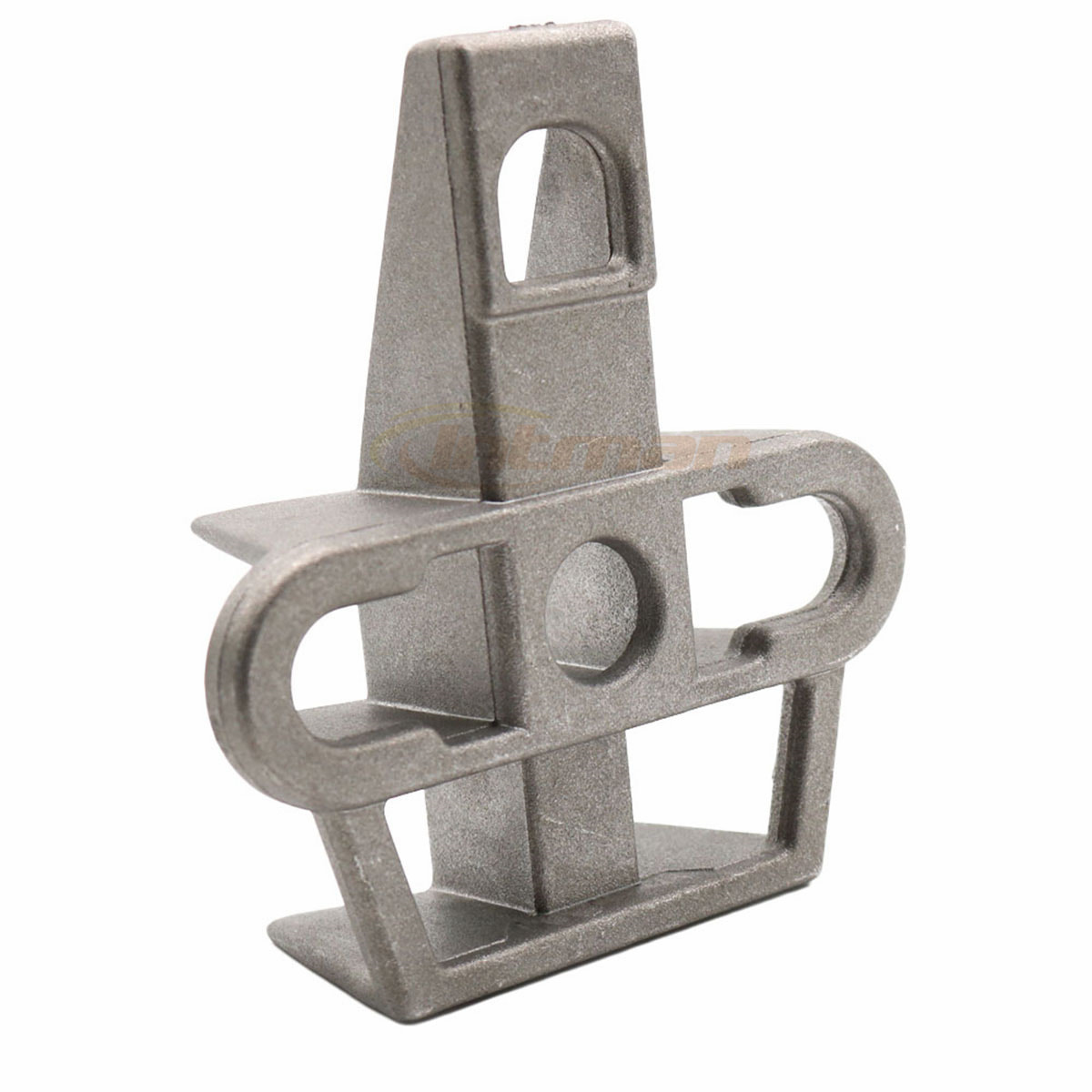

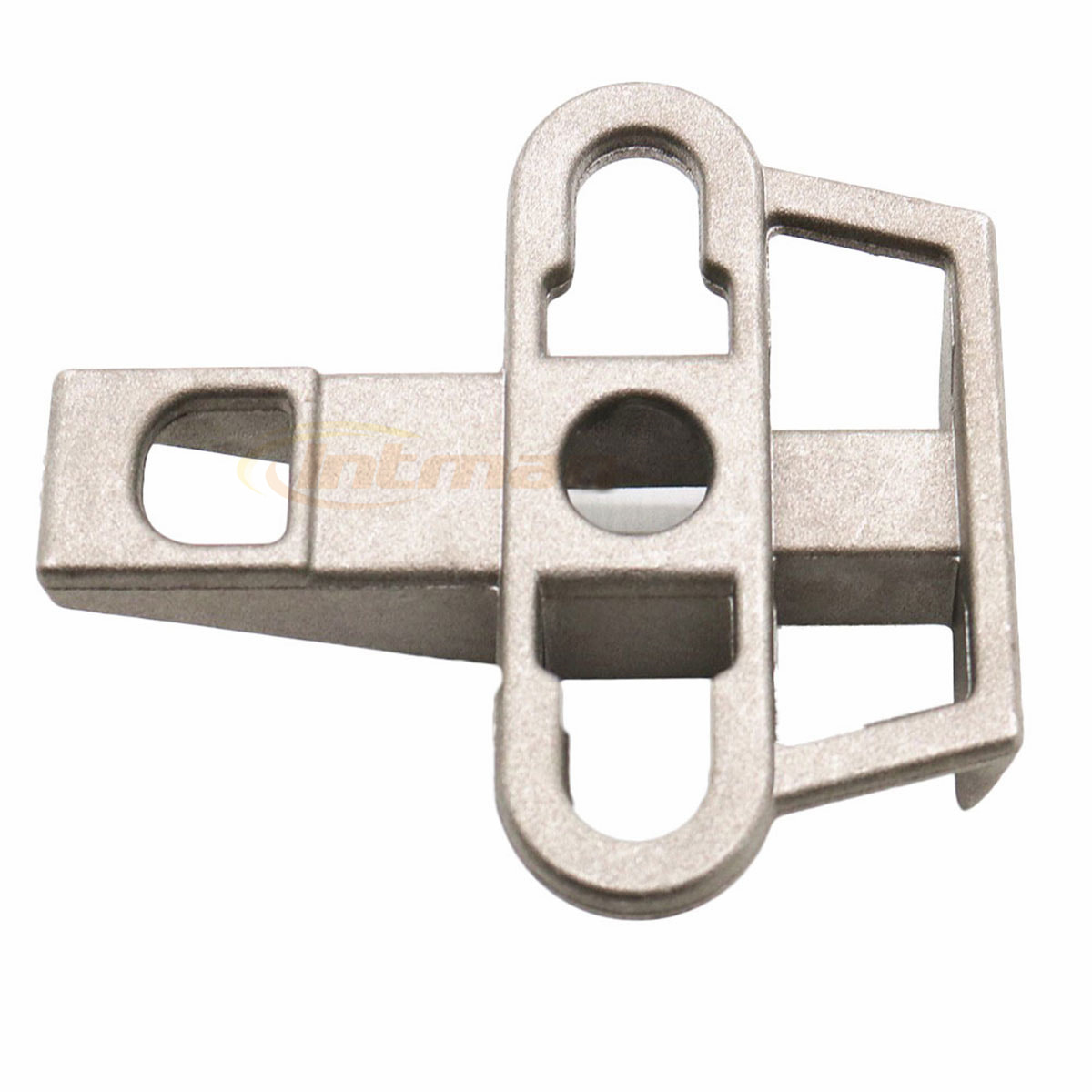

1. Universal Pole Bracket UPB

The UPB universal bracket is made of aluminum alloy offers high mechanical properties. Its unique design has been engineered so to offer an universal pole hardware solution able to adapt to all cable installation configurations on wooden,concrete or metal poles.

2.Key Features:

•  The installation can proceed on the poles of walls, wooden, metal concrete material made, by using stainless steel bands or bolts. Stainless steel materials guarantee a long time of usage. Fixed to the pole by 2 stainless steel bands (20 mm) or 1 bolt 14 16 mm diameter
• Provide the principle of all in one device, by offering up to 5 clamping points
• The fiber optic bracket UPB’s design allows withstand a sufficient load without anchor clamp slip or break.
• Materials: High-strength aluminum alloy

3.Applications

• Cable unrolling on pulley
• Staly wire
• Cross-arm fastening
• Customer connection
• Cable dead-ending
• Double anchoring
• Triple anchoring
• Angled pasageway

4.Installing Steps :

1. With Steel bands

The UPB bracket can be installed on any type of pole drilled or undrilled with two 20×0.7mm stainless steel bands puls two buckles .Usually allow two bands of one meter each per bracket.

2.With bolts

If the top of the pole is drilled(wooden poles,occasionally concrete poles ) the UPB can also be secured with a 14 or 16mm bolt. The bolt length should be at least equal to the pole diameter+50mm (bracket thickness).

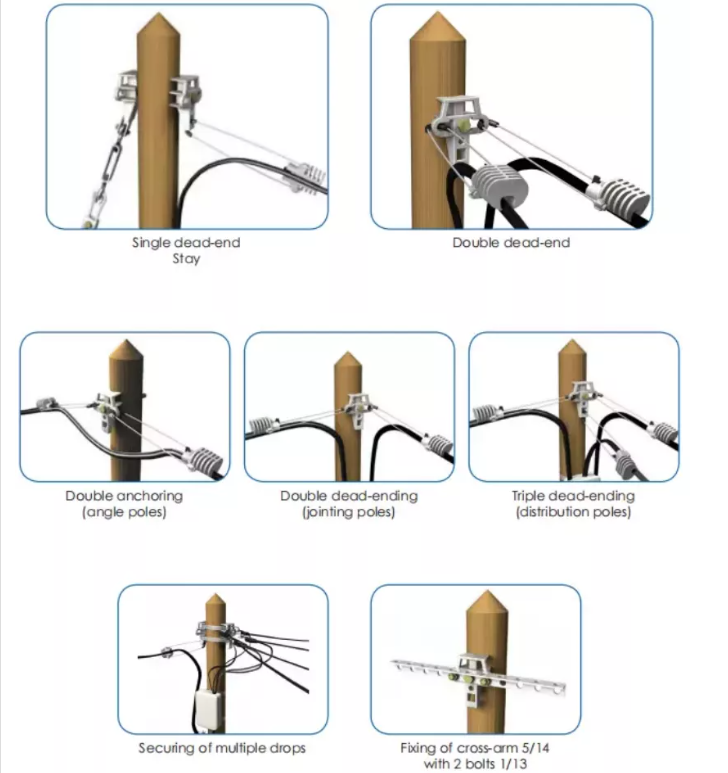

Application of Fibre Optic Universal Pole Brackets

5.  Technical Specifications
