Armoured Duplex ODC-2 Plug and ODC-2 Socket 5mm Outdoor waterproof Patch cable

Description

Armoured Duplex ODC-2 Plug and ODC-2 Socket Outdoor Connector Plug/Socket Patch Cable Assemblies

The ODC female 2core connector together with the far transmission cable is becoming the standard interface specified in 3G,4G, and Wimax Base Station Remote radios and FTTA (Fiber-to-the-Antenna) applications, with 5.0mm or 7.0mm single-mode , multimode 62.5/125um or 50/125um armored cable assembly.

The ODC Outdoor Connector Plug/Socket Patch cable assemblies have passed tests like salt mist, vibration, and shock and meet protection class IP67. They are well-suited for industrial and aerospace and defense applications.

ODC Female to LC 2Core Fiber Optic Patch Cable Specification Table

Connector	ODC 2Core to LC UPC	Cable Diameter	5.0mm
Fiber Mode	Multimode	Wavelength	1310/1550nm
Jacket Color	Black	Jacket Material	LSZH
Fiber Count	2Core	Connector Type	Female /Male
Insertion Loss	≤0.8dB	Fiber Grade	62.5/125um
Mating Times	≥500N	Repeatability	≤0.5dB
Operating Temperature	-20~70℃	Storage Temperature	-40~85℃

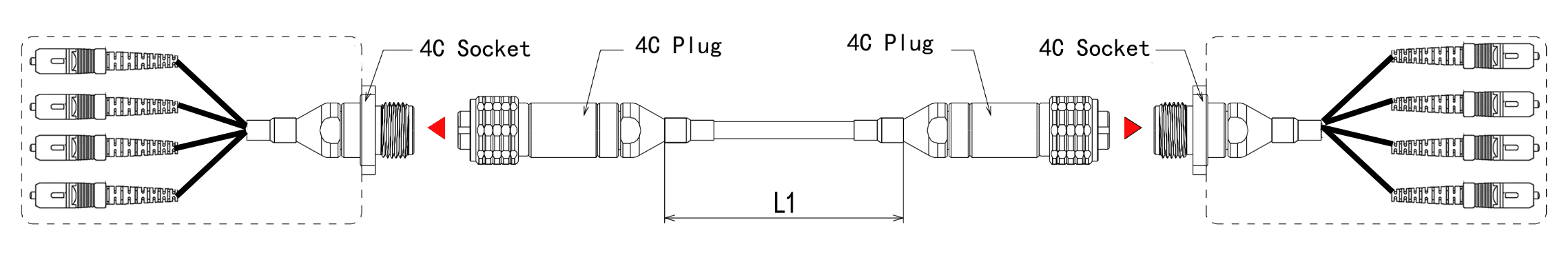

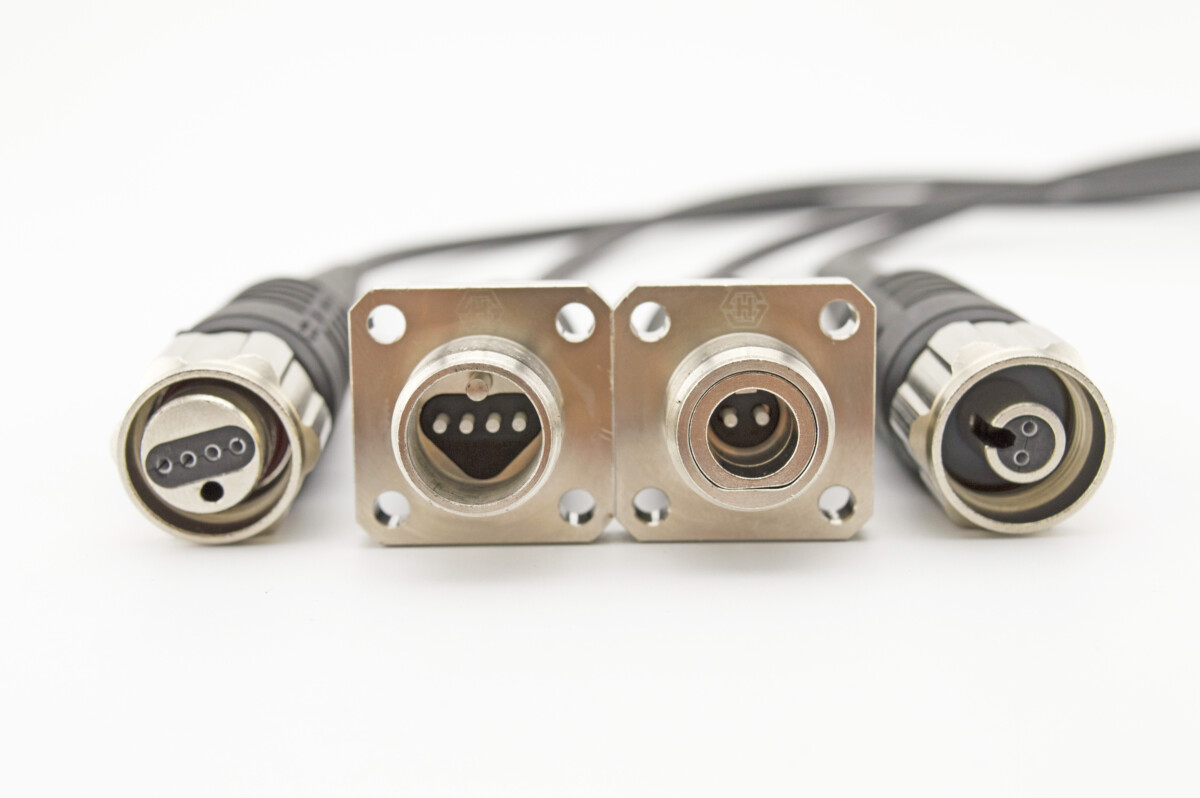

ODC 4Plug and 4Socket Connect

 Female ODC 2Core Fiber Optic Patch Cable Features

• Airtight construction: Waterproof, dustproof, and corrosion-resistant, protection caps.
• Screwed locking mechanism, confirm the connection is long-term and reliable.
• Guide structure, can be installed blindly, simply, and quickly.
• Compact appearance, robust and flexible.
• Sealing design through the wall.
• Reduce the times of splicing.

Patch Cable ODC Female to 2LC Applications

• Indoor and outdoor applications
• Outdoor&Military communication equipment connection
• Oil field, mine communication connection
• Far transmission wireless base station
• Video surveillance system
• Optical fiber sensor
• Railway signal control
• Intelligent substation

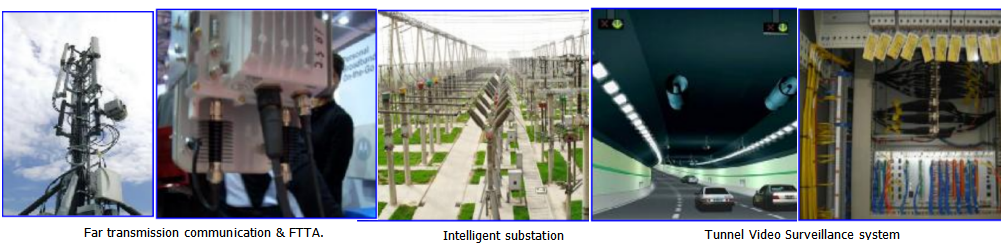

 Outdoor 2LC to ODC Fiber Optic Patch Cable Availability

• Far transmission communication&FTTA
• Intelligent substation
• Tunnel Video Surveillance system
