Best Quality LC MM OM3 Fiber Optic FTTH Fast Connector

Description

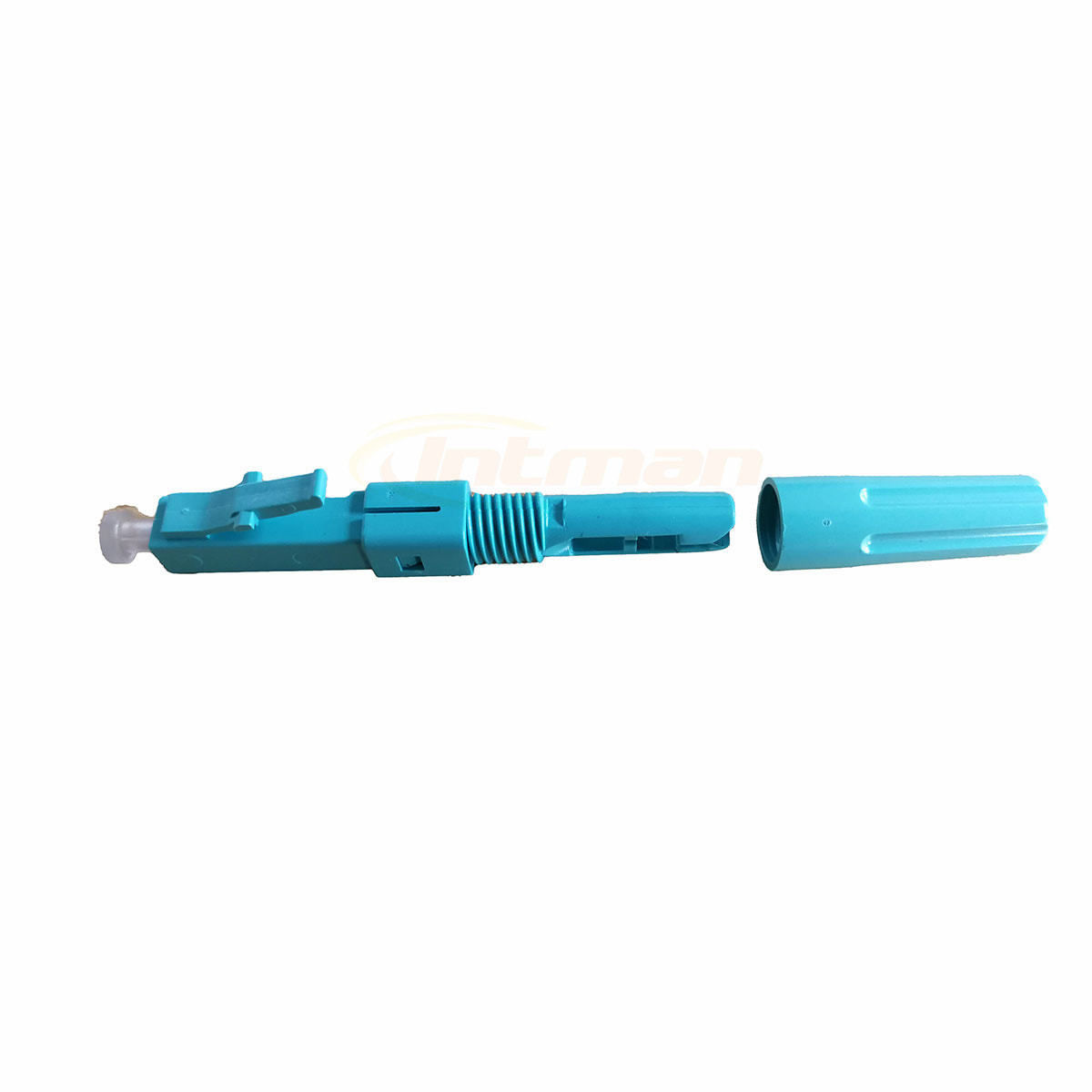

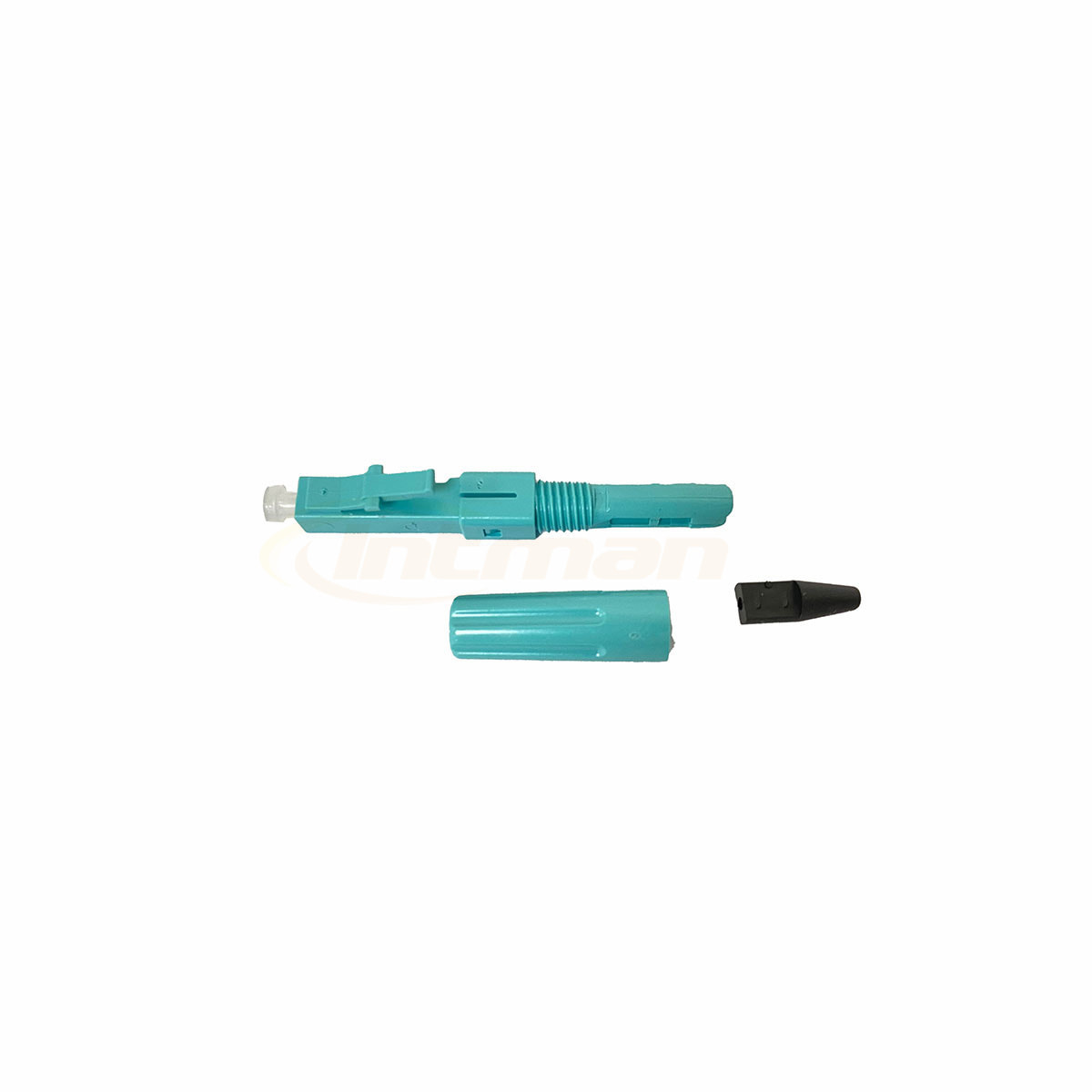

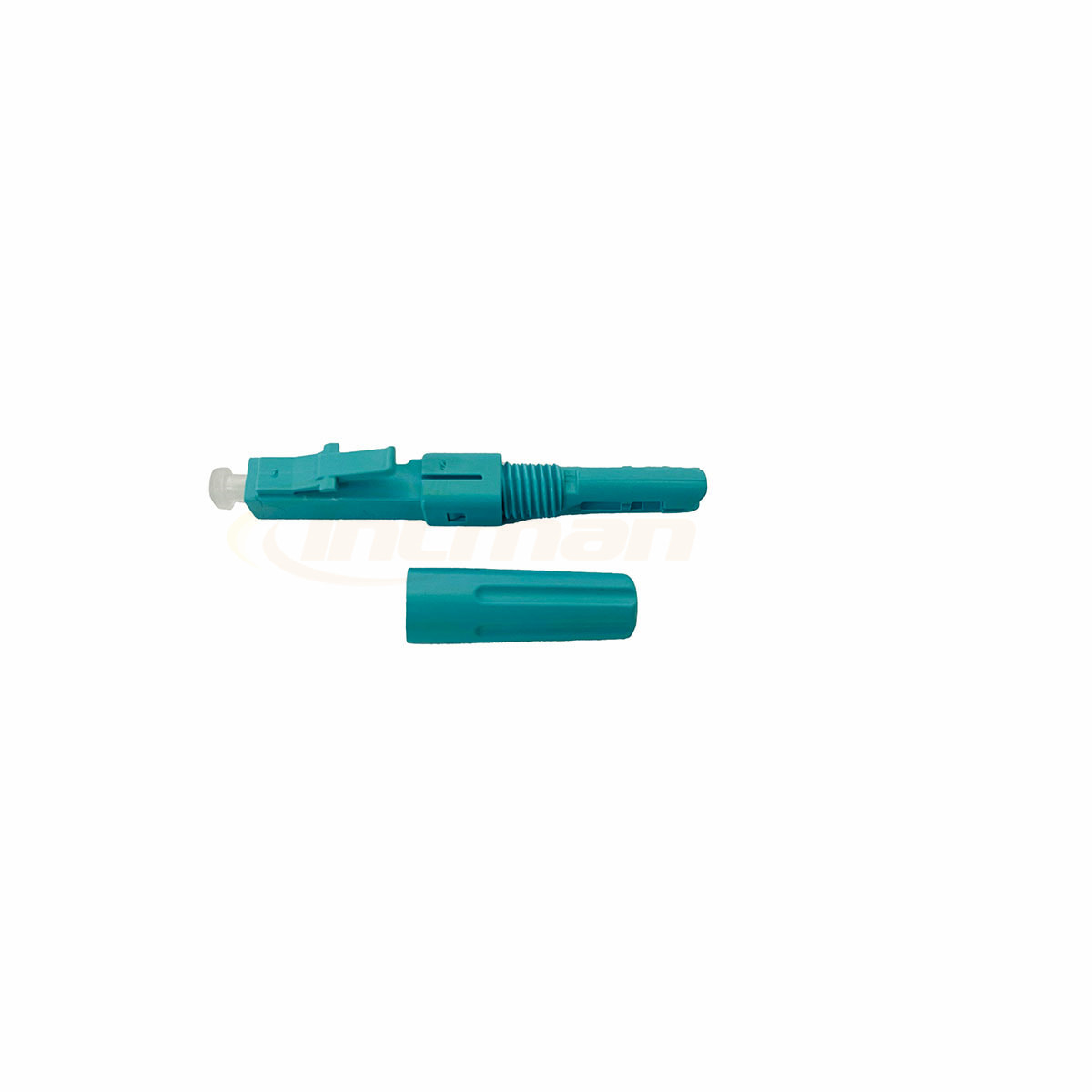

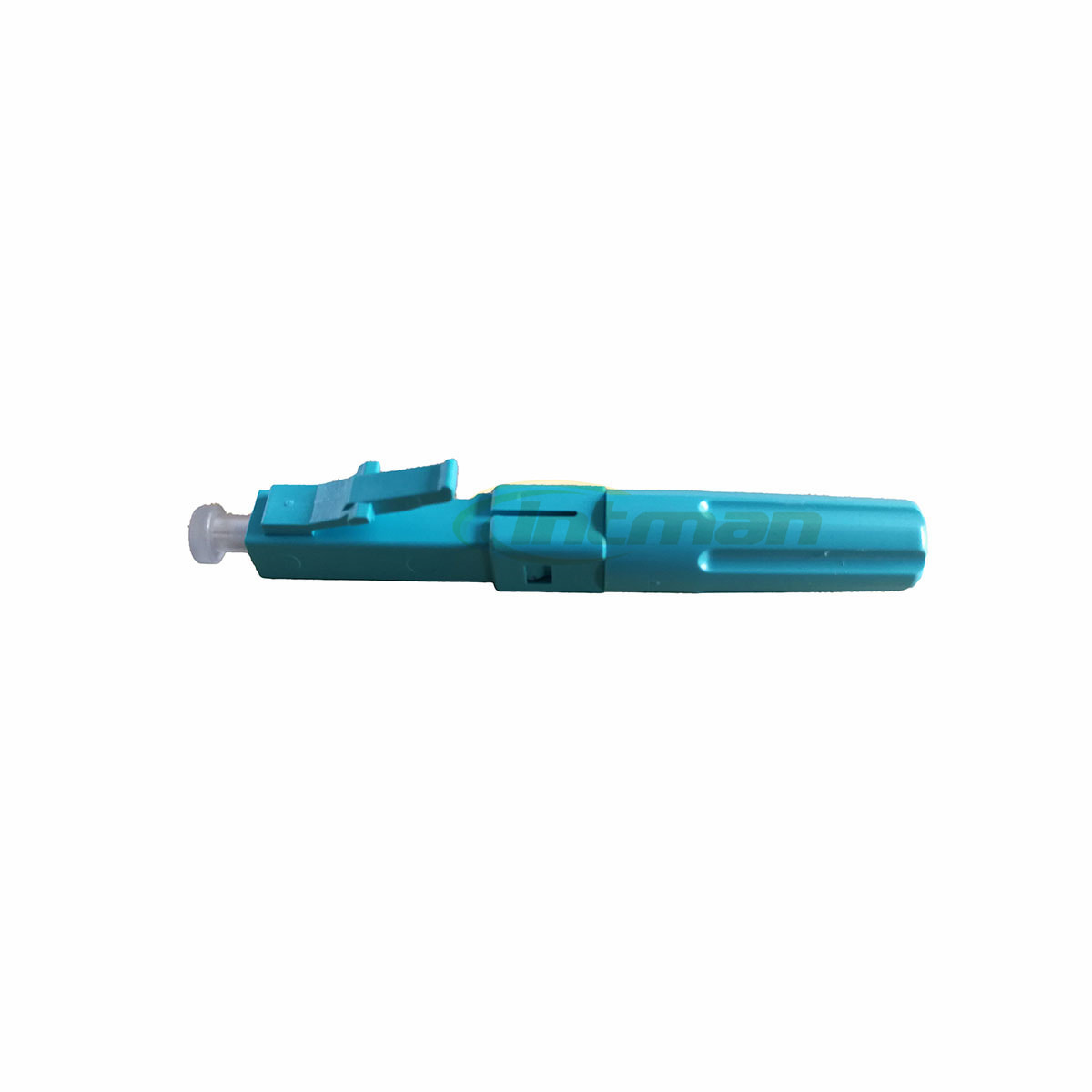

Quick LC OM3 Optical Fiber Fast Connector

The fast connector also called Field Assembly Connector or Field terminated fiber connector, Quick Assembly Fiber Connector, is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing, this connector during the installation process does not require any adhesive and curing process. This type LC fast connector including model INT-LCA-925H,INT-LCU-925H,INT-LCP-925H,INT-LCM3-925T mainly apply to 2×3mm drop cable ,0.9mm,2.0mm and 3.0mm round cable.

Characteristics:

• Good performance and High success rate.
• Easiness in installation with an average splicing time of 15sec.
• The special tool is simple and convenient to use.
• Reusable and repeat operation times are up to 100.
• Integrated Protection of the casing to prevent the connector from impact.
• On-line tension is up to 20N to protect the connector from dragging.
• The maximum tension is up to 100N. It is the most safety connector.
• Storage/Operation temperature: -40℃ to +70℃

Singlemode LC/UPC Fiber Fast Connector Specification Table

 LC MM OM3 Fiber Optic Fast Connectors Features

• Screw type, total length 40mm;
• Applied to 2×3 and 2×1.6 drop cable,2.0mm and 3.0mm indoor cable, and 0.9mm invisible cable;
• The diameter of fiber coating:250um,900um
• Tensile strength  ≥30N/2min

Multimode LC Quick Fiber Optic Connectors  Applications

• Telecommunications networks
• Premise installations
• Test equipment
• Data centers
• FTTX/FTTH
• CATV
• Metro Networks

Order Information

fiber quick connector
