- Name:100GBASE QSFP28 Transceiver
- Model: QSFP28-100G-SR4
- Connector: MTP/MPO
- Wavelength: 850nm
- Distance : 70m (OM3)/100m(OM4)
- Date rate : up to 103.125Gbps
- Fiber Type : Multimode
- Warranty Period:5years
- Fast Delivery Time
- 100% Testing Before Shipment
Ethernet 100G rate SR4 100m multi-mode QSFP28 MPO connector transceiver
Description
100Gb/s 100m QSFP28 Transceiver
The QSFP28-100G-SR4 is a transceiver module designed for 100m optical communication applications. This design is compliant with 100Gbase-SR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G959.1-2012-02 standard. The module converts 4 input channels of 25.78Gbps to 27.95Gbps electrical data to 4 lanes of optical signals and multiplexes them into a single channel for 100Gb/s optical transmission.
This transceiver is a high-performance module for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 100Gbps bandwidth.
Specification Table
| Data Rate (Mbps) | 100G | Form Factor | QSFP28 |
| Optical wavelength(nm) | 850nm | Fiber Type (micron) | MultiMode |
| Connector Type | MTP/MPO-12 | Max Distance | 70m OM3/100m OM4 |
| Max Data Rate | 103.125Gbps(4×25.78Gbps) | DDM/DOM | Supported |
| CDR | TX&RX Built-in CDR | Warranty | 5Years |
Key Features
- Hot-pluggable QSFP28 form-factor
- 4 channels full-duplex transceiver module
- 4×850nm VCSEL array and PIN photo-detector array
- Internal CDR circuits on both receiver and transmitter channels
- Supports CDR by pass
- Compliant with QSFP28 MSA,IEEE 802.3 bm 100GBASE-SR4 and InfiniBand EDR
- Compliant with IEEE 802.3ba 40GBASE-SR4 and InfiniBand FDR
- Data rate up to 103.125Gbps
- Reach up to 70m (OM3) or 100m (OM4) over MMF
- Power consumption ＜2.5W
- MPO 12 receptacle
Application Optical Cable
- Local Area Network (LAN)
- Wide Area Network (WAN)
- Ethernet switches and router applications

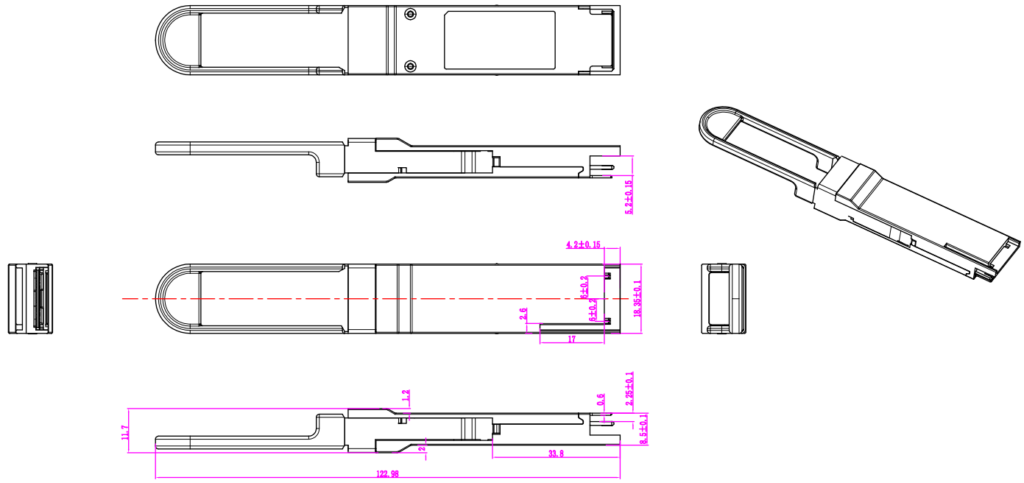

Mechanical Dimensions
100g qsfp28
Ordering Information
| Part Number | Product Description |
| GL-QSFP28-100G-SR4 | 100G QSFP28 850nm 100m SR4 MPO |
