Ethernet Switch 6Port Fiber Optic Converter

Description

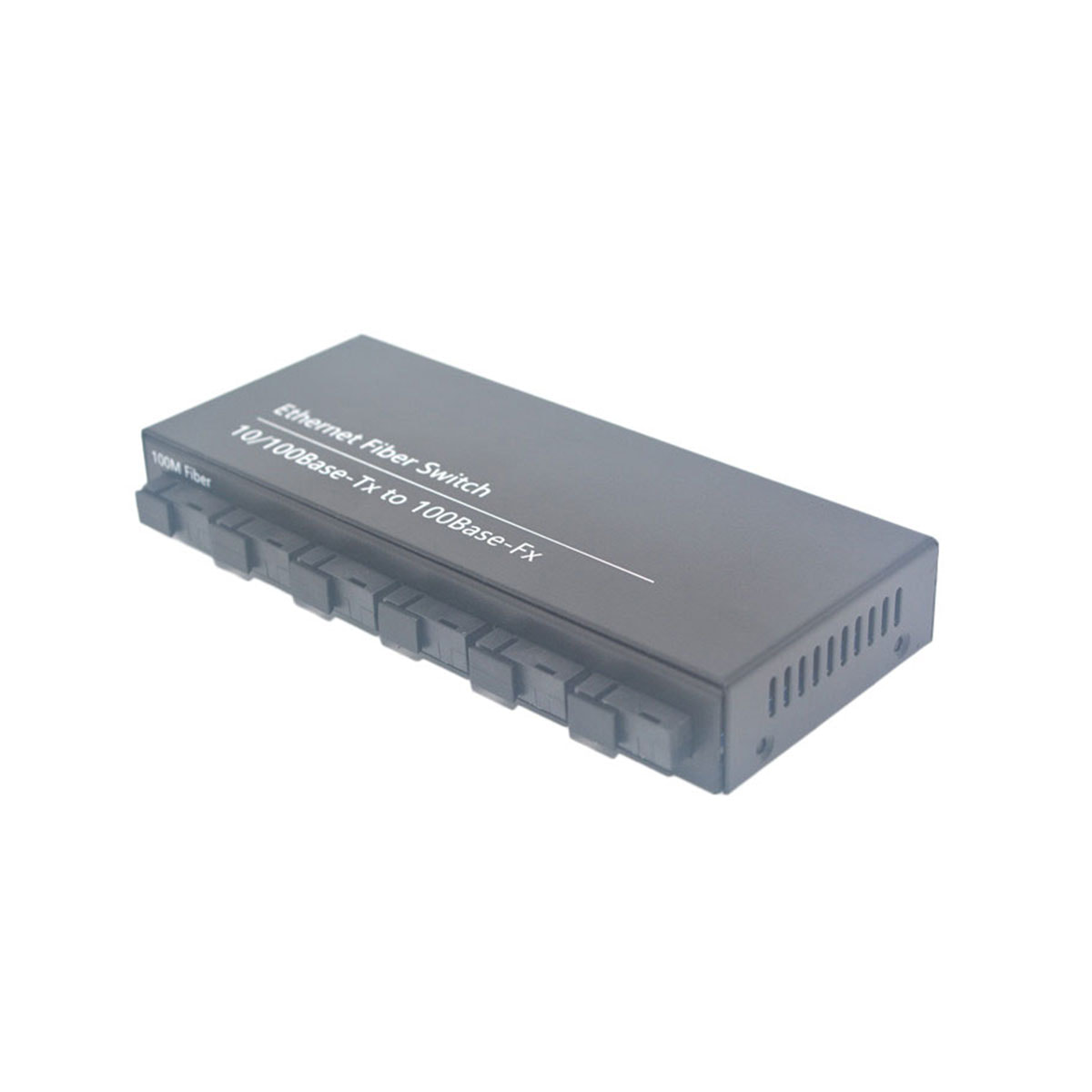

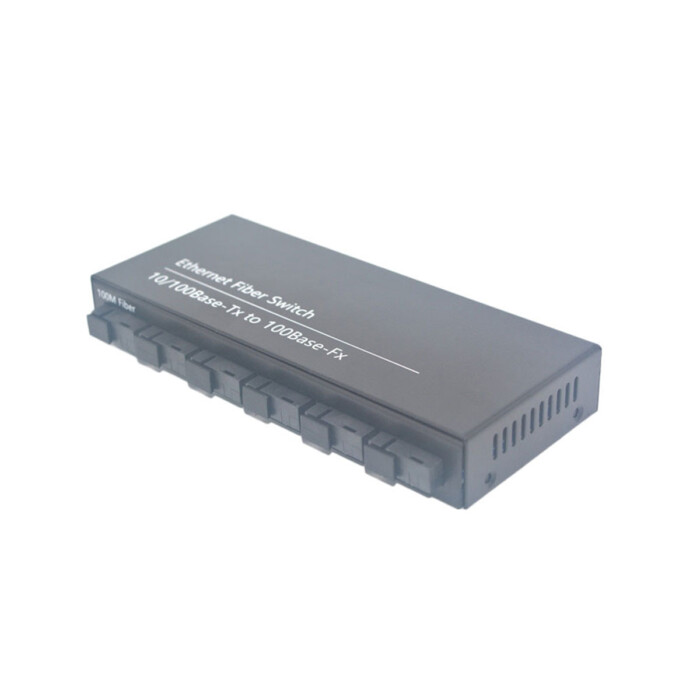

Fiber Switch 6Fiber +2RJ45

The fiber switches are unmanageable, when converting transmission all ports share the same data. They can extend the network transmission from 100m to 120km and can realize the interconnection between motherboard servers, repeaters, hubs, switches, and terminals. The plug-and-play design makes it easy installation, with no on-site adjustment. Operation status can be monitored through a set of diagnostic LEDs.

Single fiber media converter Specification Table

Data Rate (Mbps)	10/100M	Interface	2×RJ-45 connector+6Fibers
Optical wavelength(nm)	1310nm	Fiber Type (micron)	Single Mode 9/125
Connector Type	2 UTP, 6 Fiber	Max Distance	120km
Power	DC 48V to DC 5V	Led Light	PWR,Link/ACT,SPD

Key  Features

• Auto negotiation function allows UTP ports to auto-select 10/100/1000M and Full duplex or half duplex.
• Built-in efficient exchange kernel, broadcasting filtration function, flow control, CRC error check.
• Supports Spanning Tree to conduct fault-tolerant network.
• Supports 10/100Mbps or 10/100/1000mMbps full/half duplex self-adaptive transmission and auto-negotiations, easy upgrades.
• Max. transmission distance can be 120km
• External power or built-in power.
• Standalone type can be installed into 14slot 2U Rack, card type into 16 slot Rack.

Application Optical Cable

• Multimode optical cable: 50/125um,62.5/125um,100/140um
• Singlemode optical cable: 8.3/125um,8.7/125um,9/125um,10/125um
• UTP Cable: Cat5/5e,Cat6

1.For Networking

Standards Protocol

IEEE802.3 Ethernet Standard

IEEE802.3u fast Ethernet Standard

IEEE802.3d Spanning Tree Standard

Panel Structure Chart

Single fiber SC Media Converter Gigabit Single-mode

10/100Mbps Media Converter

 10/100/1000Mbps Media Converter

10/100Mbps Mini Type Media Converter

 Front Panel of SFP Media Converter

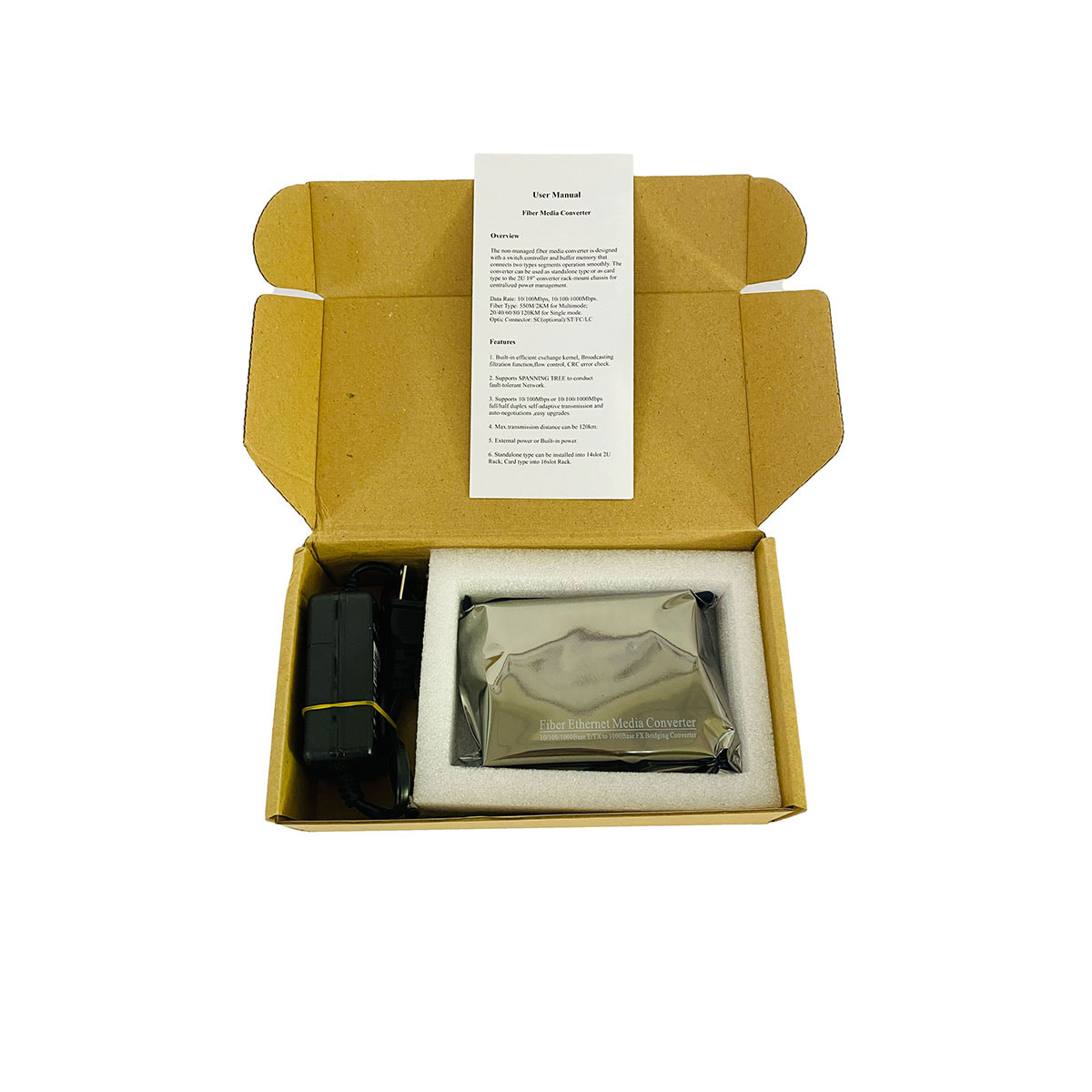

Packing List

Please check the following items from the package before installing the converter

1*Fiber Media Converter

1*Power Adapter

1*User Manual
