- Name: MaxTester 720C OTDR
- Model: MAX-720C-SM1-EI
- Wavelength: SM1 1310/1550nm

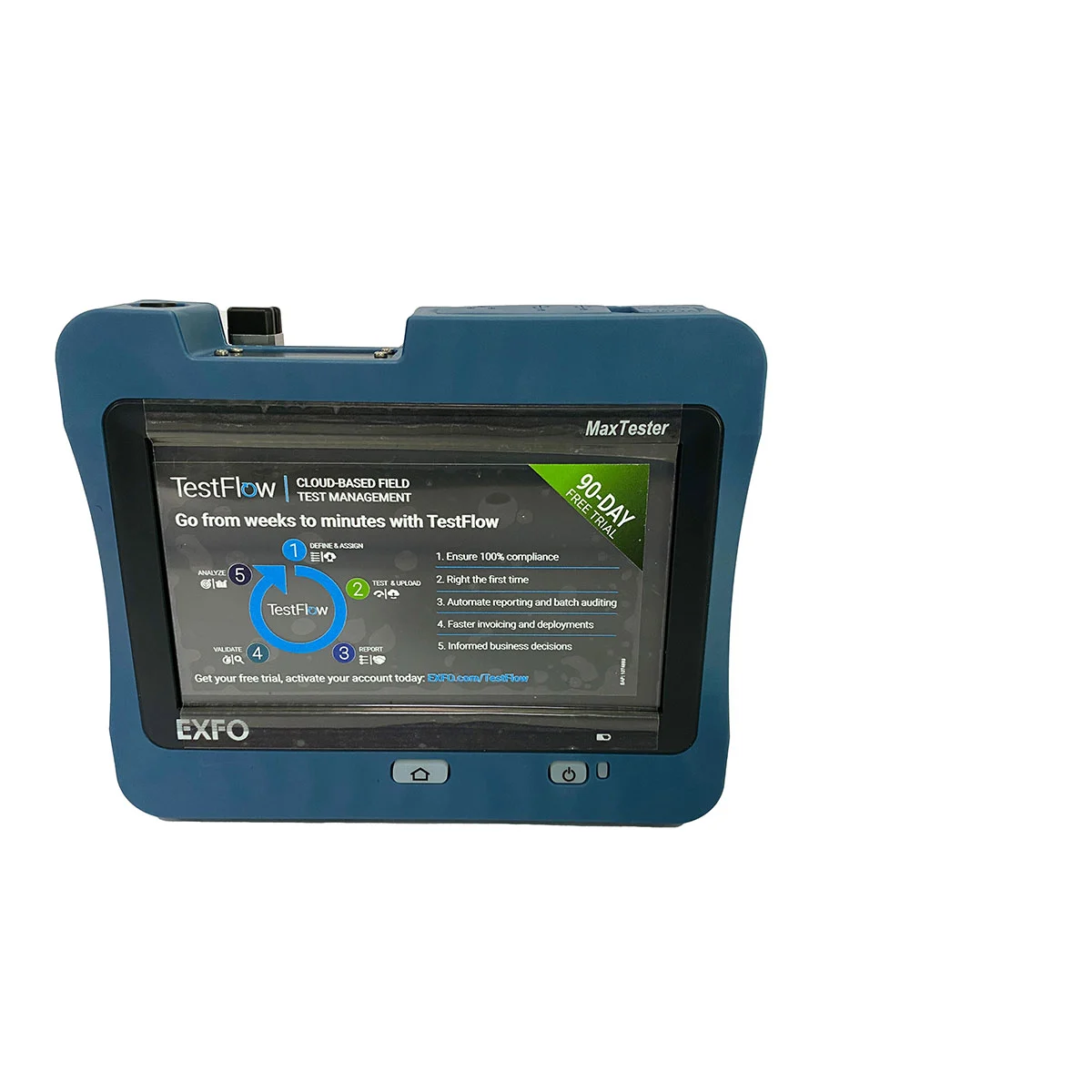

- Display: 7-in (178mm) outdoor-enhanced touchscreen,800×480TFT
- Storage :2GB internal memory

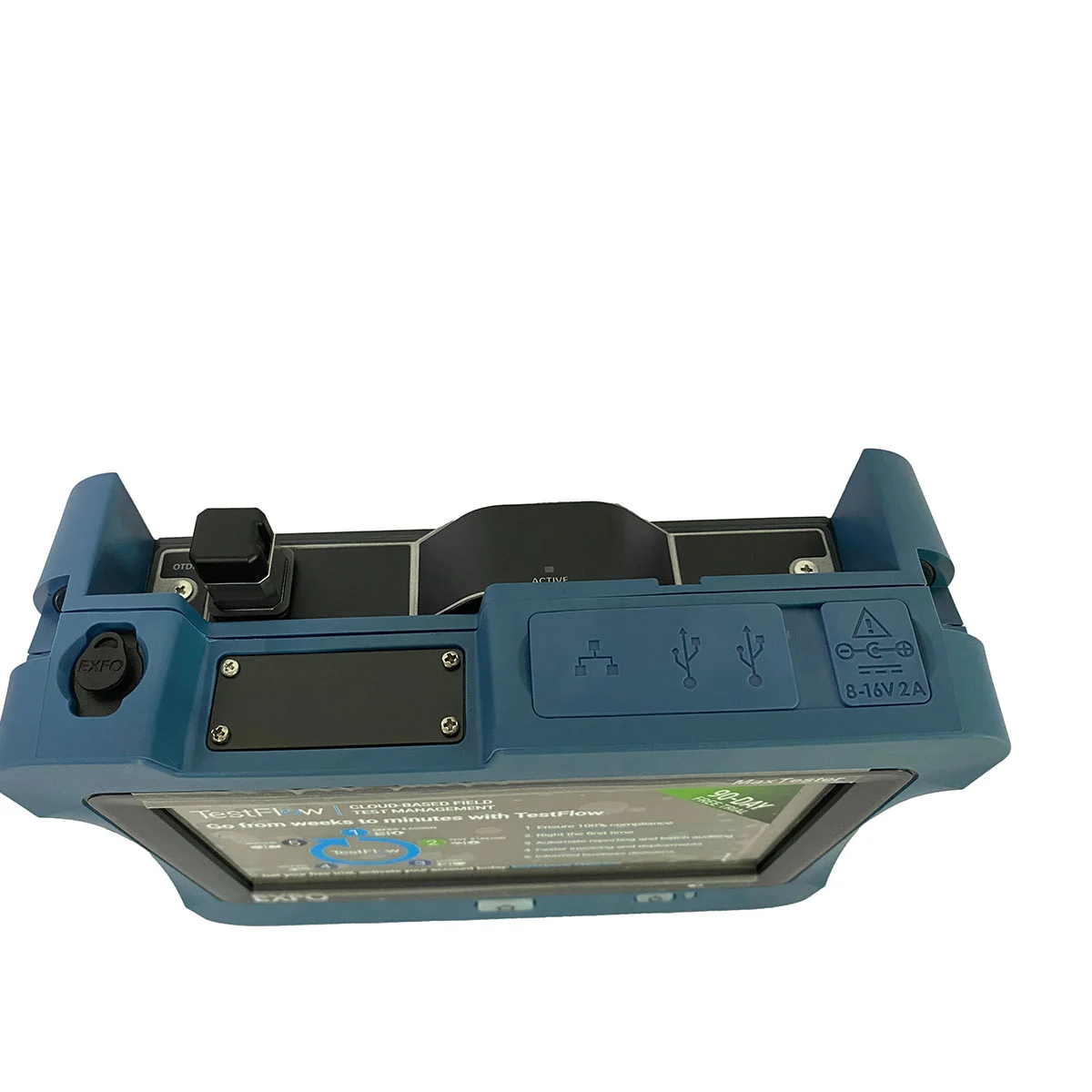

- Interfaces : Two USB2.0ports,RJ45 Lan 10/100M
- Dynamic range: 27/29/36/35/35dB
- Power Supply: AC/DC adapter, input 100-240VAC
- Battery Operating Time: 12hours
- Dimension: 166×200×68mm
- Operating Temperature (℃）: -10~+50 ℃
- Weight : 1.5kg
EXFO OTDR MaxTester 720C SM1 1310/1550nm 36/35dB
Description
1. MaxTester 720C Access OTDR
The MAX-720C OTDR/iOLM features a dynamic range of 36dB in single mode and 29dB in multimode, as well as industry-leading dead zones. This ensures efficient testing of closely spaced events such as patch cords in data centers, or patch panels in central offices(COs). The MAX-720C is optimized for point-to-point testing of any access network and is suitable for testing through 1×32 splitters.
Other models available:
MAX-715B short access and FTTx last-mile installation and troubleshooting
MAX-730C FTTH/PON installation and maintenance for testing through optical splitters and P2P metro
Key Features:
- Handy, lightweight, powerful,tablet-inspired design
- 7-inch,outdoor-enhanced touchscreen-the biggest in the handheld industry
- 12-hour autonomy
- The dynamic range of up to 36dB in single mode and 29dB in multimode
- Live fiber testing at 1625nm
- iOLM-ready: an intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task
- Rugged design built for the outside plant
Applications:
- Access network construction and troubleshooting
- FTTx/PON Testing through splitters (up to 1×32）
- Central office link certification
- Datacenter and private networks
- LAN/WAN characterization
- Fronthaul/backhaul(FTTA,FTTT,RRH,DAS and small cells)

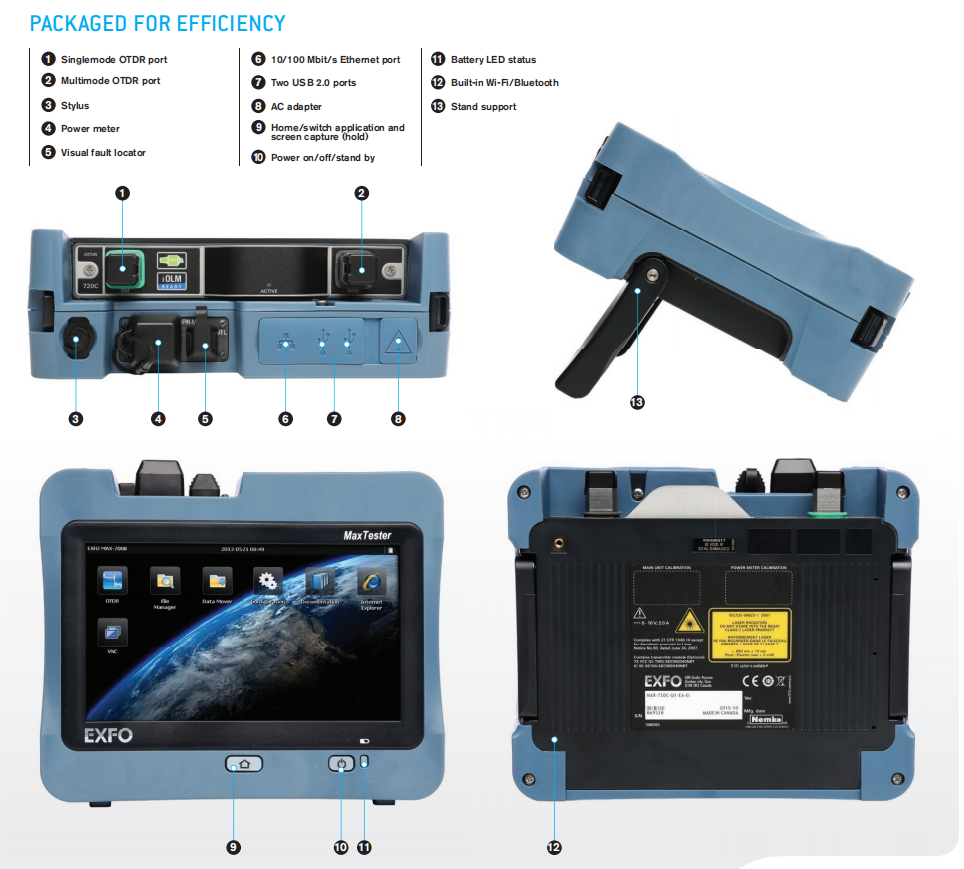

MaxTester 720C Access OTDR
2. Handheld Light Source Specification Table
| Technical Specifications | ||||
| Display | 7-in (178mm) outdoor-enhanced touchscreen,800×480TFT | |||
| Interfaces | Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s | |||
| Storage | 2GB internal memory (20000 OTDR traces,typical) | |||
| Batteries | Rechargeable lithium-polymer battery ,12hours of operation as per Telcordia TR-NWT-001138 | |||
| Power supply | AC/DC adapter, input 100-240 VAC,50-60 Hz | |||
| Wavelength(nm) | 850±20/1300±20/1310±20/1550±20/1625±10 | |||
| SM live port built-in filter | 1625nm:highpass ＞1595 nm,isolation ＞50dB from 1270nm to 1585nm | |||
| Dynamic range (dB) | 27/29/36/35/35 | |||
| Event dead zone(m) | Singlemode:0.7m, Multimode :0.5m | |||
| Attenuation dead zone(m) | Singlemode:3m, Multimode :2.5m | |||
| PON dead zone(m) | 35 | |||
| Distance range (km) | Multimode:0.1 to 40km,Singlemode:0.1 to 260km | |||
| Pulse width(ns) | Multimode:3 to 1000 ns,Singlemode:3 to 20000 ns | |||
