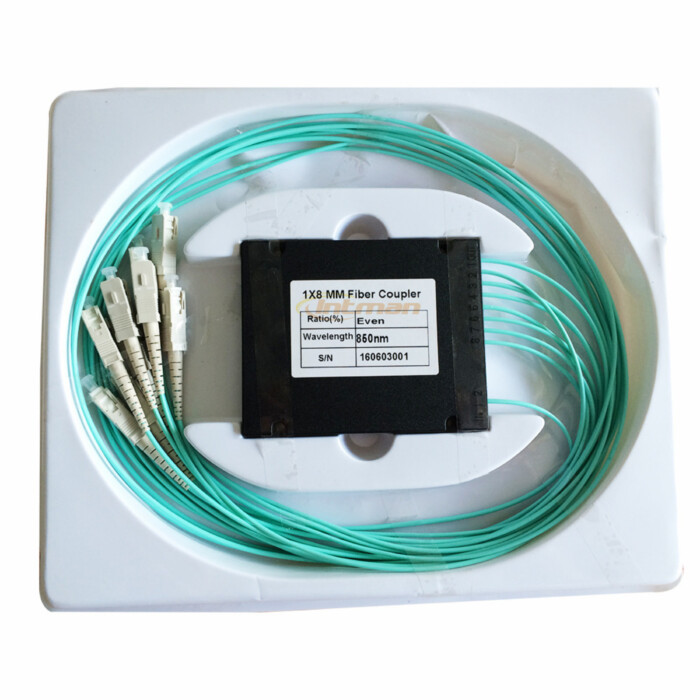

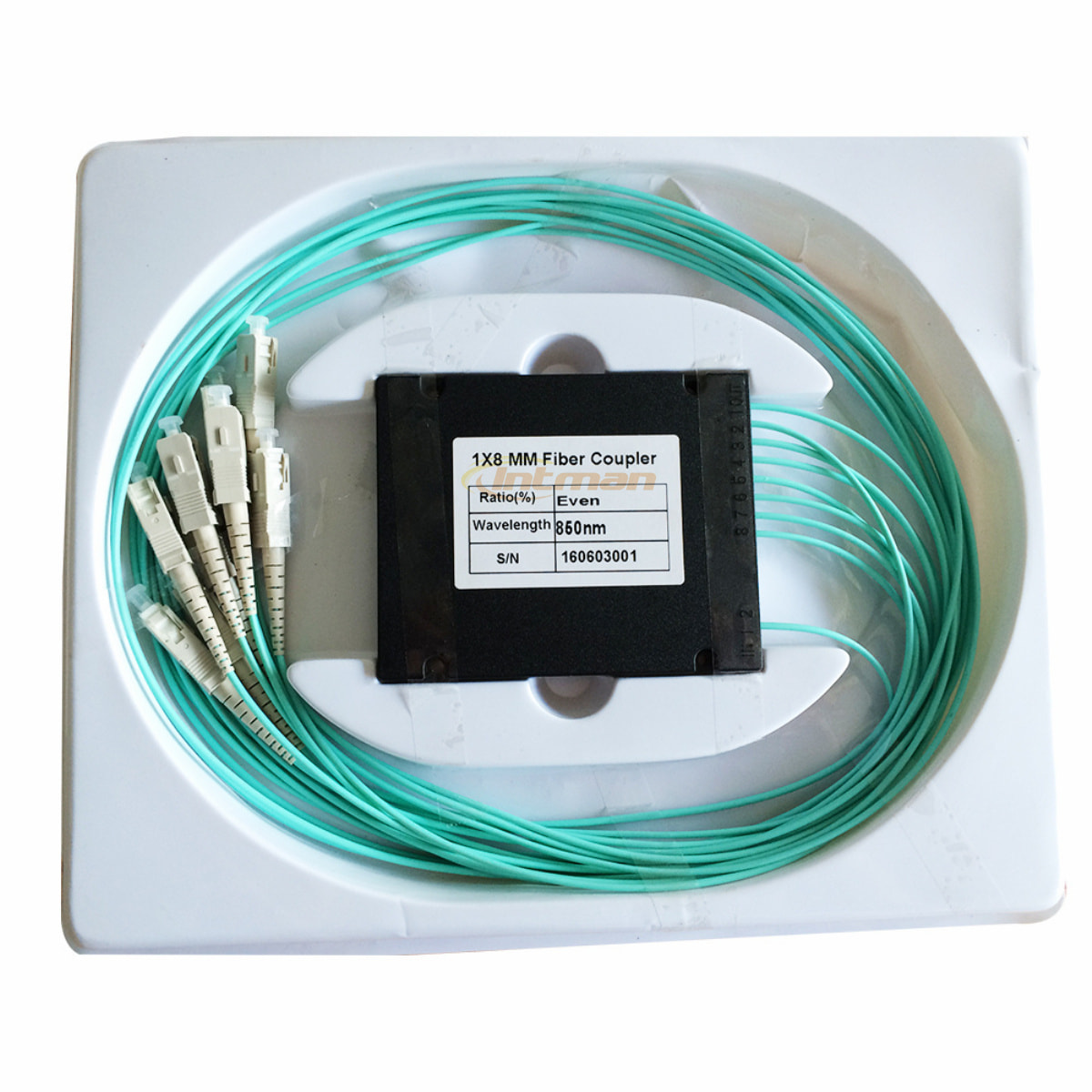

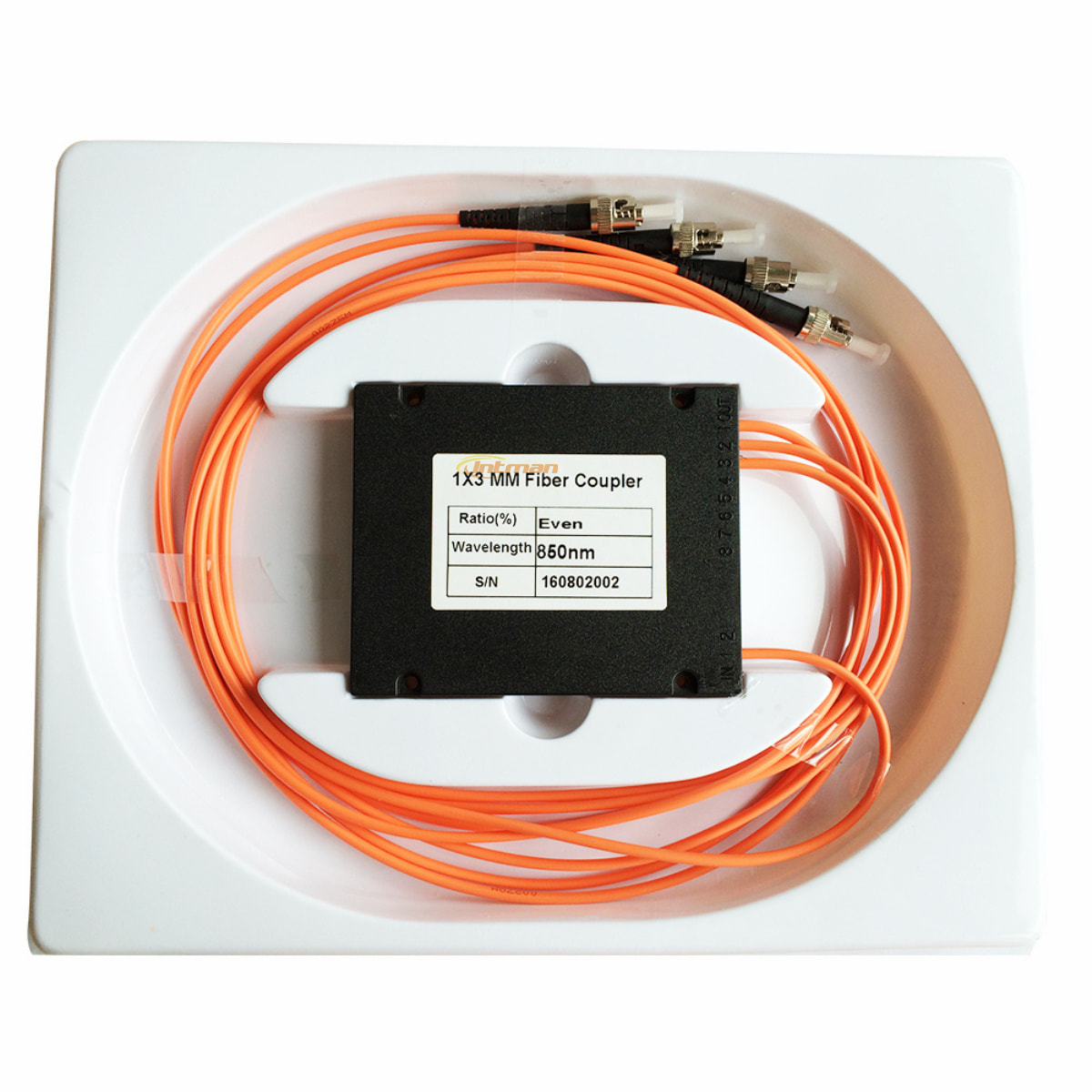

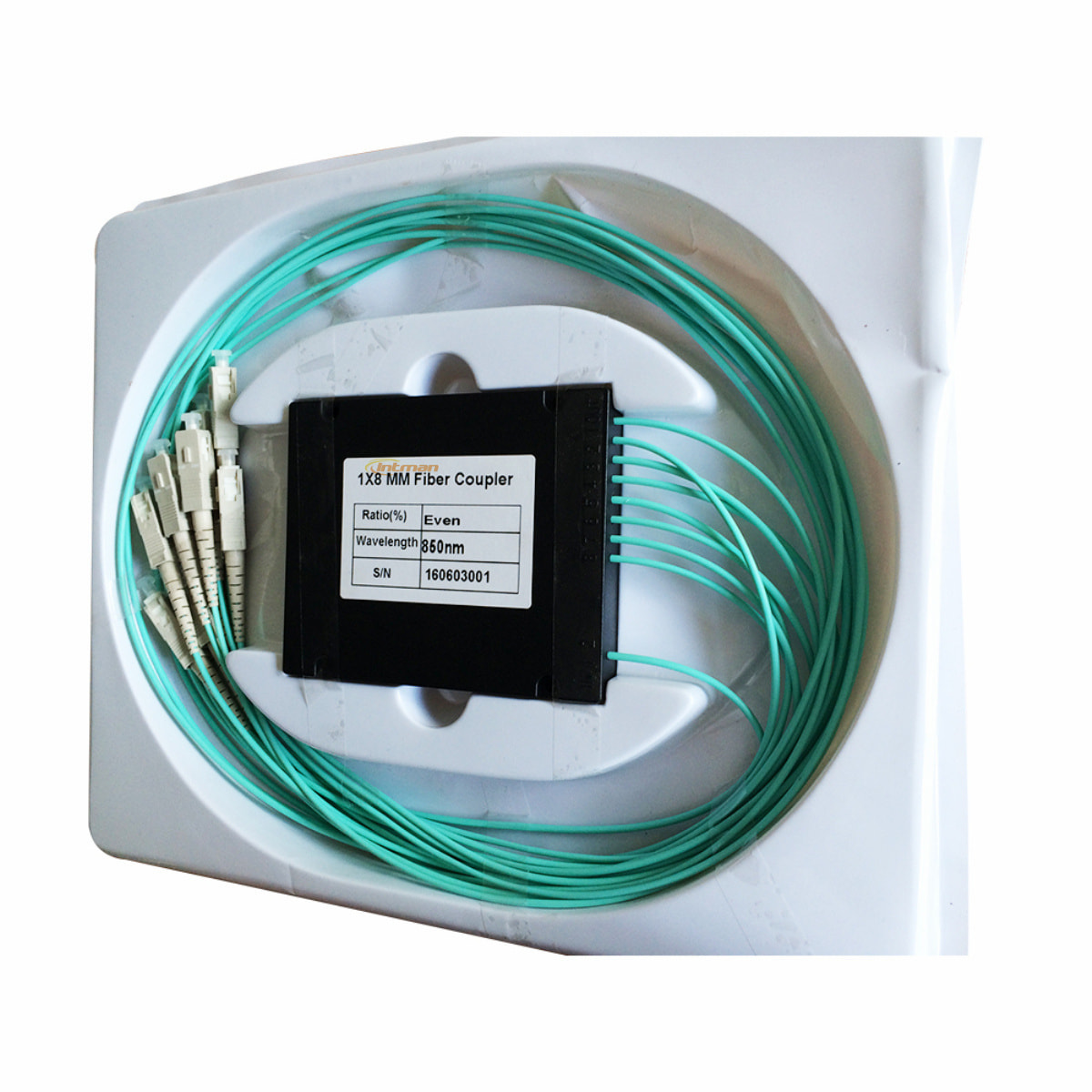

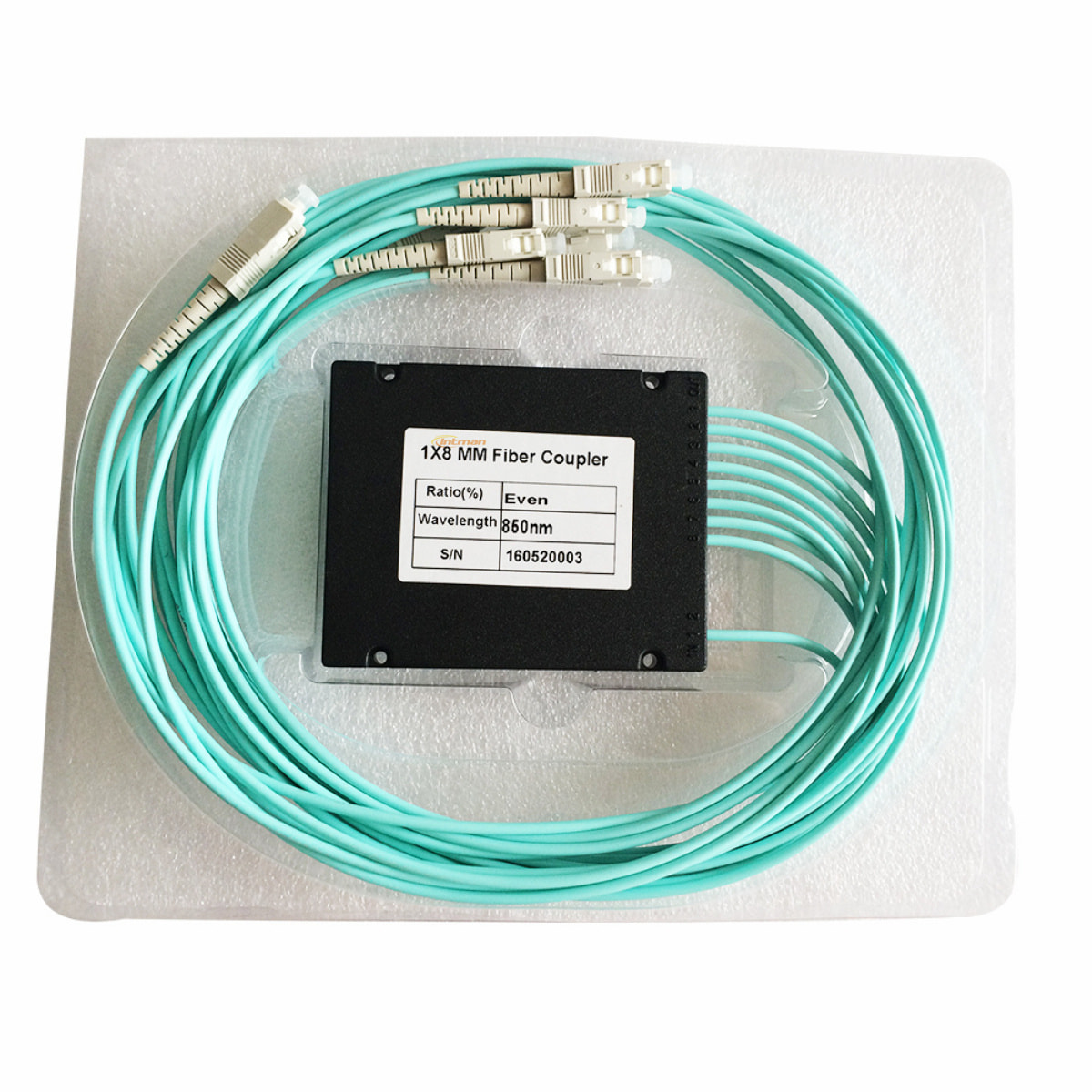

PLC (Planar Lightwave Circuits) multimode splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. Intman PLC splitters provide a low-cost solution for optical signal distribution, with a small form factor and superb reliability. Intman offer 1×2, 2×2, 1×4 and 1×8 multimode fiber optic couplers ,as well as customized structures of 2×4,2×32,2×64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirements.
| Connector | SC/LC/FC/ST | Cable Diameter | 2.0mm/3.0mm |
| Fiber Mode | Multimode | Wavelength | 1260~1650nm |
| Jacket Color | Orange,aqua | Jacket Material | LSZH |
| Length | 1m,1.5m,2m | Fiber Grade | 62.5/125um,50/125um |
| Polarization Dependent Loss (dB) | ≤0.2dB | Return Loss(S/P) | 30/35dB |
| Module Box Dimensions(L×W×H) | 100×80×10mm | Device Package Size | 40×4×4mm |
| Operating Temperature | -40~85℃ | Storage Temperature | -40~85℃ |
