FC Male-SC Female Fiber Hybird Adaptor FC to SC Fiber Adapter

Name:Hybrid Fiber Adapter
Connector : FC to SC
Connector Type: Male to Female
Fiber Counts: Simplex
Fiber Mode: Singlemode
Polish Type : UPC-APC
Material : Metal
Good Supply Capacity
Fast Delivery Time
100% Testing Before Shipment

Description

Description

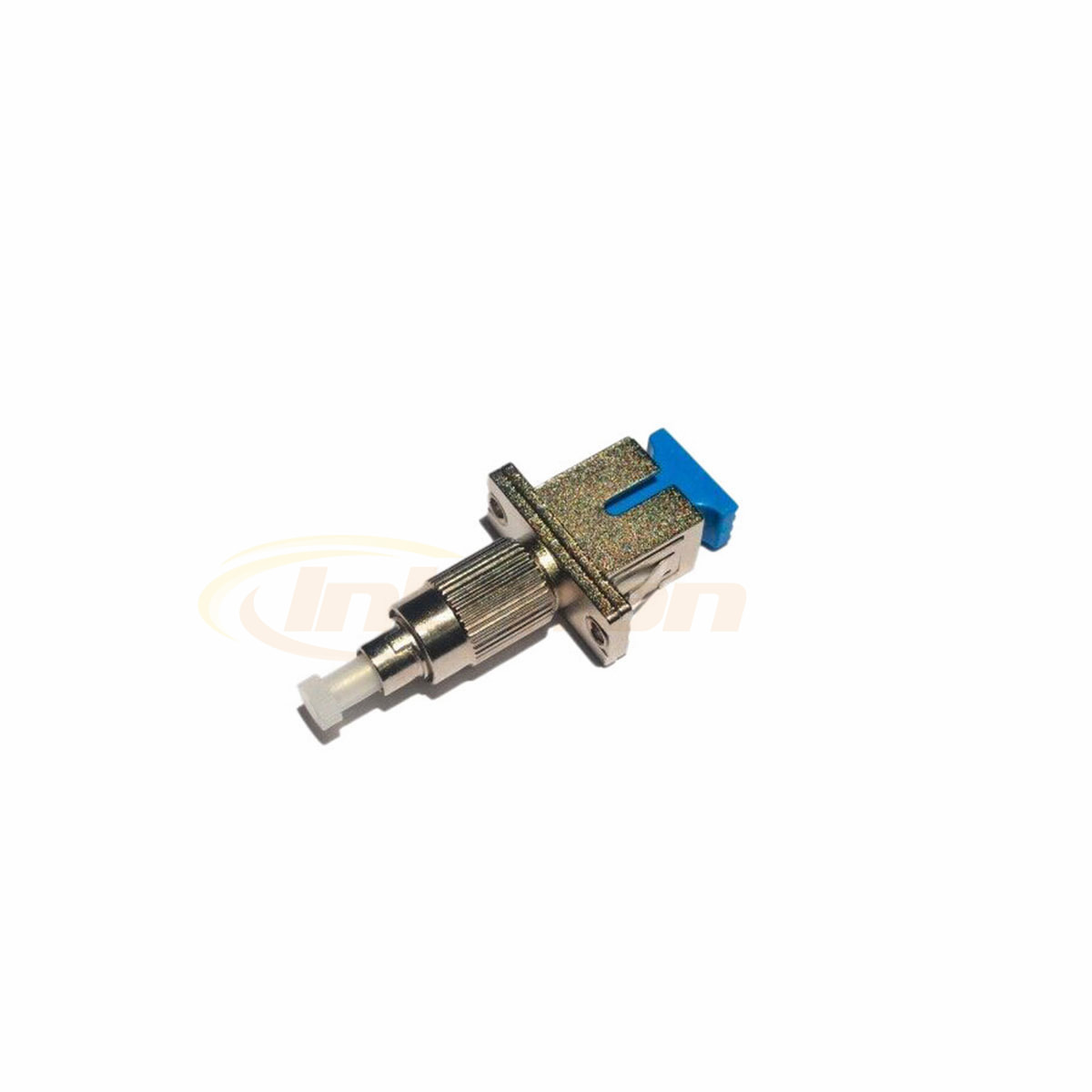

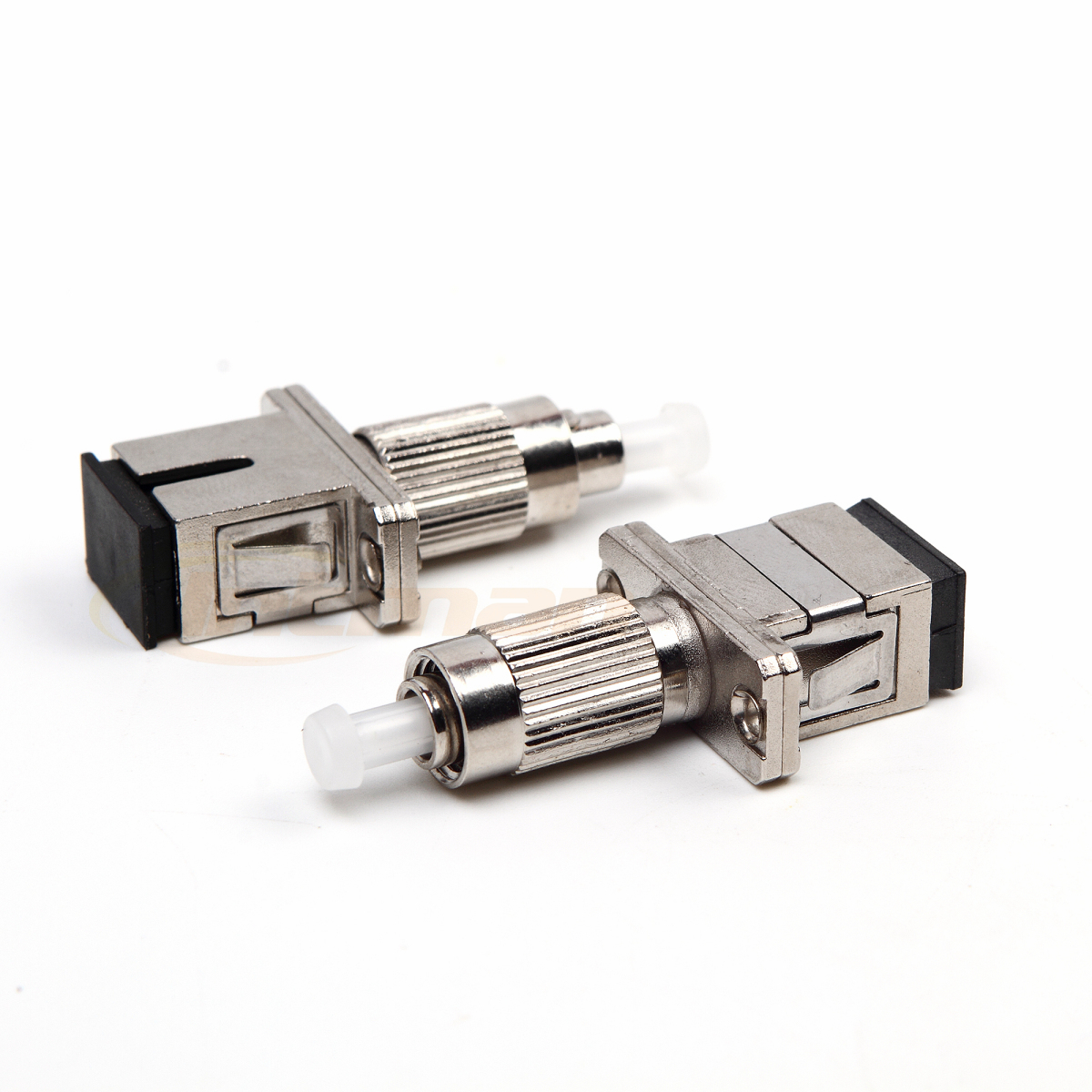

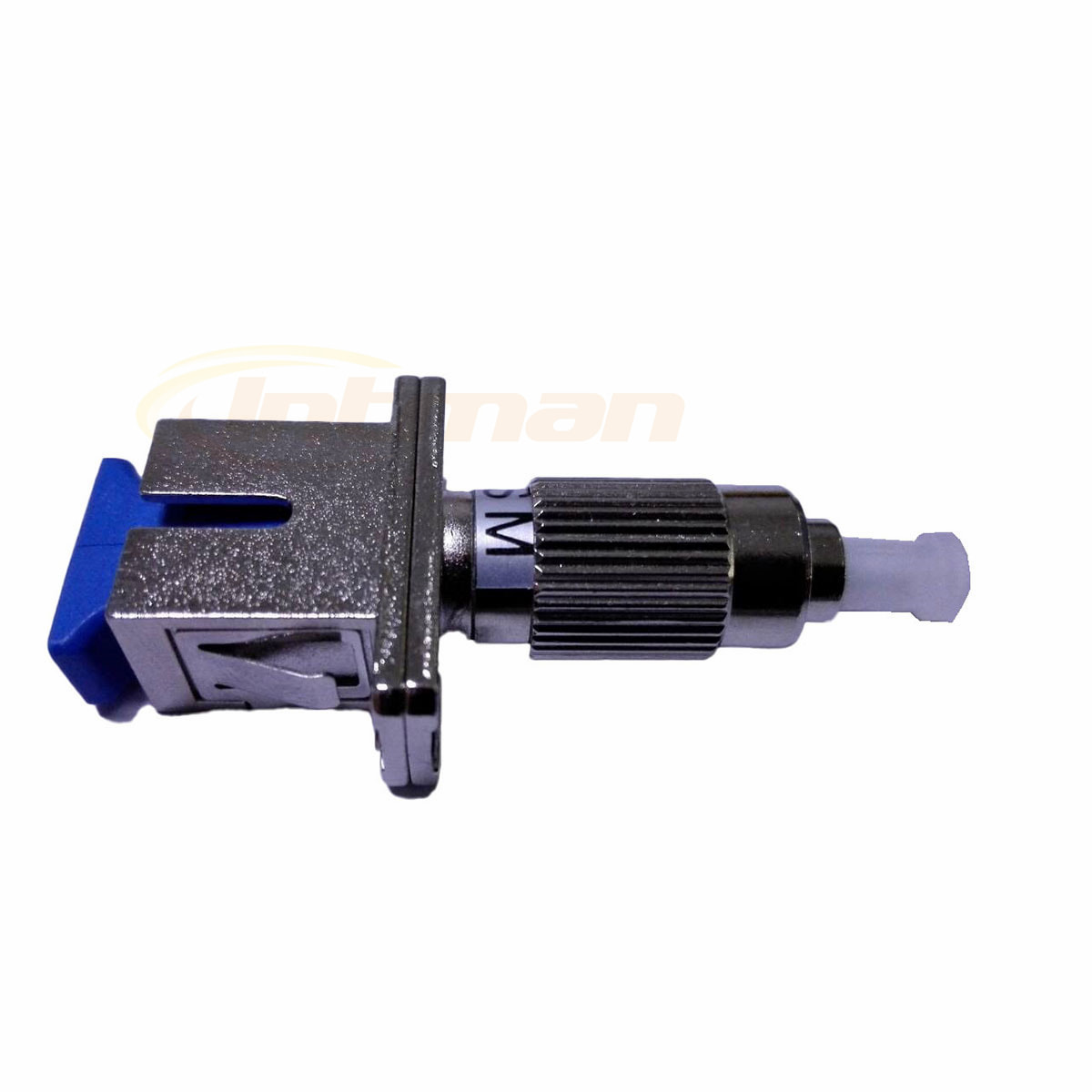

FC to SC Hybrid Fiber Adapter Male to Female Connector

The FC to SC Hybrid Fiber Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and has a metal SC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances. Hybrid fiber adapters (Converting fiber adapters) provide interconnection between two different fiber connector types. There are two types of hybrid fiber adapters, including a Male-Female hybrid fiber adapter and a Female-Female hybrid fiber adapter.

FC to SC Hybrid Fiber Adapter Male to Female Connector Specification Table

Connector	FC to SC	Gender Type	Male to Female
Fiber Mode	Singlemode/Multimode	Polish Type	UPC/APC
Adapter Style	Simplex/Duplex	Material	Plastic/Metal
Durability	＞1000 Time	Insertion Loss	≤0.5dB

FC to SC Hybrid Fiber Adapter Male to Female Connector Features

Low insertion loss and back reflection loss
Male to Female fiber connector types
All metal construction for long life
Interchangeable for a wide range of products
Used for Multimode connectors
High-precision sleeve
Compact design
PC,UPC and APC available
Ceramic or Bronze sleeve

FC to SC Hybrid Fiber Adapter Male to Female Connector Applications

Female to Male Hybrid fiber adapter (build-out type hybrid fiber adapter ) is a fiber adapter with connector plug (male) end and an adapter socket (female) end. We call it Male to Female Hybrid fiber adapter.
