- Name:FC Adapter
- Color : Red or Yellow
- Mounting Type: With flange or not
- Body Style: Simplex and duplex
- Fiber Mode: Singlemode
- Polish Type : UPC/APC
- Material : Plastic
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

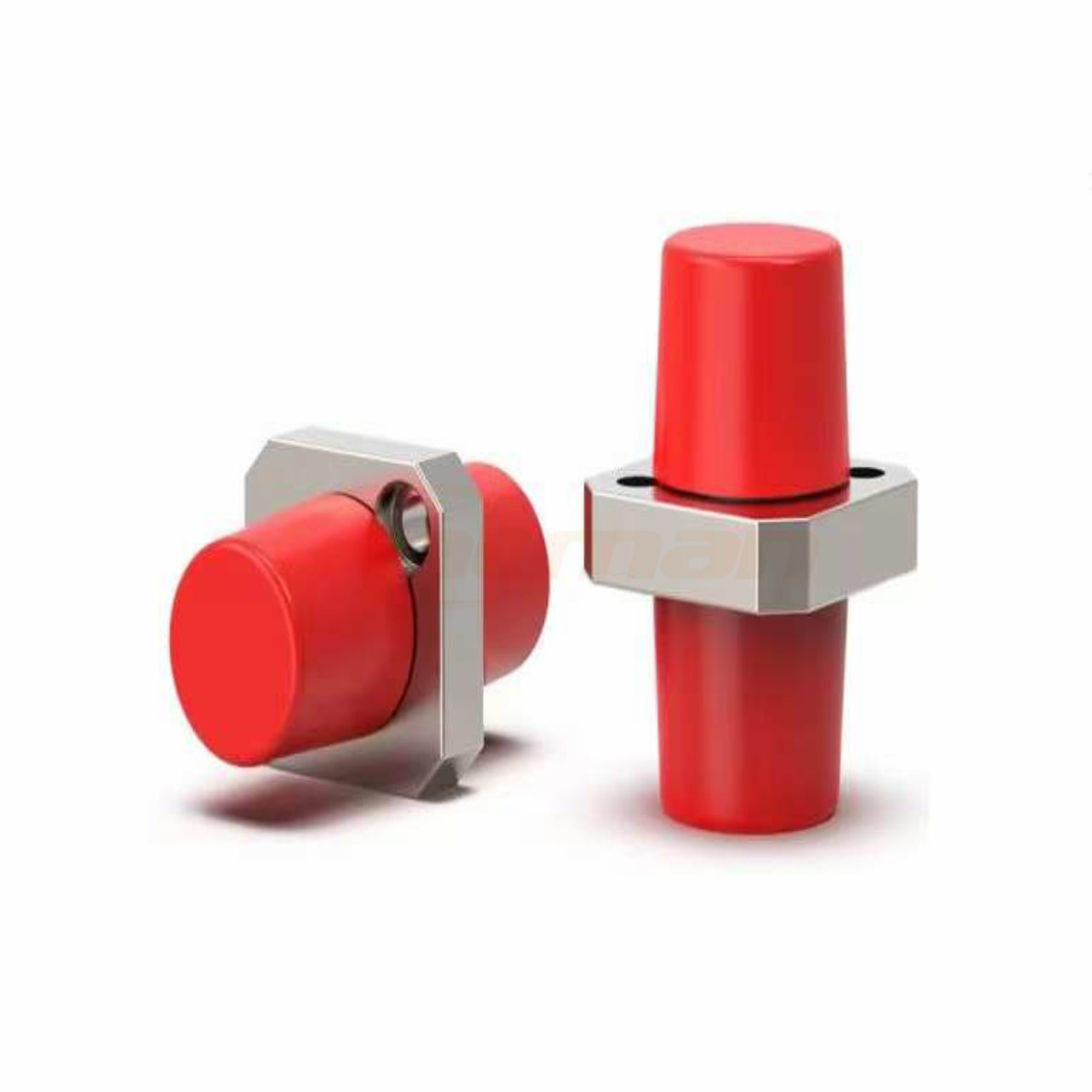

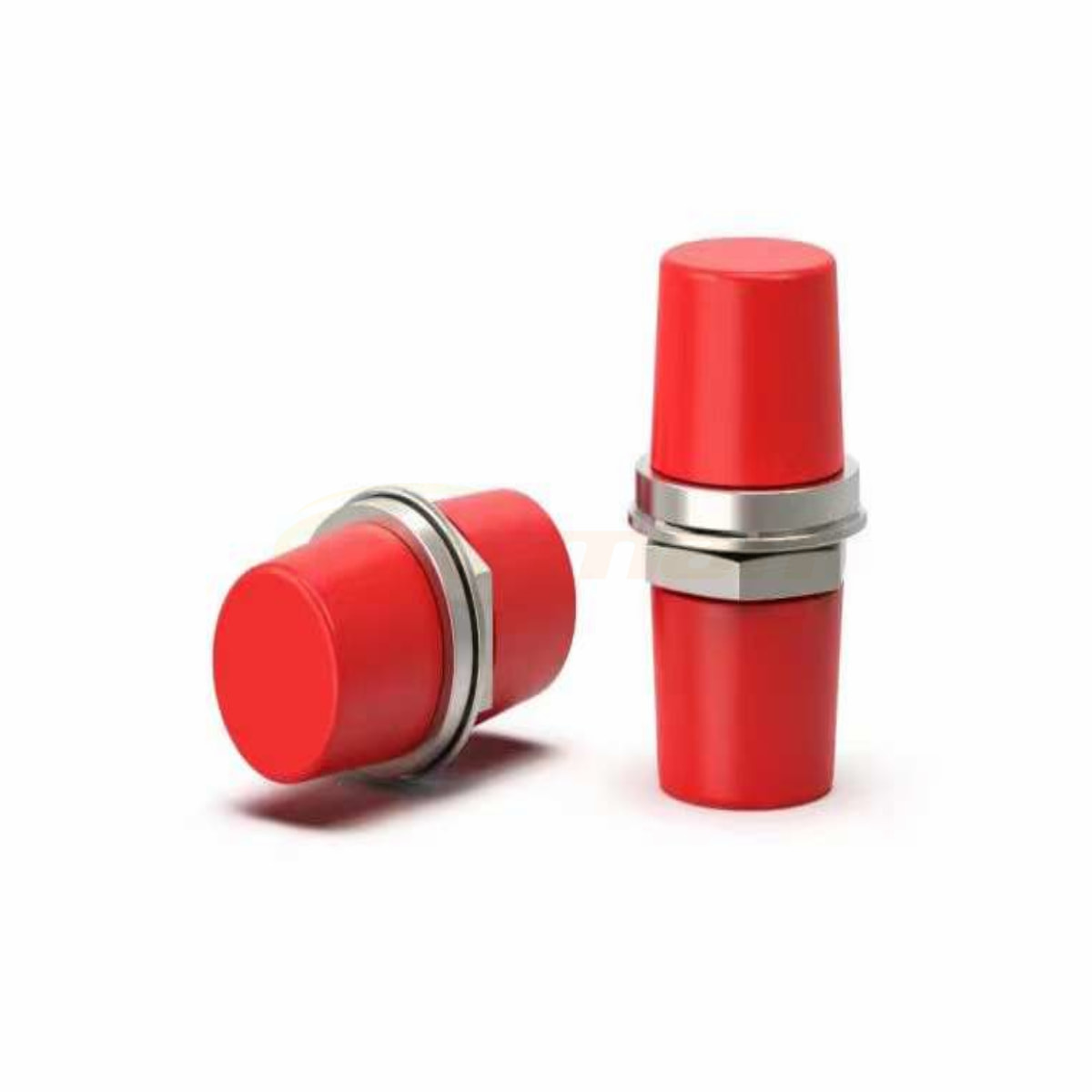

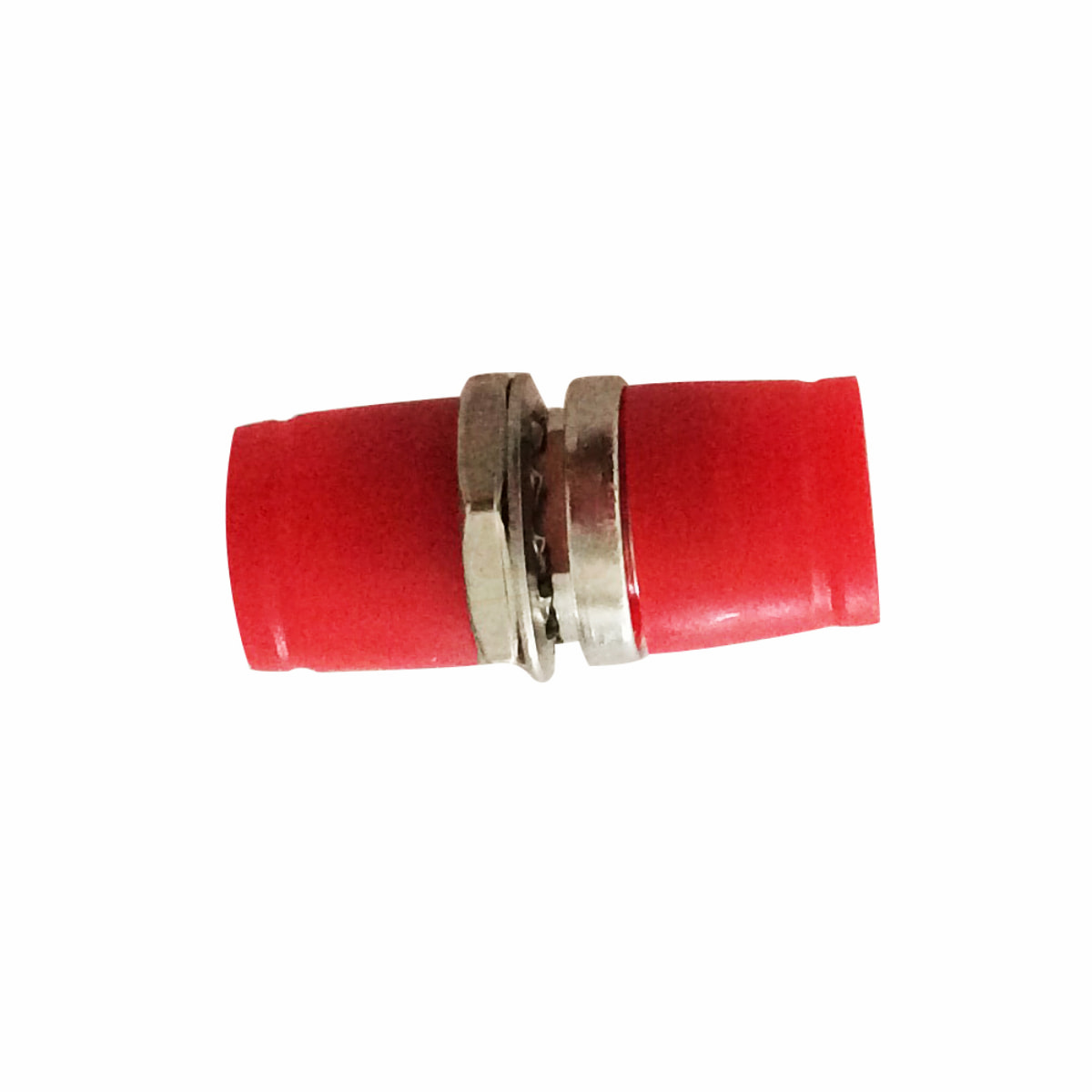

FC SmallD Square Type Fiber Optic Adapter
Description
Introduction to FC Adapter Small D Big D Square Type Fiber Optic Adapter
The FC adapters are designed and manufactured according to JIS, IEC, EIA/TIA, and ANSI specifications for interpretability and optical performance. The FC adapters are offered in MM or SM performances, for connectors with PC and APC polishing methods. It is possible to exactly specify your demands concerning keying slot width (standard Seiko Instruments or Seikoh Giken) for APC adapters, type of sleeve (phosphor bronze or zirconia), and adapter performance: various shapes of the flange, D-hole, DD-hole, etc.
FC UPC Singlemode Simplex Fiber Optic Adapter Specification Table
| Connector | FC To FC | Adapter Color | Red or Yellow |
| Fiber Mode | Singlemode/Multimode | Polish Type | UPC/APC |
| Adapter Style | Simplex | Alignment Sleeve | Ceramic |
| Durability | ＞1000 Time | Insertion Loss | ≤0.2dB |
| Mounting Type | With flanged or Not | RoHS Compliancy Status | Compliant |
Low-price FC UPC Singlemode Simplex Fiber Optic Adapter Features
- Low insertion loss and back reflection loss
- High precision alignment
- Compact design
- With/Without flange
- Singlemode and Multimode Versions
- Choice of housing material and sleeve material
- Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
OEM FC UPC Singlemode Simplex Fiber Optic Adapter Applications
- Local Area Networks (LANs)
- Network environments integrating different configurations
- Telecommunications networks
- Premise installations
- Test equipment
- Data centers
- FTTH
- CATV
- Metro Networks

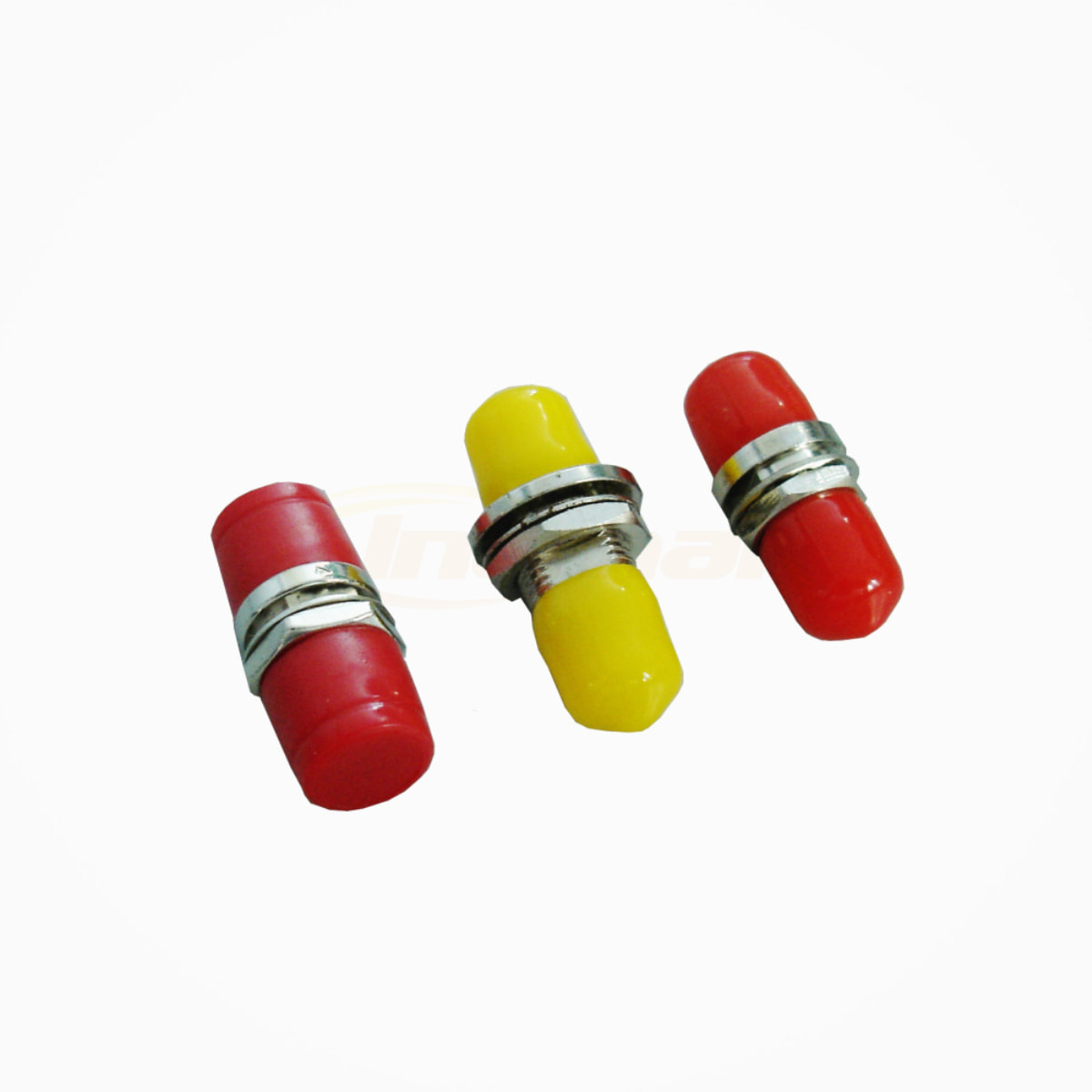

FC UPC Singlemode Simplex Fiber Optic Adapter Types
