FC to LC Hybrid Fiber Adapter Male and Female Adapter Connector

Description

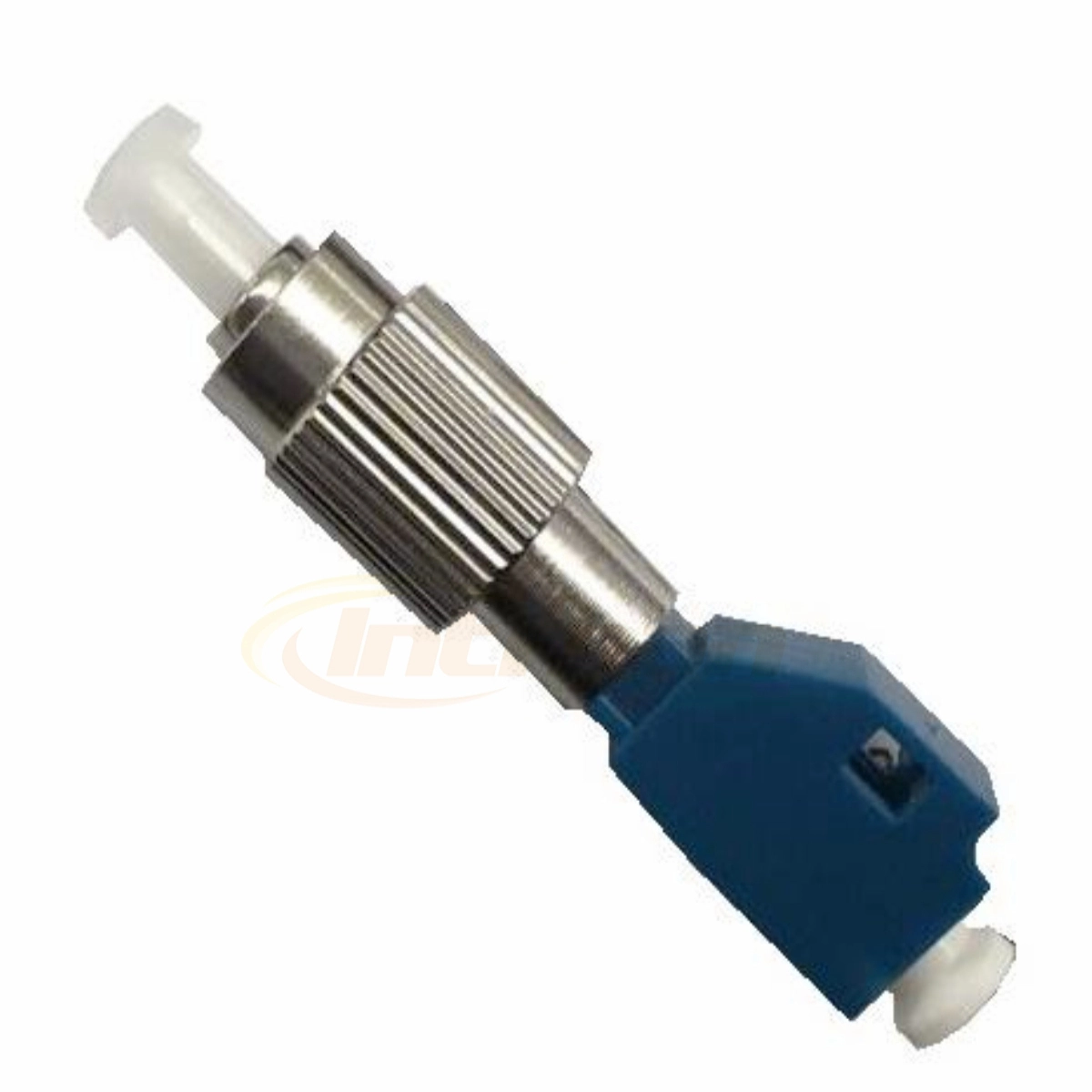

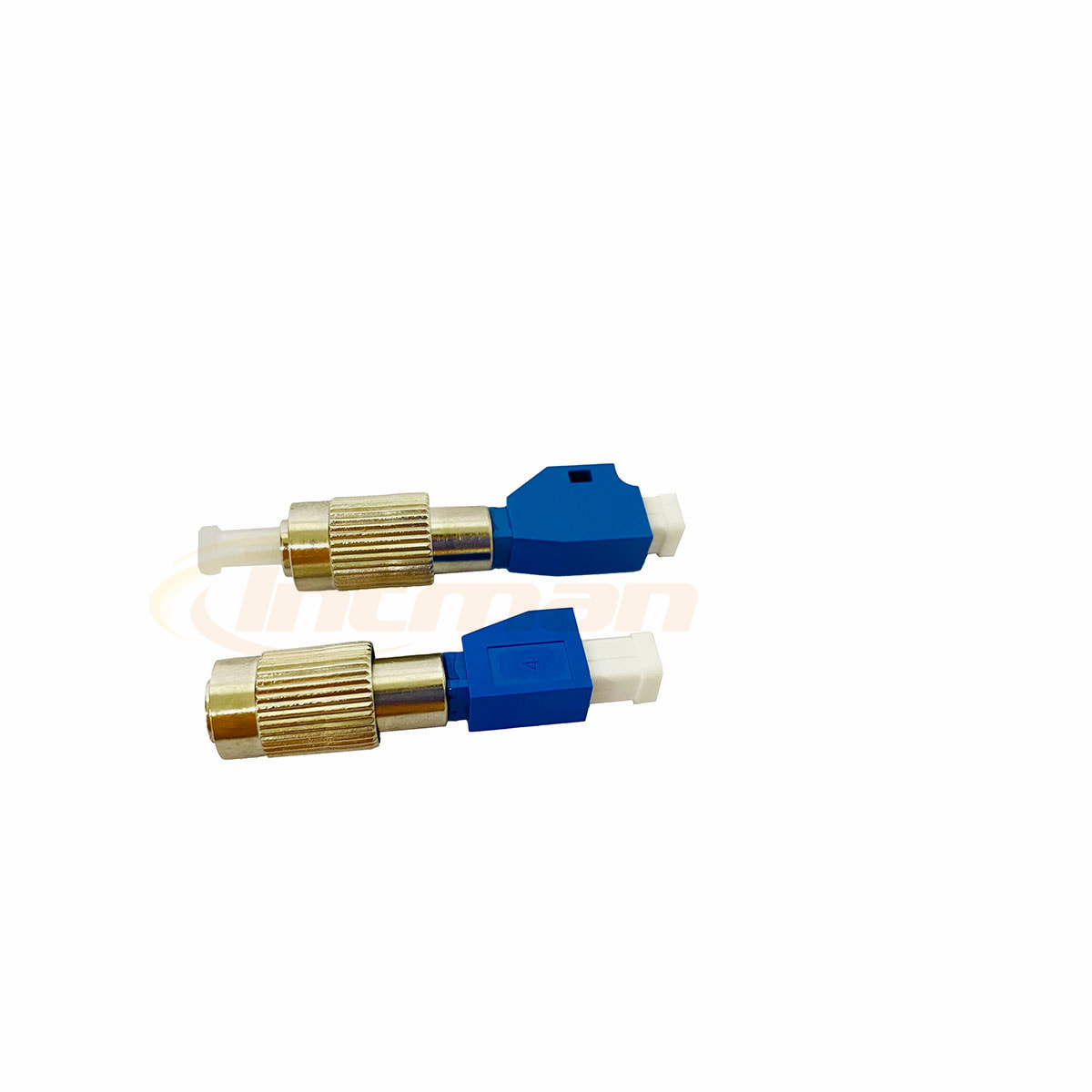

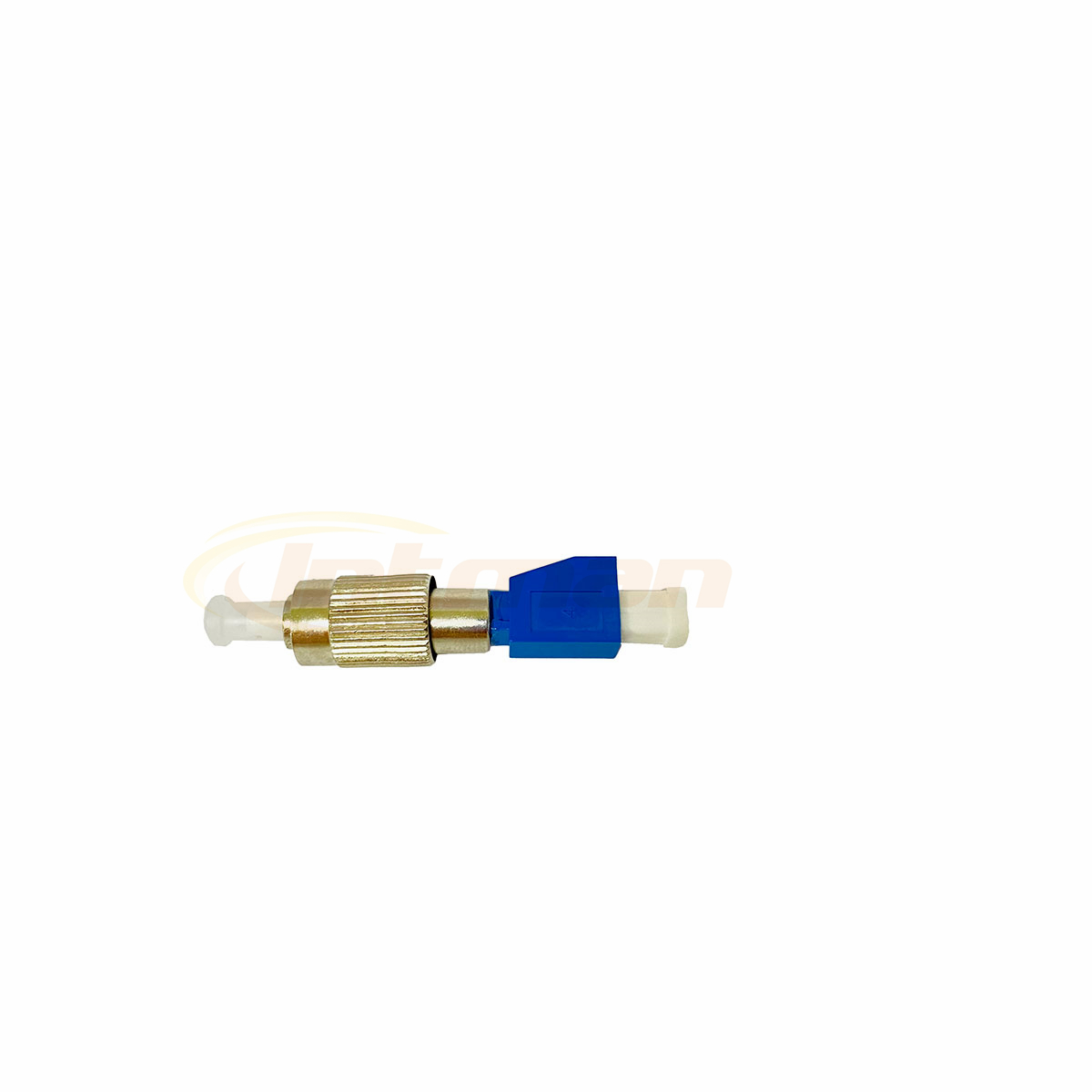

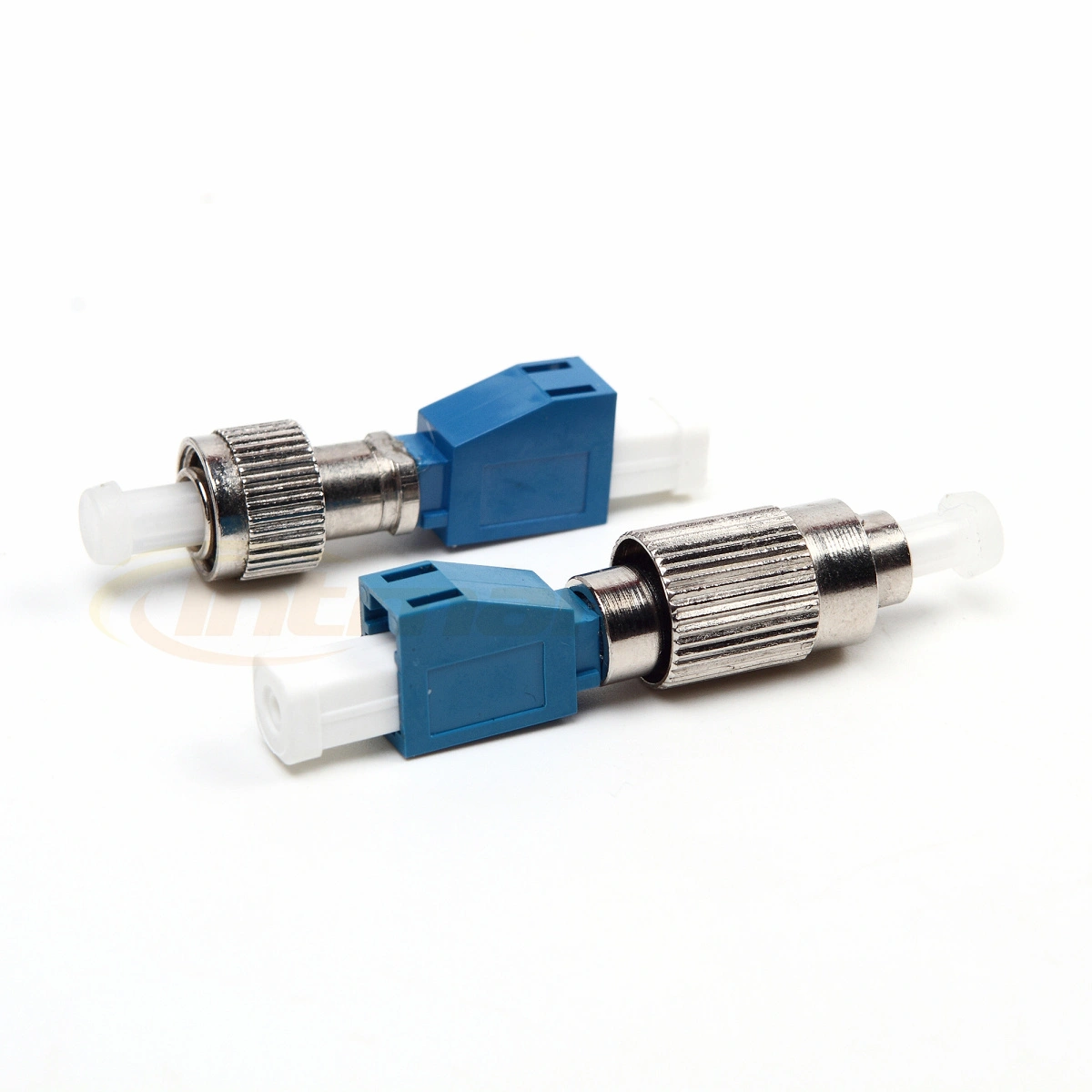

FC to LC Hybrid Fiber Adapter Male to Female Connector

The FC to LC Hybrid Fiber Adapter has a threaded body use a 2.5mm diameter ceramic ferrule with either PC or APC end-face and has a plastic LC body adapter with either ceramic or phosphor bronze split sleeve. It is offered in MM or SM performances.   Hybrid fiber adapters (Converting fiber adapters) provide interconnection between two different fiber connector types. There are two types of hybrid fiber adapters, including a Male-Female hybrid fiber adapter and a Female-Female hybrid fiber adapter.

FC to LC Hybrid Fiber Adapter Female to Male Connector Specification Table

Connector	FC to LC	Gender Type	Male to Female
Fiber Mode	Singlemode/Multimode	Polish Type	UPC/APC
Adapter Style	Simplex/Duplex	Material	Plastic/Metal
Durability	＞1000 Time	Insertion Loss	≤0.5dB

FC to LC Hybrid Fiber Adapter Male to Female Connector Features

• Low insertion loss and back reflection loss
• Male to Female fiber connector types
• All metal construction for long life
• Interchangeable for a wide range of products
• Used for Multimode connectors
• High-precision sleeve
• Compact design
• PC,UPC and APC available
• Ceramic or Bronze sleeve

FC to LC Hybrid Fiber Adapter Male to Female Connector Applications

Female to Male Hybrid fiber adapter (build-out type hybrid fiber adapter ) is a fiber adapter with connector plug (male) end and an adapter socket (female) end. We call it Male to Female Hybrid fiber adapter.

Female to Female Hybrid fiber adapter (Bulk type hybrid fiber adapter ) is a fiber adapter with two different ends. We call it Female to Female Hybrid fiber adapter.

• Local Area Networks (LANs)
• Network environments integrating different configurations
• Telecommunications networks
• Test equipment
• Data processing networks
• FTTH
• CATV

FC to LC Hybrid Fiber Adapter Male to Female Connector Types

Intman provide both Males to Female and Female to Female hybrid fiber adapter bridging popular connector types, such as ST, FC, SC, LC, MU, E2000, MPO, MTRJ, we also offer Fiber adapters (Standard Fiber Adapter) and Bare Fiber Adapters for your different applications.
