- Name: LC Fiber Connector
- Model: INT-LCA-2.0MM
- Color: Green
- Ferrule Hole Size: 125um
- Ferrule: Ceramic Ferrule
- Diameter:2.0mm
- Polish Type: PC/UPC/APC optional
- Mechanical Resistance:100N tensile load
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment
Fiber Connector LC SM SX 2.0 3.0mm Optic Connector Kits With Ferrule
Description
LC SM SX 2.0 3.0mm Optic Connector Kits With Ferrule
The LC Connectors and adapters were developed by Lucent Technologies. These connectors are composed of a plastic housing with an RJ45 push-pull type clip. Also considered a Small Form Factor (SFF) Connector by using a 1.25mm OD ferrule, this LC SM Simplex 2.0mm 3.0mm connector is compact, high density, and high performing at a low cost.
0.9mm 2.0mm 3.0mm SC LC ST FC Fiber optic connector
Characteristics:
- Good performance and High success rate.
- Easiness in installation with an average splicing time of 15sec.
- The special tool is simple and convenient to use.
- Reusable and repeat operation times are up to 100.
- Integrated Protection of the casing to prevent the connector from impact.
- On-line tension is up to 20N to protect the connector from dragging.
- The maximum tension is up to 100N. It is the safety connector.
- Storage/Operation temperature: -40℃ to +70℃

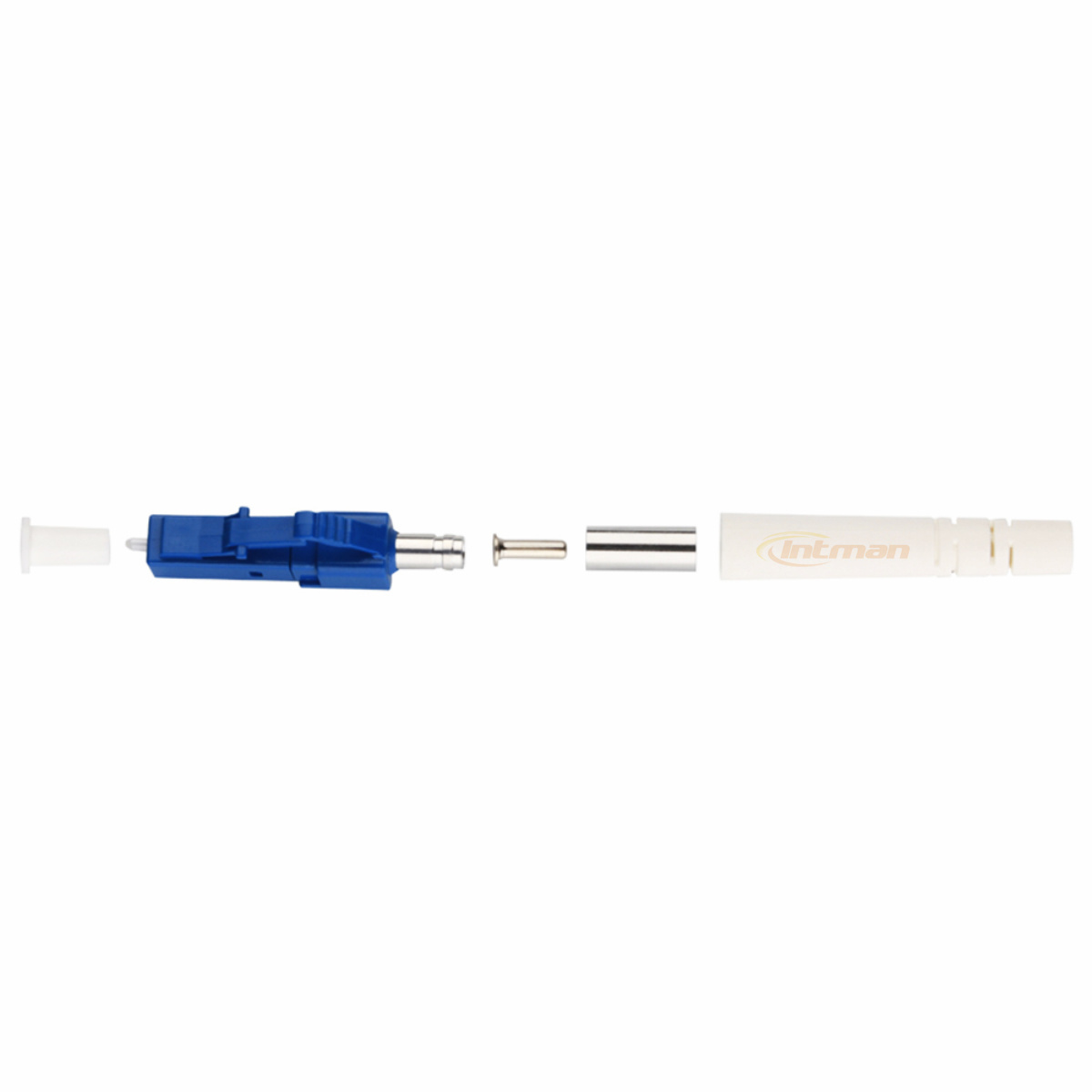

LCUPC SM Fiber Optical Connector

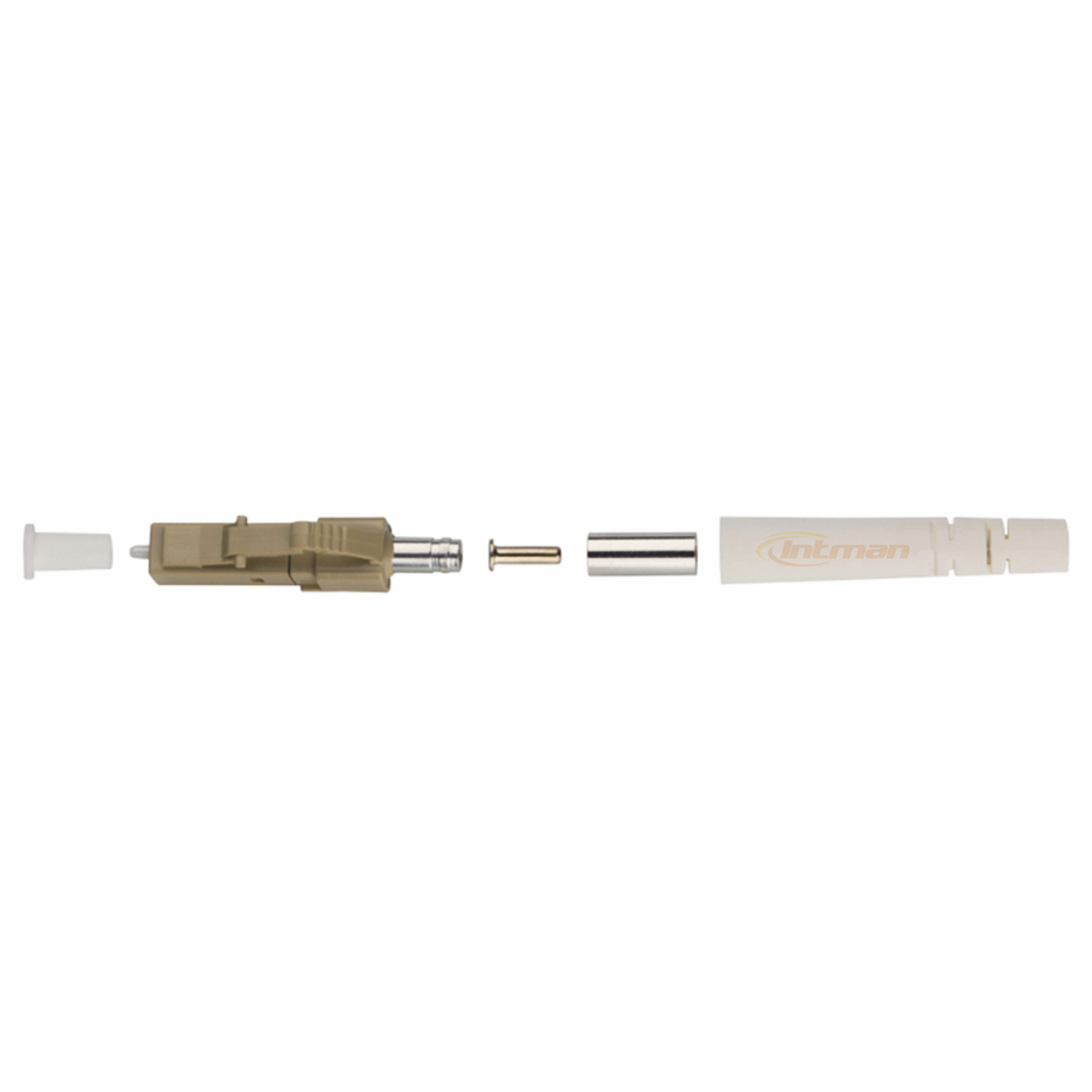

LC OM1 OM2 Fiber Connector

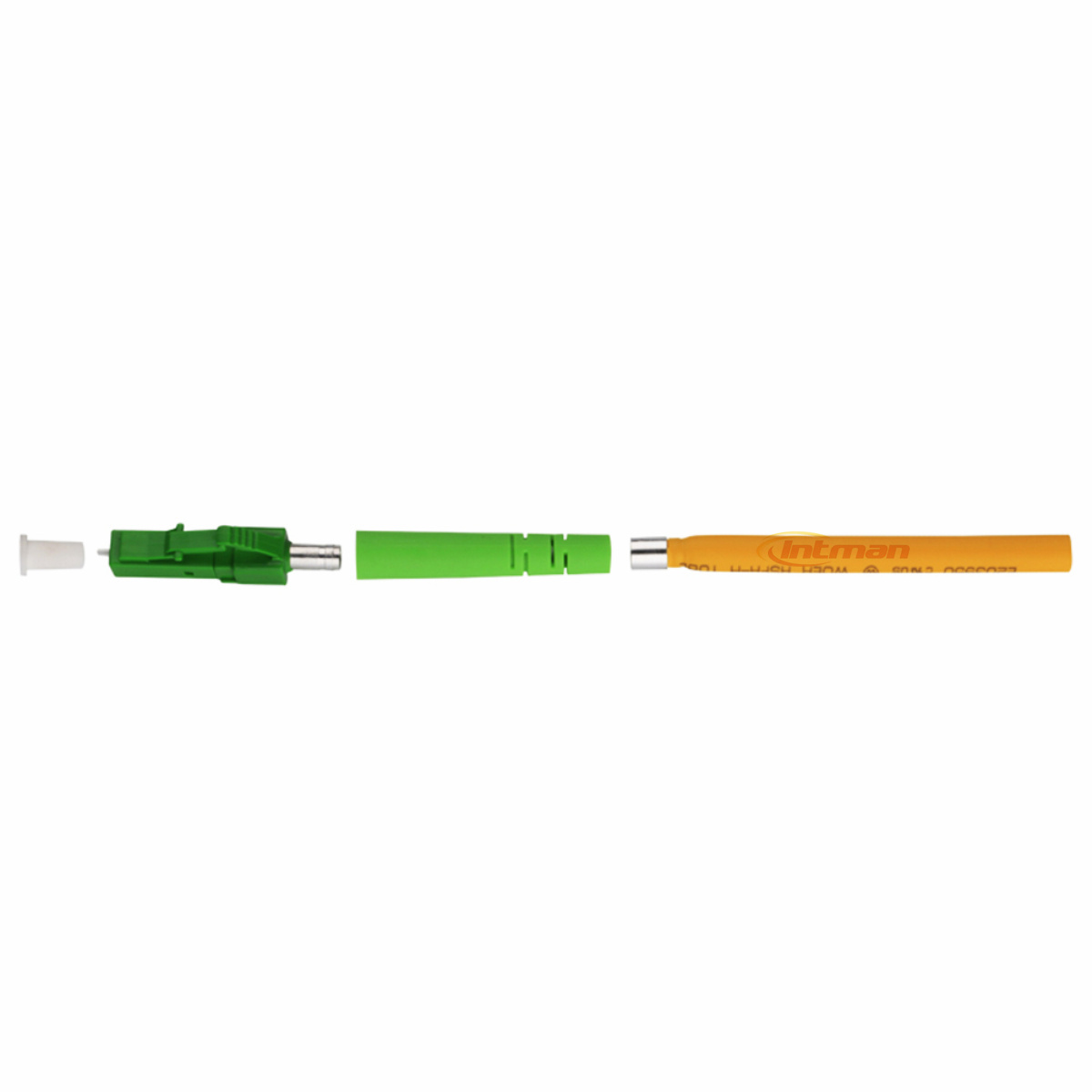

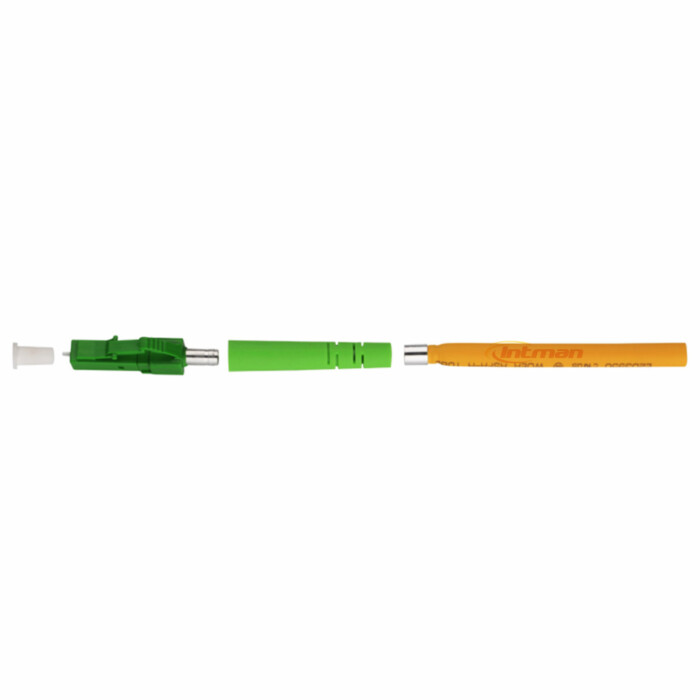

LC APC Optical Fiber Connector
Singlemode LC/APC Fiber Fast Connector Specification Table
| Singlemode(UPC) | Singlemode(APC) | Multimode | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.25dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Durability | ≤0.1dB typical change,1000times mating | ||
| Operating Temperature | -45 to +85 degree | ||
|
|
125.0+1/-0um,concertricity≤1.0um | 125.0+1/-0um,concertricity≤0.5um | 125.0um,concertricity≤3.0um |
| 125.3+1/-0um,concertricity≤1.0um | 125.3+1/-0um,concertricity≤0.5um | 127.0um,concertricity≤3.0um | |
| 125.5+1/-0um,concertricity≤1.0um | 125.5+1/-0um,concertricity≤0.5um | 128.0um,concertricity≤3.0um | |
| 126.0+1/-0um,concertricity≤1.0um | 126.0+1/-0um,concertricity≤0.5um | ||
LC APC Singlemode simplex Optic Connectors Features
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion-resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
LC Singlemode simplex Optic Connectors Applications
- Telecommunications networks
- LAN (Local Area Network)
- Test equipment
- Data centers
- FTTX/FTTH(Fiber To The Home)
- CATV&CCTV
- High-Speed transmission systems
- Fiber Optic sensing
