- Name: SC Loopback Connectors
- Fiber Count: 1fibers
- Cable Diameter: 3.0mm
- Fiber Type:OS2 9/125um
- Polarity: Optional A/B/C
- Outer Sheath: LSZH
- Sheath Color: Yellow
- Pinless

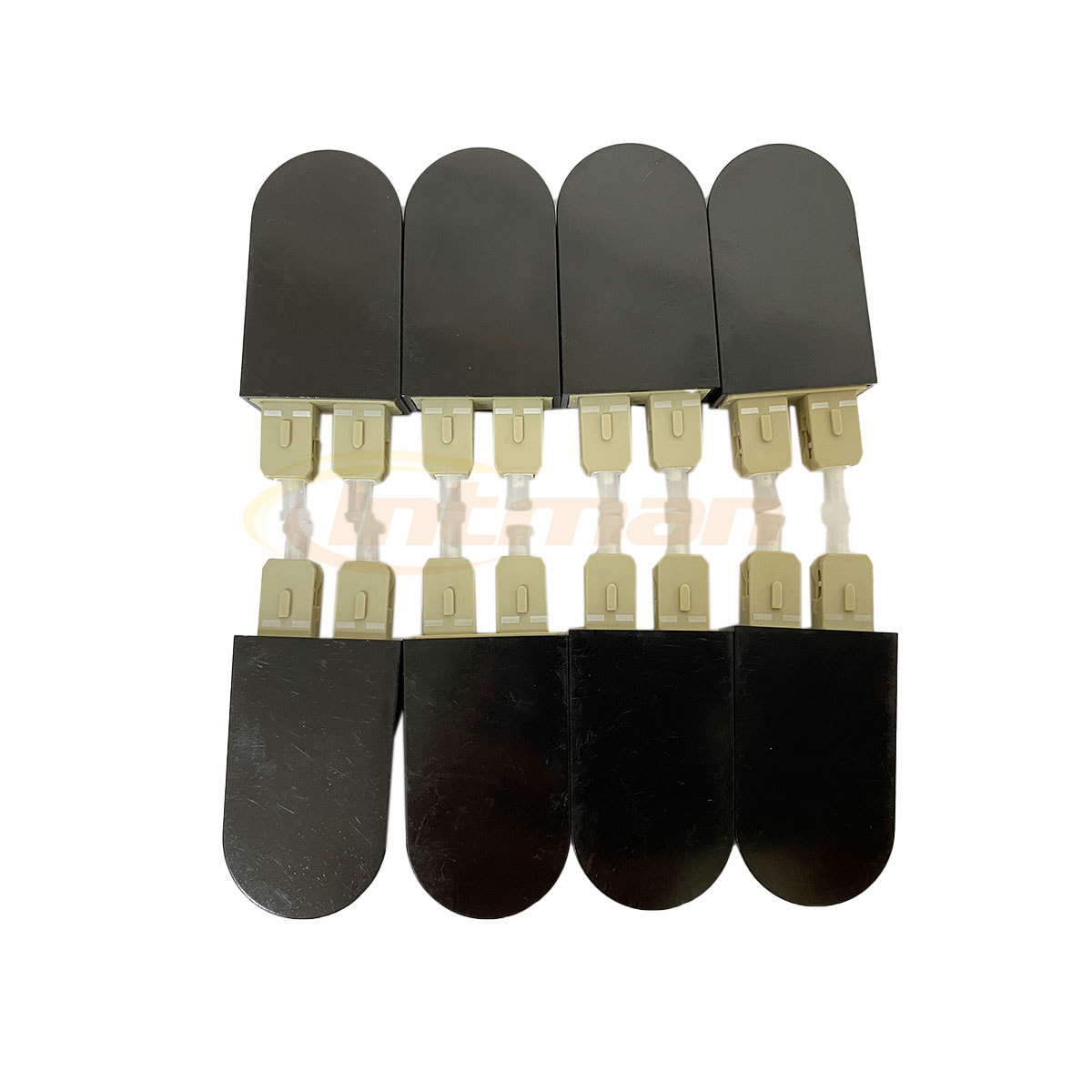

Fiber Optic Loopback Plugs with SC Connector
Description

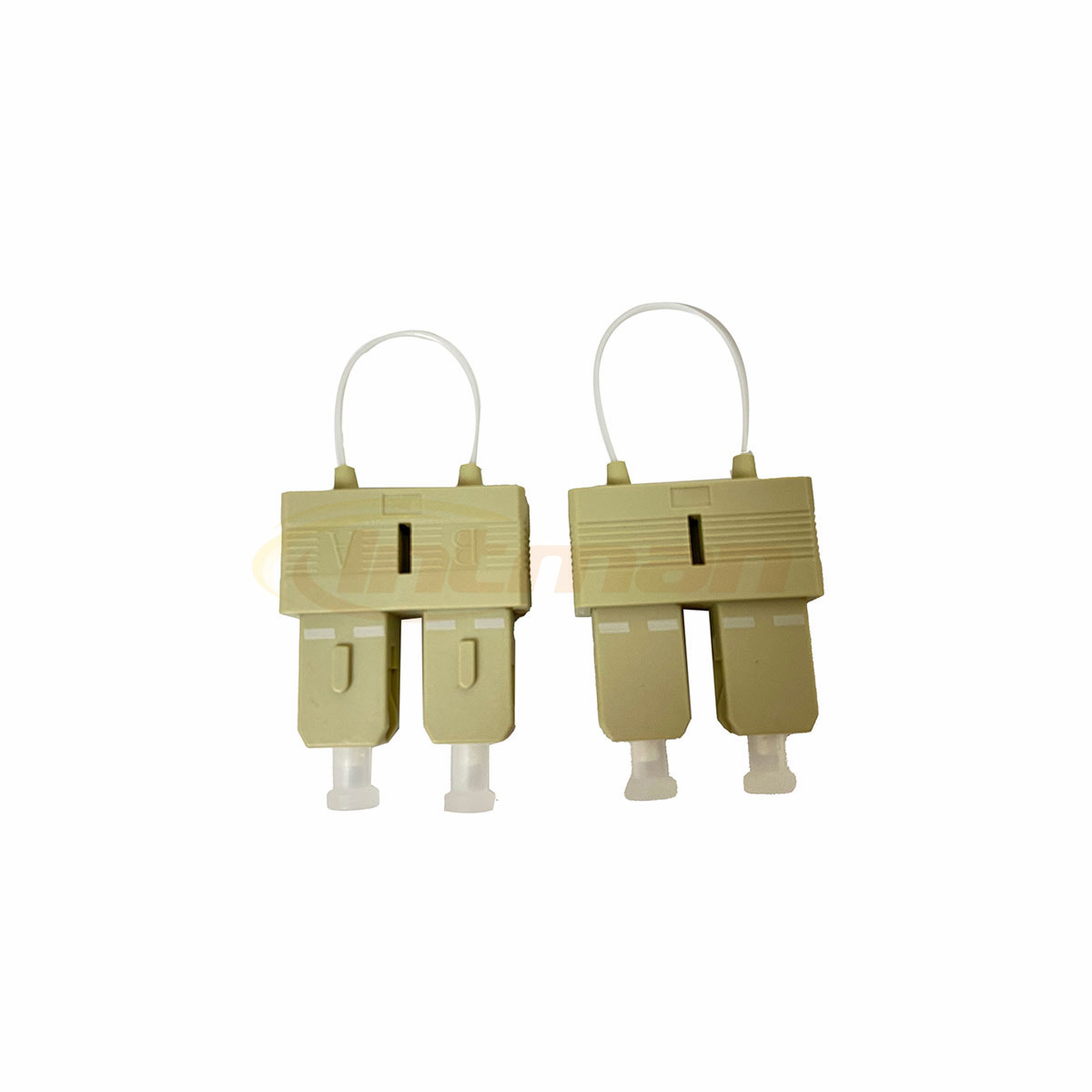

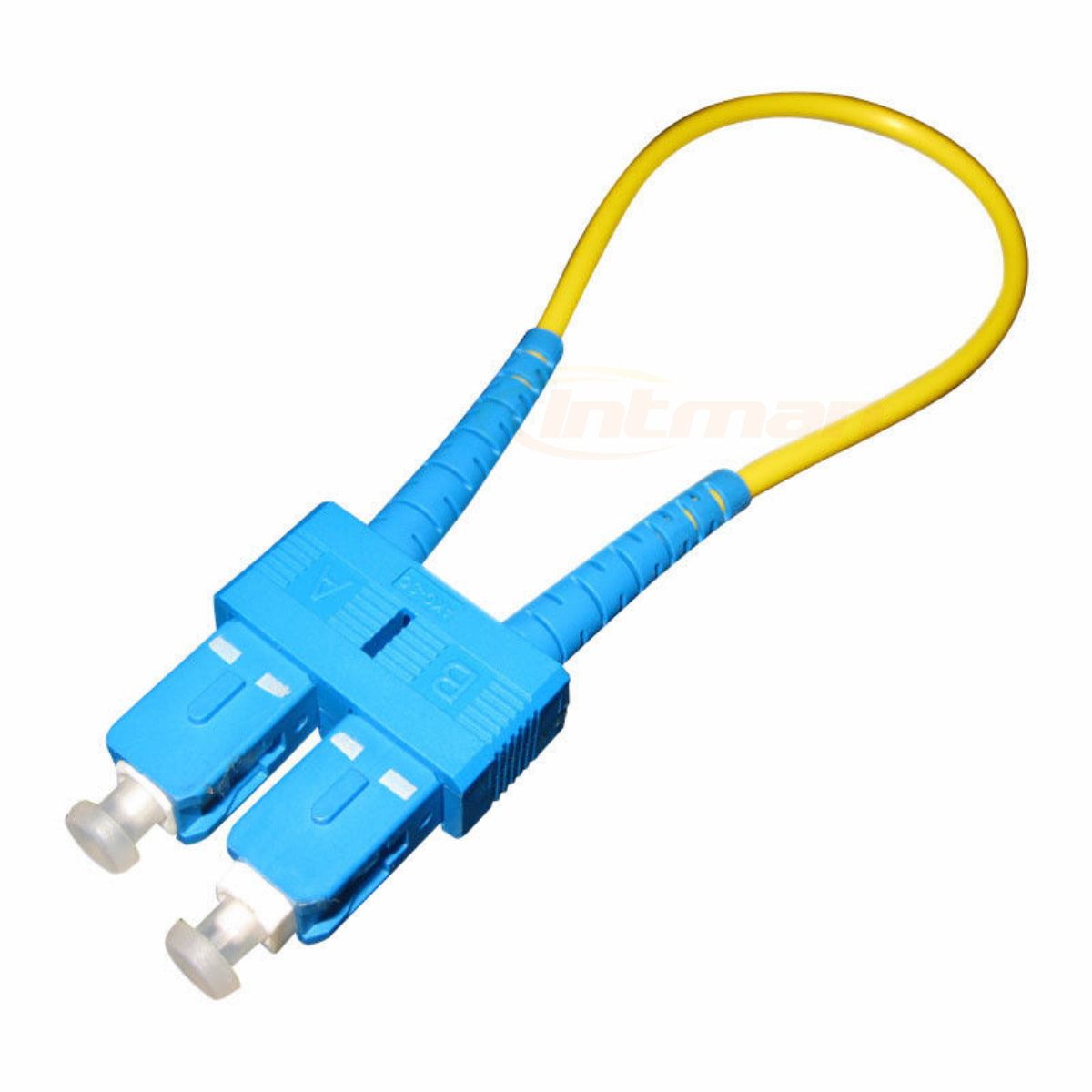

1. SC Fiber Optic Loopback with SC Connector plug
Fiber Optic Loopbacks including Singlemode (9um) and multimode (50um/62.5um) loopback plugs designed for equipment testing, self-testing, engineering, network diagnostics, and measurement applications. Know also as loopback adapters, loopback cables, or fiber optic loopback modules these devices are typically used for testing the transmission capability and receiver sensitivity of network equipment.
Features
- 100% functionally tested guaranteeing performance and integrity
- Available in multiple off-the-shelf connector types
- Connectors utilize a PC polish
- Duplex clips hold connectors together for ease and accuracy of insertion
- Used in testing applications where 9/125 fiber is required
- High durability and low loss performance

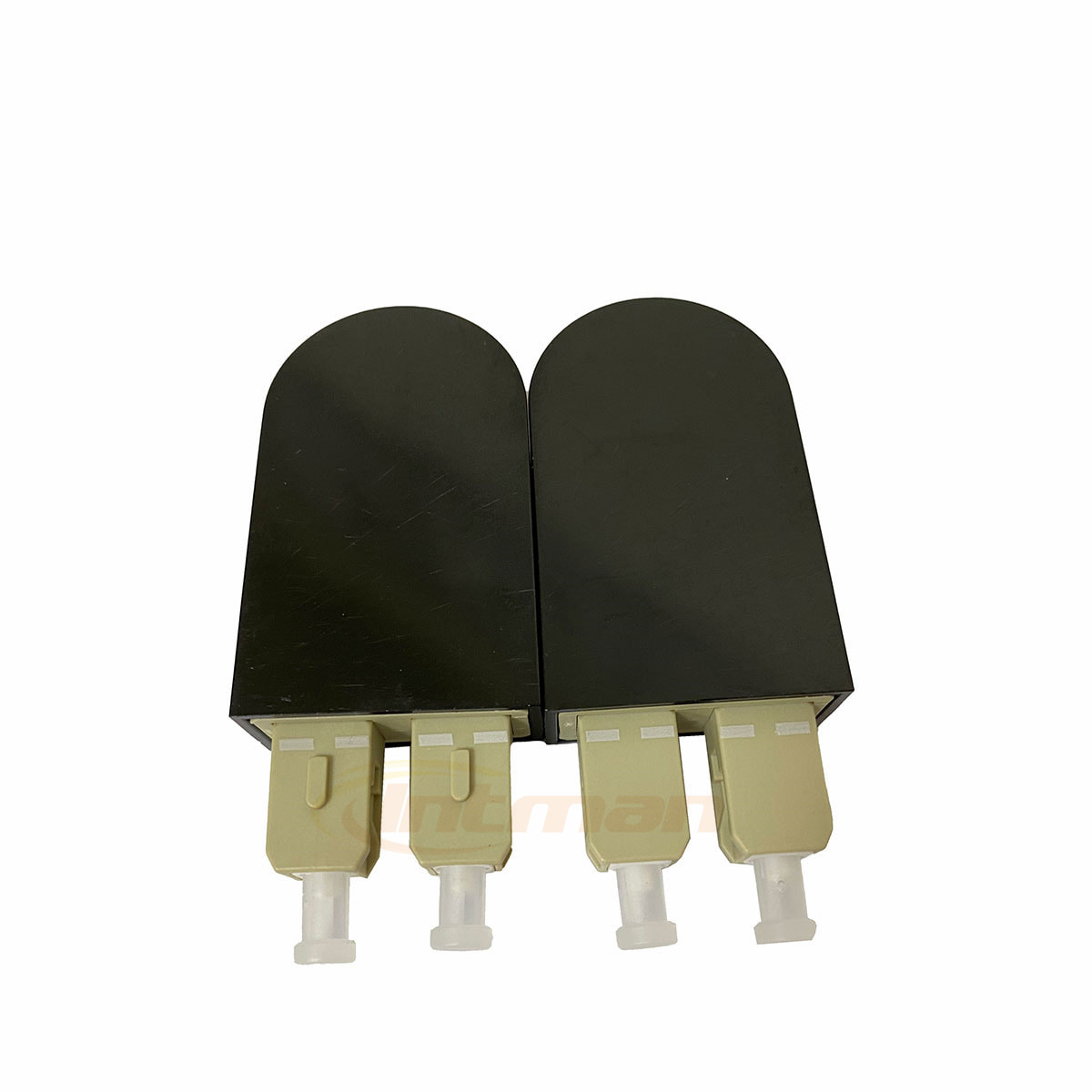

- Integrated shell and boot design （on the encased style）
Applications
- R&D
- Fiber labs
- FTTX testing
- Telecom testing
2. Single mode and Multimode SC Loopback Plug Specification Table
| Connector A | SC | Connector B | SC |
| Fiber Count | 1Fibers | Fiber Type | SM 9/125um |
| Outer Jacket Material | LSZH | Jacket Colors | Yellow |
| Jacket OD | 3mm | Operating Temperature Range (℃） | –40 to +70℃ |
