- Name: Light Source
- Model : INT3120
- Wavelength:1310/1550nm (customize)
- Output power adjustable range :-5~-20dB
- Min step adjustable power: 0.05dB
- Interface:(FC/SC)/PC (optional)
- Display Size: 3.5 inch TFT color screen
- VFL: 650nm 1mW
- Dimension: 188×88×44mm
- Communication Interface: Micro USB
- Weigth : 370g

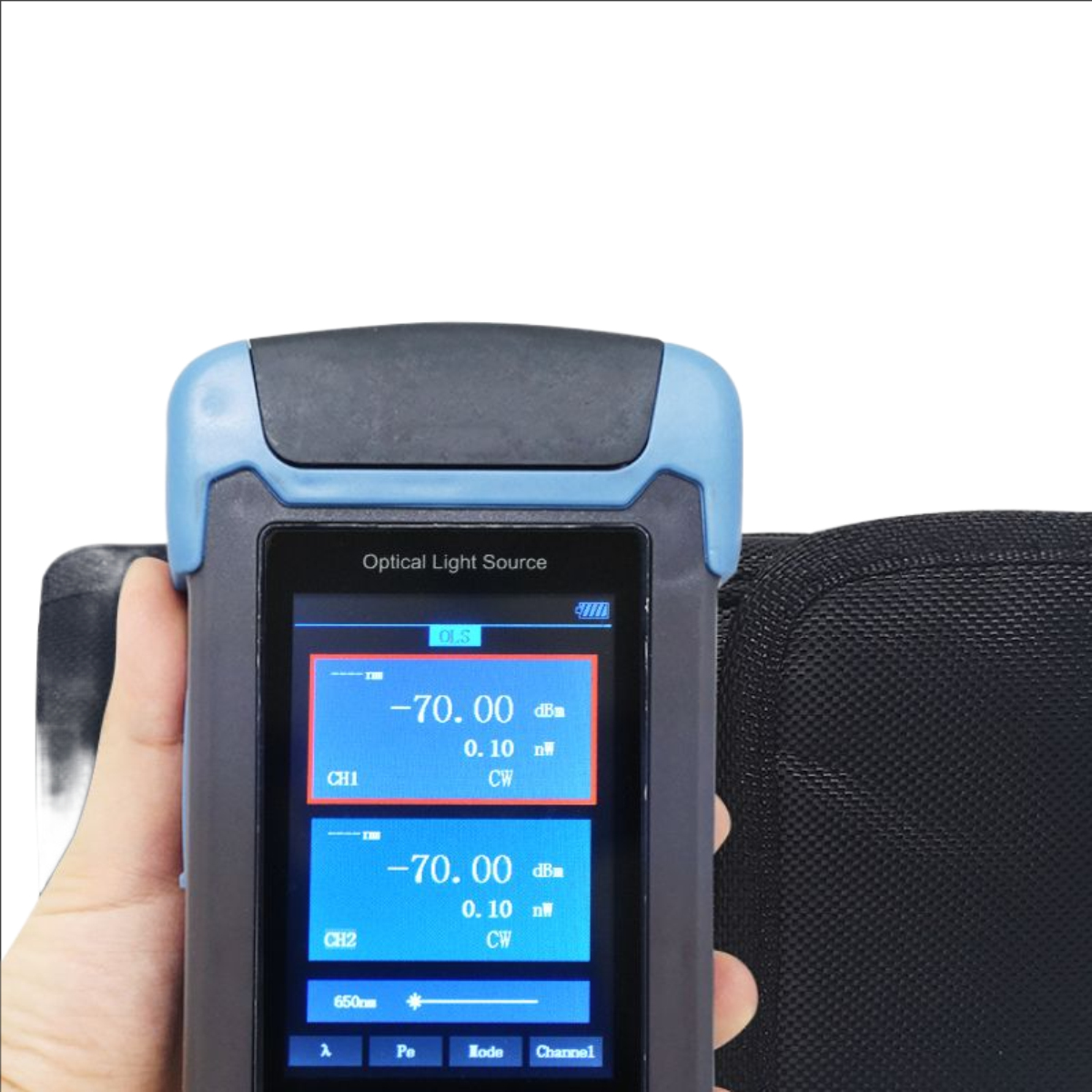

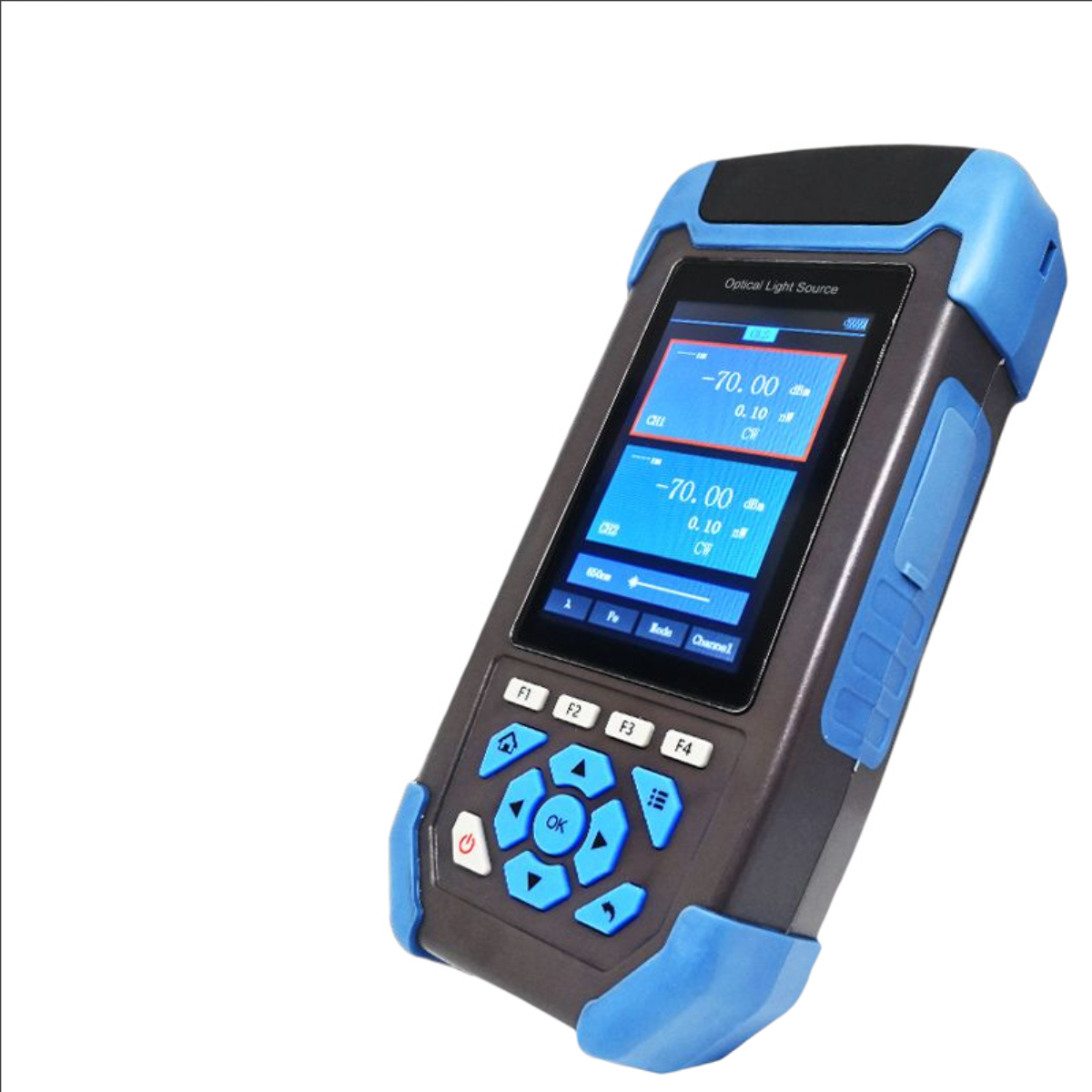

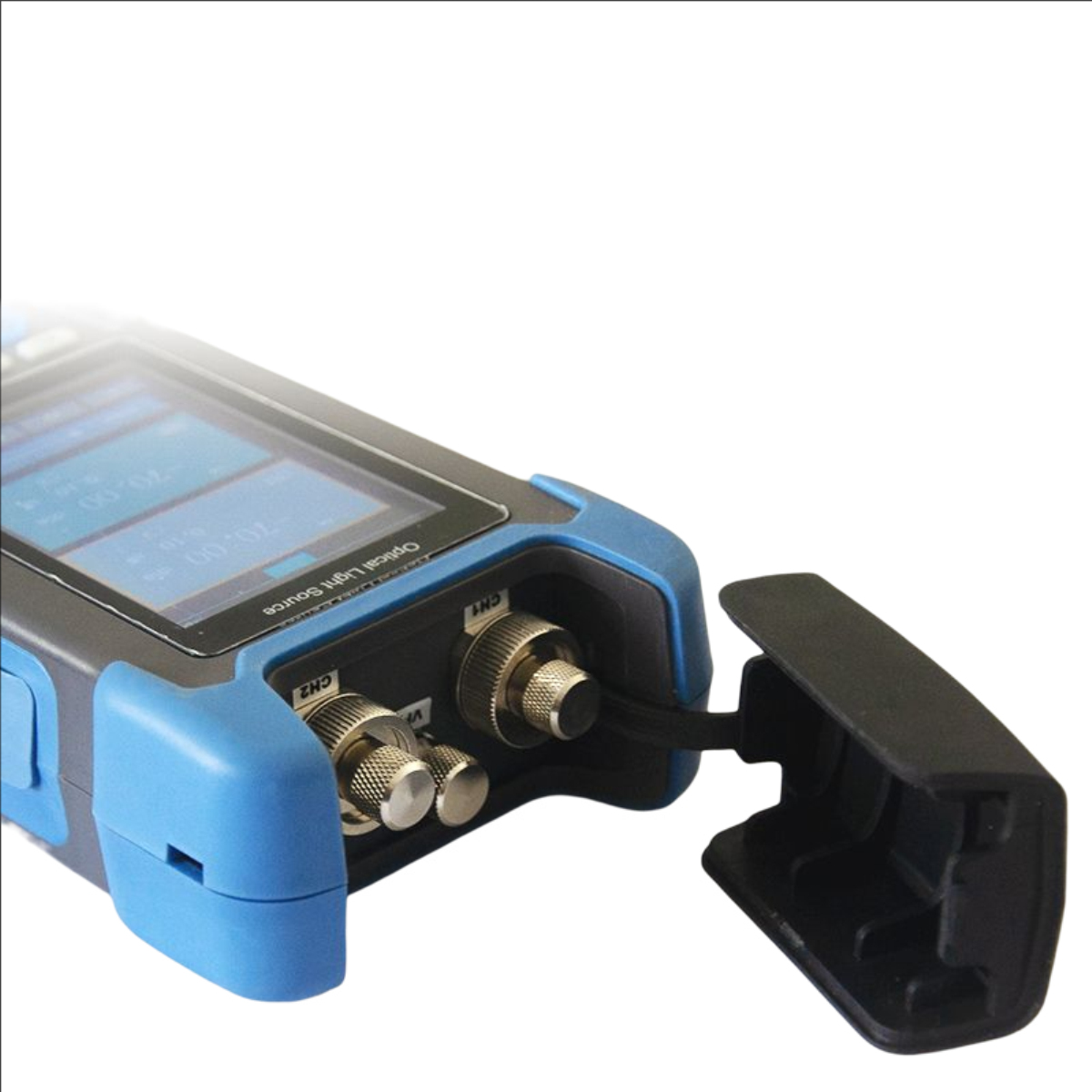

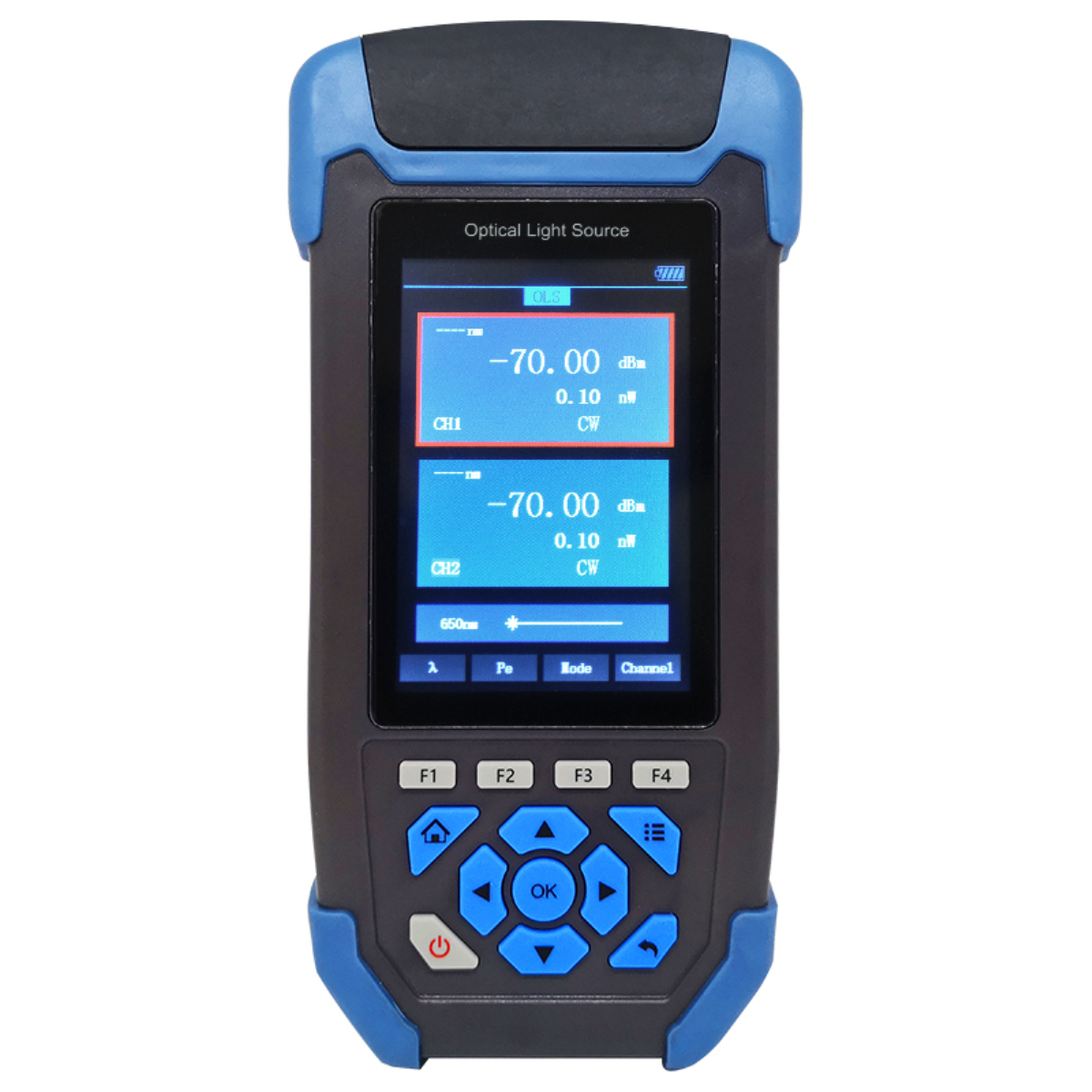

Fiber Optic Power Adjustable Light Source Tester
Description
1. Power Adjustable Light Source
INT3120 is a new version 3.5-inch color screen with adjustable output power, it can provide up to 6 wavelengths of light. It has a continuous 15dB adjustable power range and can choose single and double channels it can automatically identify the wavelength when it is used with our power meter, and it can easily and accurately measure the loss of optical fiber link.

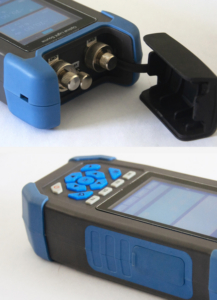

3120 Light source
Main Features:
- 3.5-inch color screen display
- Maximum 6-wavelength output
- Support user self-calibration
- Single-channel or dual-channel output is supported
- The output power is continuously adjustable
- Automatic wavelength identification function
- Support Continuous light CW and modulation light output
- Support Visual Fault Locator (optional)
Applications:
- Engineering maintenance of optical fiber network
- Engineering maintenance of digital data network
- Teaching and research of optical communication
- Other optical fiber works
2. Adjustable Light Source Specification Table
| Model | INT3120 | Wavelength | 1310/1550 (customize) |
| Spectral width | ≤5 (customize) | Typical output | -5dBm |
| Stability(dB,15min) | ≤0.05dB | Output power adjustable range | -5~-20dB |
| Min-step adjustable power | 0.05dB | Display size | 3.5-inch TFT color screen |
| VFL | 650nm 1mW | Interface type | (FC/SC)/PC (customize) |
| Dimension (mm) | 188mm×88mm×44mm | Weight | 370g |
3. Package Detail
| No. | Name | Quantity |
| 1 | Light Source | 1pc |
| 2 | User manual | 1pc |
| 3 | Certification | 1pc |
| 4 | Adapter interface(FC/SC) | 3 |
| 5 | 5V power adapter | 1pc |
| 6 | Micro USB cable | 1pc |
