- Name: Plastic Optical Fiber
- Connector: SGK-SO1-L1-220/230
- Connector type: Black
- Cable Diameter: 2.2mm
- Fiber Type: POF cables
- Fiber Count: 1Core
- Cable Jacket: LSZH, PE
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

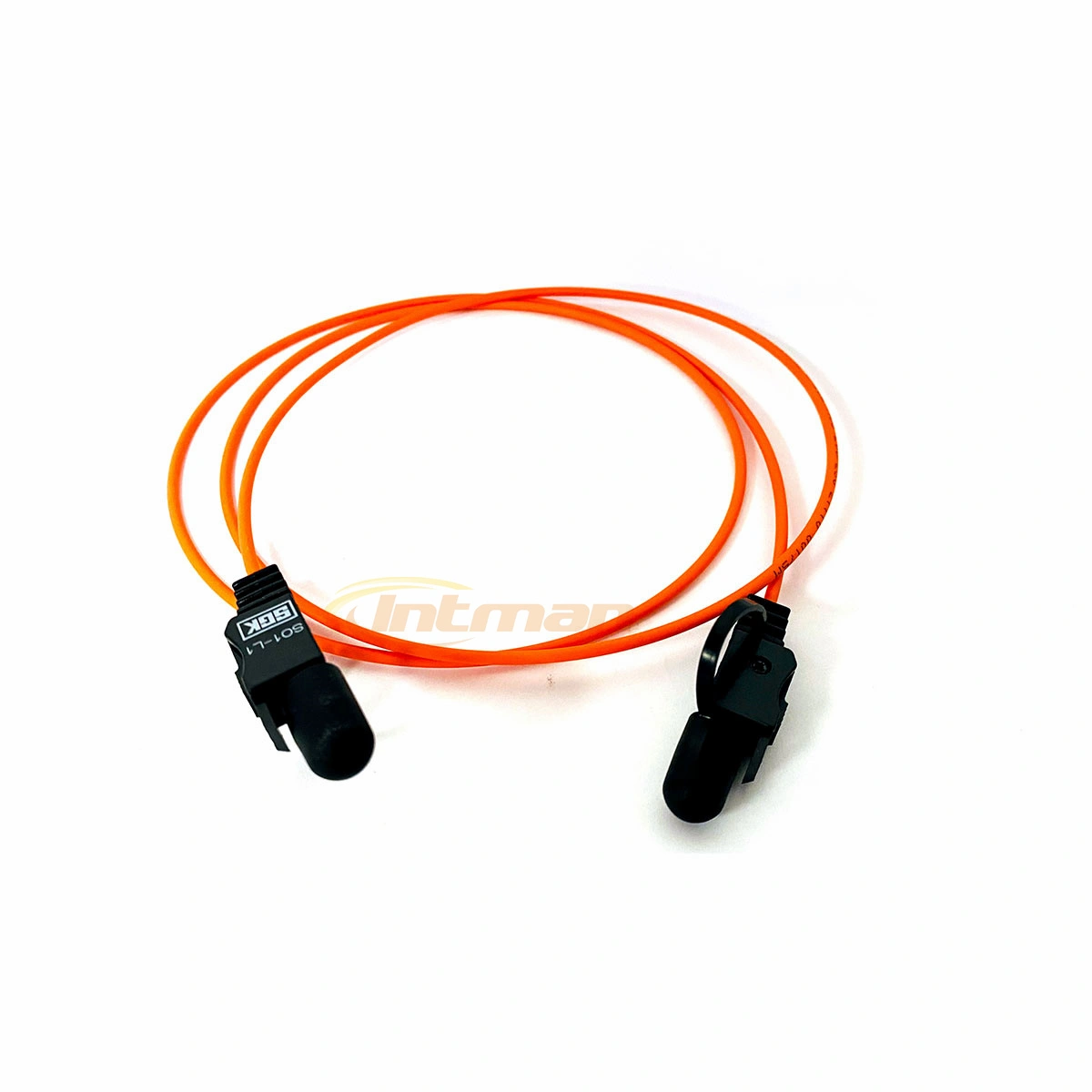

Fiberpatch cord SGK-SO1-L1 SGK-SO1-L2 200/230 For Okuma CNC machines
Description
SGK-S01-L1-220/230 is a duplex PCF optical fiber connector developed in Japan, which can be matched with PCF optical fiber transceivers such as Toshiba and SUMITOMO. It is widely used in Mitsubishi Electric MR-J3-B servo SSCNETⅢ system, PLC system, Hitachi drilling machine, Omron SYSMAC system, elevator control system, placement machine and other industrial systems and servo numerical control systems.

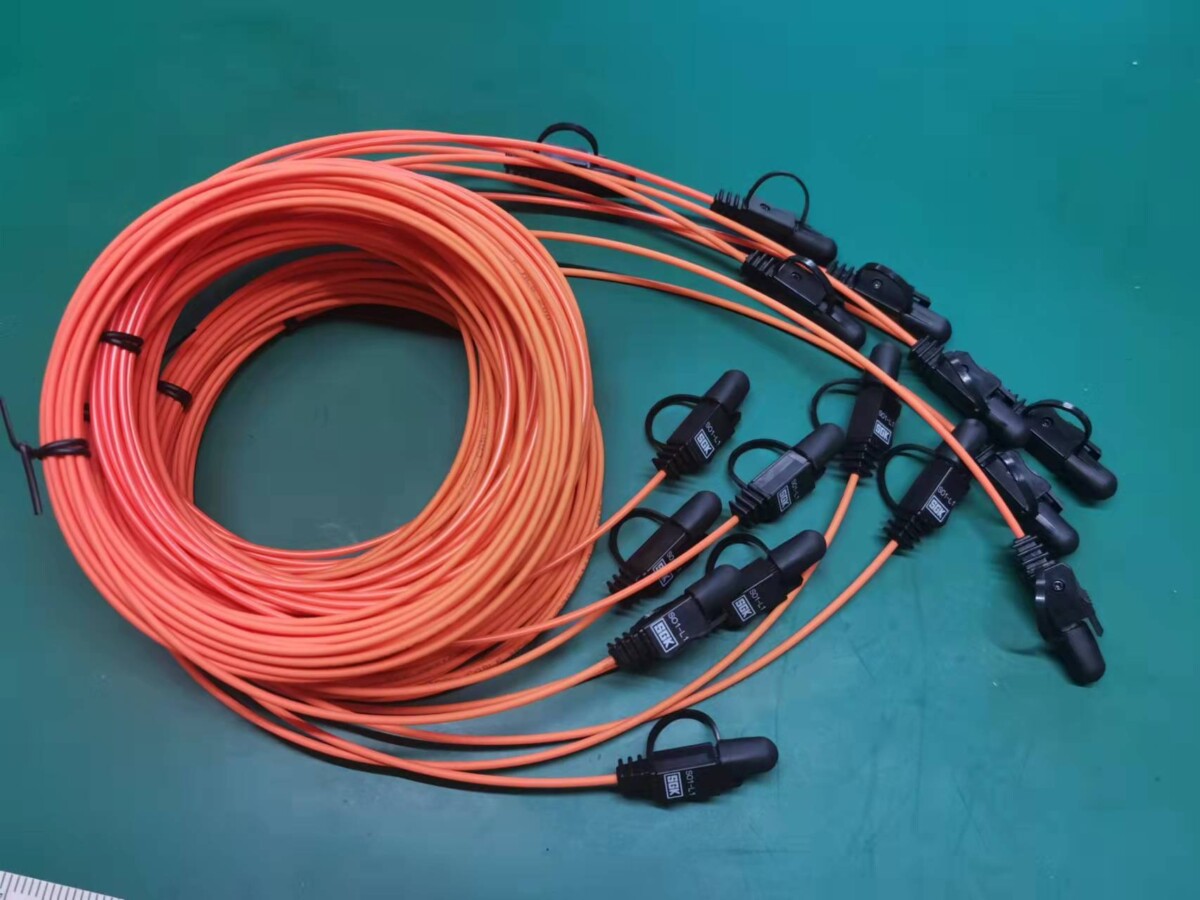

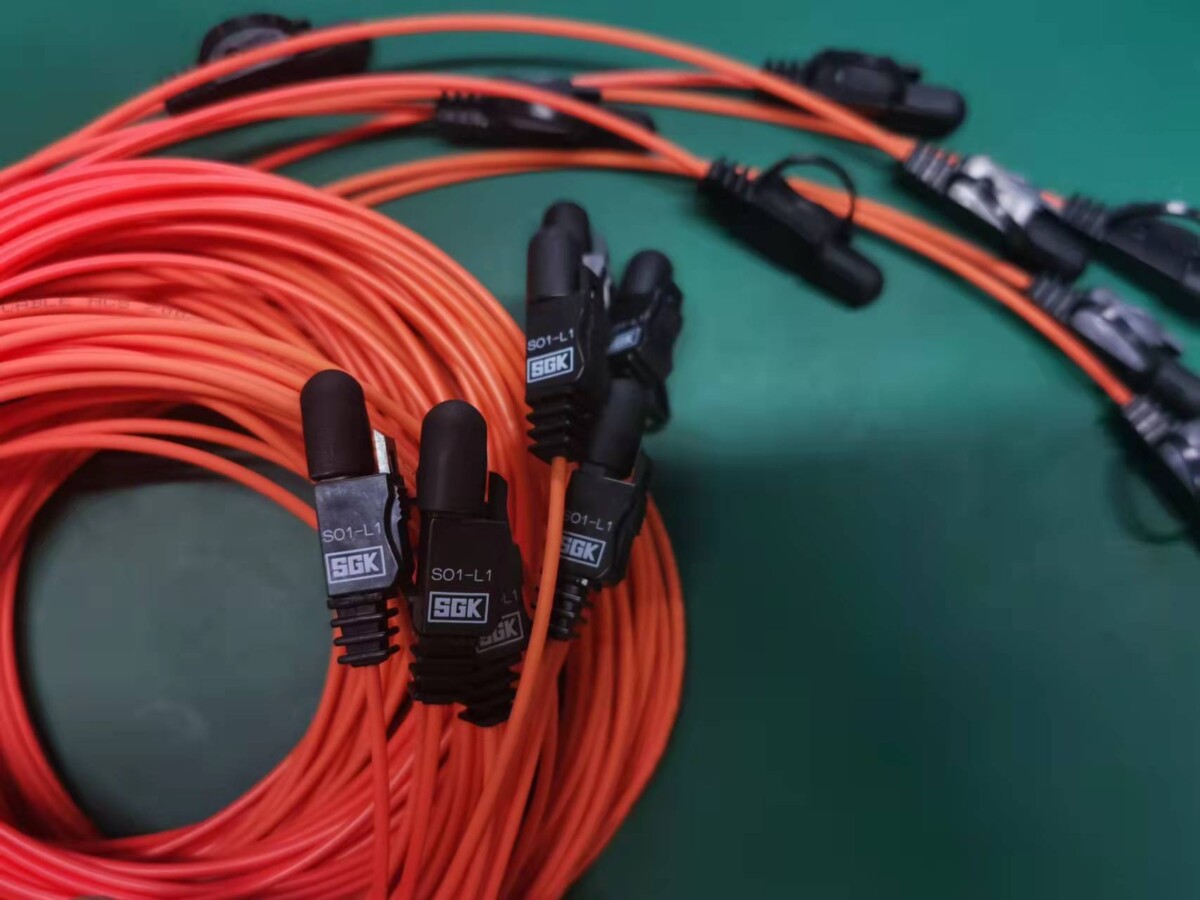

tocp155 toshiba japan
Product Features:
–Anti-electromagnetic interference and electromagnetic radiation
–Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission
–High temperature and low temperature(-40 to 70)
–Easy to install, needless maintenance
–Plastic optical fiber is not conductive and can share the power transmission pipeline
–Long-range power supply
–Accord with the Agilent universal
–RoHS Compliance
1mm Plastic Optical Fiber Optic Cable
Application:
–Data transmission and industrial automation and bus systems
–Industrial robots, intelligent systems, and servo system
–Communication exchange systems
–Digital multimedia systems
–Medical sensing system
–Power system, etc.
Specification Table
| Connector | SGK-SO1-L1-220/230 | Core Diameter | 1000mm |
| Wavelength Range | 525-650um | Fiber Core Material | Plastic/PMMA |
| Cable Diameter | 2.2mm | Jacket Material | Black PE/PVC |
| Number of Conductores | 1 | Length | 0.5m/1m/2m/5m/Customized |
| Attenuation | ＜180dB/km | Cable Type | Plastic optical fiber cable |
| Operating Temperature | -55~85℃ | Storage Temperature | -55~85℃ |
Specification
| ITEM | PARAMETER |
| Connector Type | SGK-SO1-L1-220/230 |
| Insertion Loss | ≤0.22dB |
| Short Term Tensile Force(single channel) | 50N |
| Short Term Tensile Force(dual channel) | 100N |
| Short-Term Bend Radius | 25mm |
| Long-Term Bend Radius | 35mm |
| Long Term Tensile Load | 1N |
| Flexing | 1000 cycles |
| Fiber Length | 1m,2m…..any length optional |
