- Name: SC Fast Connector
- Model: INT-SC-250D
- Color: Green

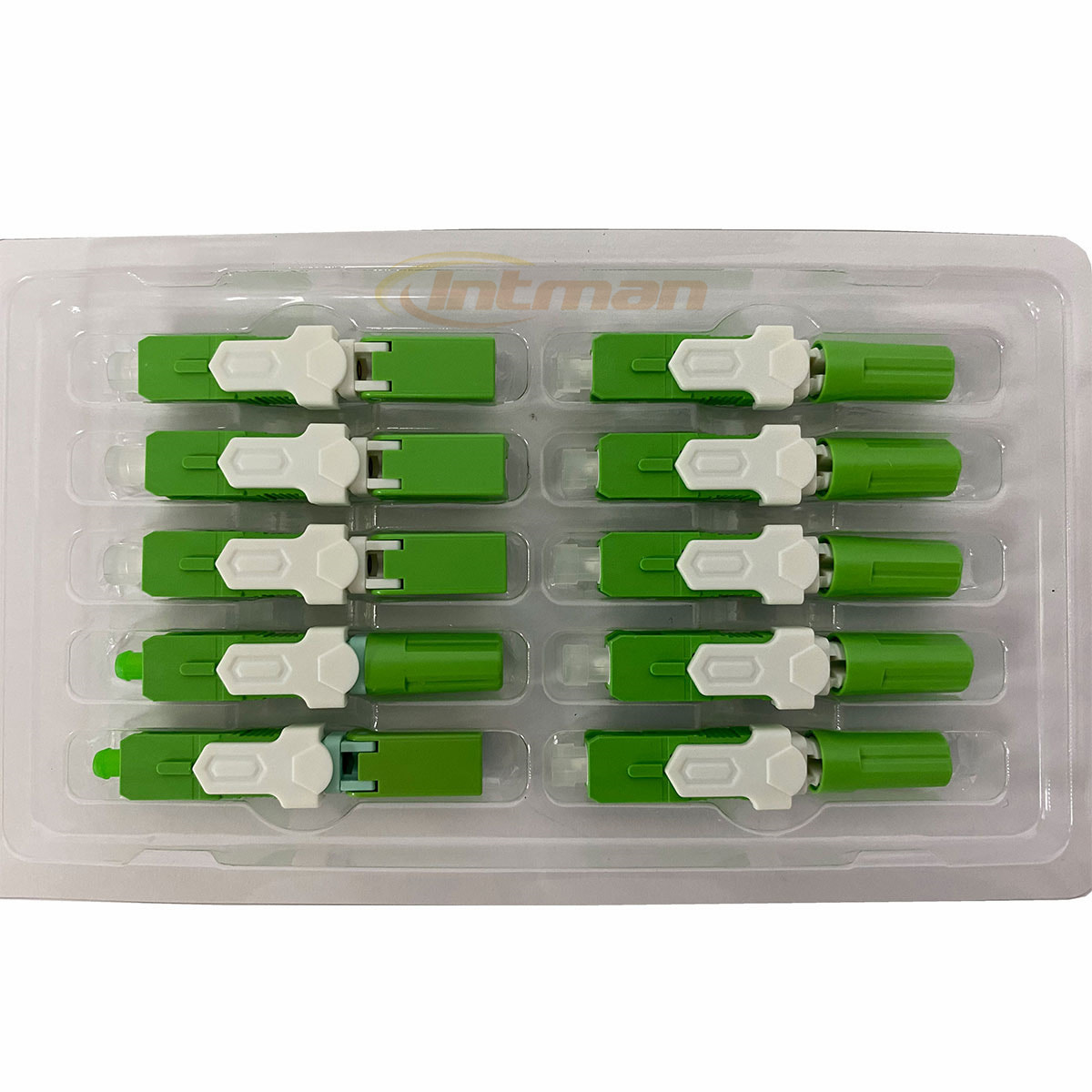

- Package: 100pcs/box
- Apply cable: FTTH drop cable
- Diameter of Fiber coating:250um
- Polish Type: UPC/APC optional
- Tensile Strength:≥40N/2min
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment
Field-mountable FTTH SC Optical Fiber Connectors
Description

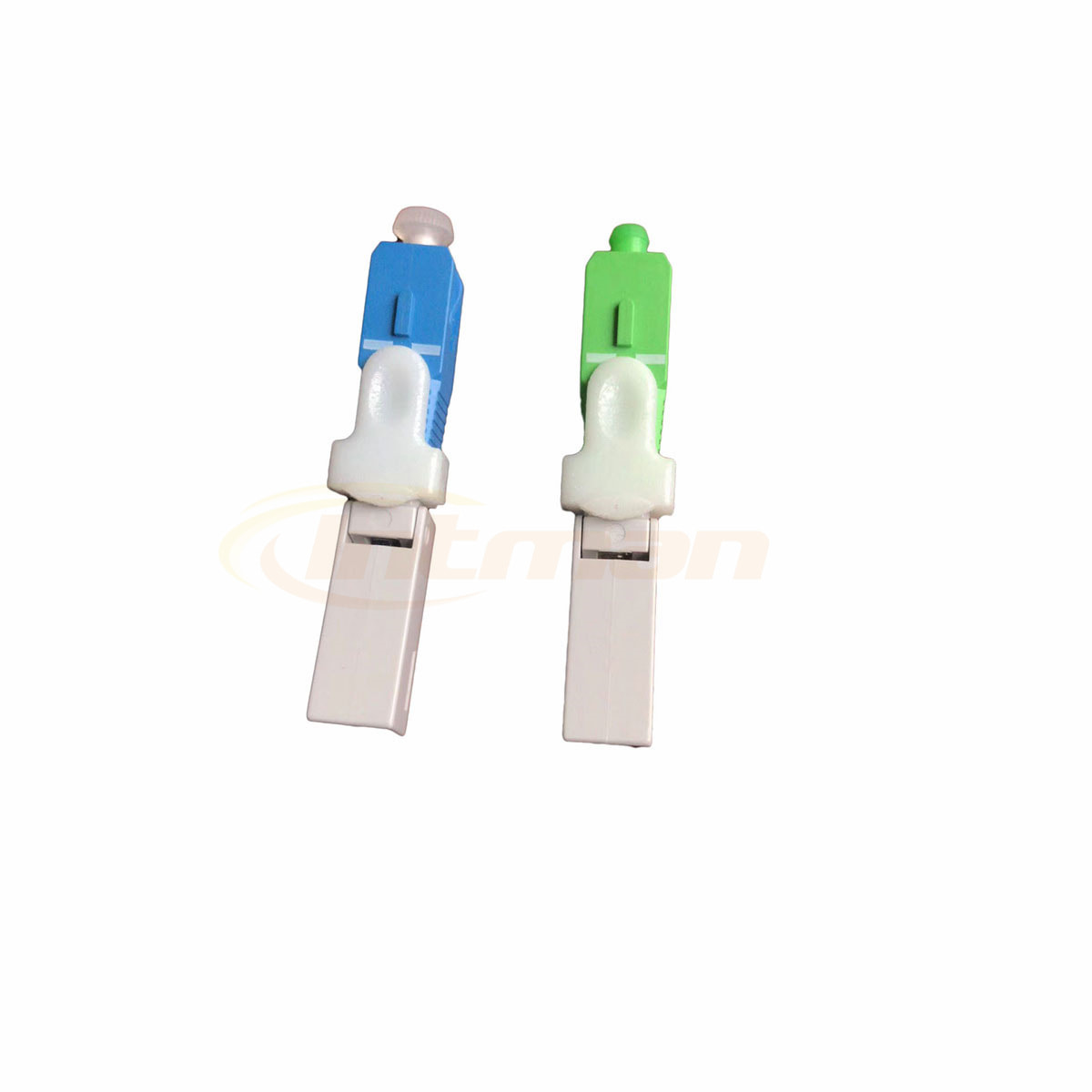

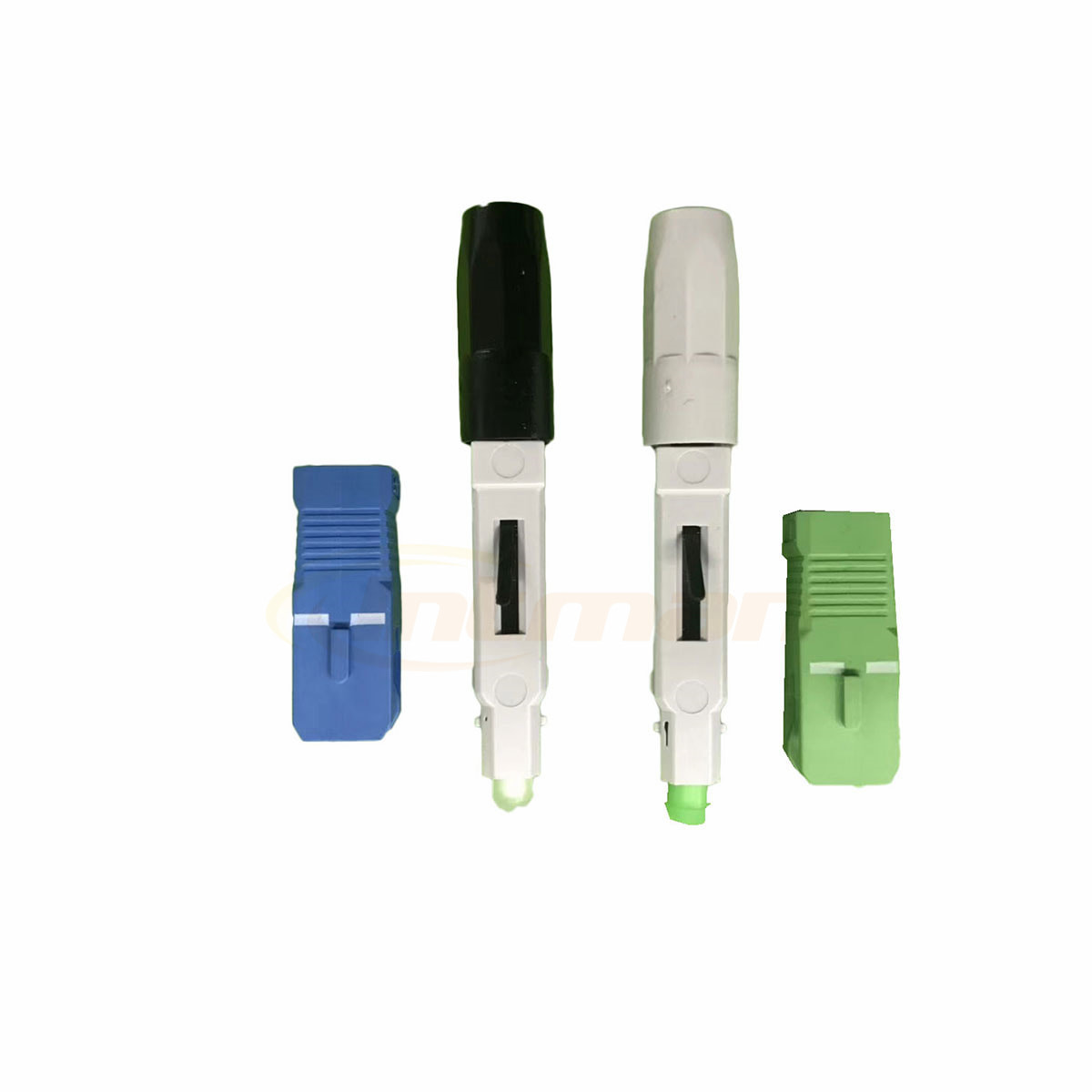

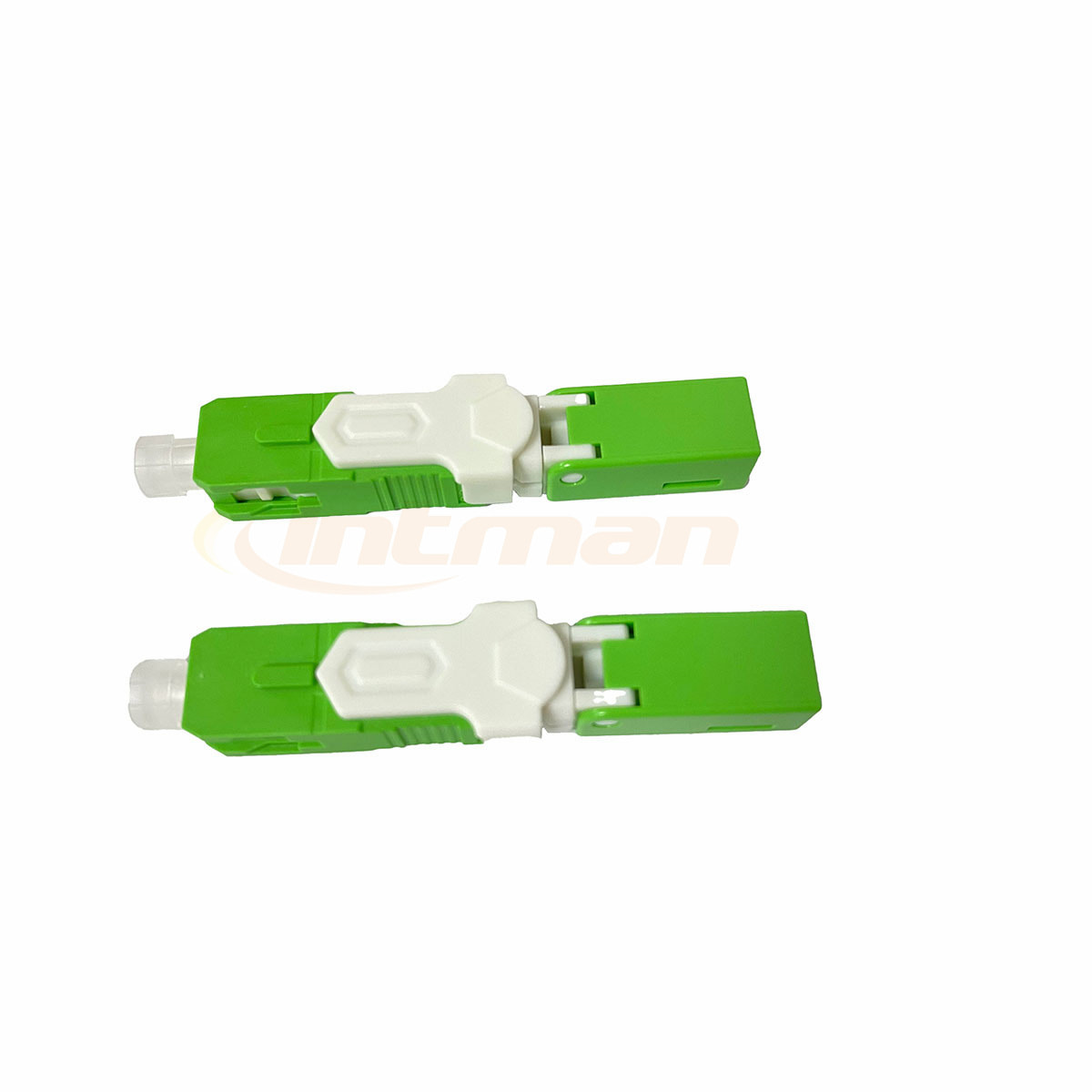

SC UPC Optical Fiber Fast Connector
This universal mechanical splice is used to terminate a single-mode optical fiber with SC/UPC connector without time-consuming gluing and polishing. Optical SCUPC Singlemode 9/125um fast connector with minimum instrumentation requirements for connector installation, this connector does not need to be polished.
Characteristics:
- Good performance and High success rate.
- Easiness in installation with an average splicing time of 15sec.
- The special tool is simple and convenient to use.
- Reusable and repeat operation times are up to 100.
- Integrated Protection of the casing to prevent the connector from impact.
- On-line tension is up to 20N to protect the connector from dragging.
- The maximum tension is up to 100N. It is the most safety connector.
- Storage/Operation temperature: -40℃ to +70℃
Singlemode FC/UPC Fiber Fast Connector Specification Table
| Connector | SC | Color | Green |
| Model | INT-SC-250D | Polish Type | APC/UPC |
| Connector Length | 52mm | Material | Plastic |
| Mechanical Endurance | 500 Time | Assembly Time | ≤4mins |
SC Fiber Optic Fast Connectors Features
- Screw type, total length have 55mm and 60mm are available;
- Applied to 2×3 and 2×1.6 drop cable
- The diameter of fiber coating:250um
- Tensile strength ≥30N/2min
Singlemode SCUPC Quick Fiber Optic Connectors Applications
- Telecommunications networks
- Premise installations
- Test equipment
- Data centers
- FTTX/FTTH
- CATV
- Metro Networks
Order Information
fiber quick connector
