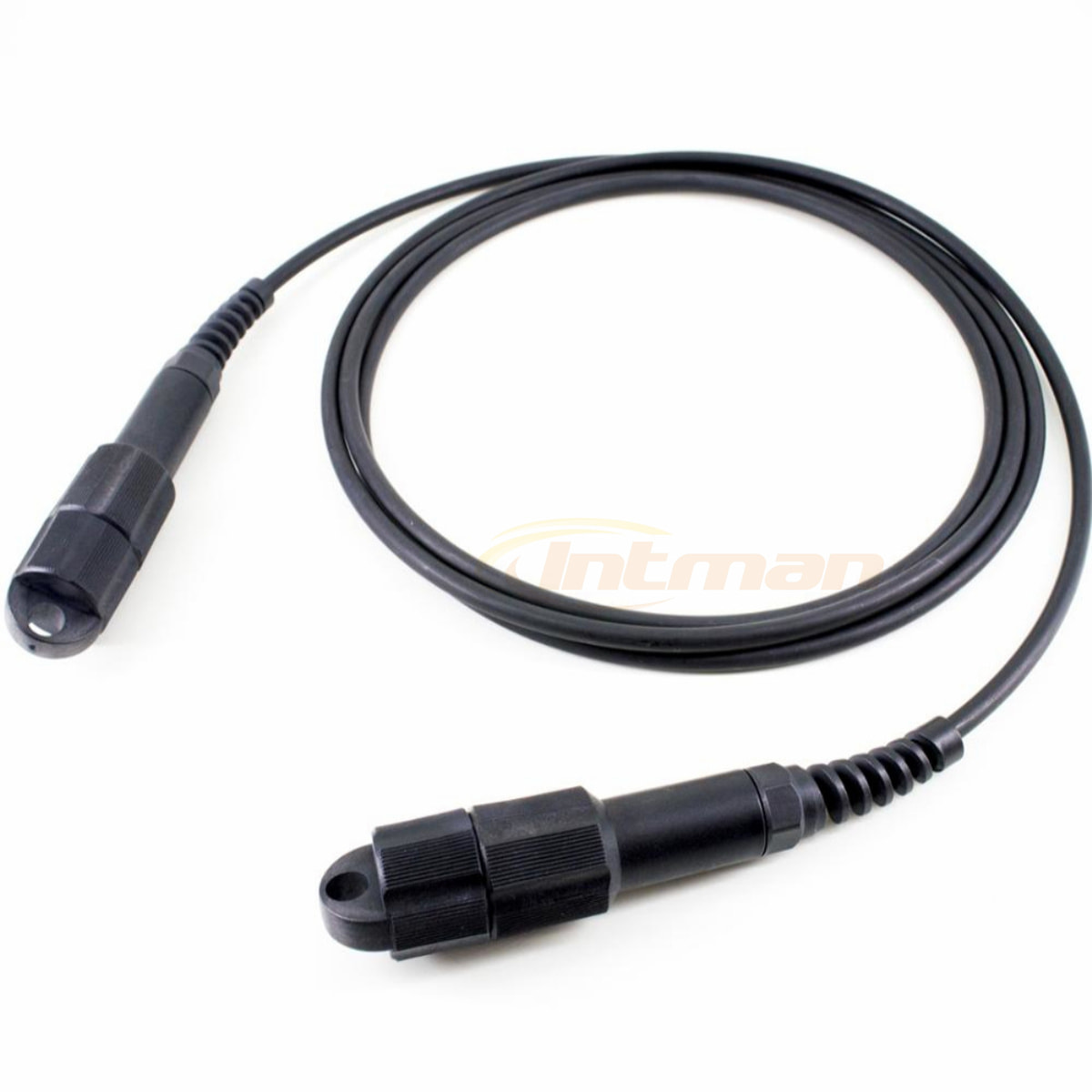

FTTA PDLC-PDLC SM DX Waterproof IP67 Outdoor Patch Cable

Description

FTTA (Fiber To The Antenna) PDLC Patch cord

An FTTA PDLC patch cord used in outdoor applications, duplex round far transmission outdoor cable (water blocking aramid yarns and UV resistant black out jacket), can be with pulling eye, LC open bulkhead for easy access to SFP module to realize the signal path from BBU to RRU, widely use 3G 4G base station, Aerospace&Defence, equipment diagnosis, FO sensor, FTTA, FTTP, FTTX, WIMAX, BBU, RRU, RRH, LTE.

 PDLC Fiber Optic Patch Cable Specification Table

Connector	PDLC-PDLC	Cable Diameter	7.0mm
Fiber Mode	OS2 9/125um	Wavelength	1310/1550nm
Jacket Color	Black	Jacket Material	LSZH
Fiber Count	2Core	Waterproof	IP67
Insertion Loss	≤0.3dB	Fiber Grade	G657A1
Mating Times	≥500N	Repeatability	≤0.5dB
Operating Temperature	-20~70℃	Storage Temperature	-40~85℃

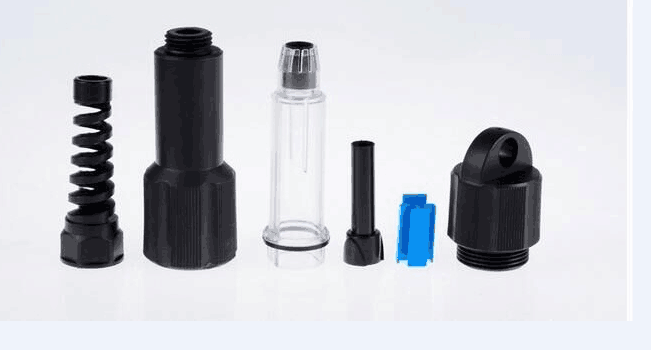

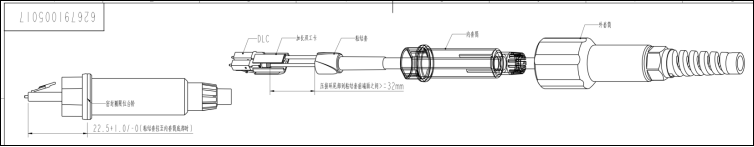

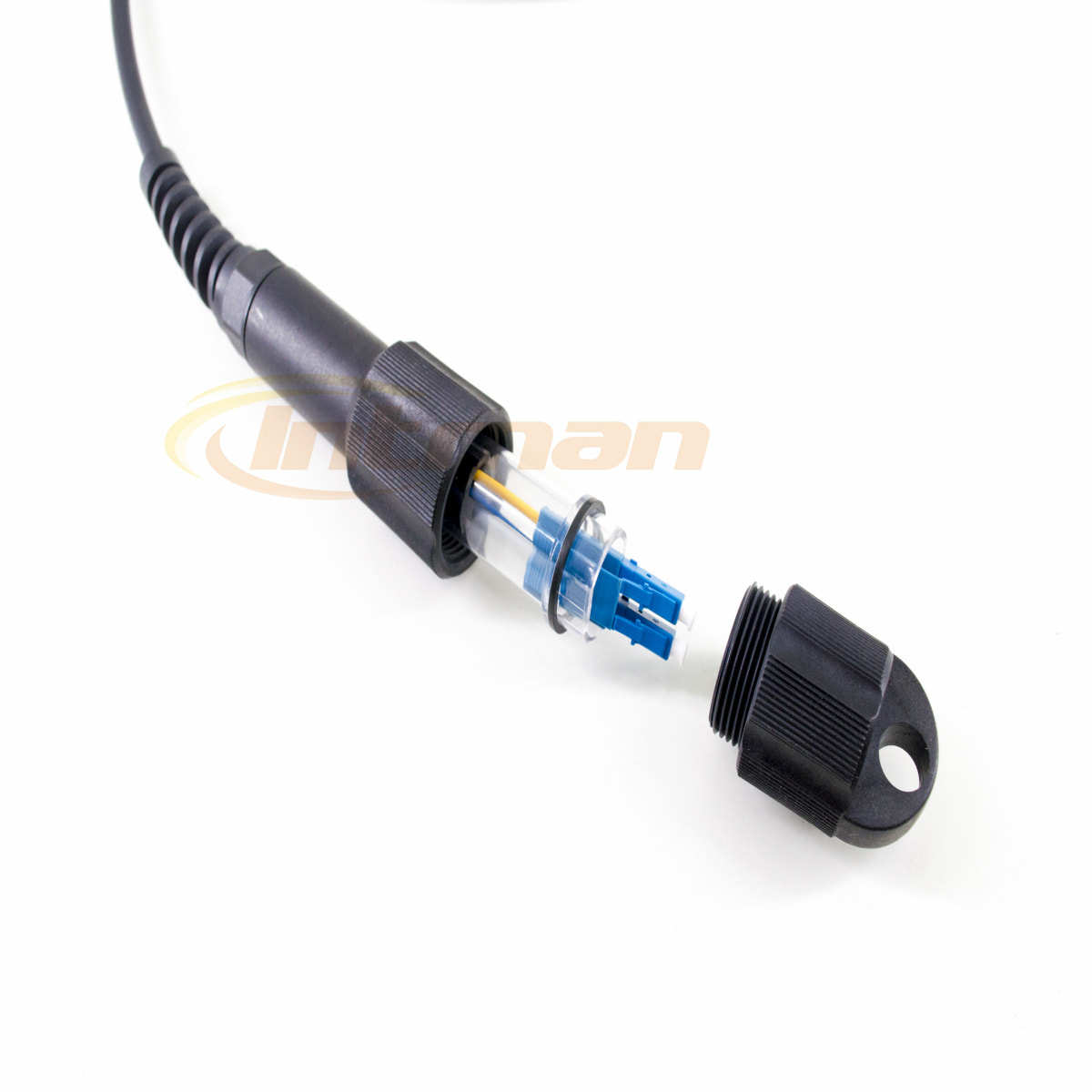

PDLC 2Core 7.0mm Cable Structure and patch cord assembly :

PDLC Fiber Optic Patch Cable Features

• Good mechanical and environmental characteristics
• Flame retardant characteristics meet the requirements of relevant standards
• Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission
• Meet various requirements of the market and clients

 Applications

• Fiber optic communications in harsh outdoor environments
• Outdoor communication equipment connection
• Waterproof fiber equipment SC port
• The remote wireless base station
• FTTX wiring project

 Outdoor PDLC Fiber Optic Patch Cable Availability

• Far transmission communication&FTTA
• Intelligent substation
• Tunnel Video Surveillance system

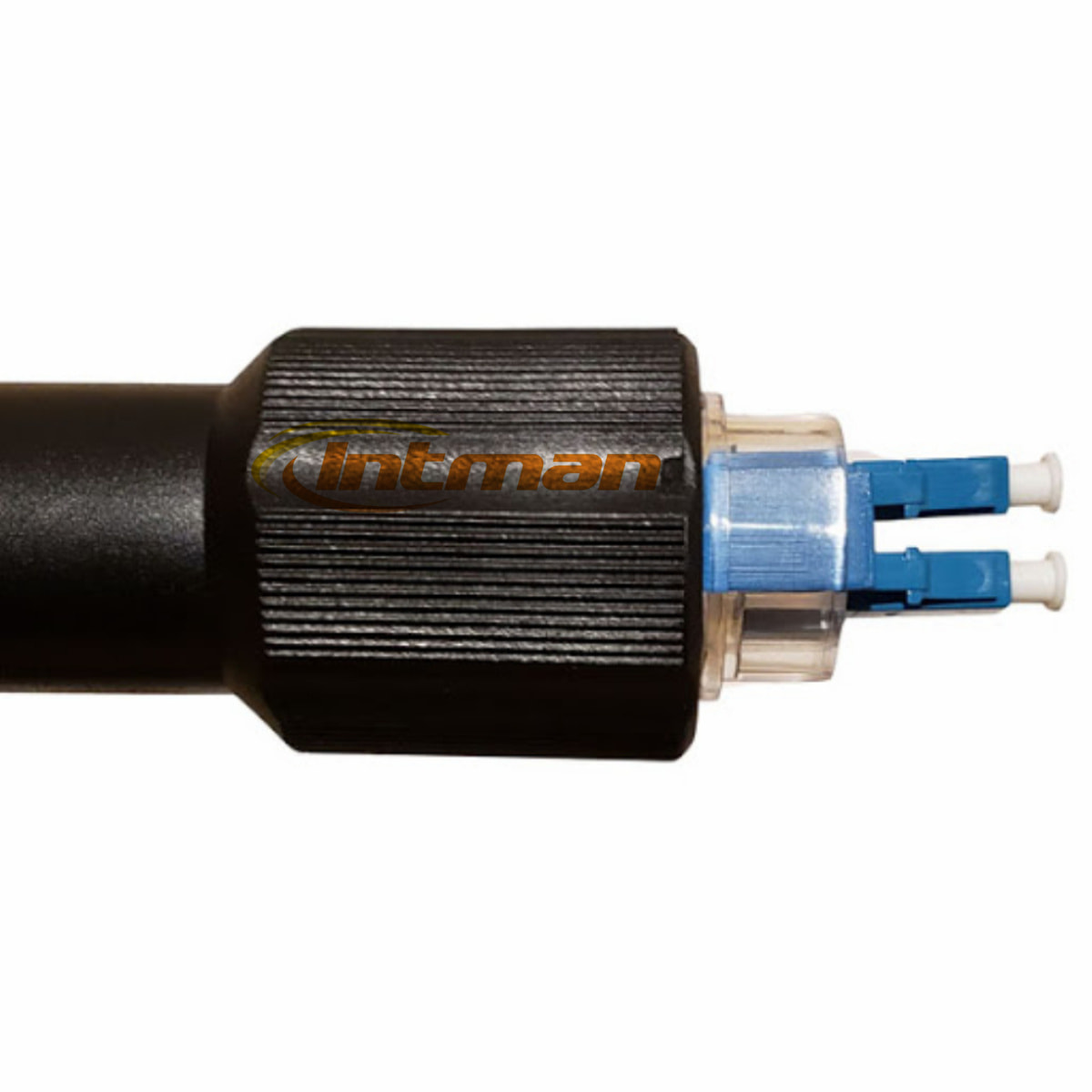

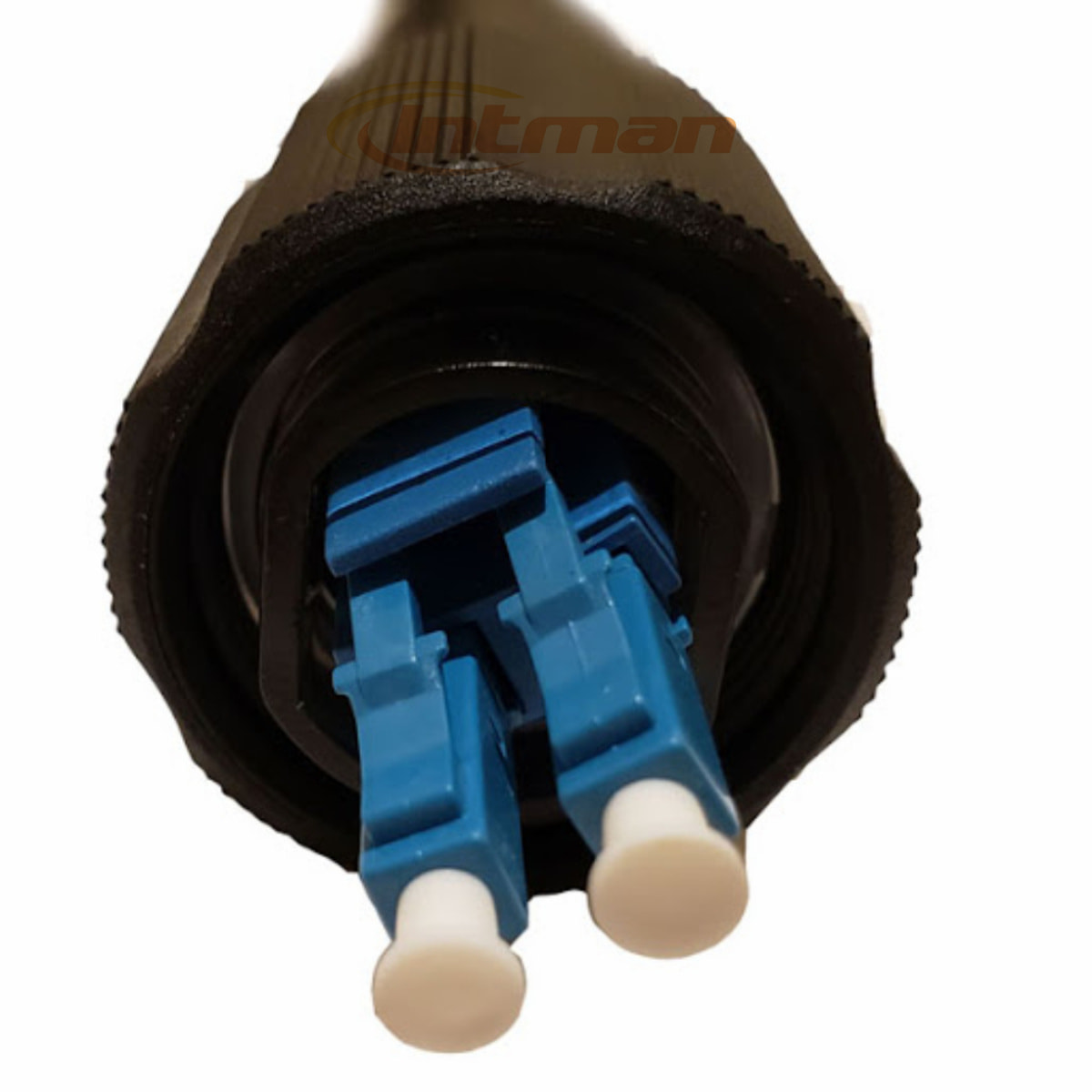

PDLC Connector Specification

ITEM	PARAMETER
Connector Type	PDLC-PDLC
Insertion Loss	≤0.3dB
Return Loss	≥50dB
IP Level	IP67
Operating wavelength	1310nm,1550nm
Test wavelength	1310nm,1550nm
Repeatability	≤0.1
Interchangeability	≤0.2dB
Fiber Length	1m,2m…..any length optional
