- Name: Supertap SC
- Connector: MINI SC
- Connector type: SC
- Cable Diameter: 5.0mm
- Fiber Type: G652D ,G657A1,G657A2
- Fiber Count: 1Core
- Cable Jacket: LSZH, PVC
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

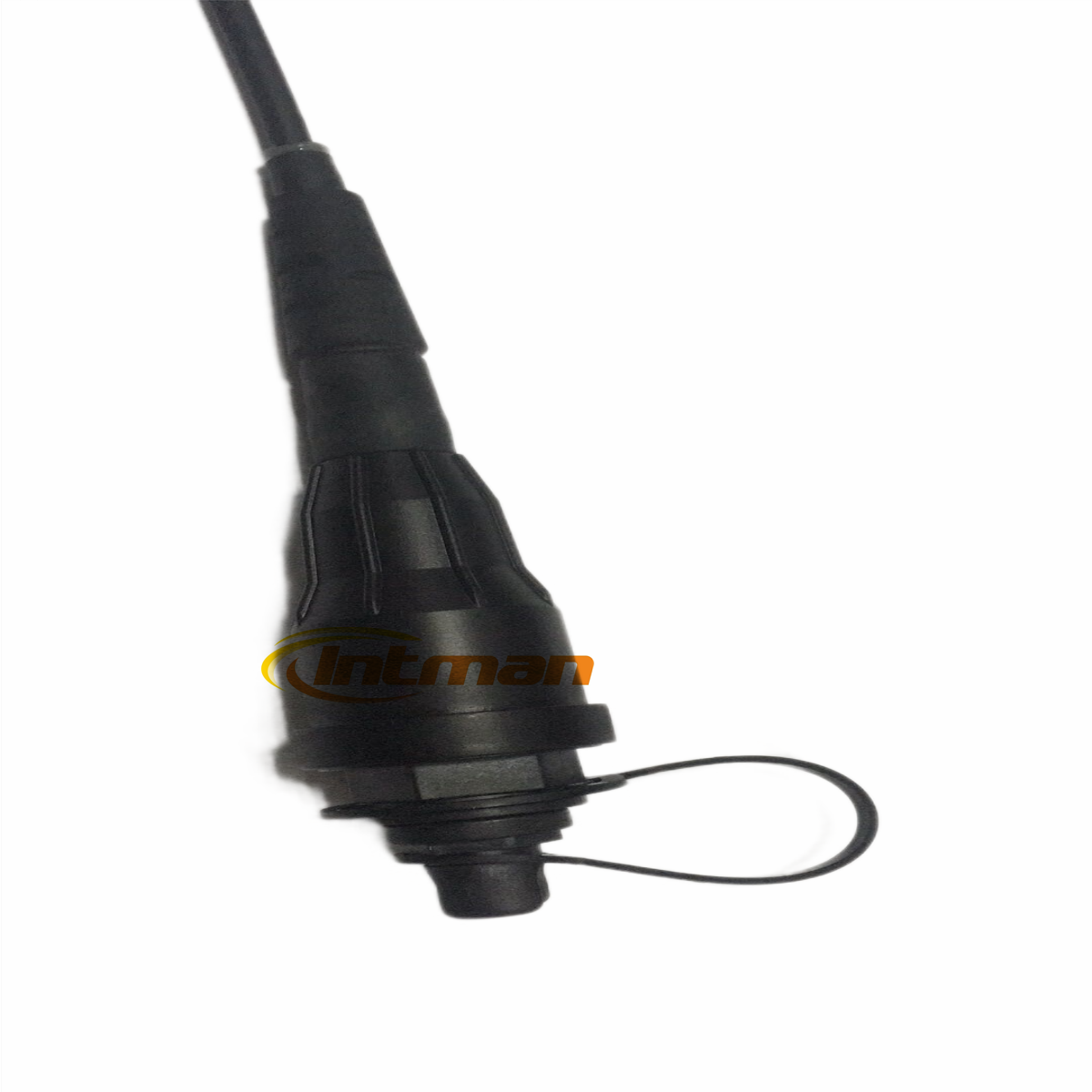

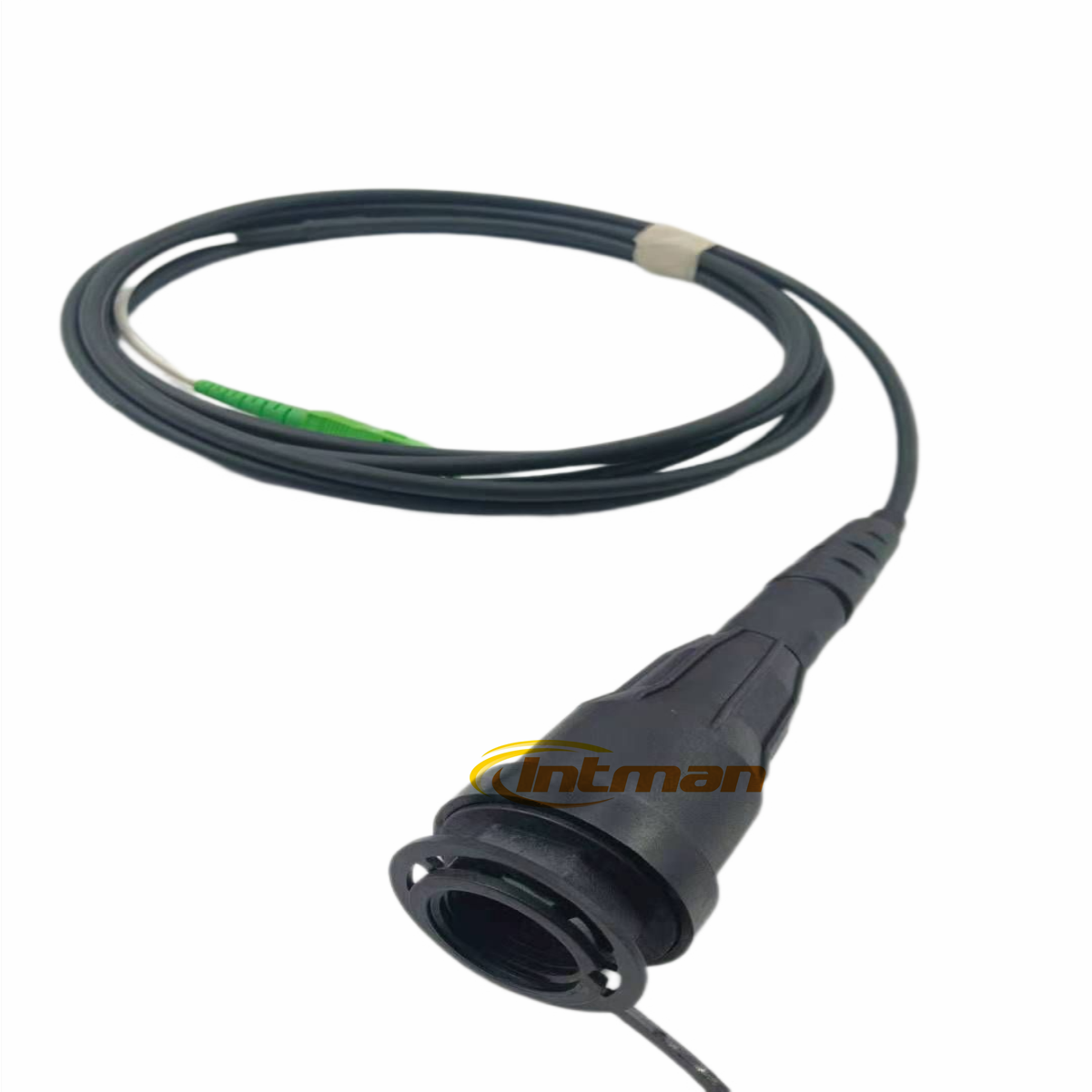

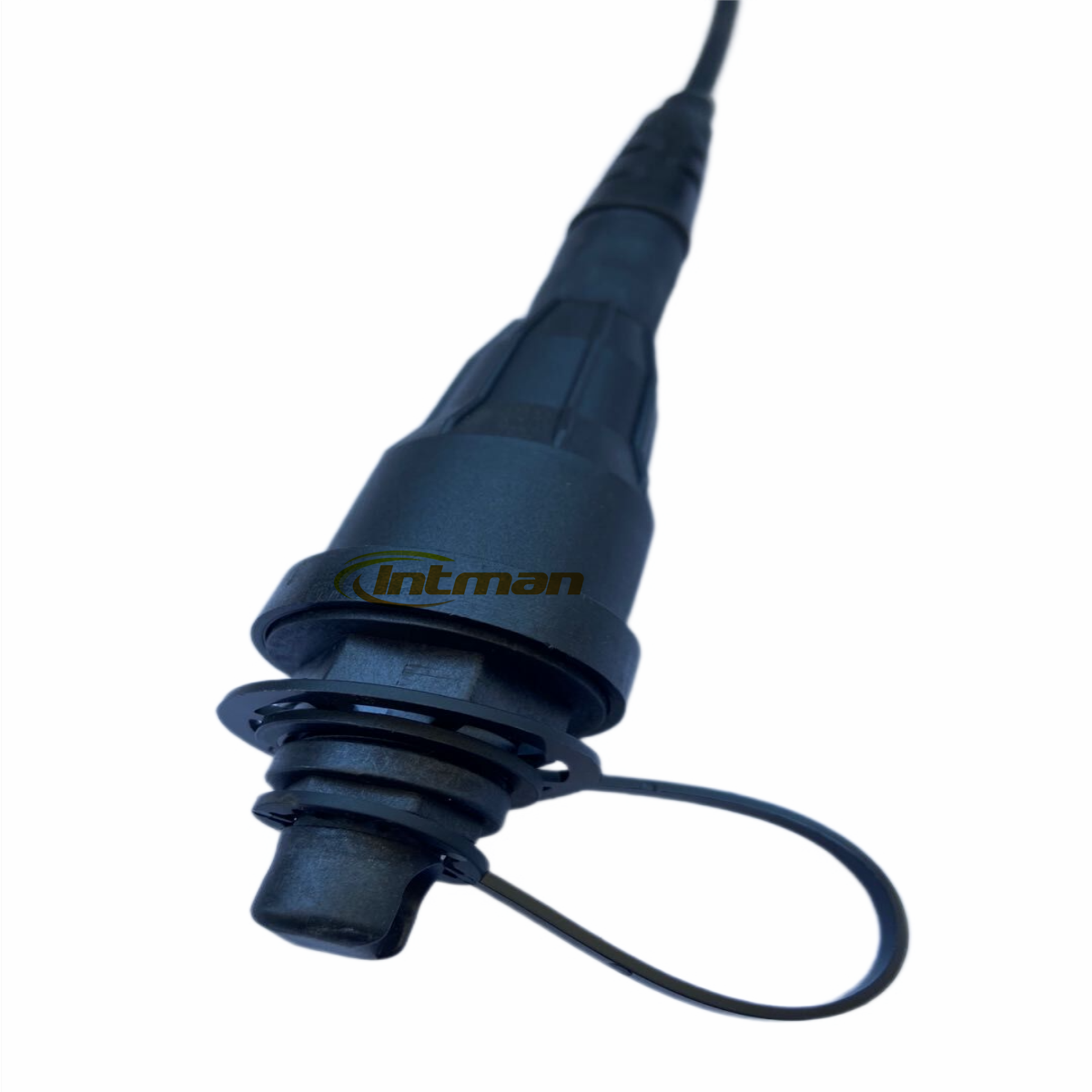

FTTA Supertap SC Connector Waterproof Patch Cord
Description
Supertap SC/APC fiber optic waterproof connector assemblies provide a robust and sealed connection solution for fiber-to-the-home (FTTH) connectivity. The supertap connector end incorporates an SCAPC-type connection within a slim, sealed, threaded polymer housing allowing easy connection to either the AMT or in-line extension receptacle.

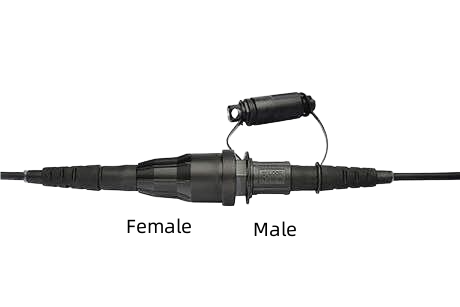

FTTA Supertap Patch Cord
Specification Table
| Connector | Supertap-SC | Cable Diameter | 5.0mm |
| Fiber Mode | OS2 9/125um | Wavelength | 1310/1550nm |
| Jacket Color | Black | Jacket Material | LSZH |
| Fiber Count | 1Core | Protection Class/Rating | IP68 |
| Insertion Loss | ≤0.3dB | Fiber Grade | G657A1 |
| Compatible | Corning | Cable Type | 5.0mm tight buffer fiber |
| Operating Temperature | -20~70℃ | Storage Temperature | -20~70℃ |

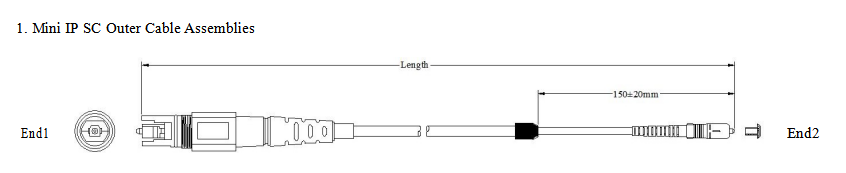

MINI IP SC outdoor cable
Cable Parameters and Cable Structure

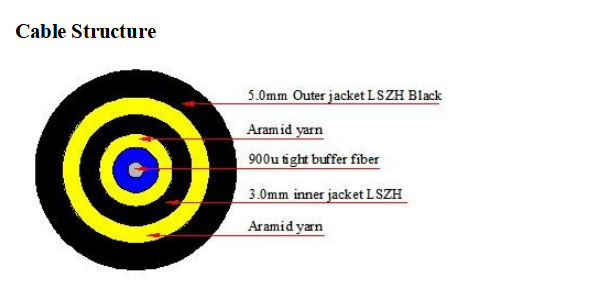

Supertap SC Connector cable structure

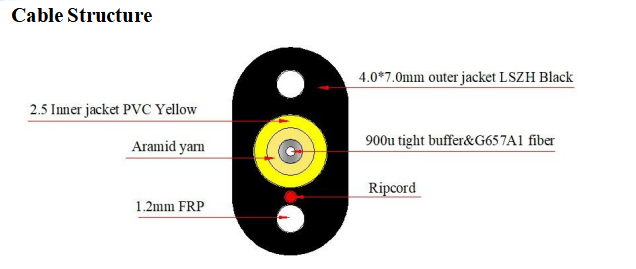

FTTH Flat drop cable structure
| Cable Count | Out Sheath Diameter (MM) | Weight(kg) | Minimum allowable Tensile Strength (N) | Minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage Temperature(℃） | |||
| Short Term | Long Term | Short Term | Long Term | Short Term | Long Term | ||||
| 1 | 5.0±0.2 | 26.5 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20~+70 |
| 1 | 4.0×7.0 | 42 | 1350 | 400 | 2200 | 1000 | 20D | 10D | -20~+70 |
Features
- Cost-effective solution for in-house termination.
- Low insertion loss and added loss.
- Height of attenuation.
- IP67 water, dustproof and corrosion resistant
- The materials in the jumper cable are all-weather and UV-resistant.
- Mechanical performance: IEC 61754-4 standard.
- RoHS and REACH materials are compliant.
Applications
- Multi-purpose outdoor
- For connection between the distribution box and RRH
- Deployment in Remote Radio Head Cell tower applications

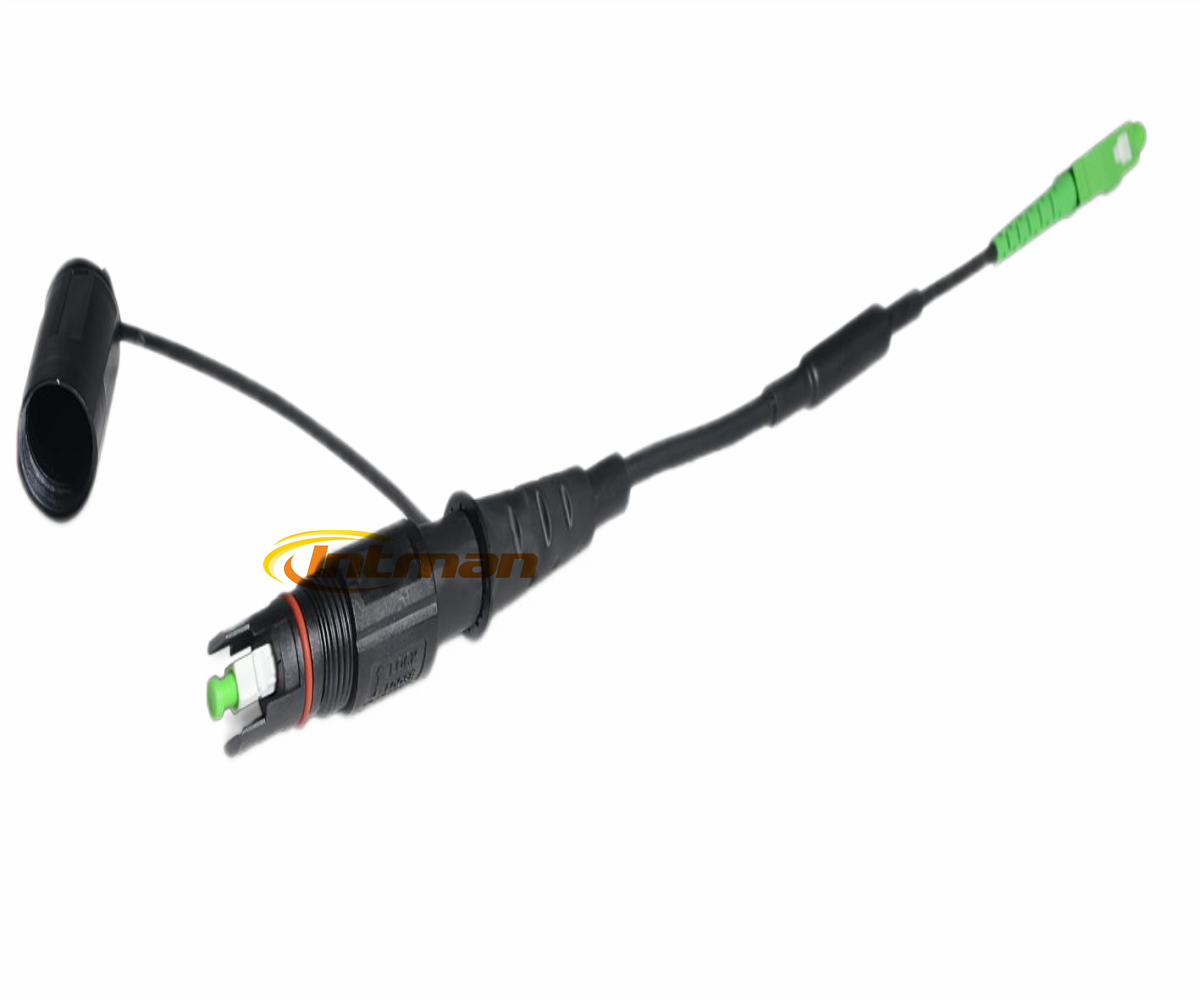

Waterproof Supertap SC patch cord Availability
- Far transmission communication&FTTA
- Intelligent substation
- Tunnel Video Surveillance system
Specification
| ITEM | PARAMETER |
| Connector Type | Supertap SC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| IP Level | IP68 |
| Operating wavelength | 1310nm,1550nm |
| Test wavelength | 1310nm,1550nm |
| Repeatability | ≤0.1 |
| Interchangeability | ≤0.2dB |
| Fiber Length | 1m,2m…..any length optional |
