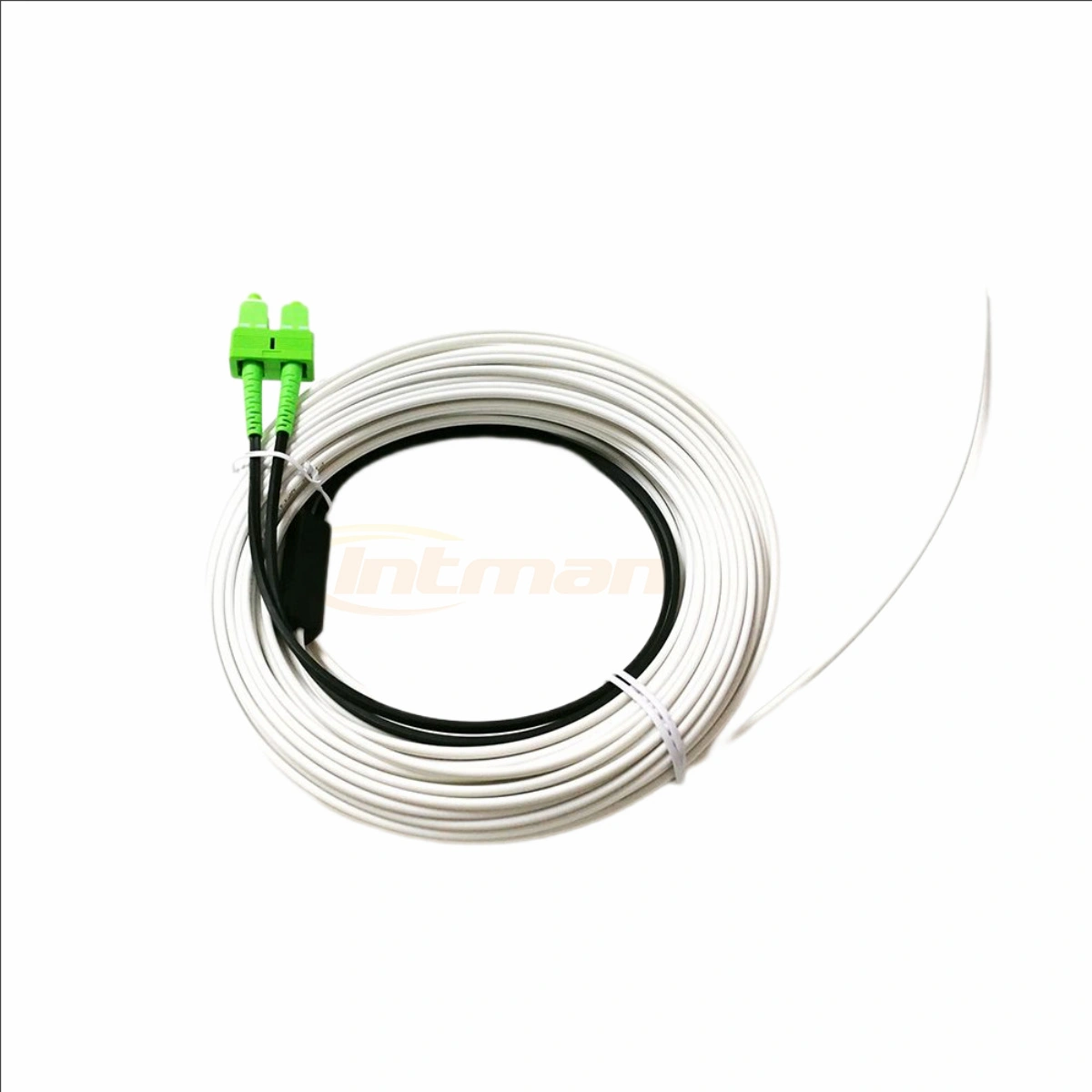

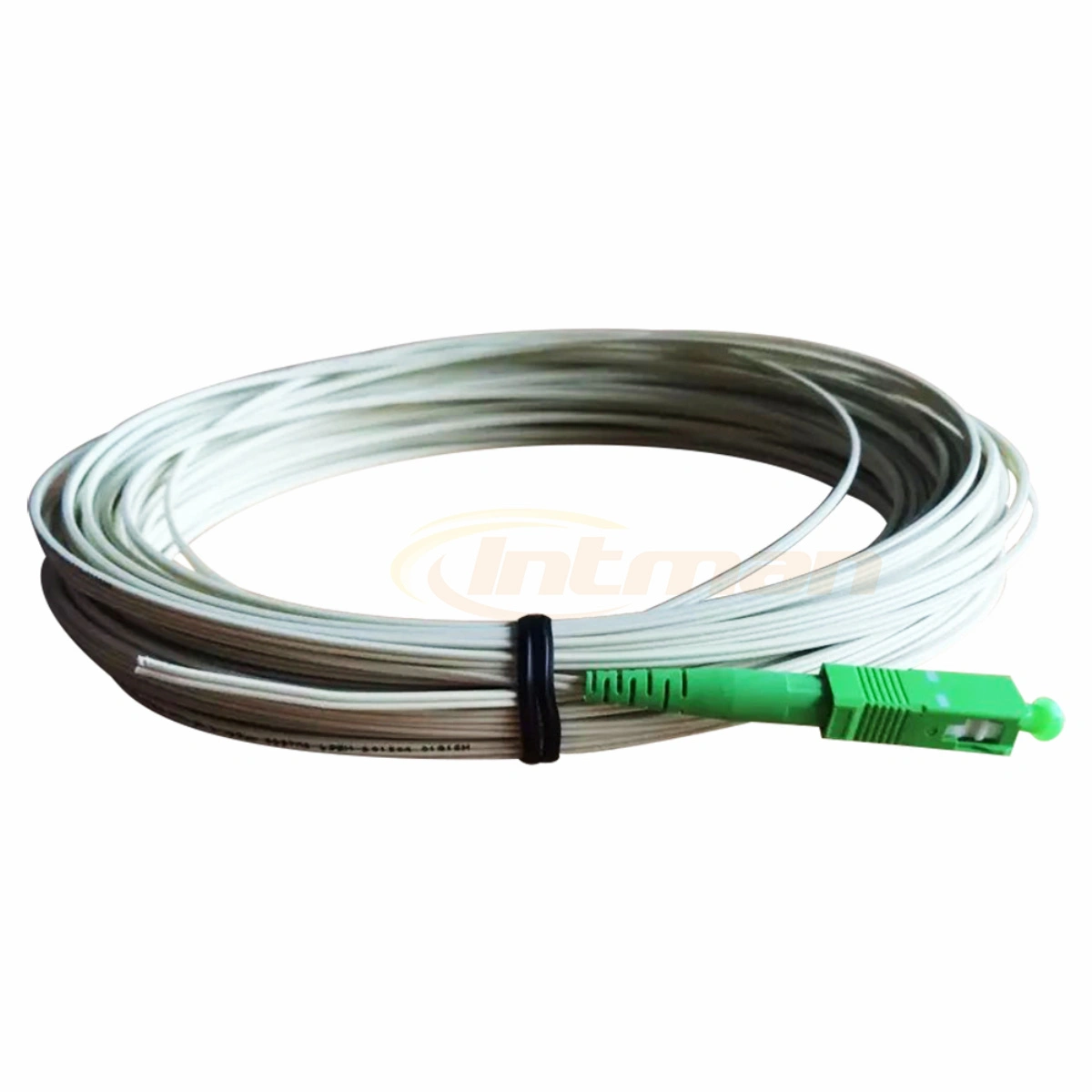

SC APC FTTH Fiber Optic Pigtail Single mode Price Assembly
Intman supplies FTTH fiber optic pigtails at very competitive prices. We offer fiber versions including the SC LC ST,FC,E2000,MPO,MTP 9/125um single mode, 62.5/125 multimode, and 50/125um OM3 OM4 10Gb types.
LC APC Fiber Optic Pigtail Single mode Price Assembly Specification Table
| Connector |
SC APC |
Cable Diameter |
2.0×3.0mm |
| Fiber Mode |
OS2 9/125um |
Wavelength |
1310/1550nm |
| Jacket Color |
Beige |
Jacket Material |
LSZH,PVC |
| Fiber Count |
Simplex |
Fiber Grade |
G652D ,G657A1,G657A2 |
| Insertion Loss |
≤0.3dB |
Return Loss |
≥65dB |
| Durability |
＞1000 Time |
Vibration |
≤0.2dB |
| Operating Temperature |
-40~75℃ |
Storage Temperature |
-45~85℃ |
FTTH SC APC Fiber Optic Pigtail Features
- Low insertion loss and high return loss
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- Boots in a variety of colors
- High precision alignment
SC APC Fiber Optic Pigtail Single mode Price Assembly Applications
- Local Area Networks (LANs) and Wide Area Networks (WANs)
- Fiber Optic CATV,FTTH,FTTB,FTTP etc
- Fiber Optic telecommunication systems
- Transmission Mode (ATM)
- Fiber Optic Backbone
- Video and Military Instrumentation
- Premise Installations
- Data Processing Networks
Single mode LC-SC-FC-ST Fiber Optic Pigtail Types
Single mode LC SC FC ST Fiber Optic Pigtail Types
