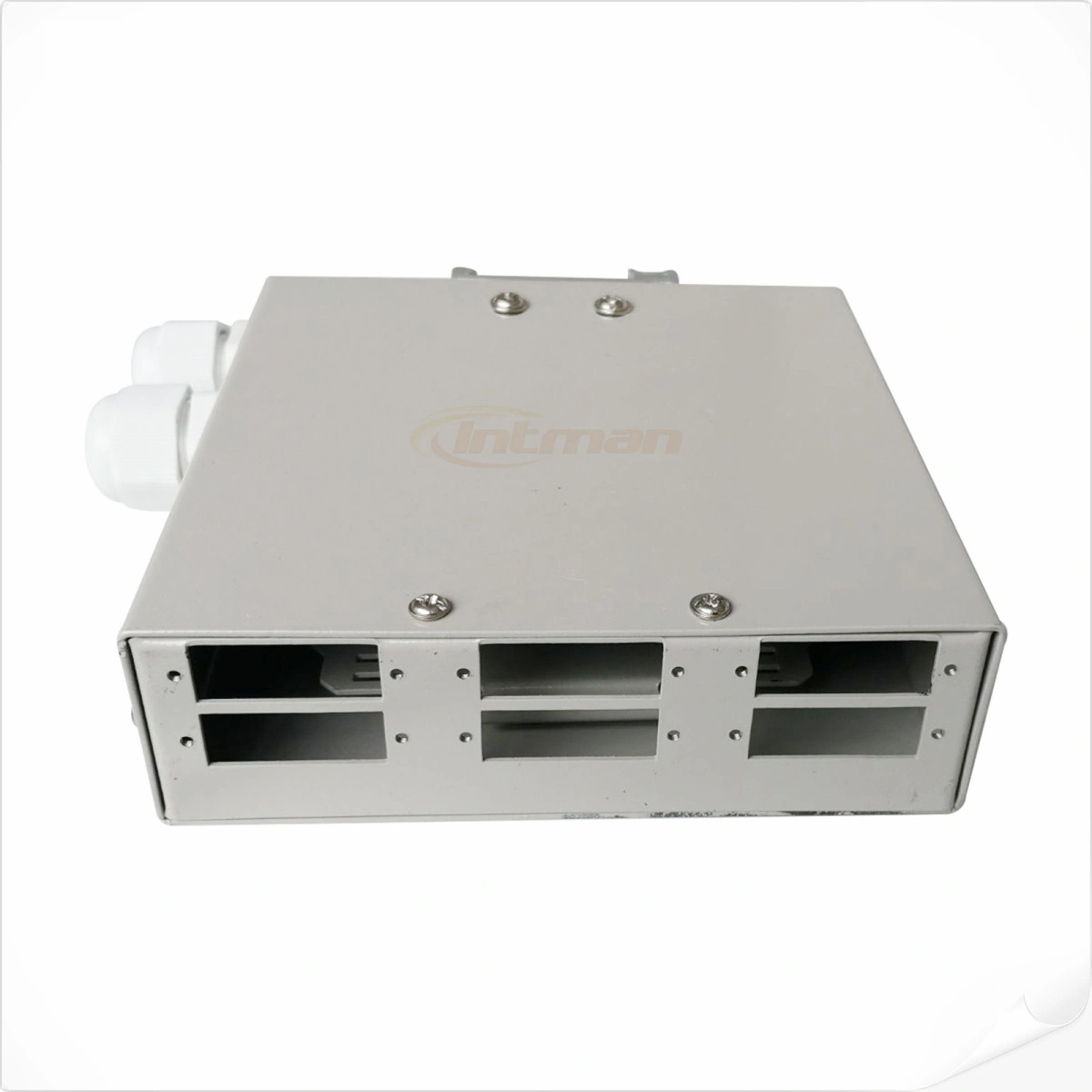

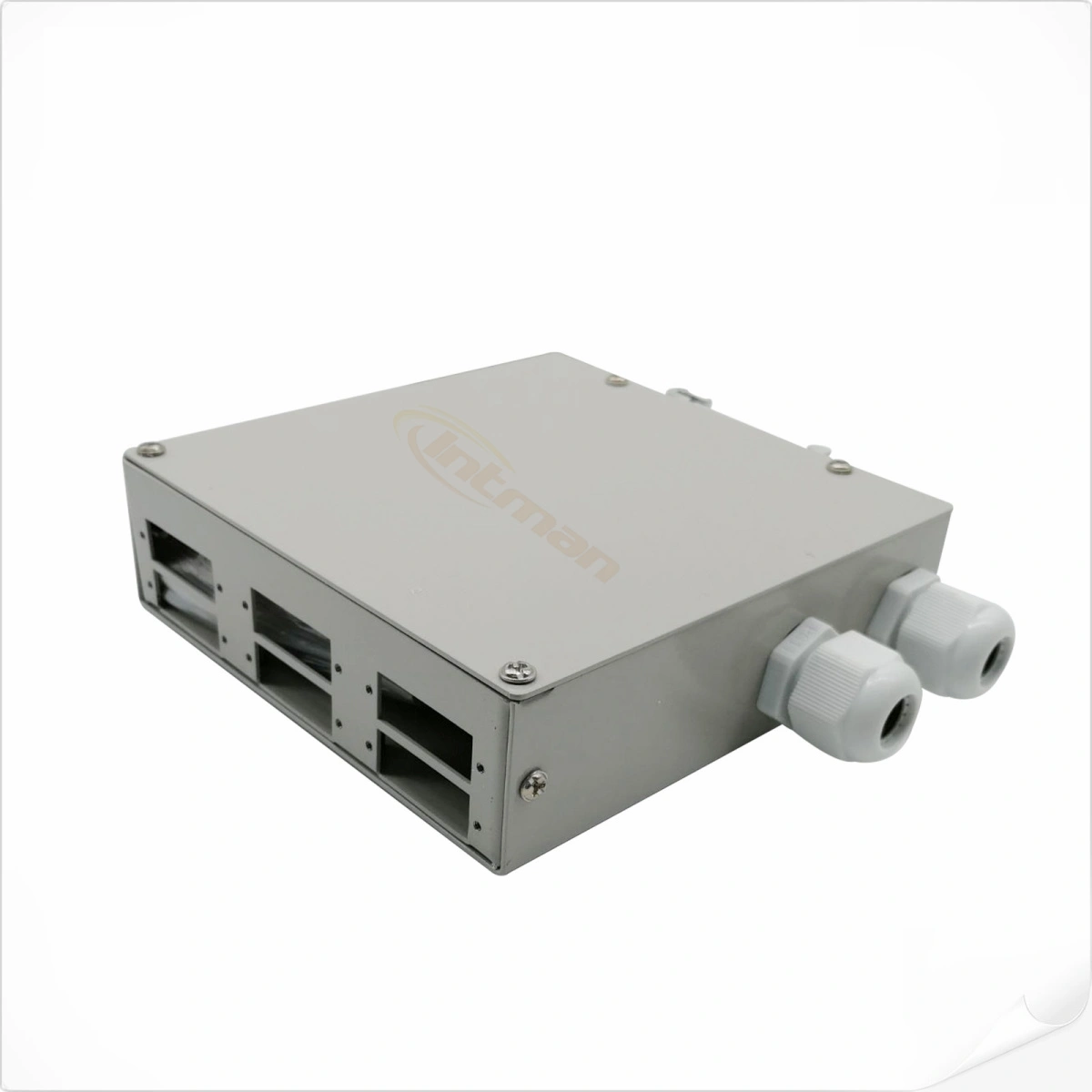

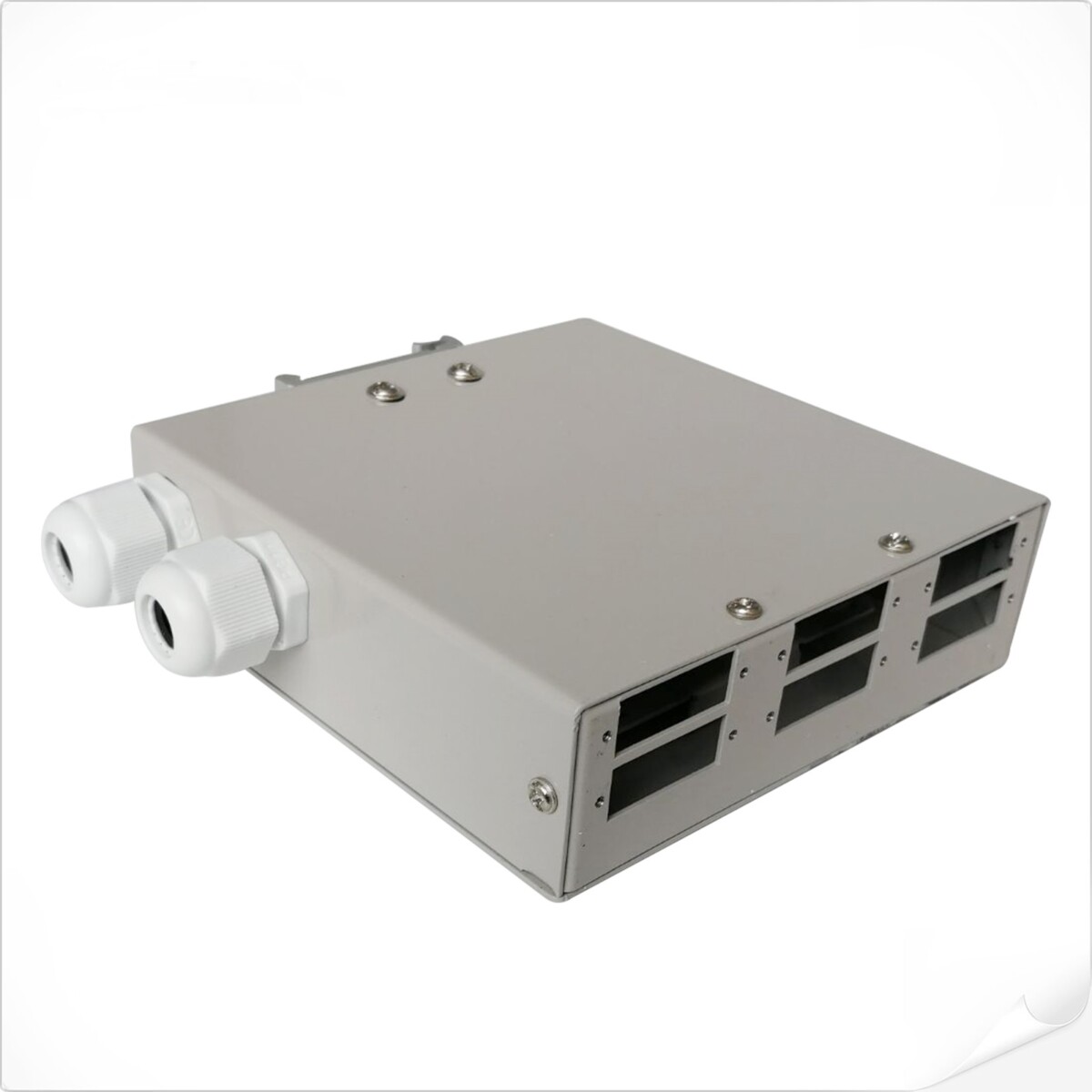

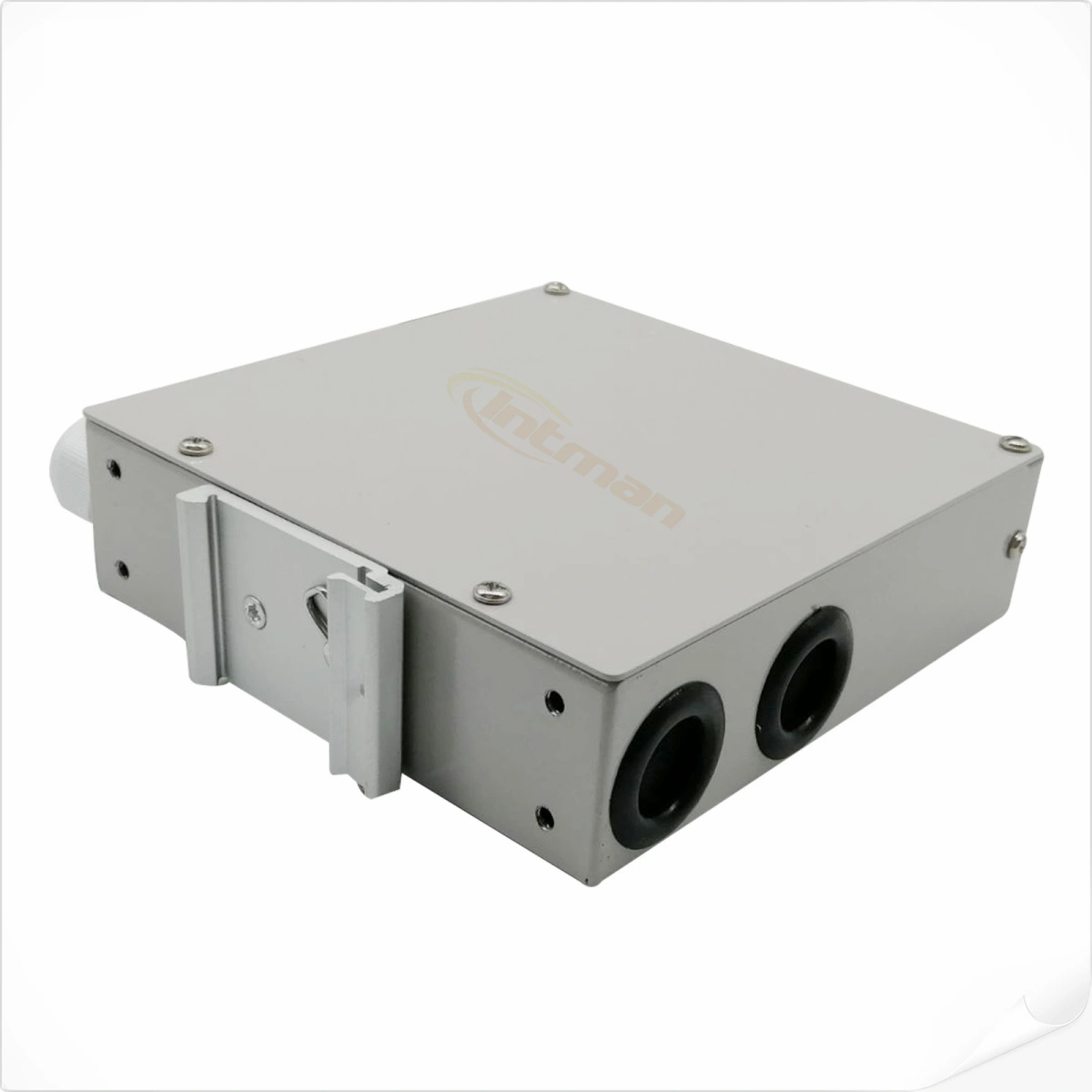

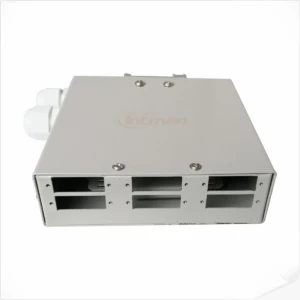

FTTH Metal Din Rail Terminal Box 6SC DX

Description

Din Rail Fiber Optic Terminal Box is available for the distribution and terminal connection for various kinds of optical fiber systems,especially suitable for min-network terminal distribution, in which the optical cables, patch cords or pigtails are connected. All of the DIn rail Boxes can be fully populated.



Product Features:

• Cold-roll steel,electrostatic painting
• Suitable for different adapters: FC,SC,ST,LC….
• 2pcs cable entry/exit ports,12pcs pigtails entry ports
• Splicing module of 12fibers inside
• Max 12pcs adapters can be loaded









Din Rail Mounted Application:

• Suitable for pigtails, ribbon, and bunch cable connect distribution
• Used for wall-mounted applications
• Installation of Din Rails in telecom and electricity cabinets.
• Used in FTTH, Telecommunications, CATV, etc





FTTH Din Rail Terminal Box Types

























Rail DIN Box Model	DIN-6SCD	Rail DIN Box Port	6SC Duplex

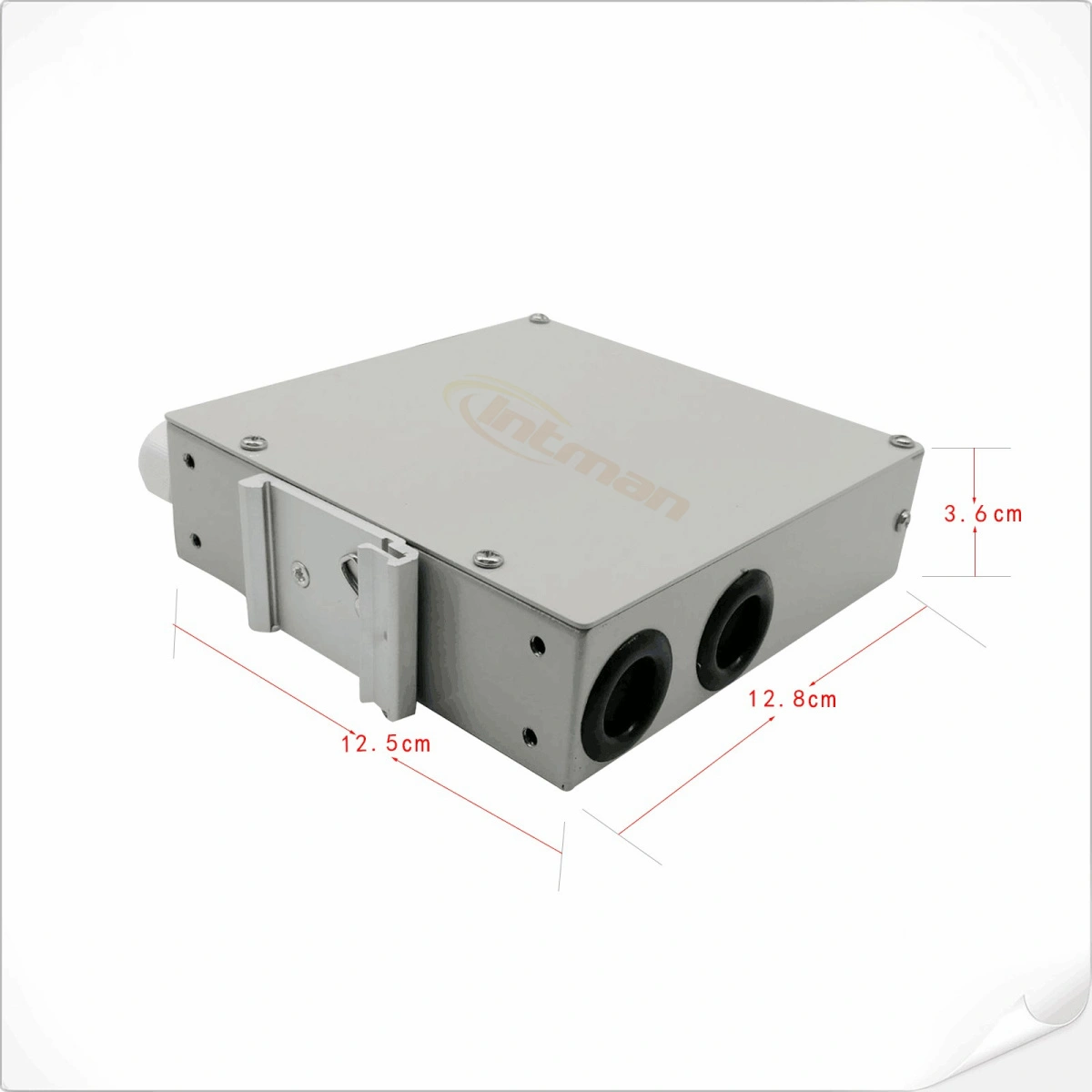

Rail DIN Box Dimension	128×36×125mm	Material	Cold-roll Steel
Color	Beige	Approximate Weight	0.5kg
Adapter Plate	SC Simplex /LC Duplex/SC Duplex	Adapter Capacity	6ports/12ports
Cable Ports	Input/Output	Mounting Type	Din Rail Mounting
Indoor/Outdoor	Indoor	Operating Temperature	-5~40℃



Model Information :

Model	Adapter	Adapter Quantity	Core
DIN-6SCS	SC Simplex/LC Duplex	6	6/12

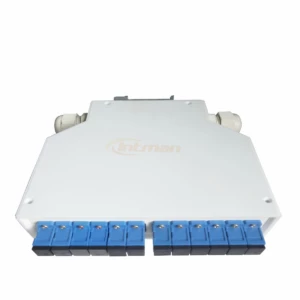

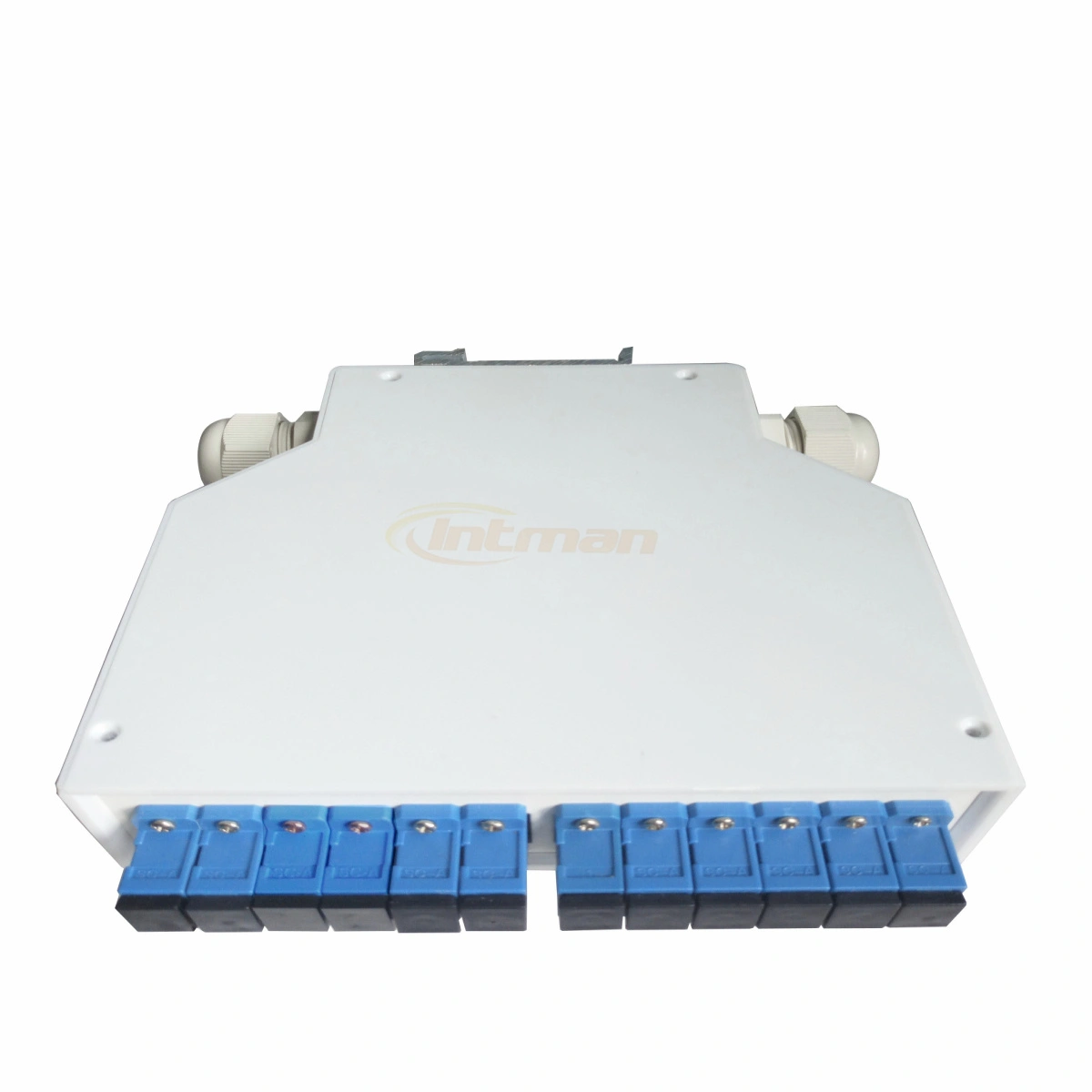

DIN-12SCS	SC Simplex/LC Duplex	12	12/24
DIN-6SCD	SC Duplex/LC Quad	6	12
DIN-6STS	ST/FC Simplex	6	6
DIN-12STS	ST/FC Simplex	12	12
