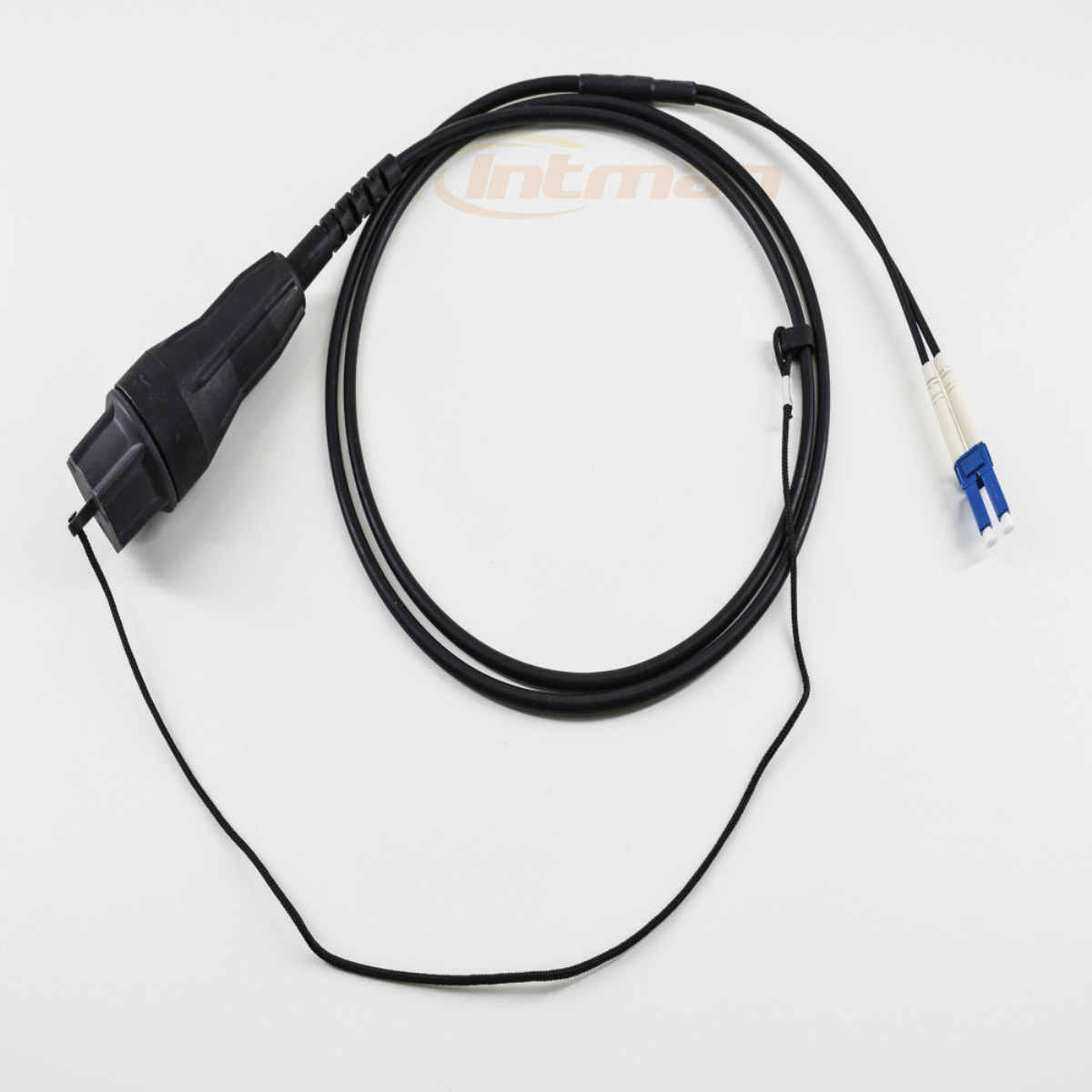

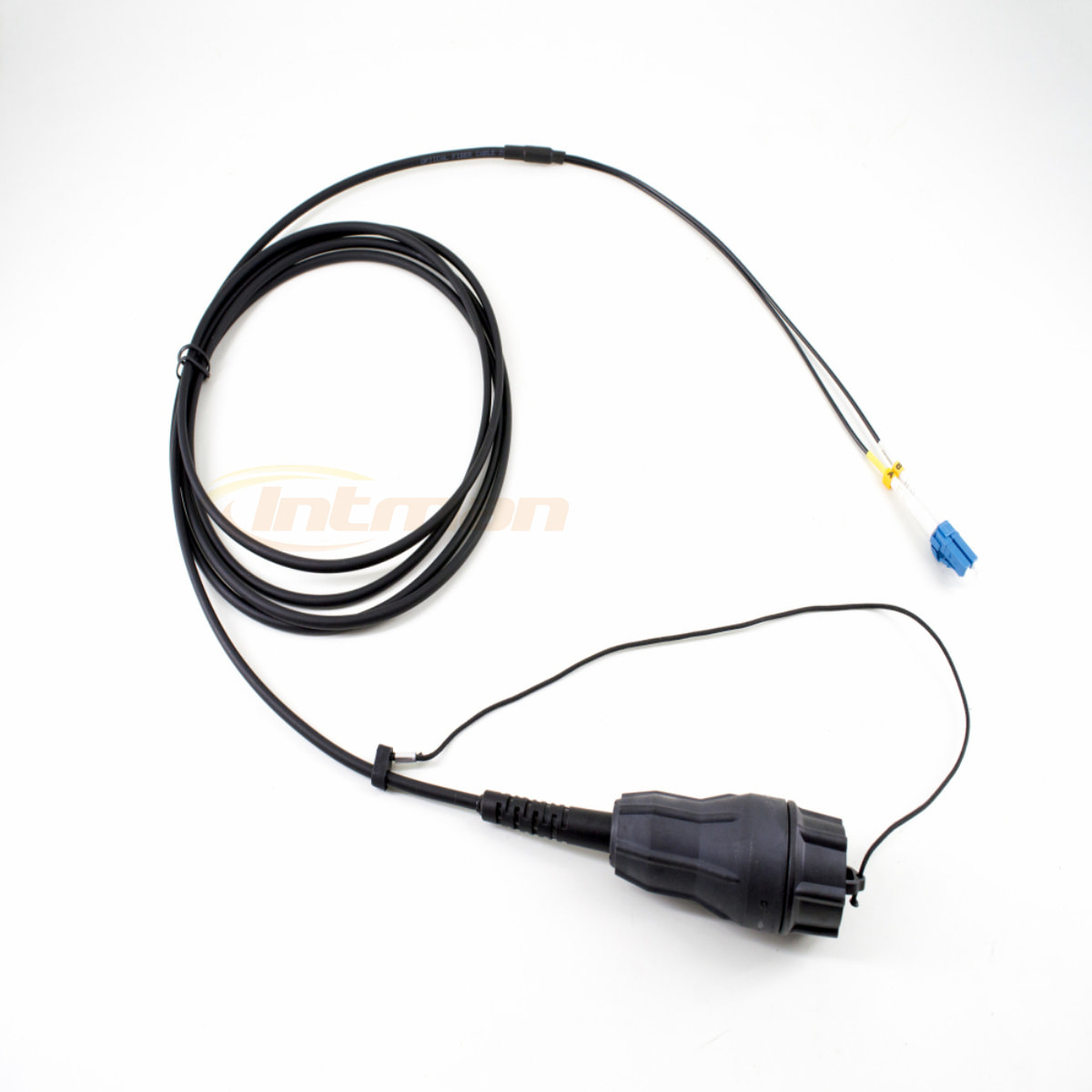

- Name: Fullaxs DLC Patch cable
- Connector: Fullaxs DLC
- Connector type: DLC
- Cable Diameter: 7.0mm
- Fiber Type: G652D ,G657A1,G657A2
- Fiber Count: 2Core
- Cable Jacket: LSZH, PVC
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment
FULLAXS DLC Fiber to the Antenna Rugged Interconnect
Description

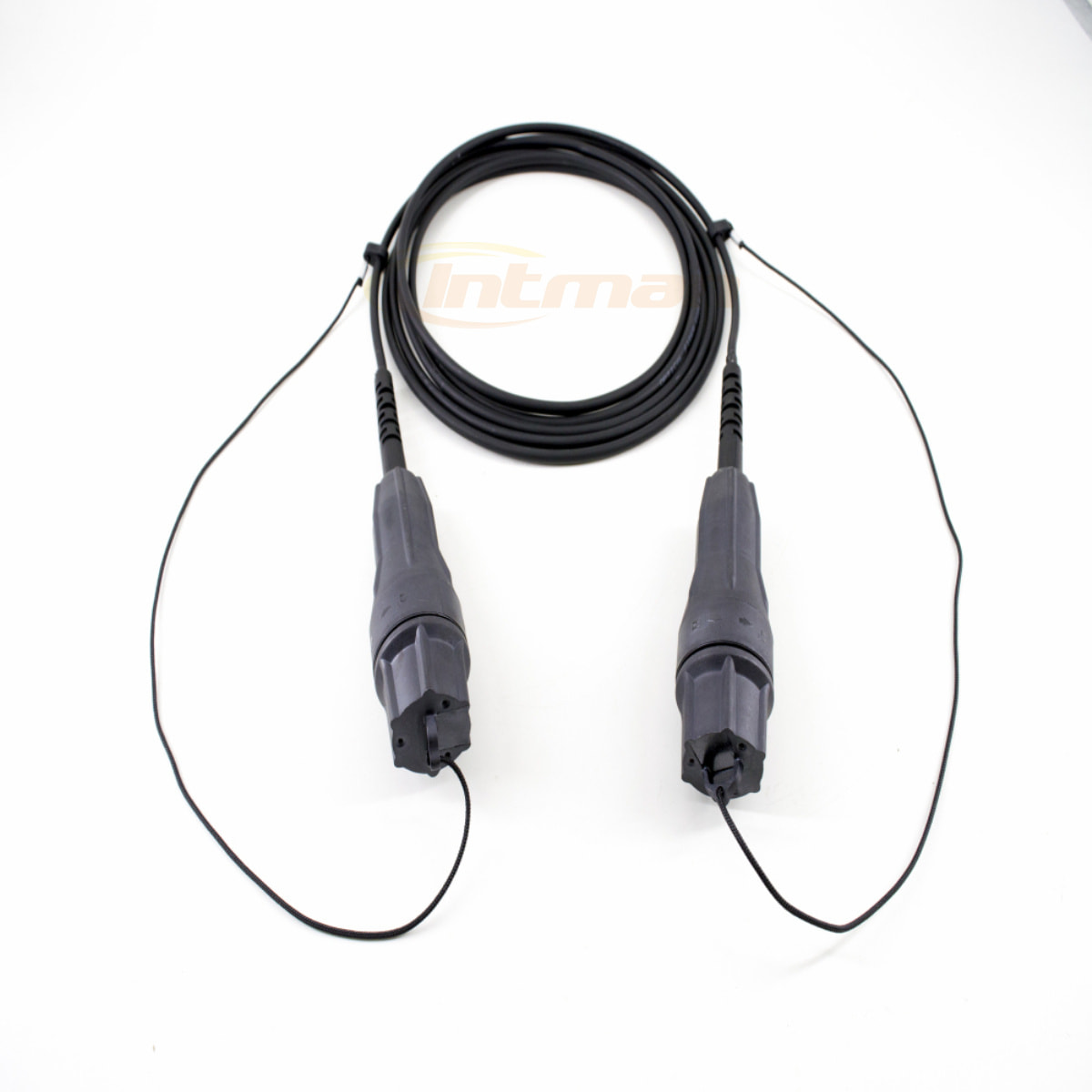

FullAXS DLC to FullAXS DLC FTTA Patch cord
To meet the needs of the next-generation WiMax and long-term evolution(LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements has released the FullAXS connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.
FullAXS FTTA Patch Cable Specification Table
| Connector | Fullaxs DLC | Cable Diameter | 7.0mm |
| Fiber Mode | OS2 9/125um | Wavelength | 1310/1550nm |
| Jacket Color | Black | Jacket Material | LSZH |
| Fiber Count | 2Core | Protection Class/Rating | IP67 |
| Insertion Loss | ≤0.3dB | Fiber Grade | G657A1 |
| Adapter Footprint | 36mm×36mm | Locking Style | Bayonet style |
| Operating Temperature | -20~70℃ | Storage Temperature | -20~70℃ |

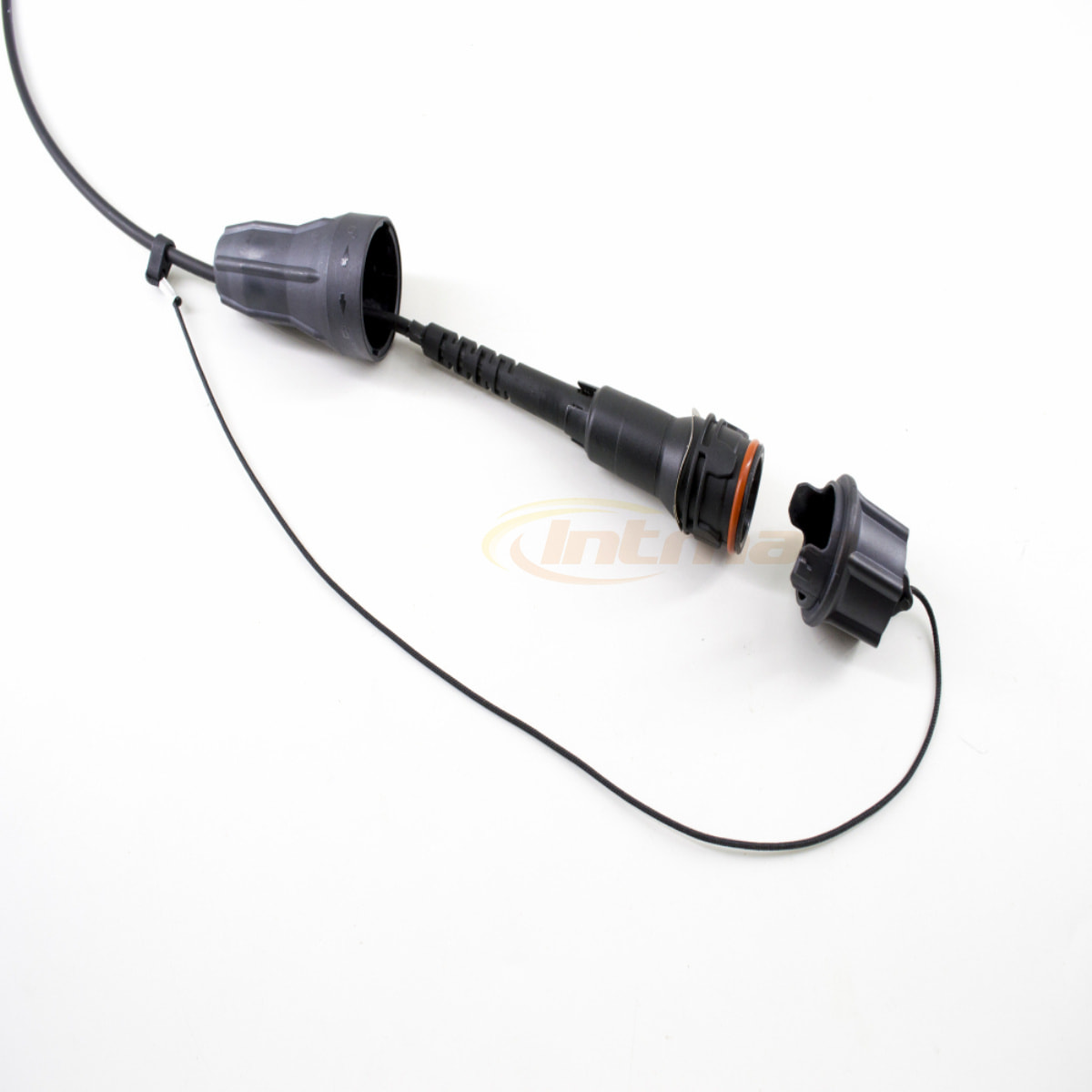

Fullaxs FTTA Patch cord cable structure
Features
- Open bulkhead for easy access to SFP
- Positive feedback to the operator when fully mated
- One-hand mating
- Duplex LC interface
- Bulkhead cutouts allow for the removal of the transceiver through the bulkhead
- Robust bayonet locking for easy, fast, and secure mating
- Multimode and Singlemode
- Waterproof, dustproof and corrosion resistant
- Expansion to RJ45,etc
- The plug has tolerance free design,fully free-floating in Z-axis
- No cable buckling at any time during or after installation
- Cost-effective glass-filled polymer or metal die casted bulkhead
- Field installable version available
Applications
- Multi-purpose outdoor
- For connection between the distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
- Remote interface applications such as FTTX or Towers
- Mobile routers and internet hardware
- Harsh environments where chemical, corrosive gases and liquids are common
- Used for the based station, RRU, RRH, LTE, BBU
Outdoor DLC Fullaxs patch cord Availability
- Far transmission communication&FTTA
- Intelligent substation
- Tunnel Video Surveillance system
Fullaxs DLC patch cord Specification
| ITEM | PARAMETER |
| Connector Type | Fullaxs DLC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| IP Level | IP67 |
| Operating wavelength | 1310nm,1550nm |
| Test wavelength | 1310nm,1550nm |
| Repeatability | ≤0.1 |
| Interchangeability | ≤0.2dB |
| Fiber Length | 1m,2m…..any length optional |
