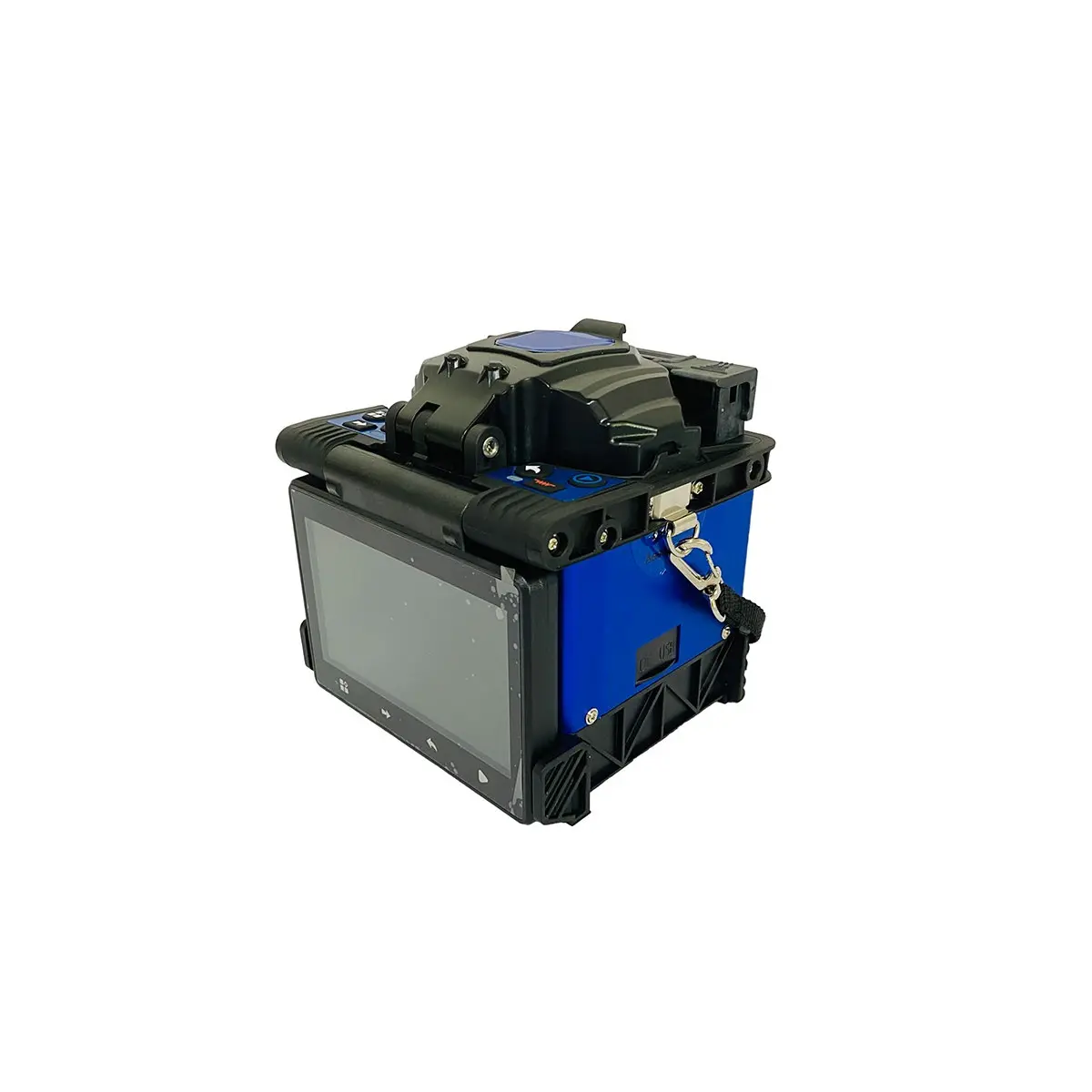

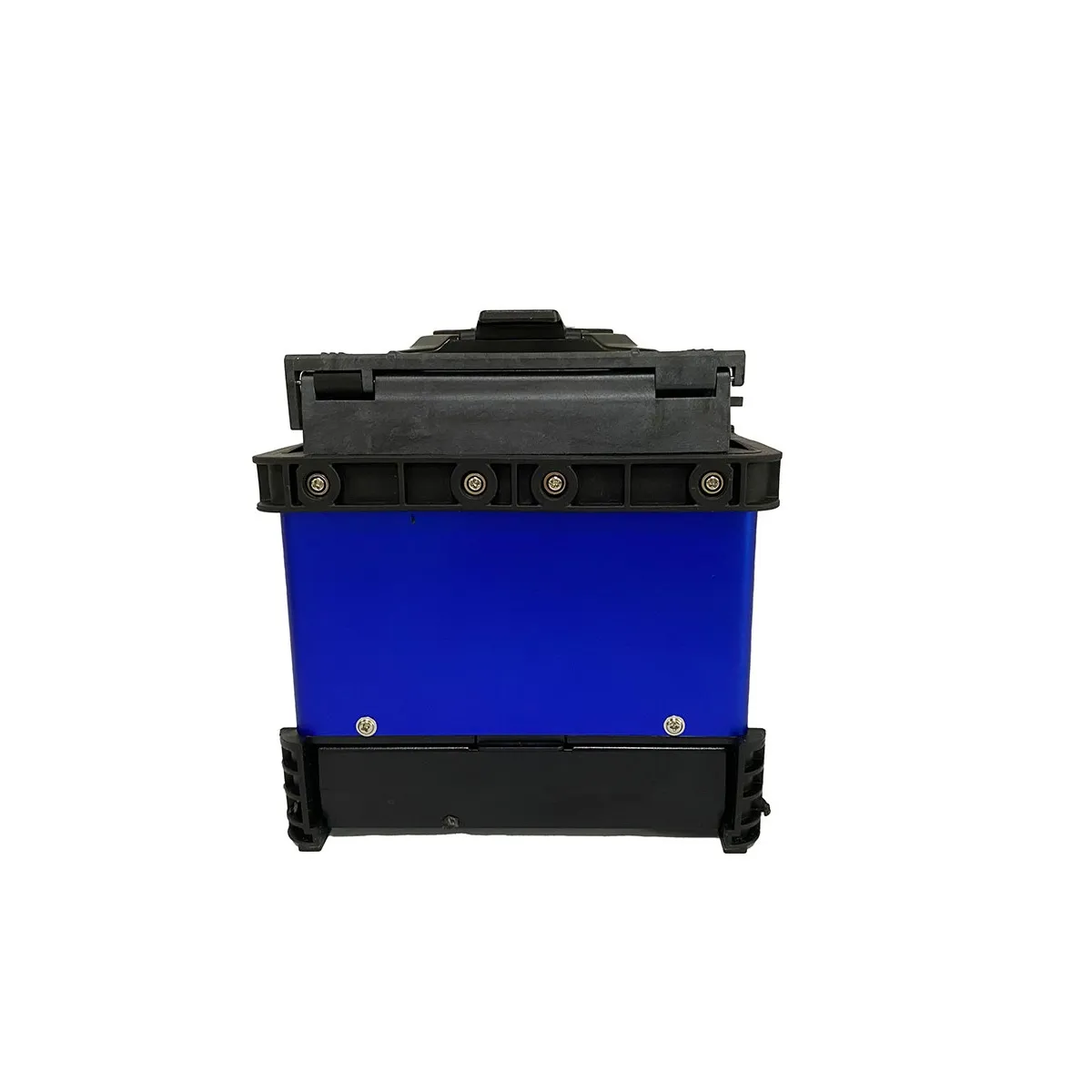

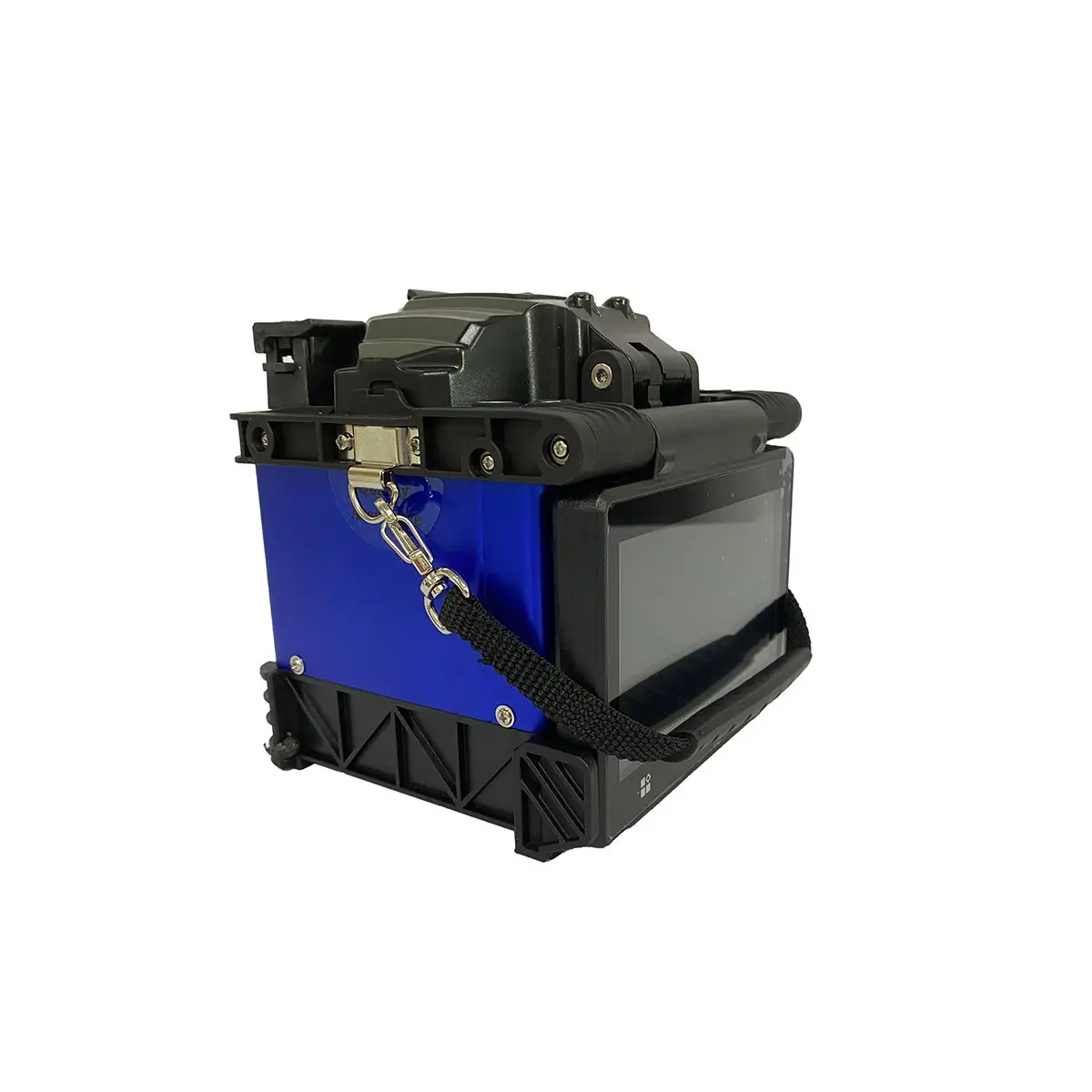

- Name: 4106N Fusion Splicer
- Splicing time: 9sec(Standard Mode）7S（Fast Mode）
- Heating Method: Automatic Heating
- Alignment : Core to core alignment, Coat Alignment
- Language:Support multi-language selection

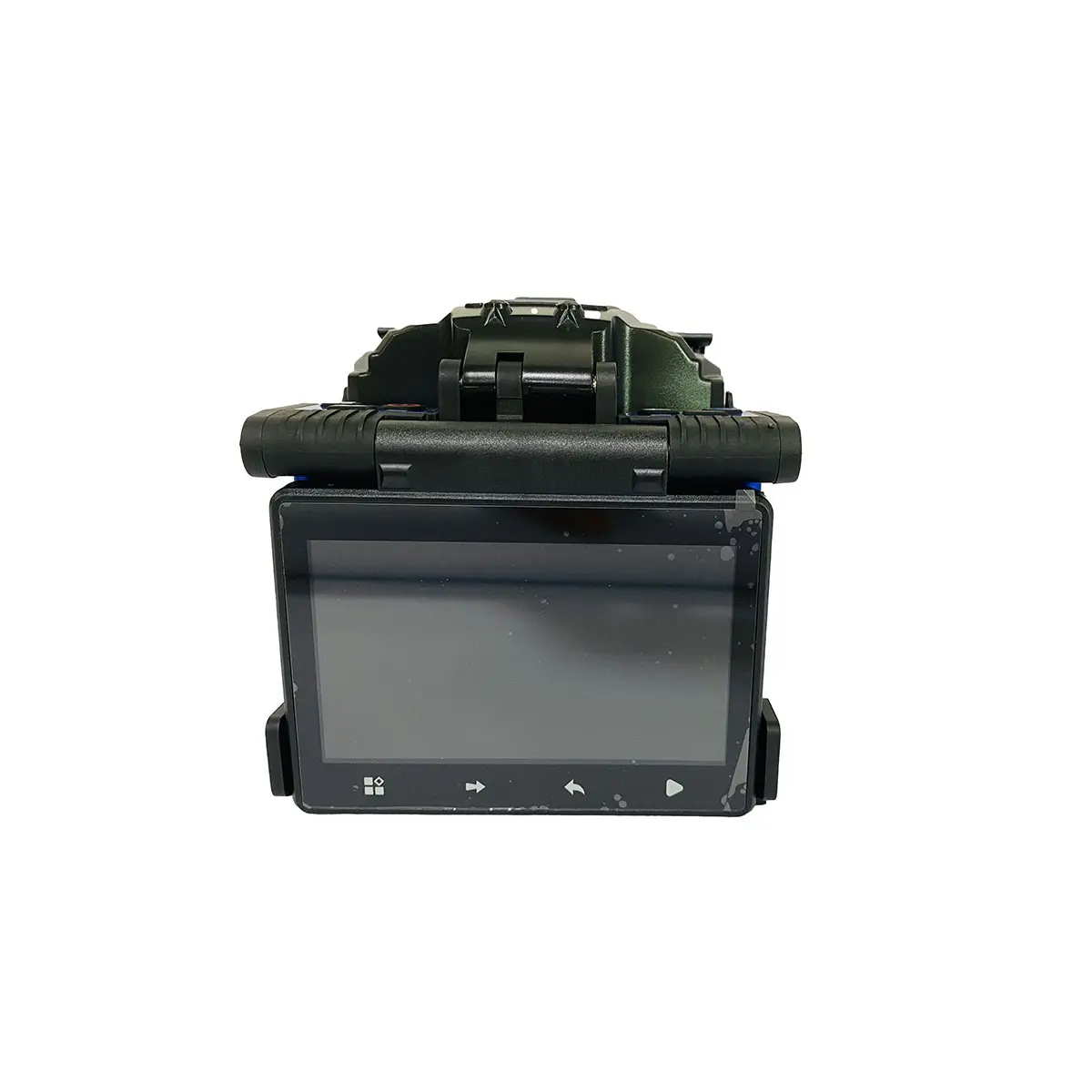

- Screen: 5-inch TFT true color HD LCD
- Battery: 11.1V Lithium battery
- Applicable fibers:SM, MM,NZ, DS,COS, BUI,EDF
- Power Supply: Input 220V±10%、1.4A，50/60Hz output 13.5V/5A
Fiber Optic Splicing Machine 4106N Suppliers
Description
1. Fusion Splicer Machine 4106N
Fiber Optic Splicing Machine 4106N is mainly used for optical fiber cable maintenance and relative operations. Thus it is also called a fiber cable splicer. It is a device that uses high precision propulsion structure to push two fibers to get closer to each other and uses an electric arc to melt two optical fibers together at their end faces, to form a single long fiber.
4106N fiber optic splicing machine are mainly applied by: Telecom carriers, ISP, network project contractors, and laboratories. And they’re applied in Fiber cable network maintenance, telecom projects, emergent repairing, optical experiments, manufacture and testing of optical devices, and academic research in colleges.
2.Fiber Optic Splicing Machine 4106N Functions:
- Menu/Confirm: Enter menu page/Confirm or save
- Power On/Off: Turn on /off the mach
3.Fusion Splicer Applicable Optical Fibers
- SM(G.652)，MM(G.651)，NZ(G.655)，DS(G.653)，COS(G.654),BUI(G.657)，EDF
- Applicable Core Type： Single Core
- Applicable Fiber Diameter： Cladding diameter 80-150μm， Coating diameter 100～1000μm
Fusion Splicer Splicing Mode
- Pre-store: 8 groups Customize: 792 groups
- Splicing Results Recording: 10000-group splicing records & splicing image recording
- Splicing Speed：9sec(Standard Mode）7S（Fast Mode）
- Alignment： Core-to-core alignment、Coat alignmentFusion Splicer Power Supply
- Power Supply：Input 220V±10%、1.4A，50/60Hz output 13.5V/5A
- Battery：11.1V Lithium battery， typically splicing/heating 260 times， charging time 3 h，500 times rechargeable, 5200mAh
Fusion Splicer Heating Shrinkable Tube
- Applicable Diameter：2mm,3mm,4mm,6mm
- Applicable Length：60mm，50mm，45mm，40mm，25mm，20mm
- Heating Time：2mm tube（10-15S adjustable），4mm tube（14-19S adjustable），6mm tube（17-23S adjustable）
- Heating Temperature：10-260℃（Customizable）
- Automatic Heating： Auto fiber recognition and heating after covered
4. Fusion splicer 4106N Specifications
| Fiber Alignment Mode | Accurate/Core/cladding alignment/Manual/Semiautomatic alignment |
|---|---|
| Heating Time | 2mm tube（10-15S adjustable），4mm tube（14-19S adjustable），6mm tube（17-23S adjustable） |
| Splicing time | 9sec(Standard Mode）7S（Fast Mode） |
| Screen Flip | The displayed content on the screen will be rotated 180° to adapt to display needs of different directions |
| Language | Support multi-language selection |
| Application Fibers | SM (G.652&G.657);MM (G.651);NZ DS (G.655) |
| Battery | 11.1V Lithium battery |

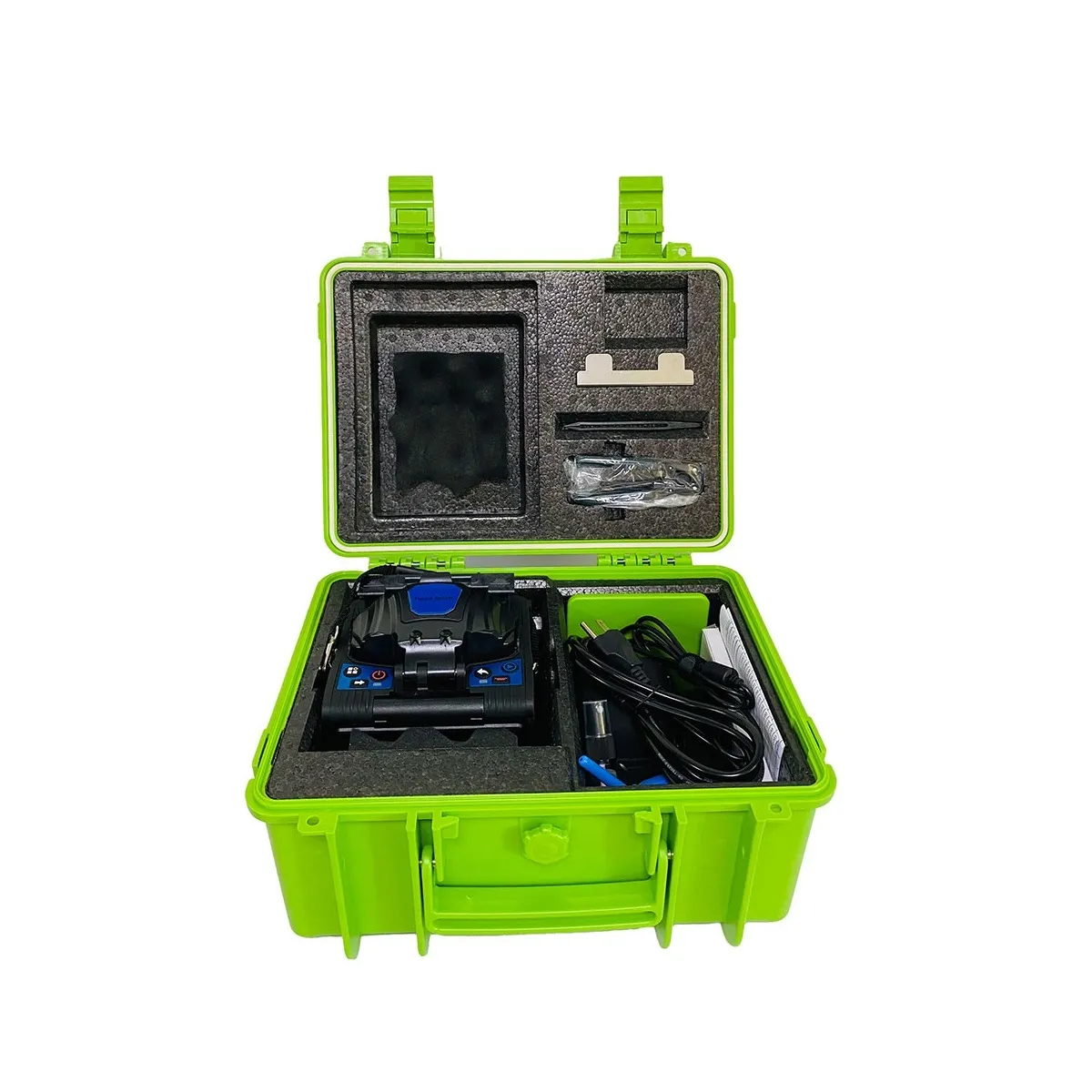

5.Fusion splicer Package
Fusion splicer fiber cleaver
