Gigabit Fiber to Ethernet LC Port SFP Fiber Media Converter Single mode

Description

SFP module fiber to the ethernet media converter

The non-managed fiber media converter is designed with a switch controller and buffer memory that connects two types of segments of operation smoothly. The converter can be used as a standalone type or as a card type to the 2U 19″ converter rack-mount chassis for centralized power management. These series converters are designed to meet the massive needs for Gigabit network deployment and are able to extend a copper-based Gigabit network via fiber cable to a maximum distance of up to 80KM.

Ethernet to fiber media converter Specification Table

Data Rate (Mbps)	10/100/1000M	Interface	1×RJ-45 connector+1×SFP slot
Optical wavelength(nm)	850nm/1310nm/1550nm	Fiber Type (micron)	Single Mode 9/125
Connector Type	One UTP, one SFP slot	Max Distance	80km
Power	DC 48V to DC 5V	Led Light	PWR,Link/ACT,SPD

Key  Features

• Auto negotiation function allows UTP ports to auto-select 10/100/1000M and Full duplex or half duplex.
• Built-in efficient exchange kernel, broadcasting filtration function, flow control, CRC error check.
• Supports Spanning Tree to conduct fault-tolerant network.
• Supports 10/100Mbps or 10/100/1000mMbps full/half duplex self-adaptive transmission and auto-negotiations, easy upgrades.
• Max. transmission distance can be 120km
• External power or built-in power.
• Standalone type can be installed into 14slot 2U Rack, card type into 16 slot Rack.

Application Optical Cable

• Multimode optical cable: 50/125um,62.5/125um,100/140um
• Singlemode optical cable: 8.3/125um,8.7/125um,9/125um,10/125um
• UTP Cable: Cat5/5e,Cat6

Standards Protocol

IEEE802.3 Ethernet Standard

IEEE802.3u fast Ethernet Standard

IEEE802.3d Spanning Tree Standard

Panel Structure Chart

10/100Mbps Media Converter

 10/100/1000Mbps Media Converter

10/100Mbps Mini Type Media Converter

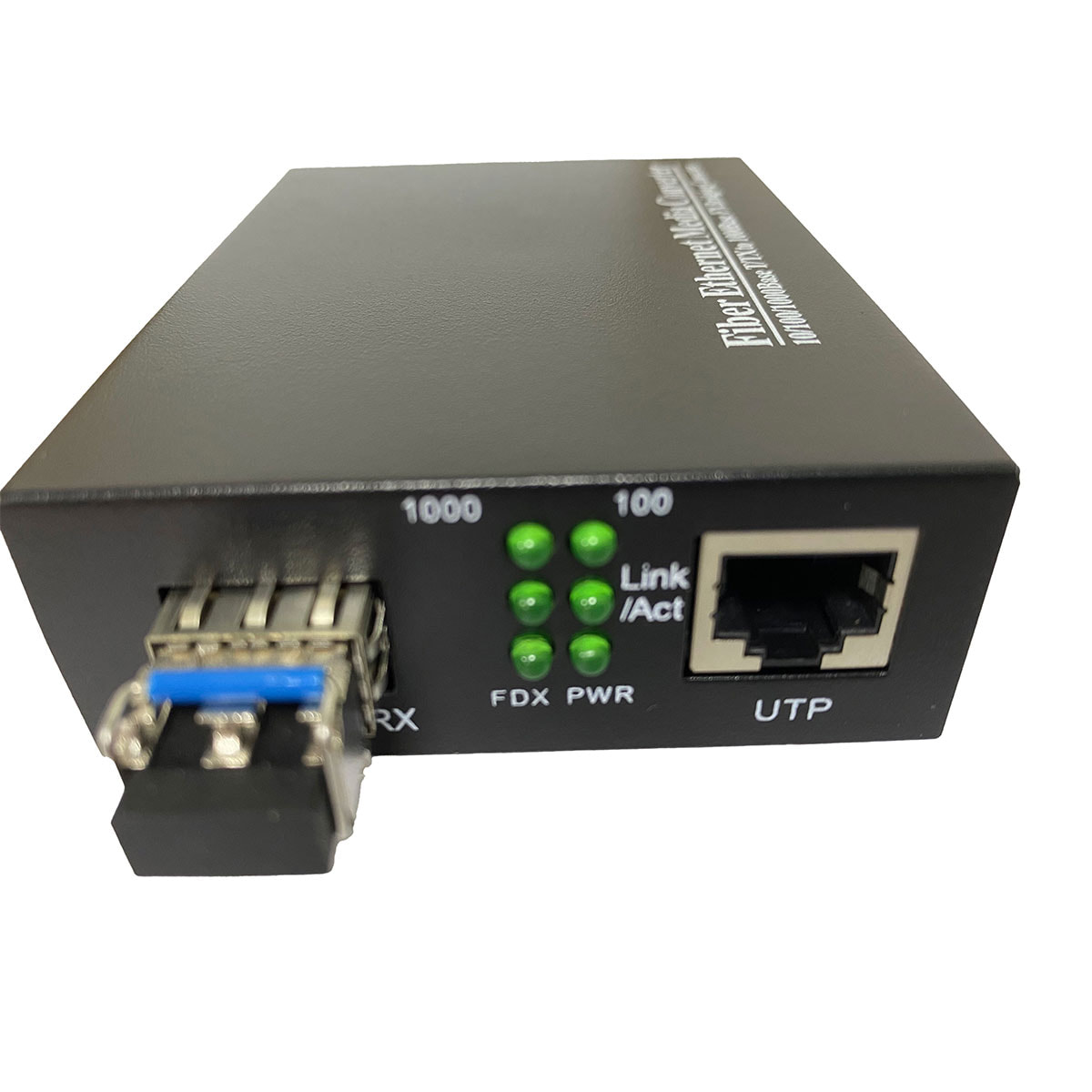

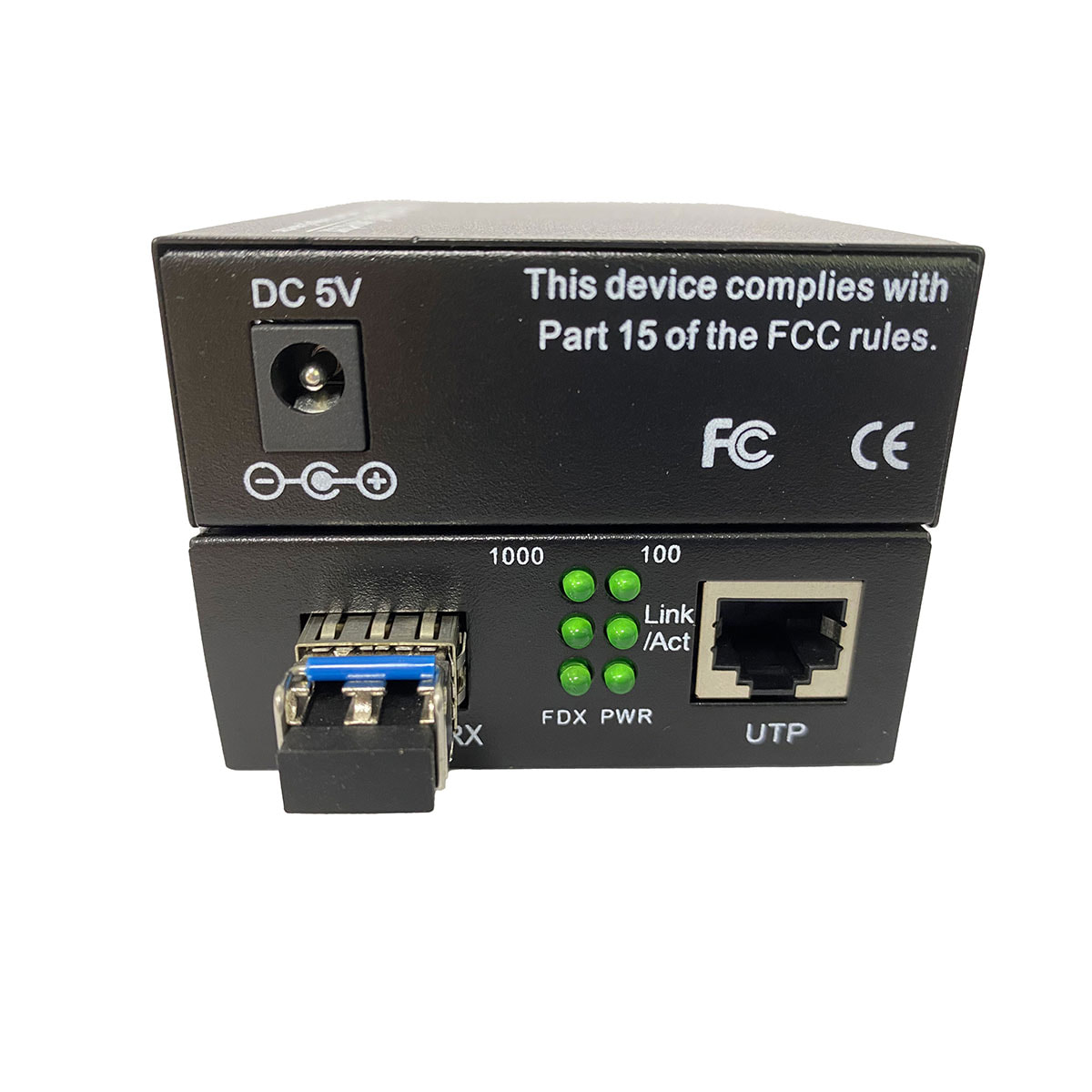

 Front Panel of SFP Media Converter

Packing List

Please check the following items from package before installing the converter

1*Fiber Media Converter

1*Power Adapter

1*User Manual
