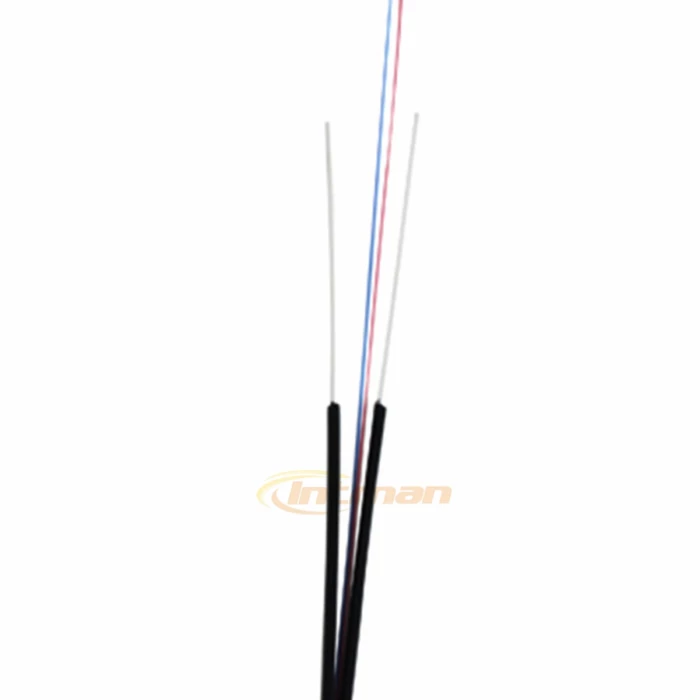

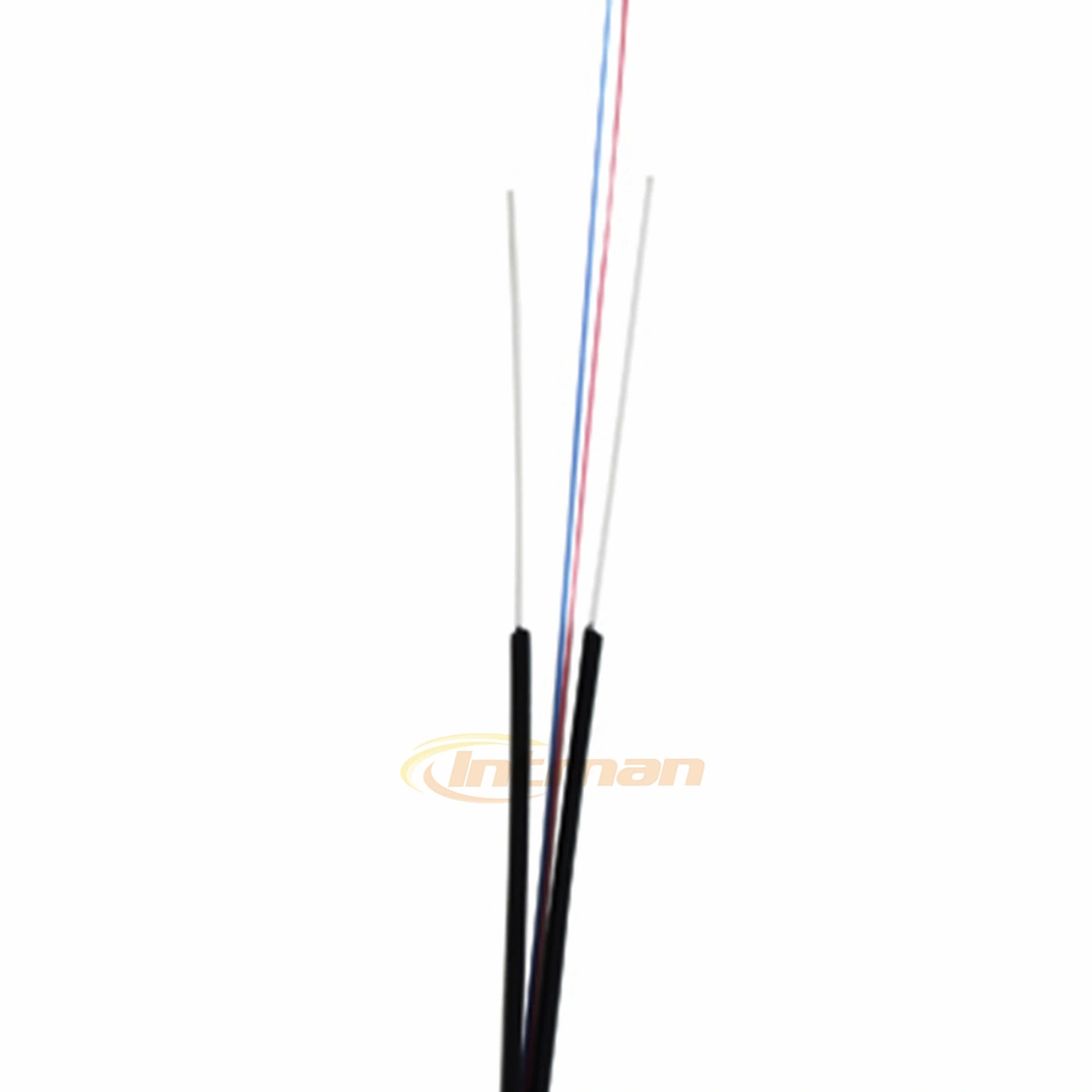

GJXFH 2 core FTTH Indoor Fiber Optic Drop Cable

FTTH 2 core Fiber Drop Cable Price Per Meter

Name: FTTH Indoor Cable
Model: GJXFH-2B
Cable Diameter: 2.0×3.0（±0.1）mm
Fiber Type : G657A1,G657A2,G652D ,G655
Strength Member: FRP or Steel Wire
Outer Sheath: LSZH or PVC
Sheath Color: Black or White

Description

Description

1. FTTH 2 core Fiber Drop Cable Price Per Meter Highlight & Performance

GJXFH 2 core FTTH Indoor Drop Fiber Optic Cable is positioned in the center. Two parallel Fiber Reinforced (FRP) are placed on the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Performance Indicators

GJYXCH FTTH Fiber Optical Cable is applicable as drop cable access to FTTH, FTTO, FTTB networks, etc.
Laying Way: Overhead, Pipeline.
Operating Temperature: -20～+ 50℃.

FTTH Fiber Optic Cable’s Features

GJYXCH Bow Type Drop Cable adopts the slight bending resistant fiber B6, to ensure data transmission.
Small size, lightweight, simple structure, easy to strip for its special groove design and no need of any tool, easy to install.
Two parallel phosphated steel wires as strength members have an excellent crush and tensile resistance.
The self-supporting steel wire strength component withstands most part of the tension.
Low smoke, non-halogen flame-retardant outer sheath material.

2.FTTH Indoor 2core Drop Fiber Optic Cable’s Specification Table

Cable Type	FTTH Indoor Drop Cable	Fiber Count	1-12 Fiber
Construction	Self-supporting	Fiber Type	G657A1,G657A2,G652D
Outer Jacket Material	LSZH (Black/White)	Strength Member Material	FRP or Steel Wire
Cable Diameter (mm)	2.0×3.0（±0.1）	Cable Weight	10.5kg/km
Tensile Strength short/long term (N)	600/300N	Sheath Thickness(mm)	≥0.4mm
Crush Load short/long term (N/100mm)	1000/500N	Operating Temperature Range (℃）	–40 to +60℃

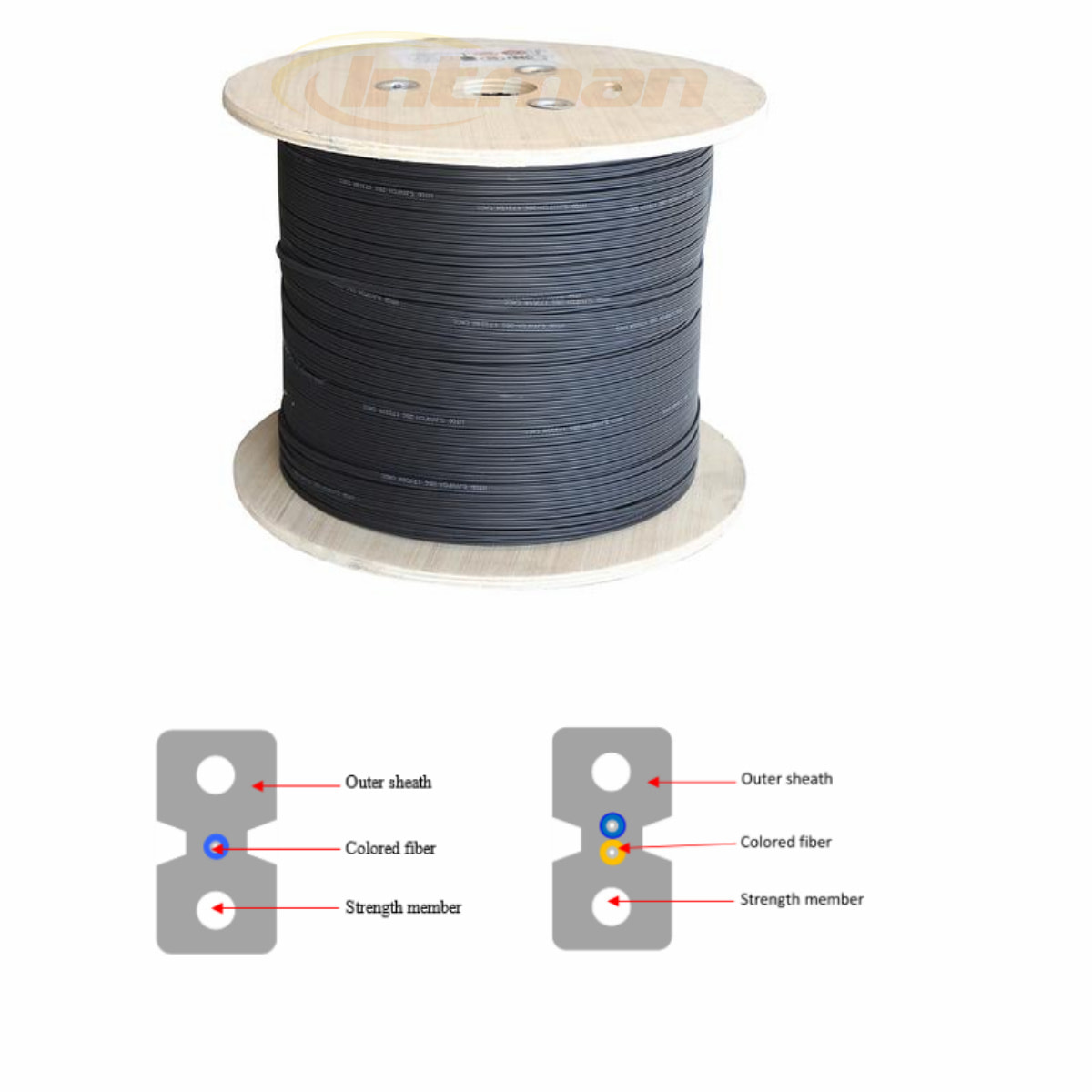

3.FTTH 2core Indoor Drop Fiber Optic Cable’s Structure

GJXFH-2B FTTH 2fiber Indoor Drop Cable with Steel Wire FRP

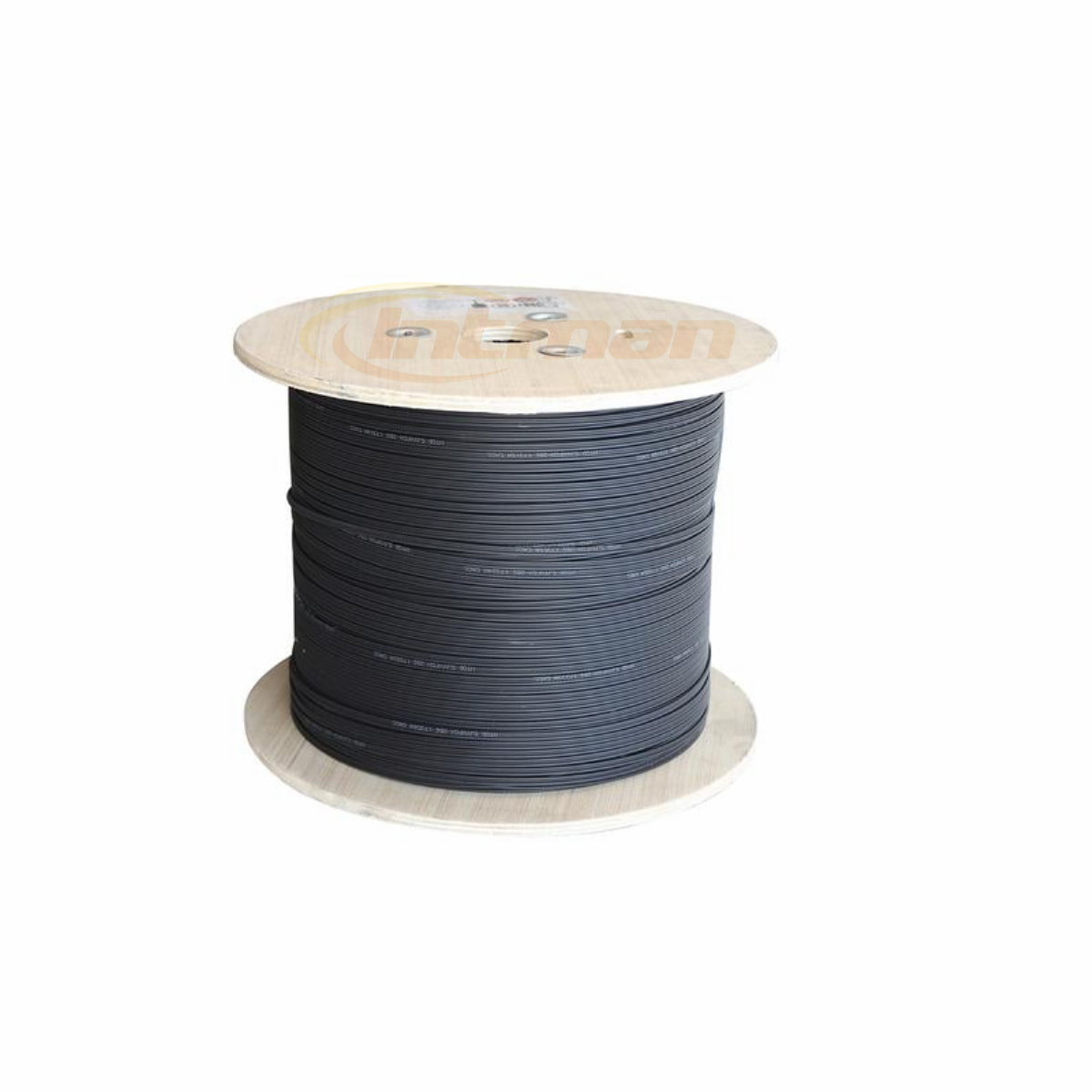

FTTH Drop Cable Factory Supply FTTH Cable ,FTTH Patch Cord

4. Order Information

Model	Fiber Count	Cable Diameter	Cable Weight kg/km	Fiber Type	Strength Member	Outer Sheath Color
GJXFH-1B	1	2.0×3.0(±0.1)mm	10	G657A,G652D	FRP or Steel Wire	Black, White
GJXFH-2B	2	2.0×3.0(±0.1)mm	10.5	G657A,G652D	FRP or Steel Wire	Black , White
GJXFH-4B	4	2.0×3.5(±0.1)mm	11.5	G657A,G652D	FRP or Steel Wire	Black, White
GJXFH-6B	6	2.0×4.0(±0.1)mm	13	G657A,G652D	FRP or Steel Wire	Black , White
GJYXFCH-1B	1	2.0×5.0(±0.1)mm	20	G657A,G652D	FRP or Steel Wire	Black , White
GJYXFCH-2B	2	2.0×5.0(±0.1)mm	20	G657A,G652D	FRP or Steel Wire	Black , White
GJYXFCH-4B	4	2.0×5.6(±0.1)mm	21	G657A,G652D	FRP or Steel Wire	Black , White
GJYXFCH-6B	6	2.0×5.6(±0.1)mm	22	G657A,G652D	FRP or Steel Wire	Black , White
GJYXFCH-12B	12	2.2×6.6(±0.1)mm	25	G657A,G652D	FRP or Steel Wire	Black , White
