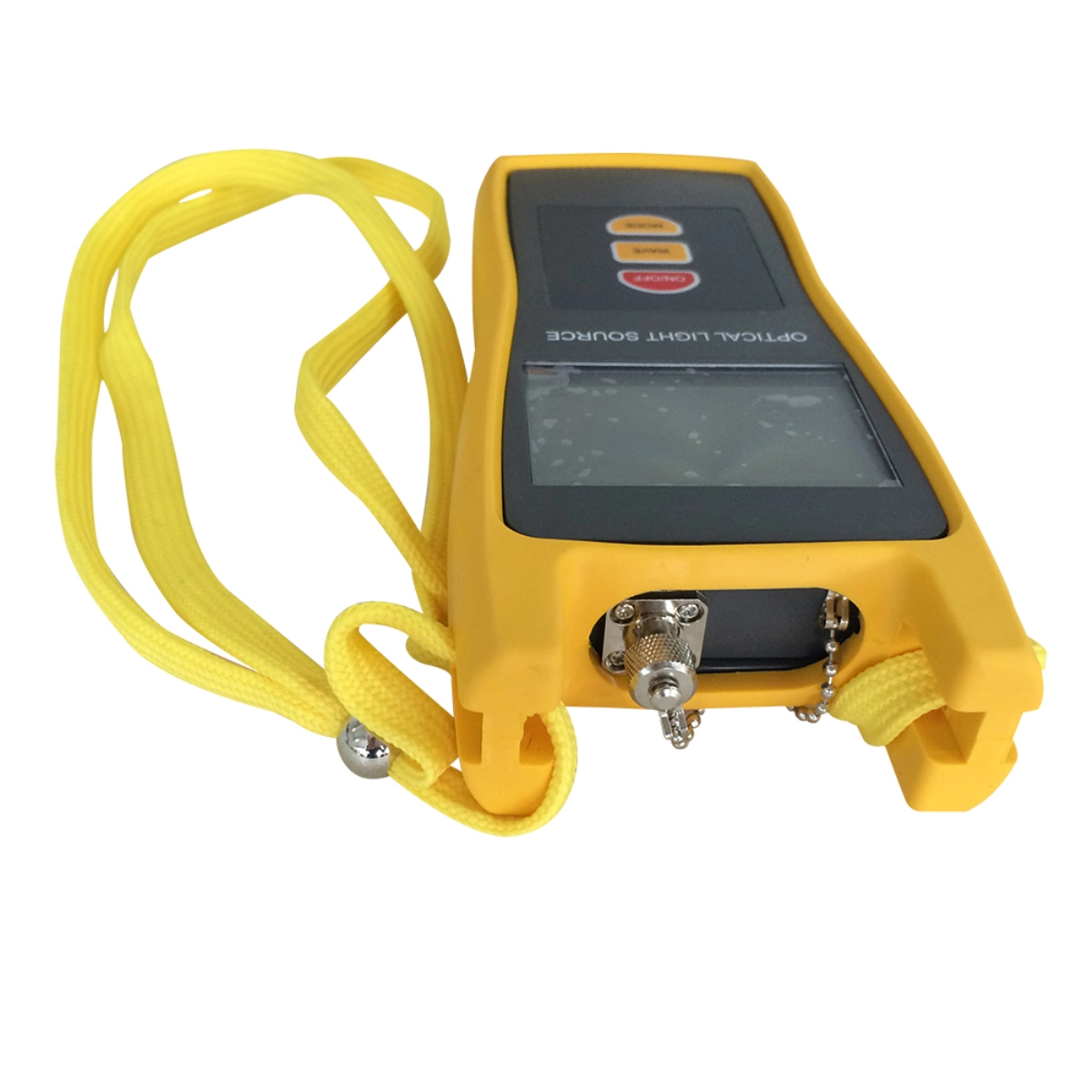

- Name: Light Source
- Model : INT-3109
- Wavelength:650~1550nm (customize)
- Emitter Type: FP-LD, LED, or others please specify
- Output power :-7dBm for LD,-20dBm for LED
- Spectral Width : ≤10nm
- Interface: FC universal adaptor
- Power Supply: Alkaline Battery
- Battery Operating Time: 45hours
- Dimension: 175×82×33mm
- Operating Temperature (℃）: -10~+60 ℃
- Weight : 295g

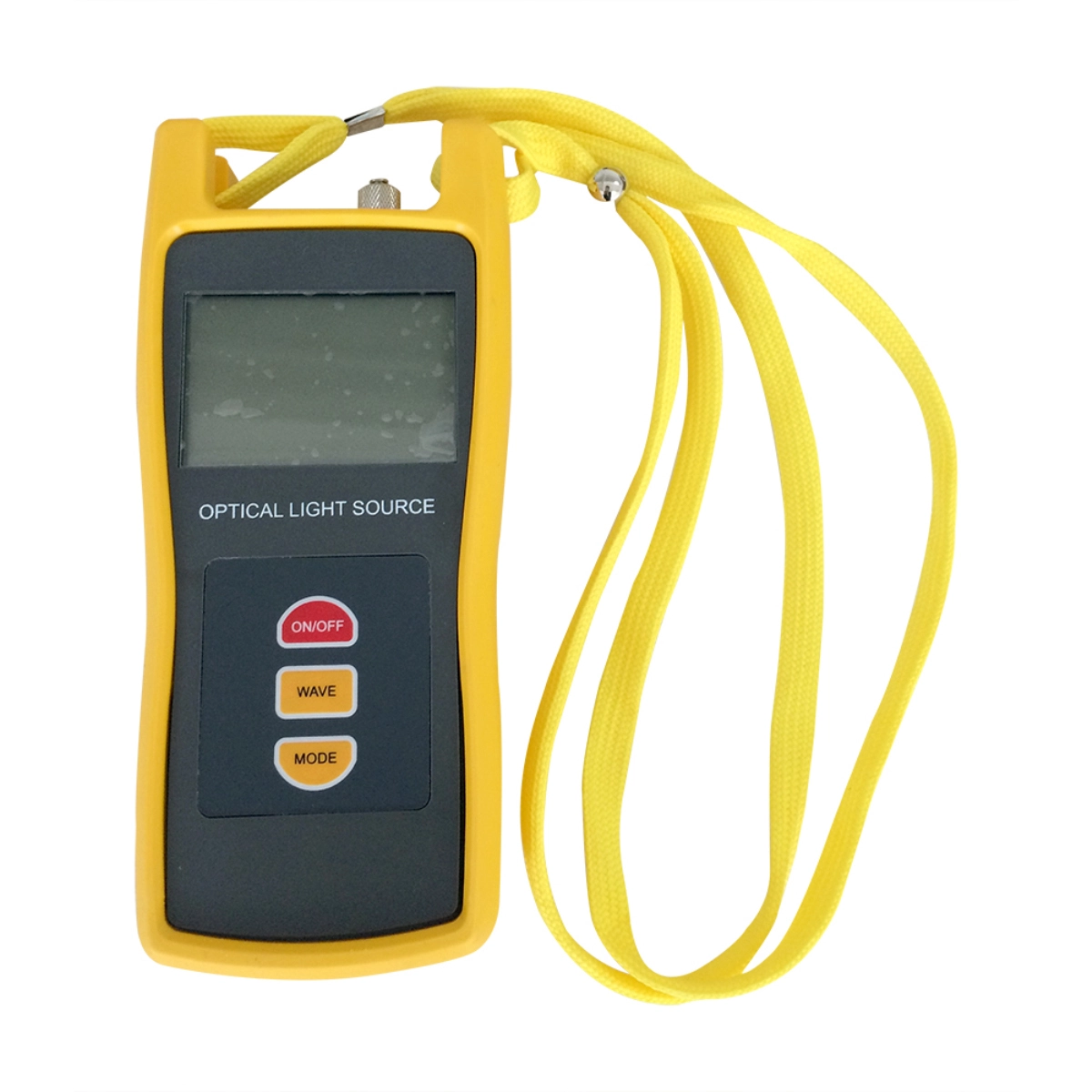

Handheld Light Source 3109 Optical Light Source Fiber Optic Power Meter 850-1300nm Wavelengths
Description
1. Fiber Optic Light Source
INT-3109 Optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber,as well as other wavelengths according to customer needs. Together with the optical power meter,it is a perfect solution for the fiber optic network characterization.

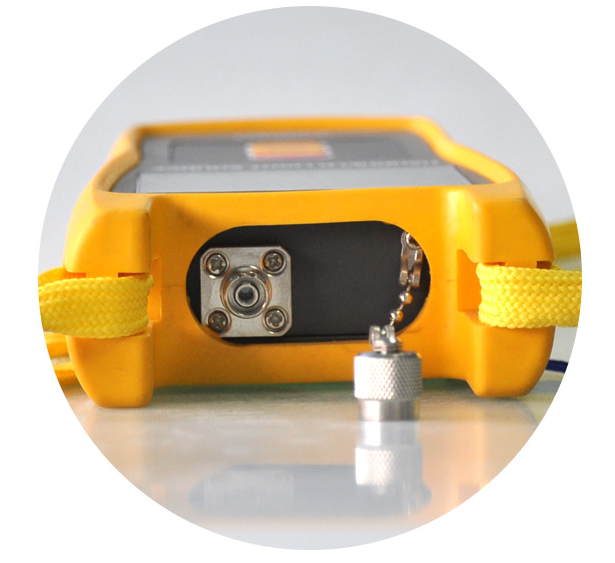

3109 light source
Main Features:
- Provides 1 to 4 output wavelengths which can be optional according to customers needs
- CW,2Hz modulation output at 650nm and CW,270Hz,1KHz,2KHz modulation output at other wavelengths.
- High stability of the output power
- Stable output wavelength
- Backlight LCD display supports night operation
- Compact size and decent appearance
- Large LCD,easy operation
- Alternative 10minutes Auto-off function conserving battery life

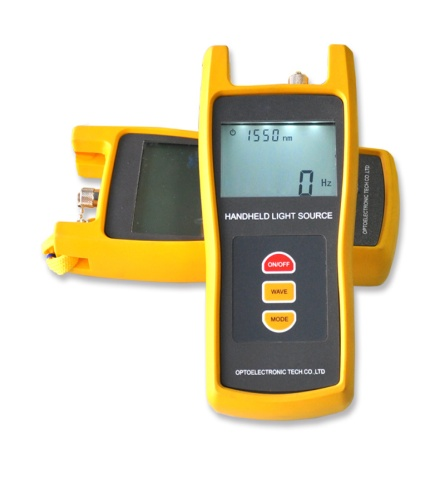

INT3109 Light Source
Applications:
- Engineering maintenance of optical fiber network
- Engineering maintenance of digital data network
- Teaching and research of optical communication
- Other optical fiber works
2. Handheld Light Source Specification Table
| Type | Light Source | |||
| Wavelengths(nm) | 650 | 1310/1550 | 850/1300 | 850/1300/1310/1550 |
| Emitter Type | FP-LD, LED or others please specify | |||
| Typical Output Power (dBm) | 0 | -7dBm for LD,-20dBm for LED | ||
| Spectral Width (nm) | ≤10nm | |||
| Output Stability | ±0.05dB/15mins;±0.1dB/8hours; | |||
| Modulation Frequencies | CW,2Hz | CW,270Hz,1KHz,2KHz | ||
| Optical Connector | FC universal adaptor | FC/PC | ||
| Power Supply | Alkaline Battery ( 3AA 1.5V batteries) | |||
| Battery Operating Time(hour) | 45 | |||
| Operating Temperature (℃） | -10~+60 ℃ | |||
| Storage Temperature (℃） | -25~+70 ℃ | |||
| Dimension (mm) | 175×82×33mm | |||
| Weight(g) | 295g | |||
INT-3109 Handheld light source is designed for optimal use with INT-3208 optical power meter for measuring optical loss on both singlemode and multimode fiber cable.

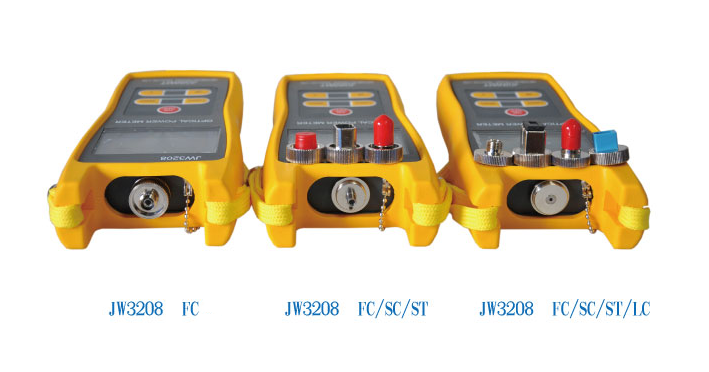

3208 Power meter FC/SC/ST/LC Port
3. Package Detail

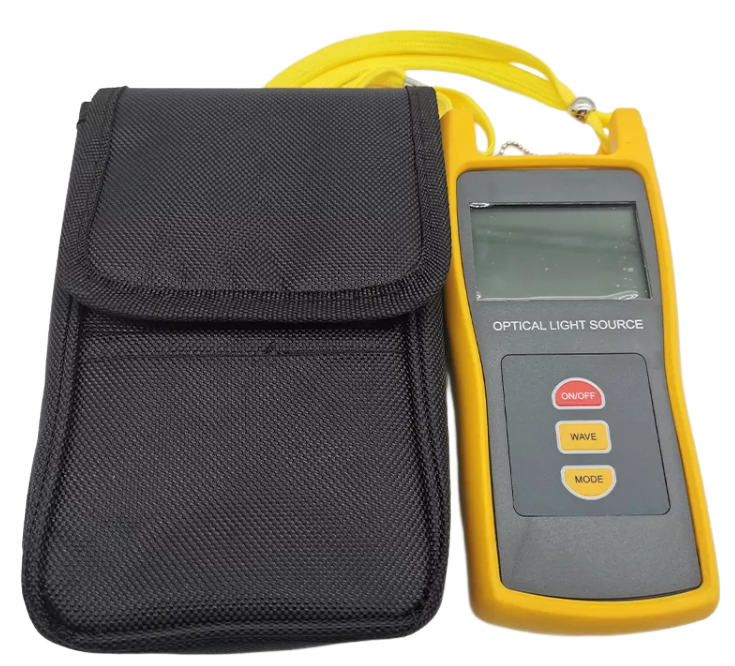

fiber optic light source tester package bag
| No. | Name | Quantity |
| 1 | Light Source | 1pc |
| 2 | User manual | 1pc |
| 3 | Protective Rubber Boot | 1pc |
| 4 | Adapter interface(FC/SC) | 3 |
| 5 | 1.5V batteries | 3pcs |
| 6 | Soft Carrying Case | 1pc |
