- Name: Power Meter
- Model : JW3220
- Measurement Range:+10~-80dBm/+26~-65dBm
- Detector Type :InGaAs
- Wavelength Test Range: 800~1700nm
- Interface:FC,SC,ST,LC,2.5mm,1.25mm
- Display Size: 3.5 inch TFT color screen
- VFL : 650nm 10mW
- Dimension: 188×88×44mm
Handheld Optical Power Meter with 2.5mm FC/SC/ST Connector
Description

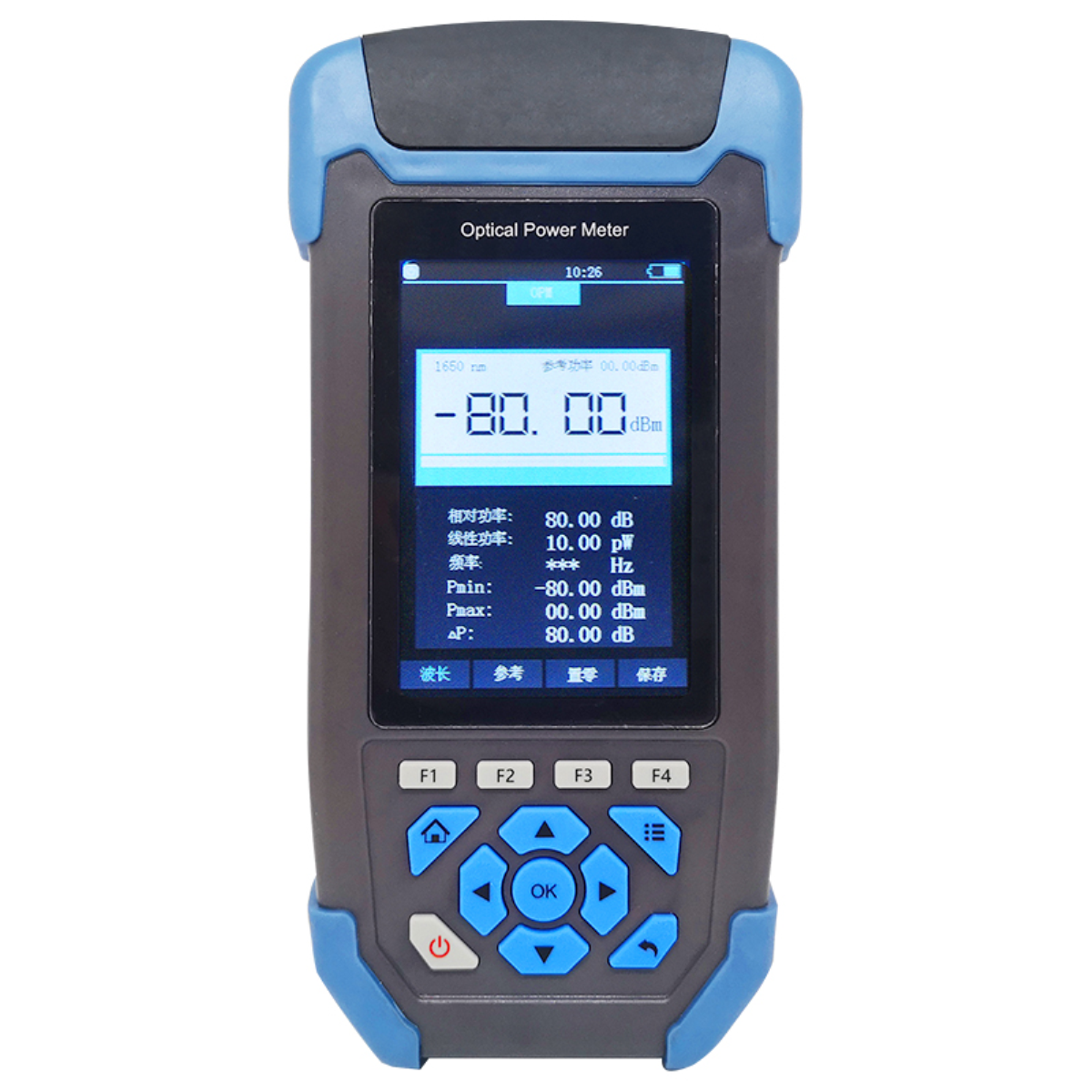

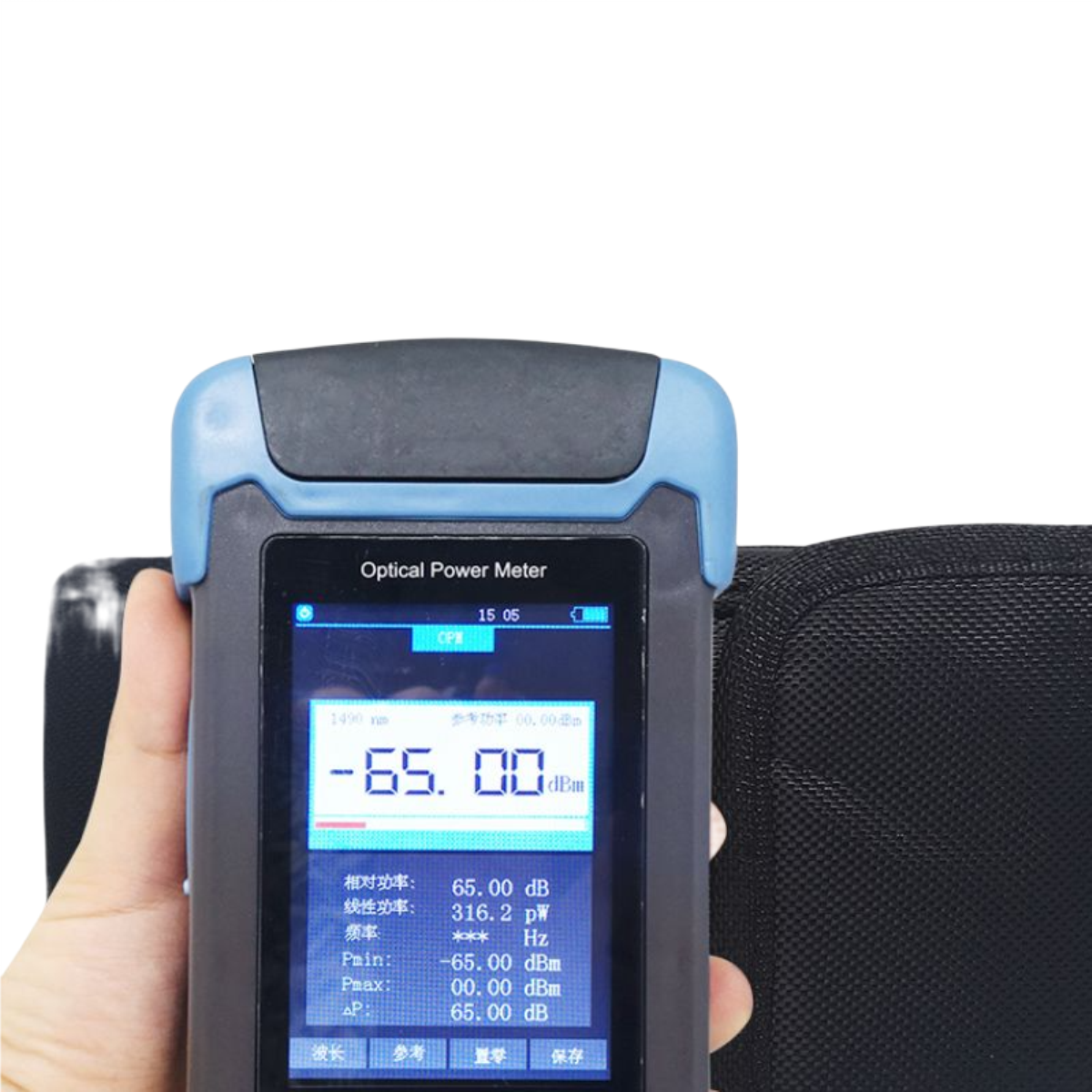

1. High Precision Power Meter JW3220

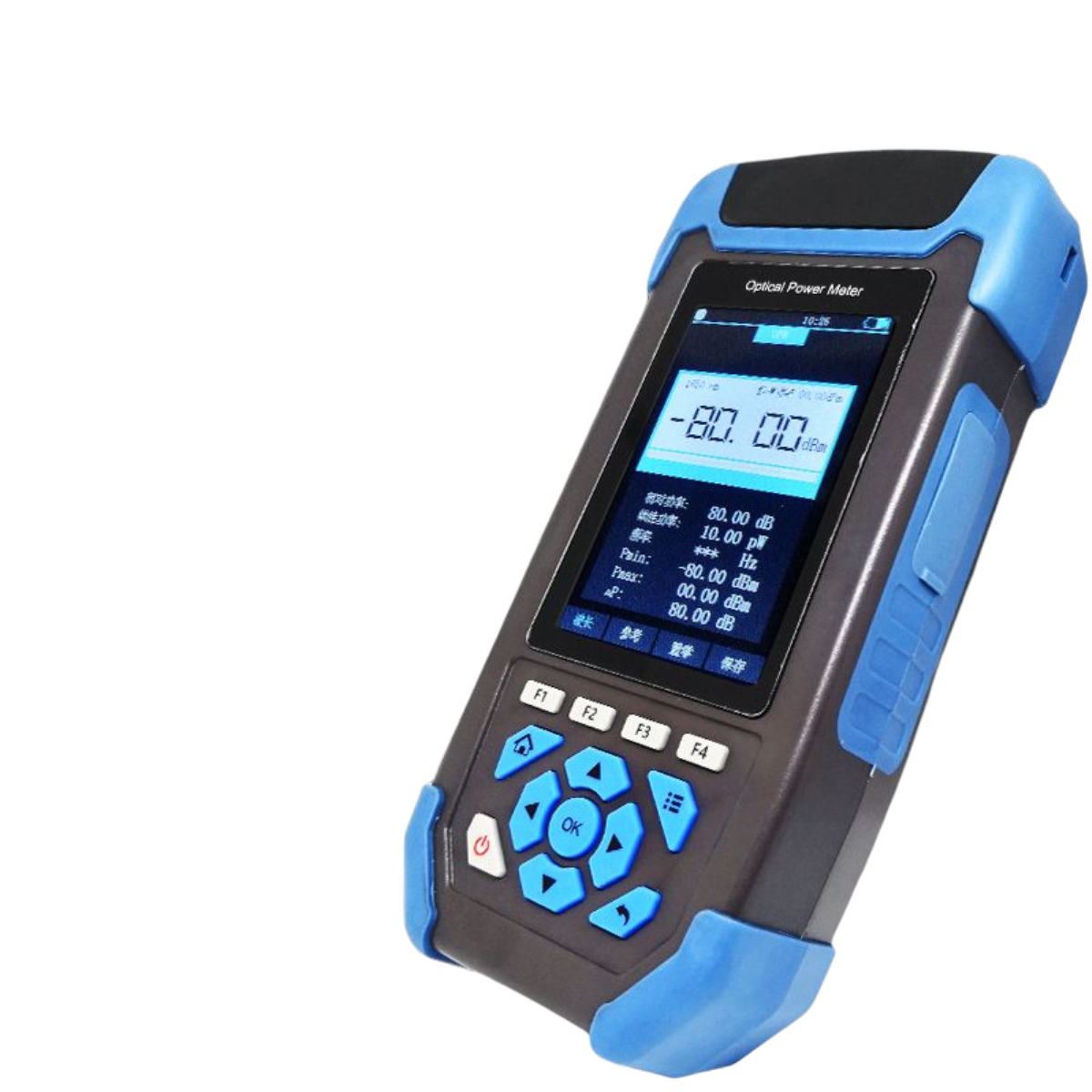

JW3220 is a new version 3.5-inch color screen version of high-precision OPM that was developed by Joinwit. In addition to providing superior dynamic range and linearity technical index, it is also equipped with a rich menu function design, it covers the functions of threshold alarm configuration, real-time monitoring of maximum and minimum power change, frequency signal detection, and VFL visual fault locator.

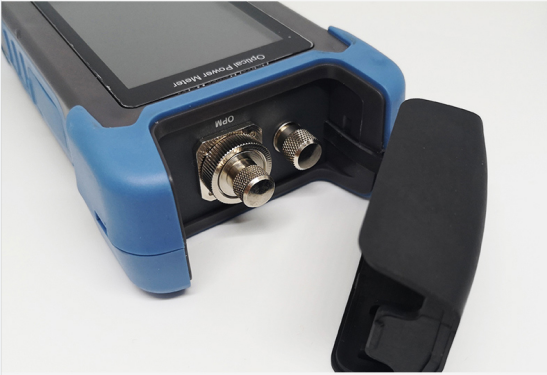

OPM ST FC LC PORT
Main Features:
- 3.5-inch color display
- 90dB dynamic range
- Maximum support provided for 45 calibration wavelengths
- Threshold setting with pass/fail alarm function
- Automatic wavelength identification function
- Real-time testing of PMAX/PMIN
- Detection function of frequency light
- A real-time data reading function is provided to facilitate the application of the embedded system
- Support visual fault locator function
- Storing 300pieces of data

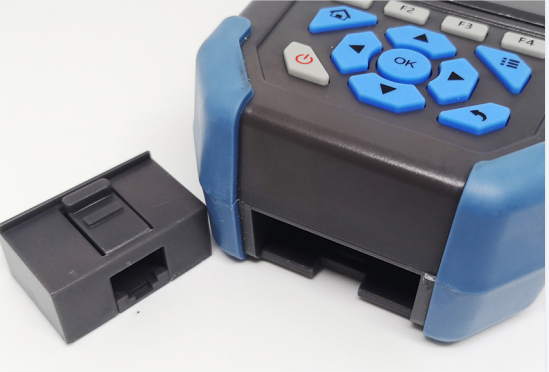

JW3220 PON power meter
Application
- Construction
- Inspection
- Maintenance of CATV
- Other optical line projects
2.JW3220 High Precision Power meter Specification Table
| Model | JW3220 | Detector Type | InGaAs |
| Detector Area | 2.0mm | Wavelength Test Range | 800~1700nm |
| Measuring Range | +10~-80dBm/+26~-65dBm | Total calibrate wavelengths | Max support 45 (customize) |
| Min Display resolution | 0.0001dB | Uncertainty | ≤0.13dB |
| Interface | FC,SC,ST,LC,2.5mm,1.25mm | Display Size | 3.5 inch TFT color screen |
| VFL | 650nm 10mW | Power Supply | 3.7v 4000mAh lithium battery/Micro USB |
| Default Calibration Wavelength 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm | |||
3. Package Detail

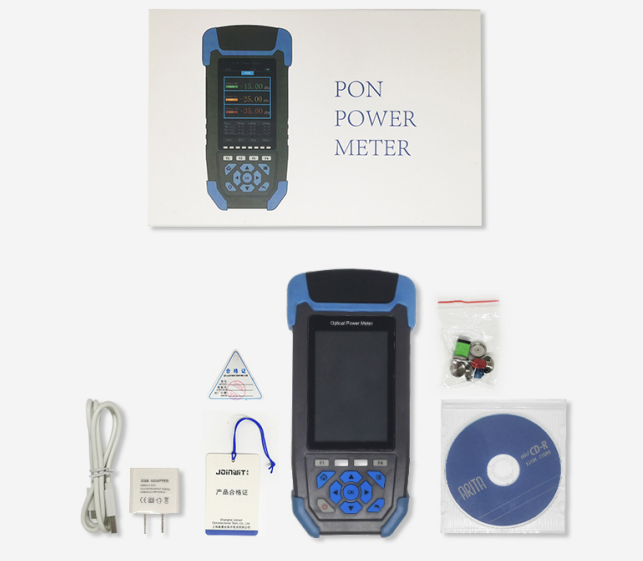

JW3220 Package list
