Indoor Multimode OM1 Duplex 62.5 micron Fiber Optic Cable

Description

1. Indoor Multimode OM1 Duplex 62.5 micron Fiber Optic Cable

Multimode fiber is usually 50/125um and 62.5/125um in construction. This means that the core to cladding diameter ratio is 50microns to 125microns  and 62.5 microns to 125 microns. Multimode 62.5-micron OM1 cable is the first generation of multimode fiber optic cabling. It is an affordable way to deploy Gigabit Ethernet at distances of up to 275m. You can double the distance to 550m as well with mode-conditioning patch cord, and it even supports 10-Gigabit Ethernet over short runs.

Indoor MM OM1 62.5/125um indoor fiber optic cable Applications

• Rated for indoor/outdoor applications
• Trunk cable between floors
• Data centers

Indoor duplex MM OM1 Orange Fiber Optic Cable’s Features

1. Indoor plenum fiber optic cable
2. Indoor riser multimode cable
3. Direct burial cable
4. 2-fiber patch cord cables
5. 2-144 strand multimode cables

2. Indoor duplex multimode OM1 Cable’s Specification Table

Cable Type	Indoor Multimode Cable	Fiber Count	2Fiber
Construction	900um Tight Buffers	Fiber Type	62.5/125um
Outer Jacket Material	LSZH/PVC	Jacket Colors	Multimode:Orange ;
Cable Rating	Indoor	Operating Temperature Range (℃）	–40 to +70℃

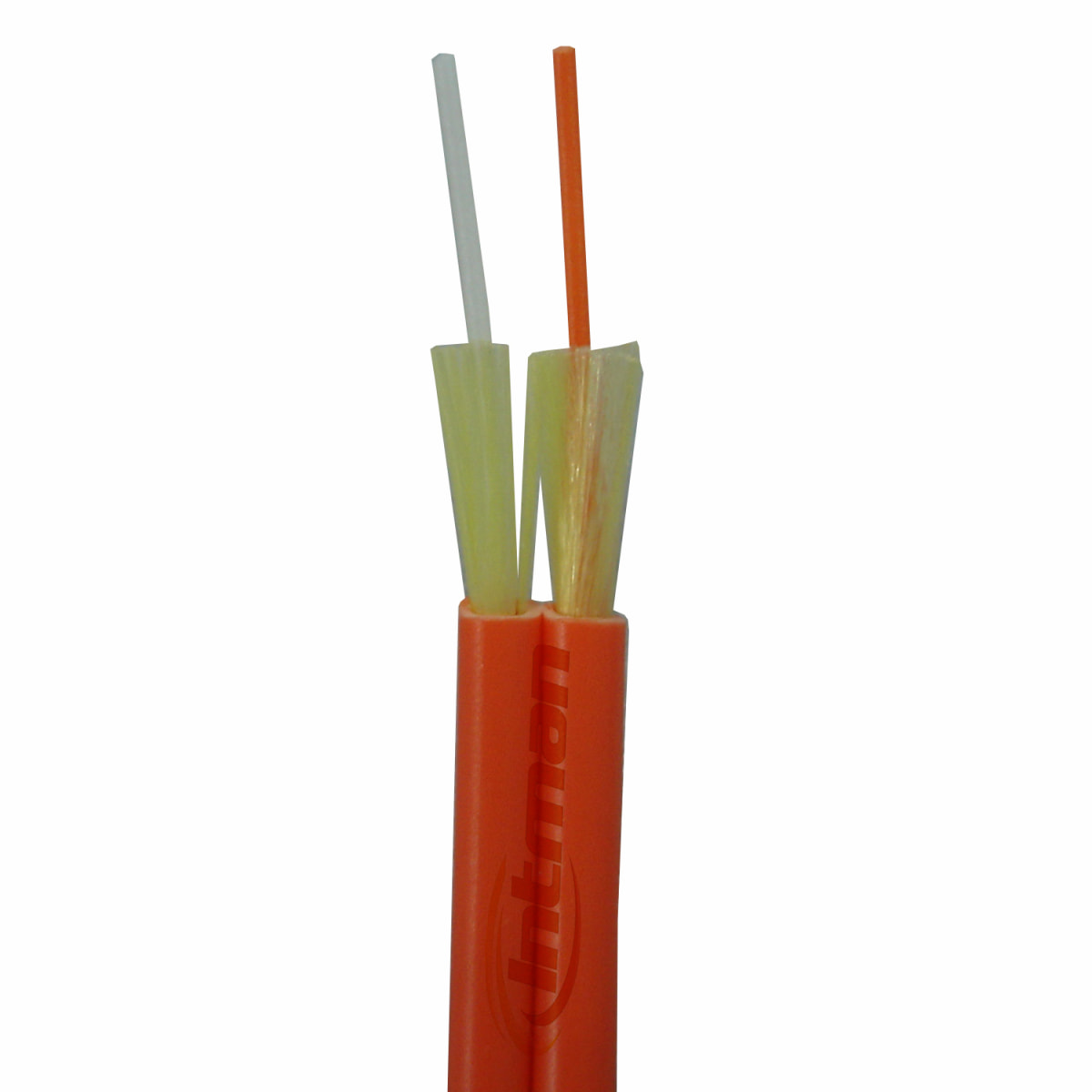

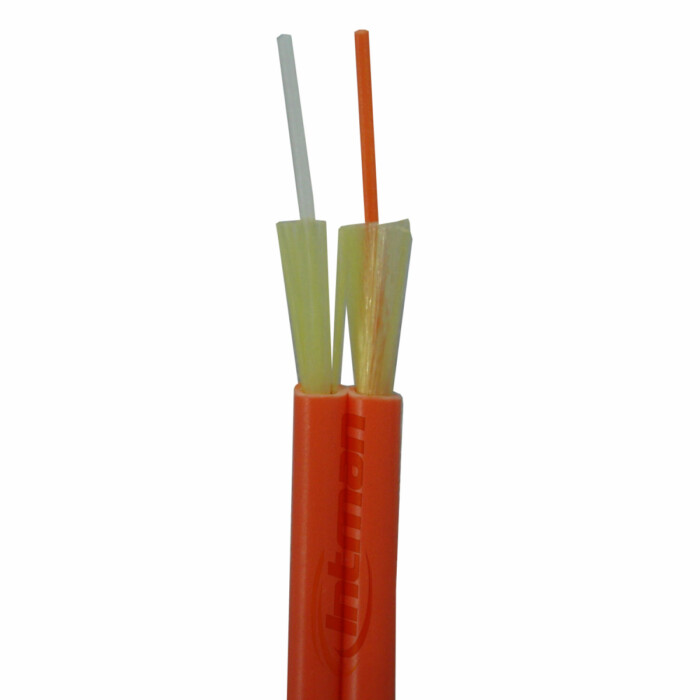

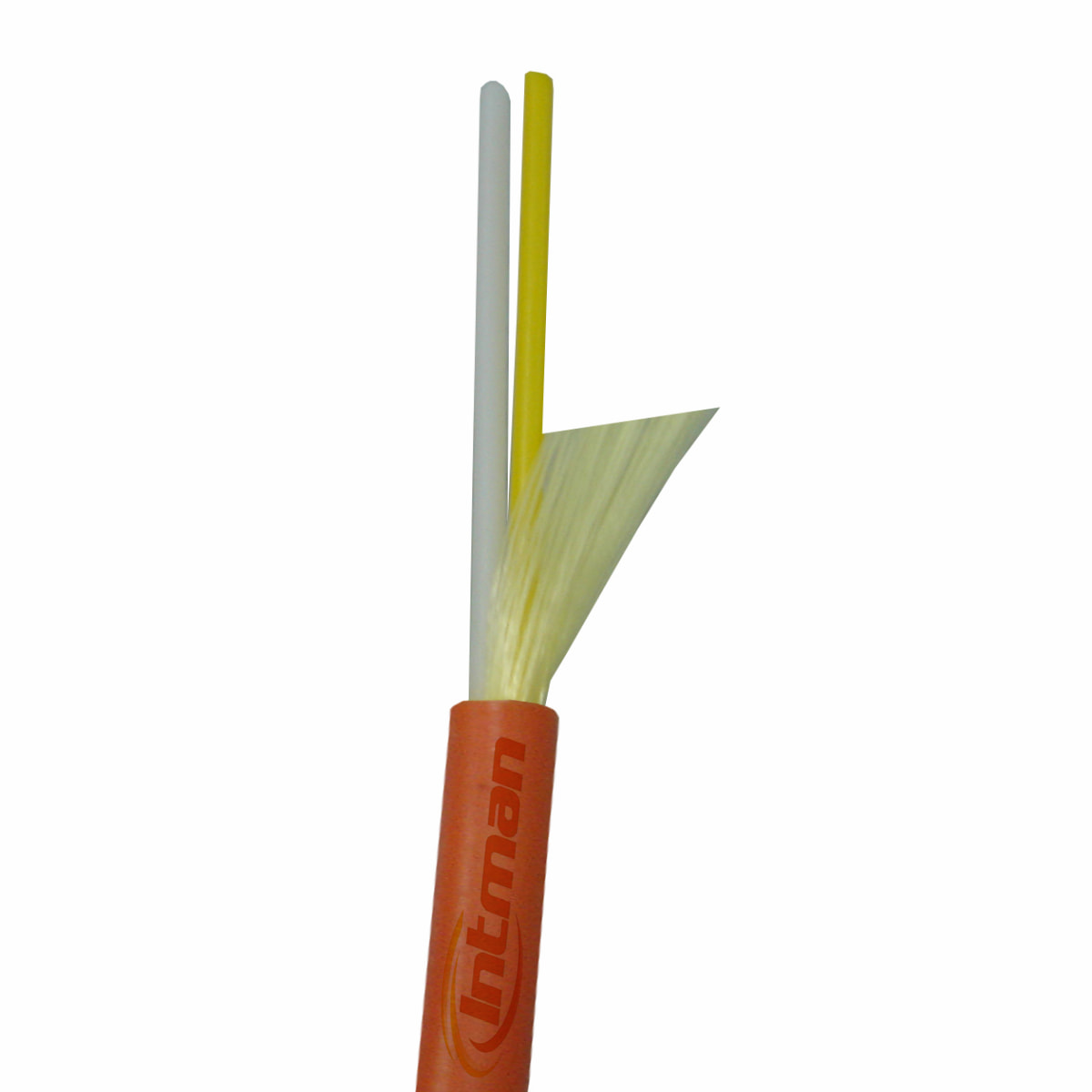

3. Multimode OM1 62.5/125um  indoor Fiber Optic Cable’s Structure
