IP67 Waterproof ODVA-SC Socket Plug Fiber Optic Connector

Description

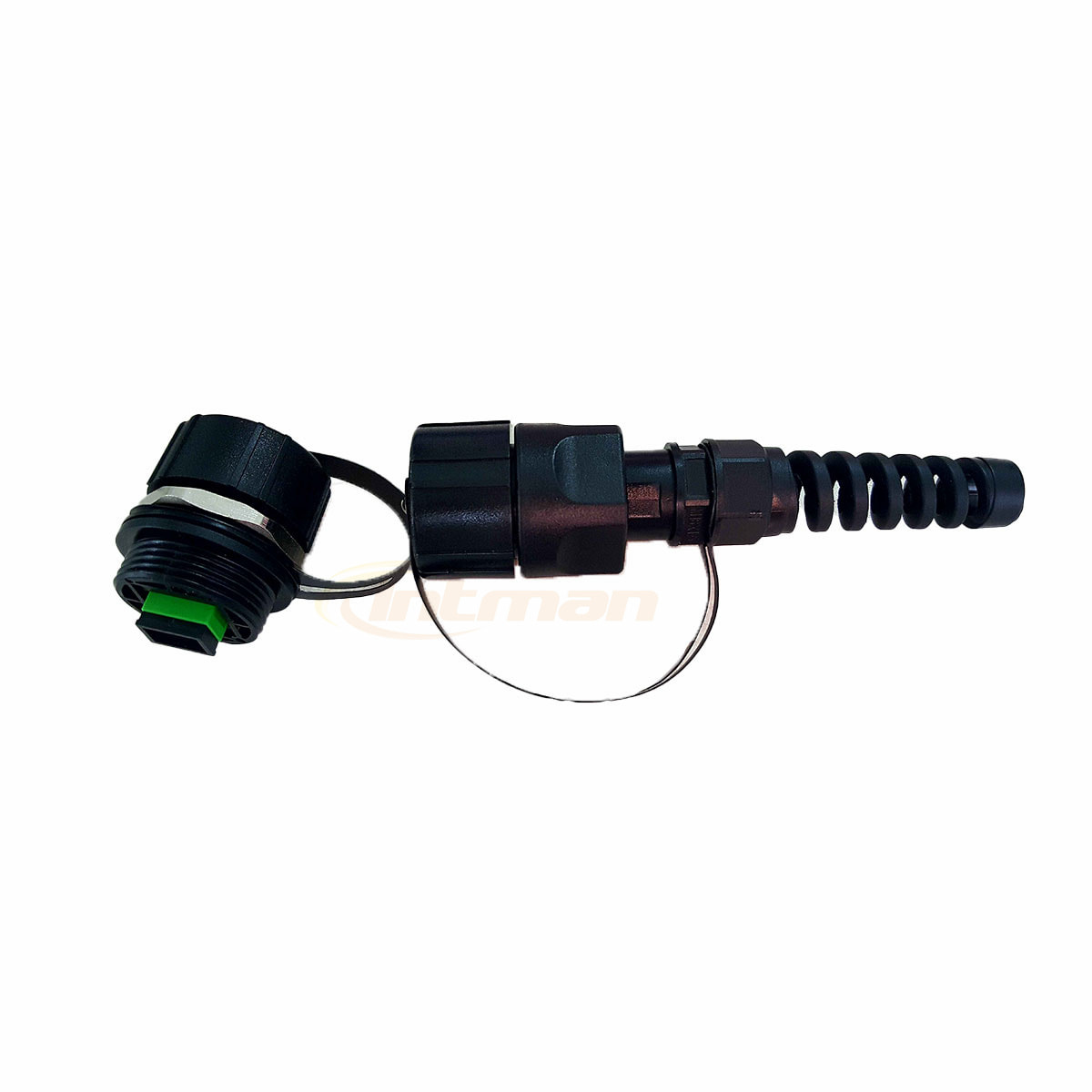

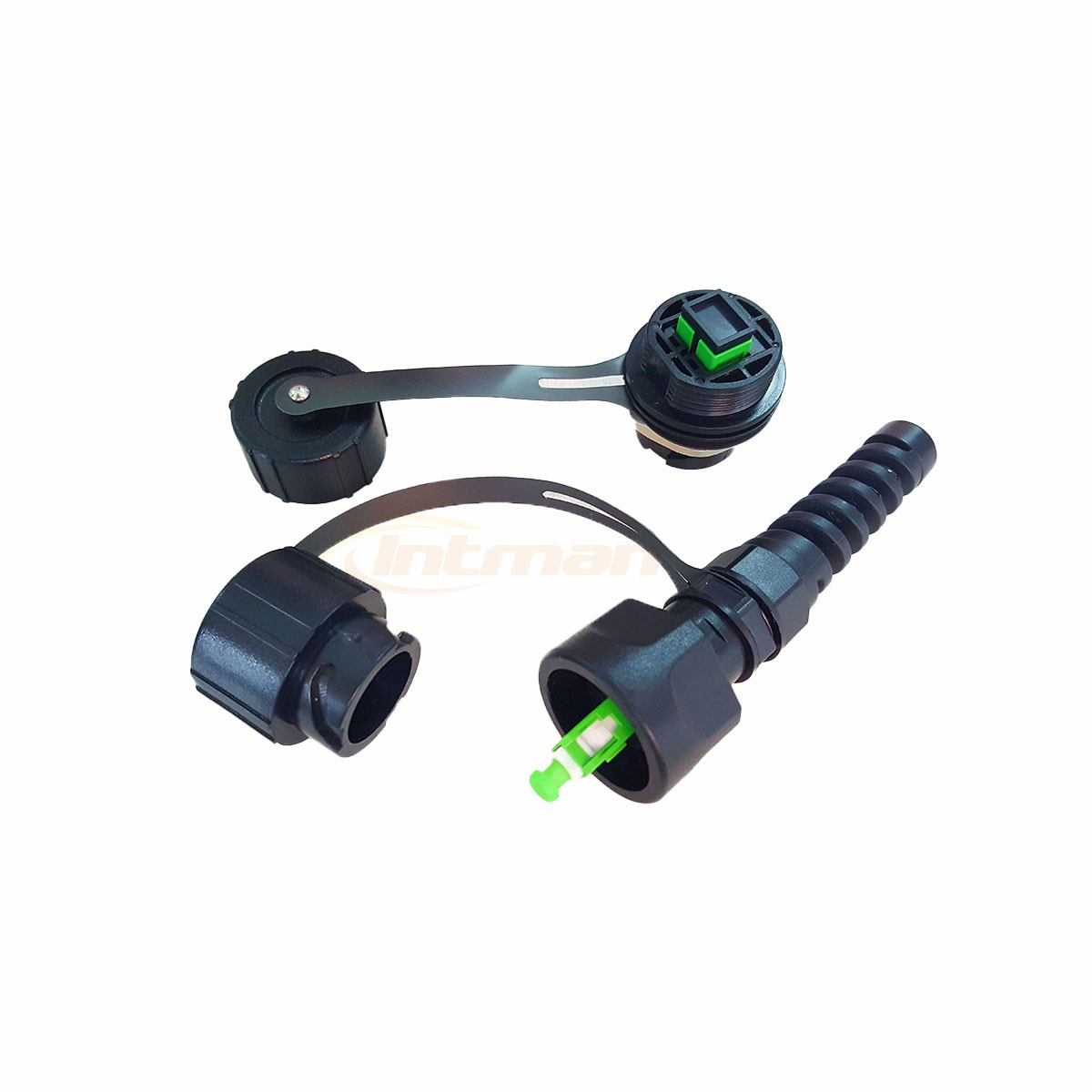

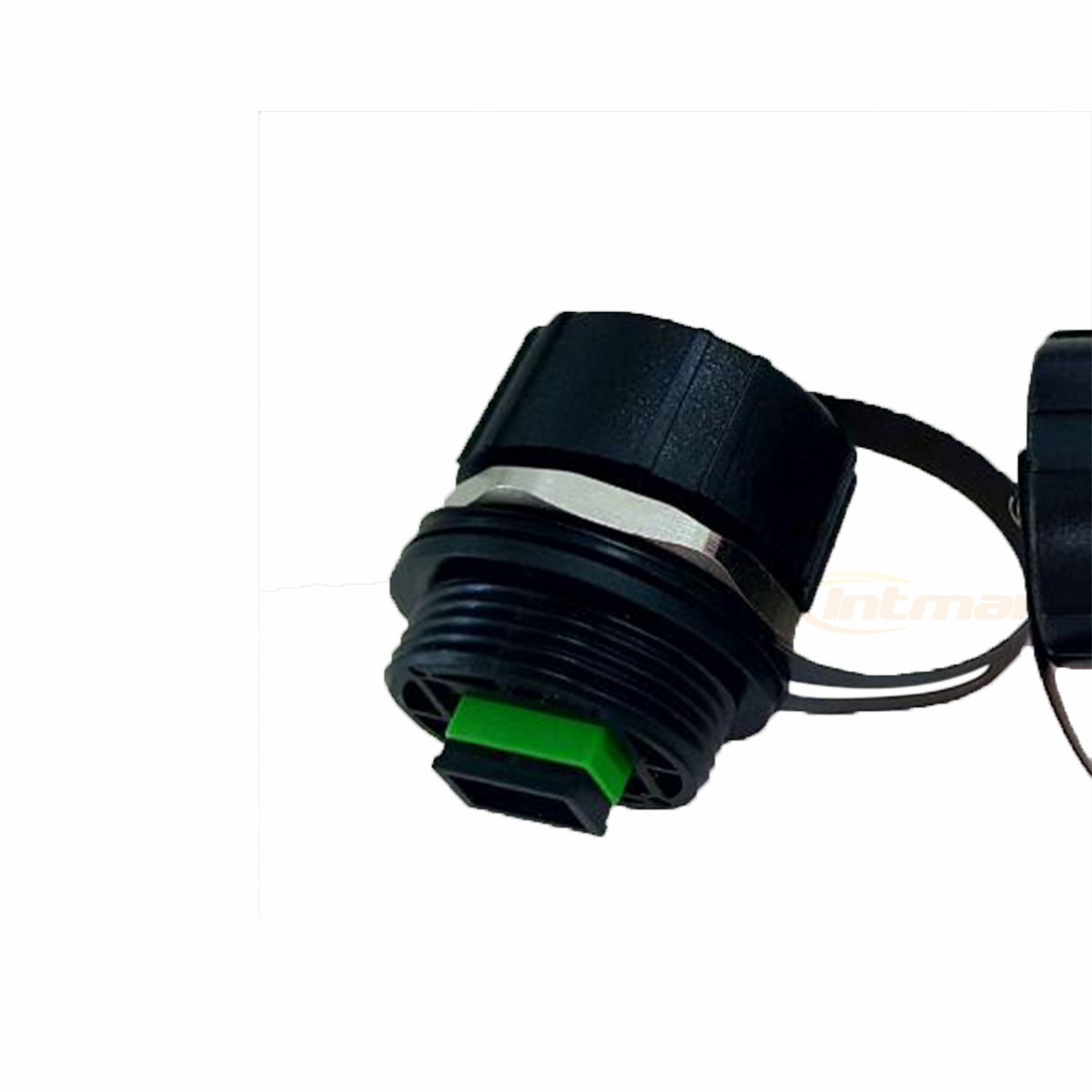

ODVA-SC Socket plug

ODVA-compliant connectors specifically for harsh environment applications, such as WiMax, Long Term Evolution (LTE), and Remote Radio Heads using Fiber To The Antenna (FTTA) connectivity, which requires rugged connectors and cable assemblies suitable for outdoor use. Designated the LC Series, CONEC offers the broadest ODVA-compliant fiber-optic connector portfolio in the industry, providing both full-metal and plastic versions of the IP67-rated interconnects. CONEC’s extensive ODVA-compliant product portfolio gives customers design flexibility and ensures that FTTA systems meet telecommunication industry standards as well as harsh environment requirements. In addition, CONEC can provide cable and plug kit assembly services to deliver a complete FTTA system interconnect

Specification Table

Connector	ODVA SC	Cable Diameter	7.0mm
Fiber Mode	OS2 9/125um	Wavelength	1310/1550nm
Jacket Color	Black	Jacket Material	LSZH
Fiber Count	Simplex	Waterproof	IP67
Insertion Loss	≤0.3dB	Fiber Grade	G657A1
Tight-buffered fiber Color	Blue/Orange	Tension (long term)	150N
Operating Temperature	-20~70℃	Storage Temperature	-20~70℃



















 Features

• Waterproof and Dustproof, suitable for use in harsh industrial environments, in accordance with IP67 standard
• The design adopts anapep-feed technology, easy to fit into a sealed container
• The components are all tested by optical contortion to ensure high-quality
• Single mode and multi-calibration components are provided, which can work with any type of optic fiber.

 Applications

• Multi-purpose outdoor
• For connection between the distribution box and RRH
• Deployment in Remote Radio Head cell tower applications
• Remote interface applications such as FTTX or Towers
• Mobile routers and internet hardware
• Harsh environments where chemical, corrosive gases and liquids are common
• Used for 3G,4G,5G based station, RRU, RRH, LTE, BBU

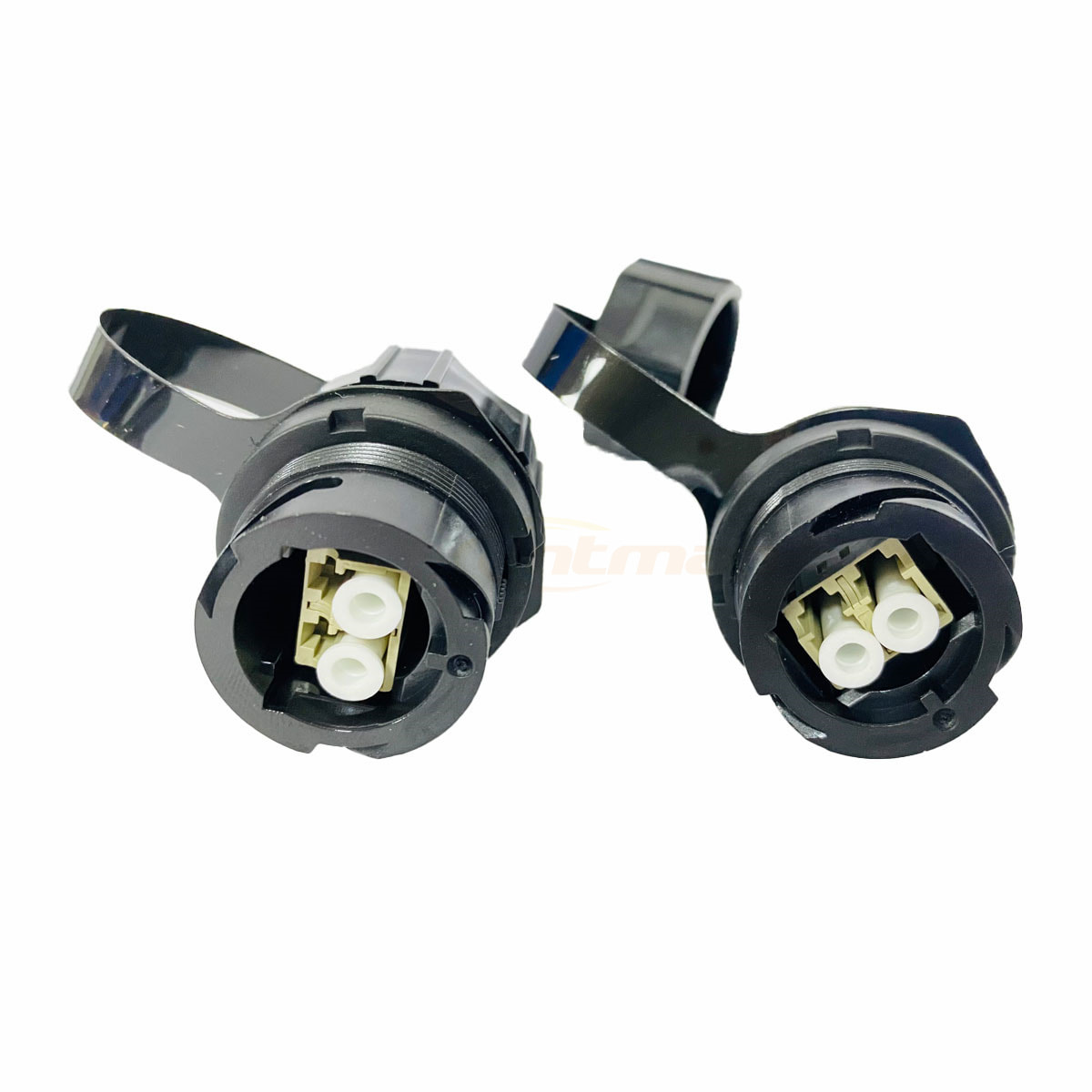

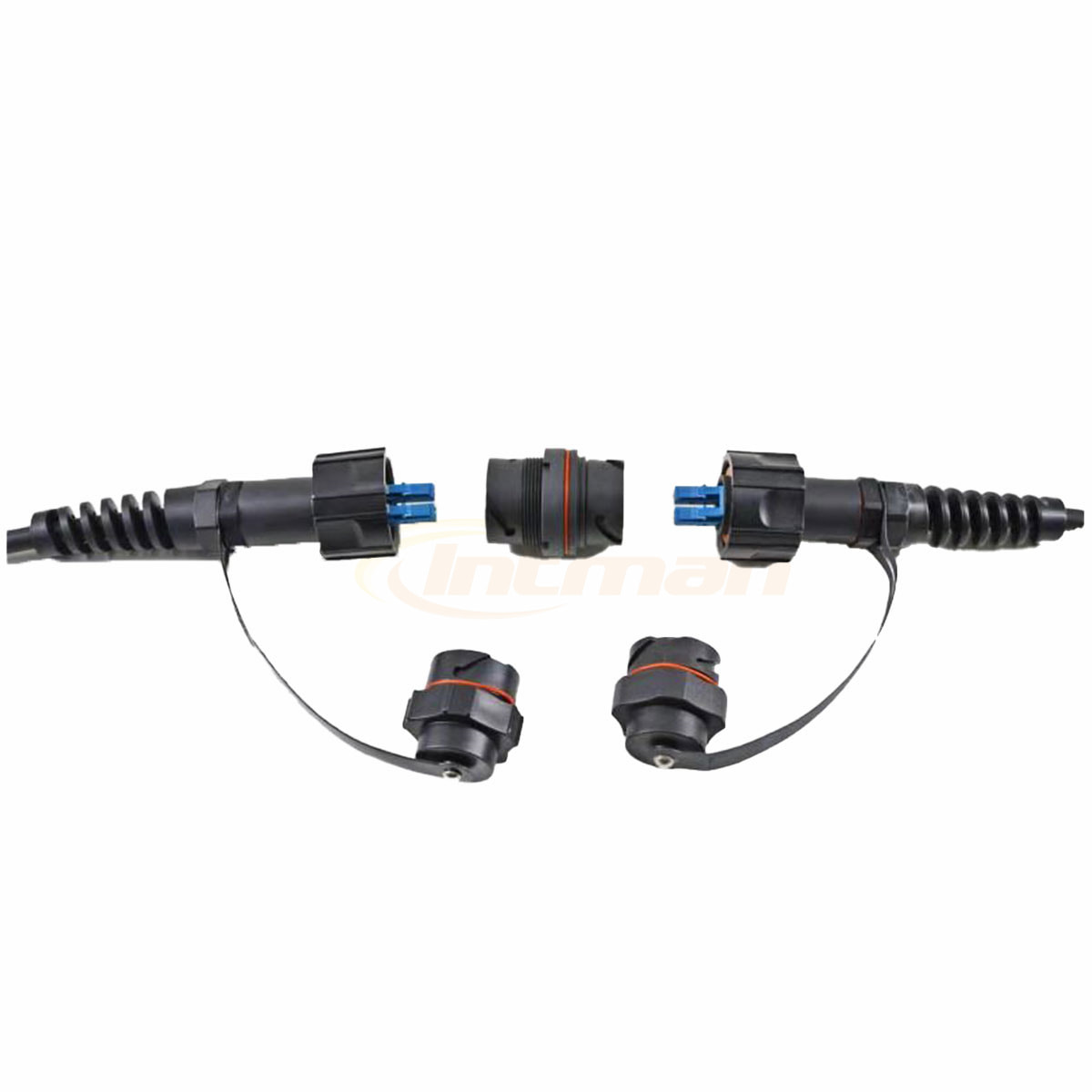

 Outdoor ODVA  SC LC  MPO Socket Plug Availability

• Far transmission communication&FTTA
• Intelligent substation
• Tunnel Video Surveillance system

ODVA/SC Connector Specification

ITEM	PARAMETER
Connector Type	ODVA SC
Insertion Loss	≤0.3dB
Return Loss	≥50dB
IP Level	IP67
Operating wavelength	1310nm,1550nm
Test wavelength	1310nm,1550nm
Repeatability	≤0.1
Interchangeability	≤0.2dB
Fiber Length	1m,2m…..any length optional
