- Name: LC Fiber Optic Pigtails
- Connector : LC APC
- Cable Diameter: 0.9mm
- Cable Color: Yellow or others
- Fiber Type: G652D ,G657A1,G657A2
- Fiber Count: Simplex
- Cable Jacket: LSZH , PVC
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

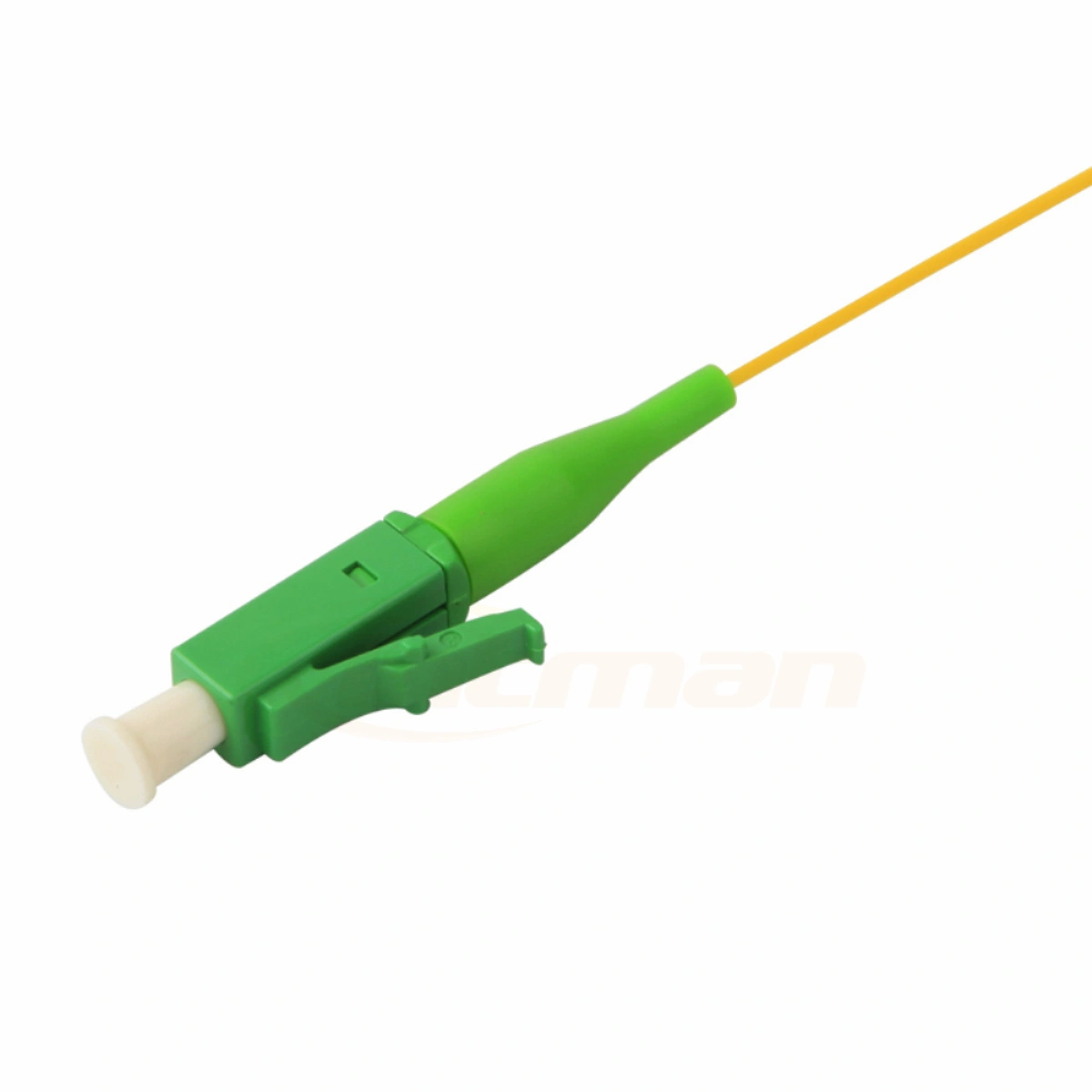

LC APC Fiber Optic Pigtail Single mode Price Assembly
Description
LC APC Fiber Optic Pigtail Single mode Price Assembly
Intman supplies LC type fiber optic pigtails at very competitive prices. We offer 3primary fiber versions including the LC APC ,LC UPC 9/125um single mode, LC PC 62.5/125 multimode, and 50/125um OM3 OM4 10Gb types. These fiber pigtails are with premium grade LC connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtails and duplex fiber pigtails are available, with different cable colors, cable diameters, and jacket types optional.
LC APC Fiber Optic Pigtail Single mode Price Assembly Specification Table
| Connector | LC APC | Cable Diameter | 0.9mm |
| Fiber Mode | OS2 9/125um | Wavelength | 1310/1550nm |
| Jacket Color | Yellow | Jacket Material | LSZH,PVC |
| Fiber Count | Simplex | Fiber Grade | G652D ,G657A1,G657A2 |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Durability | ＞1000 Time | Vibration | ≤0.2dB |
| Operating Temperature | -40~75℃ | Storage Temperature | -45~85℃ |
LC APC Fiber Optic Pigtail Single mode Price Assembly Features
- Low insertion loss and high return loss
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- Boots in a variety of colors
- High precision alignment
LC APC Fiber Optic Pigtail Single mode Price Assembly Applications
The most common is known as the fusion splice on pigtails, and the 12fiber or 6fiber multi-color pigtails are easy to install and provide a premium quality fiber optic connection. We also offer Individual single pigtails, discounted 6packs or 12packs. Also are 12fiber or 6fiber jacketed pigtails.
- Local Area Networks (LANs) and Wide Area Networks (WANs)
- Fiber Optic CATV,FTTH,FTTB,FTTP etc
- Fiber Optic telecommunication systems
- Transmission Mode (ATM)
- Fiber Optic Backbone
- Video and Military Instrumentation
- Premise Installations
- Data Processing Networks
Single mode LC-SC-FC-ST Fiber Optic Pigtail Types
Single mode LC SC FC ST Fiber Optic Pigtail Types
