LC to LC 7.0mm FTTA CPRI Outdoor Patch Cord

Description

FTTA (Fiber To The Antenna) Patch cord

A FTTA CPRI patch cord used in outdoor application, duplex round far transmission outdoor cable (water blocking aramid yarns and UV resistant black out jacket),can be with pulling eye,LC open bulkhead for easy access to SFP module to realize the signal path from BBU to RRU,widely use 3G 4G base station,Aerospace&Defence,equipment diagnosis, FO sensor,FTTA,FTTP,FTTX, WIMAX,BBU,RRU,RRH,LTE.

 LC 2Core FTTA Fiber Optic Patch Cable Specification Table

Connector	LC UPC to LCUPC	Cable Diameter	7.0mm
Fiber Mode	OS2 9/125um	Wavelength	1310/1550nm
Jacket Color	Black	Jacket Material	LSZH
Fiber Count	2Core	Both Side Branch	With Armored or not
Insertion Loss	≤0.3dB	Fiber Grade	G657A1
Mating Times	≥500N	Repeatability	≤0.5dB
Operating Temperature	-20~70℃	Storage Temperature	-40~85℃

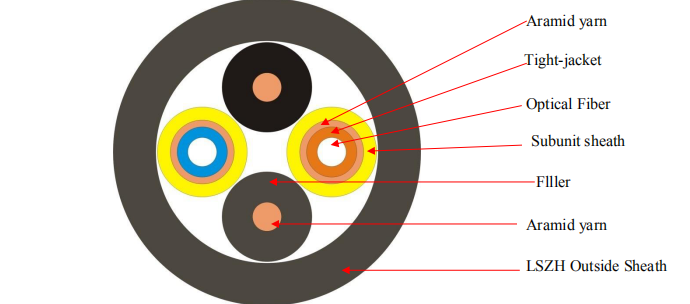

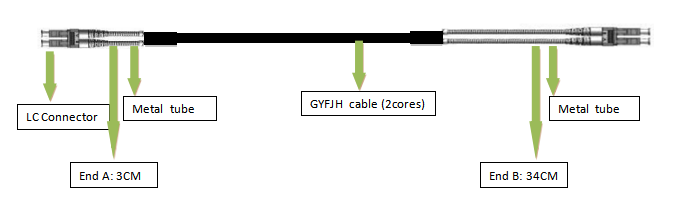

GYFJH CPRI 2Core 7.0mm Cable Structure and patch cord assembly :

CPRI Fiber Optic Patch Cable Features

• Good mechanical and environmental characteristics
• Flame retardant characteristics meet the requirements of relevant standards
• Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission
• Meet various requirements of the market and clients

 Applications

• Fiber optic communications in harsh outdoor environments
• Outdoor communication equipment connection
• Waterproof fiber equipment SC port
• The remote wireless base station
• FTTX wiring project

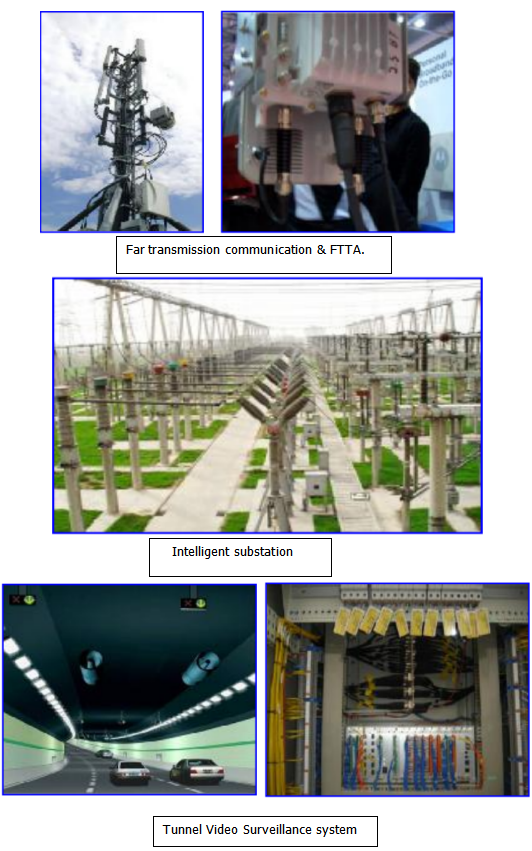

 Outdoor CPRI Fiber Optic Patch Cable Availability

• Far transmission communication&FTTA
• Intelligent substation
• Tunnel Video Surveillance system

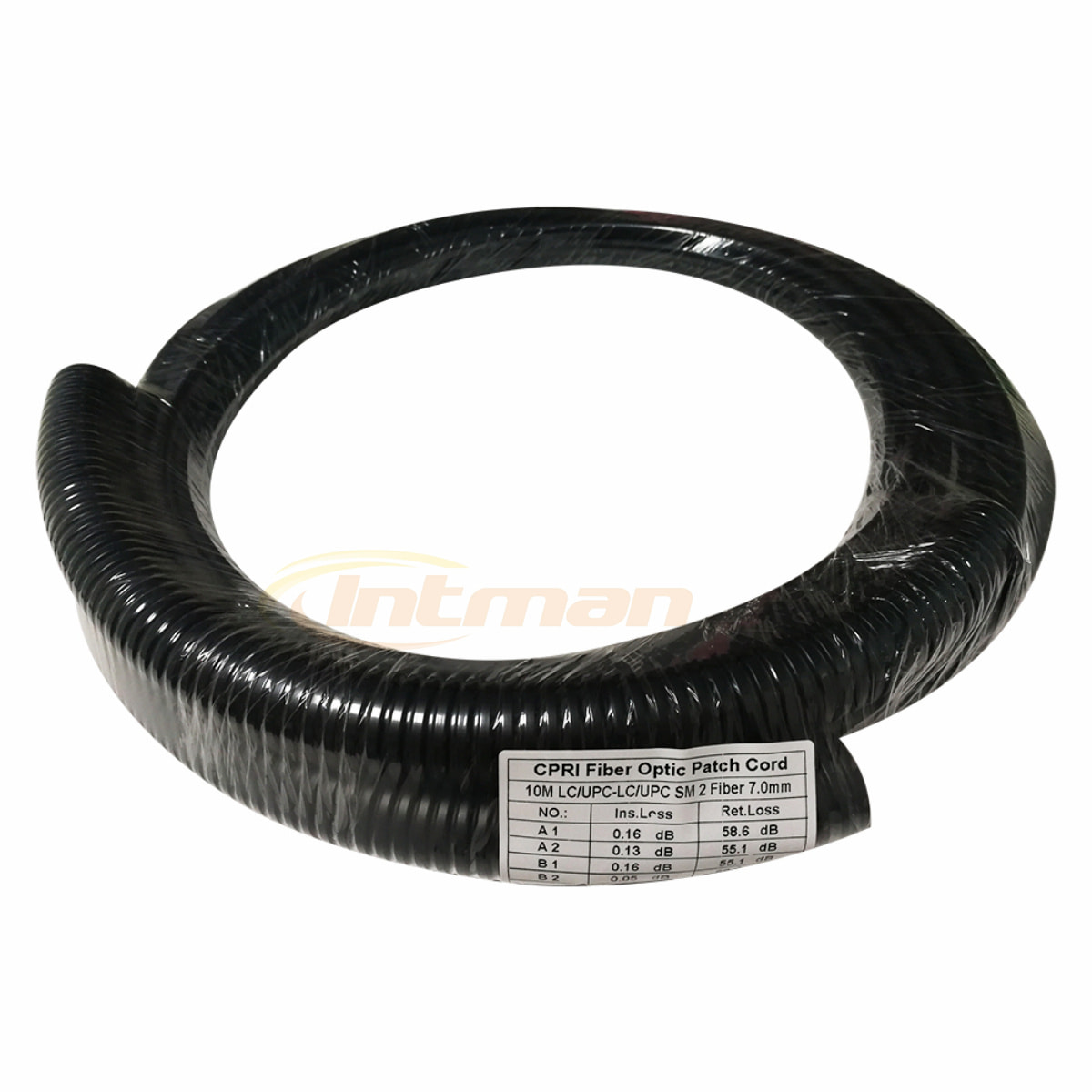

Package Show :
