Mini Fiber Optic Launch Box Pulse Suppressor

Description

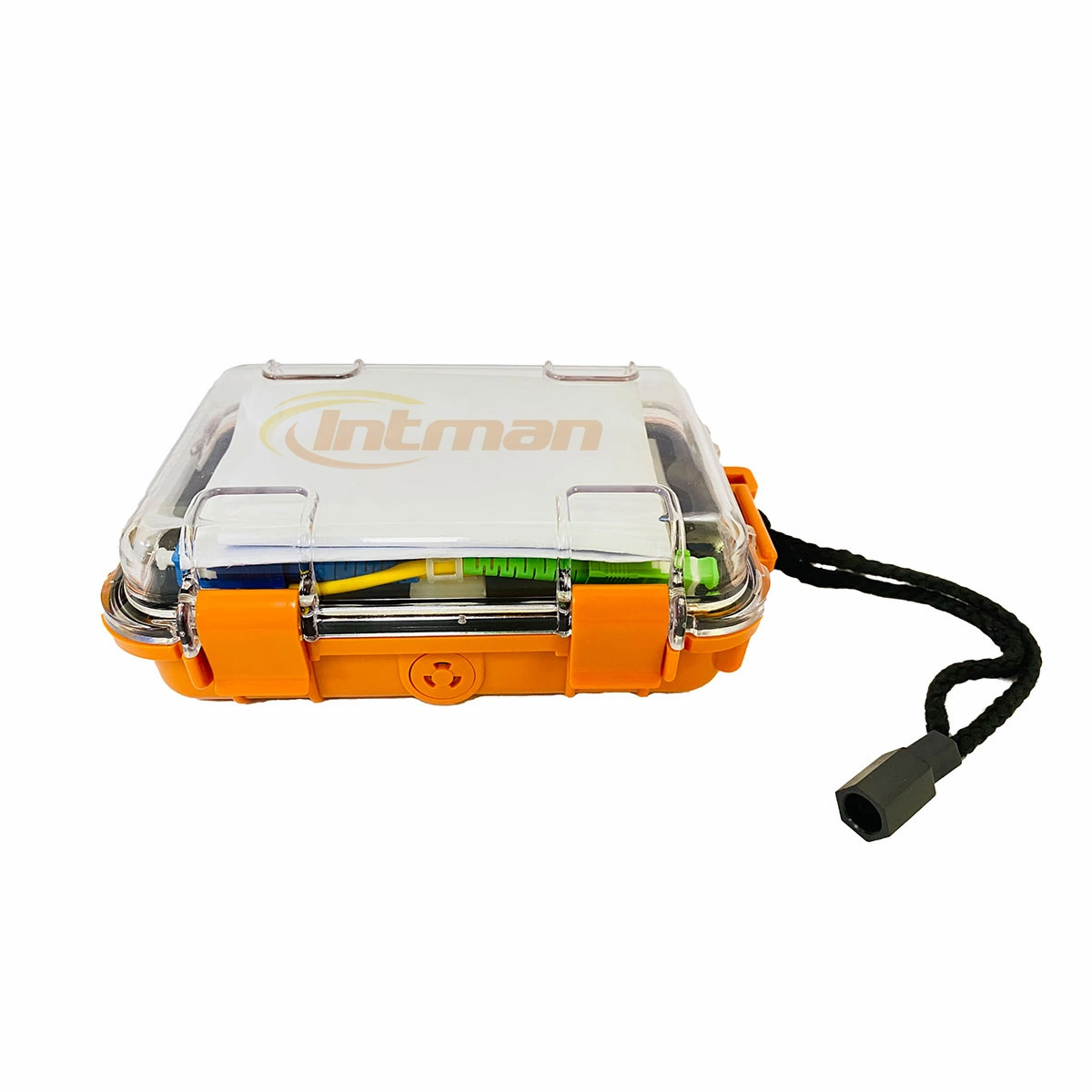

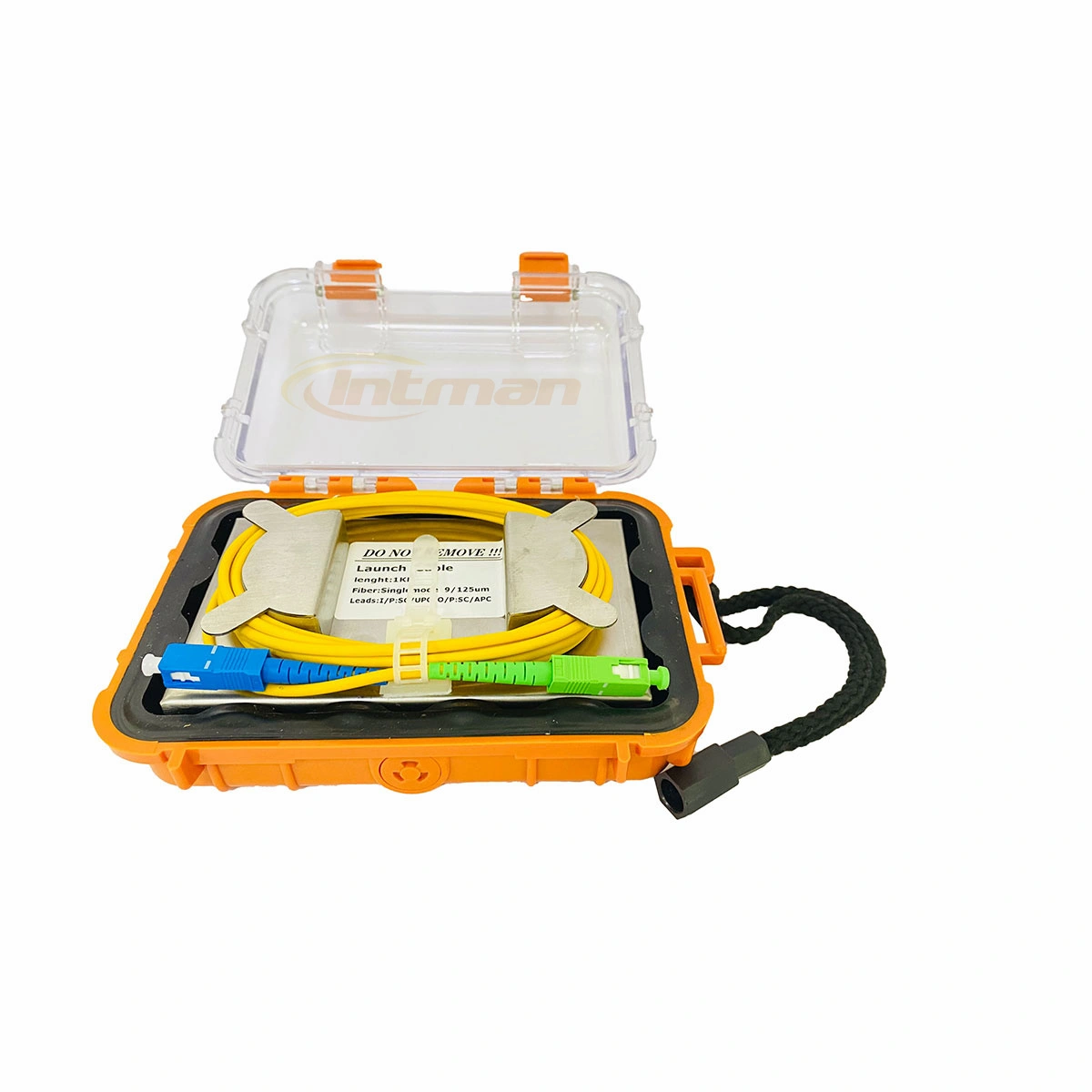

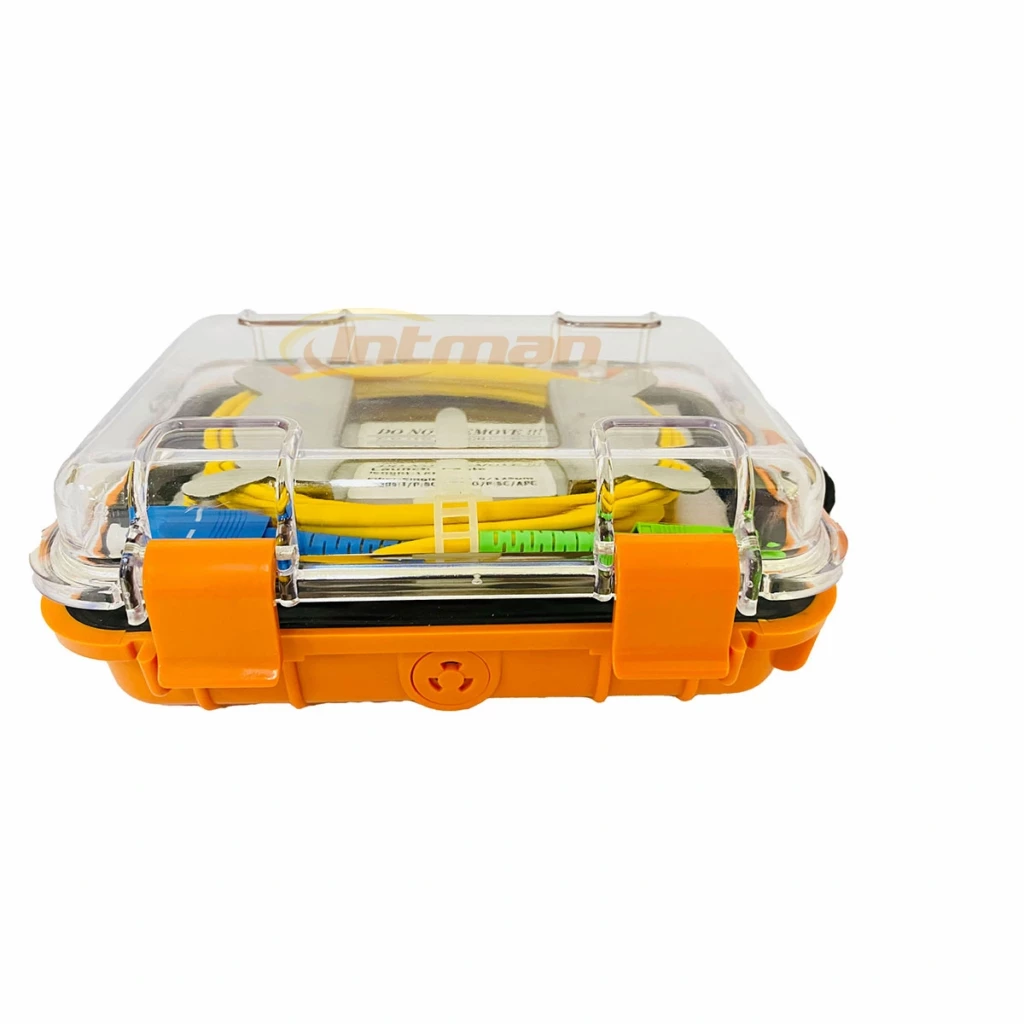

1. Mini OTDR Launch Cable Box Description

The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s) to help minimize the effects of the OTDR’s launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths. Designed to aid in the testing of fiber optic cable when using an OTDR.

Main Features:

• Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
• Compound Latch for a positive seal and easy opening with a locking feature.
• Non-metal construction will not dent, corrode, or conduct electricity.
• Water and dust prove to allow the unit to be taken into almost any environment.
• Auto purge valve for changes in altitude and temperature.
• Lead Length: 1m-5m, outside diameter 2.0mm or 3.0mm
• Back Reflection (RL) ＜-55dB

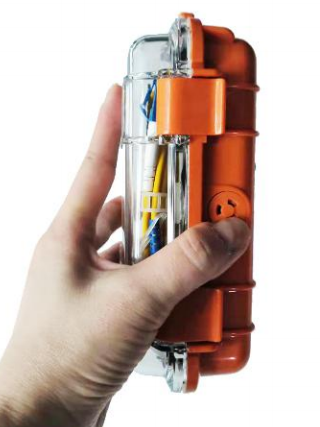

• Compact and rugged packaging
• Portable for field use
• Case can house up to 1100 meters of fiber





Applications :

• Use as OTDR launch/receive cable
• Test link loss with an OTDR
• Measure insertion loss and reflectance of near/far end connector.
• Pulse suppressor for the first reflection at the beginning of a fiber.
• Available with a variety of connector styles
• Use to test link loss with an OTDR
• Use as OTDR receive cable
• Fits easily in OTDR cases or kits



2.Multimode Fiber Optic OTDR Launch Cable Box Specification Table

Name	MINI OTDR Launch Cable Box	Typical Loss	＜1dB@1310nm for 1000meters
Length×Width×Height	15.5CM×11CM×5CM	Weight	0.55kg (without fiber)
Material	SR Polypropylene	Operating Temperature	-40℃ to + 80℃
Color	Orange	Launch Box Cable Length	100m-2000m
Fiber Type : G652D,G655,G657A1,G657A2,OM1,OM2,OM3,OM4
Ferrule Type	UPC APC PC
Cable Diameter	2mm,3mm,0.9mm
Connector: SC,FC, LC,ST,E2000, MU,MPO, SMA905,MTP

3. Package Detail (Rugged,hard-shell transit case)
