MTP/MPO to LC 2.0mm Breakout Fiber Patch Cable 24 Fiber

Description

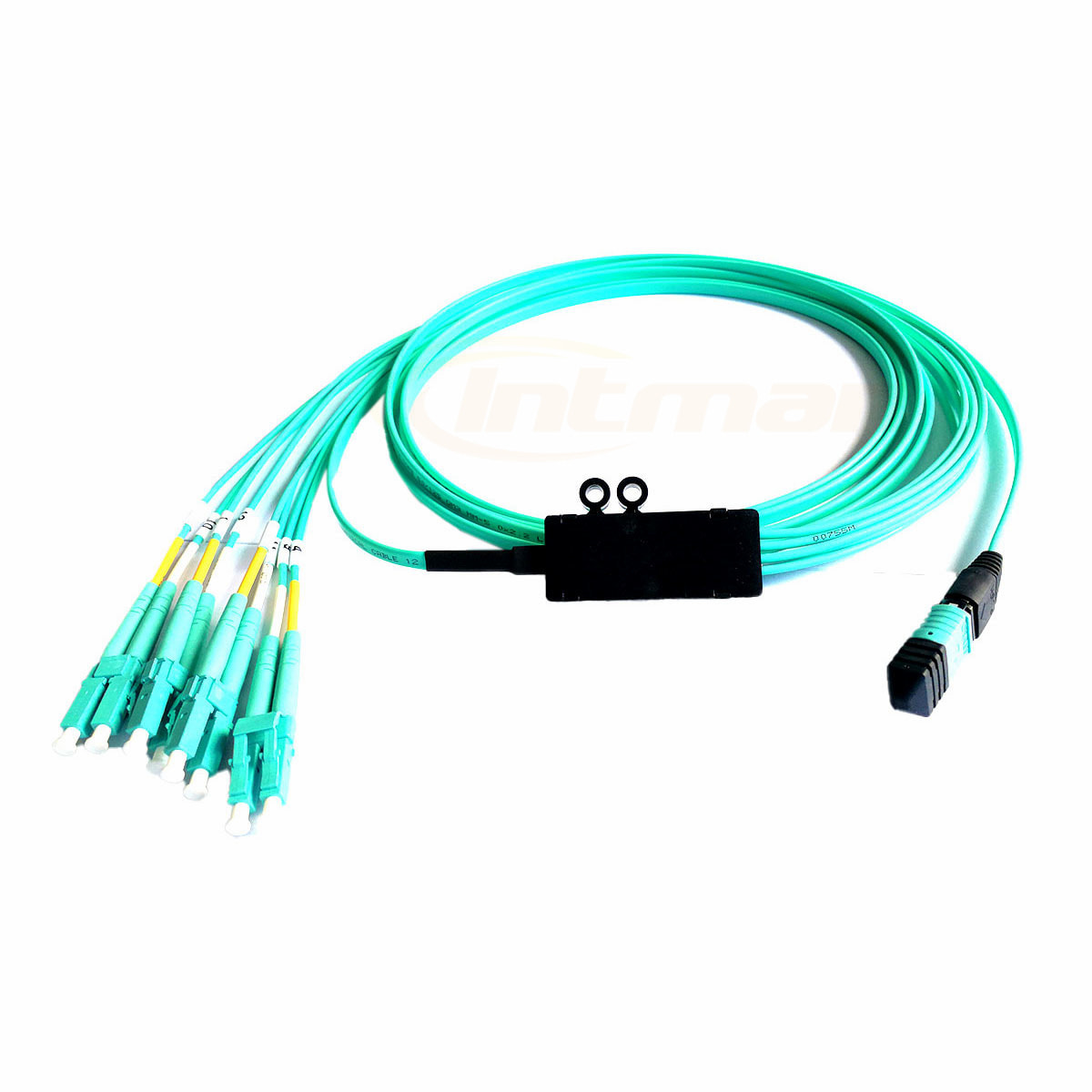

1. OM3 24Fibers MPO to LC 2.0mm fan out connector fiber optic cable

MPO/MTP fiber patch cables allow high-density connections between network equipment in telecommunication rooms and data centers. MPO breakout cable,a cost-effective alternative to time-consuming field termination, is designed for high- density fiber patching in data centers which need space saving and reduce cable management troubles. With Senko MPO OM3 connectors and Corning Clearcurve fiber, it is optimized for 10/40/100G high-density data center applications.

 Applications

• Telecom system
• Cabling system
• High-density optical laser
• QSFP devices

Features

1. MTP/MPO Push-pull connectors for Quick fiber optic connections
2. Push/Pull tab connectors offer maximum accessibility in high-density installations, install remove with one hand
3. 12times the density of SC-style connectors
4. High-density design cuts down on installation costs
5. Plenum rated jacket

2. MPO to LC Fan out OM3 Patch cord Specification Table

3. MPO Fiber Optic Patch cord Structure

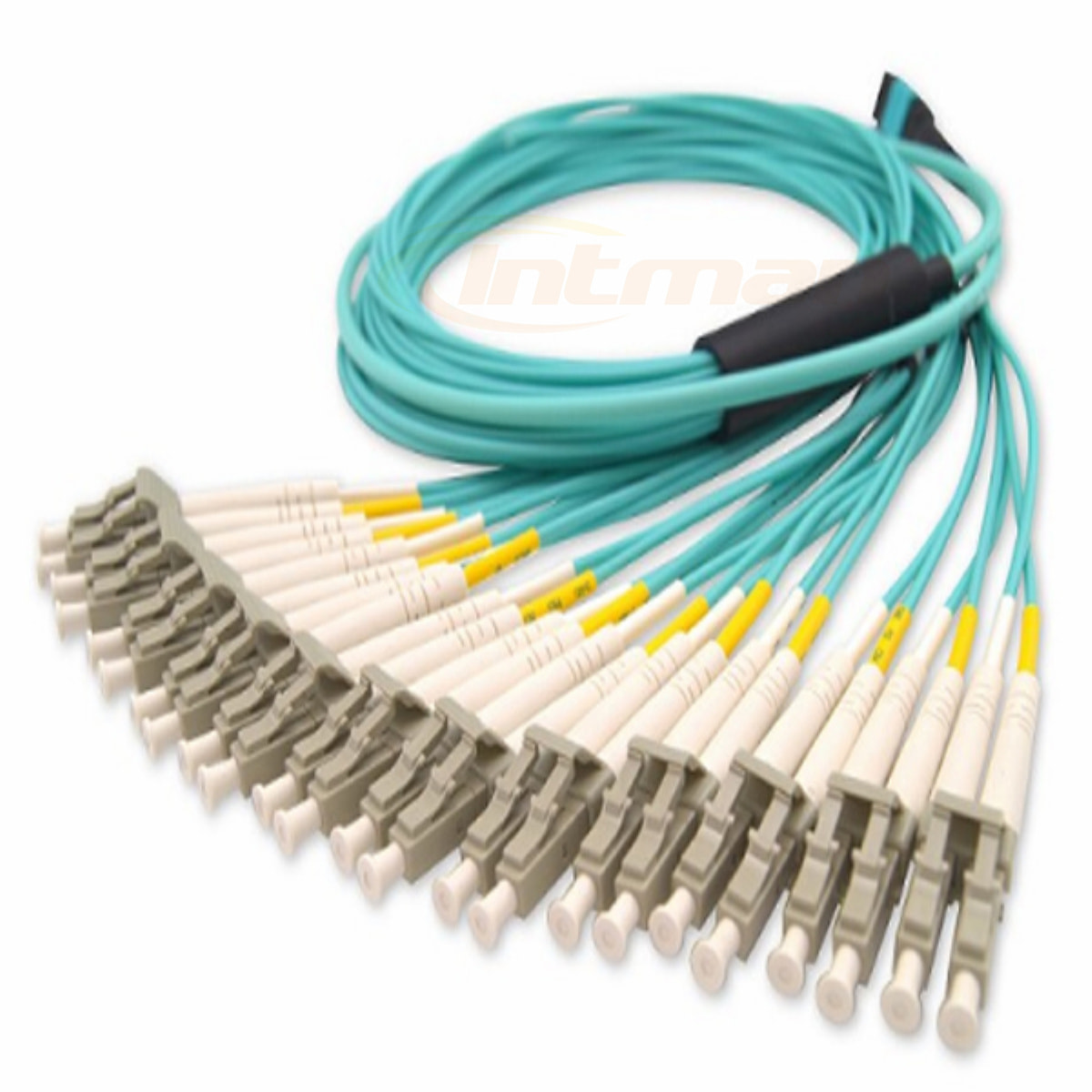

MPO 24fibers cable

MPO-LC 12fibers 0.9mm Drawing

4. MPO OM3 24Fibers LC /SC Fanout Fiber Optic Patch Cable Production Line

MPO Patch cord Assembly
