- Name: MU Attenuator
- Color: Black
- Connector: MU
- Attenuation Range: 1-25dB
- Transfer Mode: Singlemode
- Housing Material: Metal
- Sleeve: Ceramic Zirconia
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

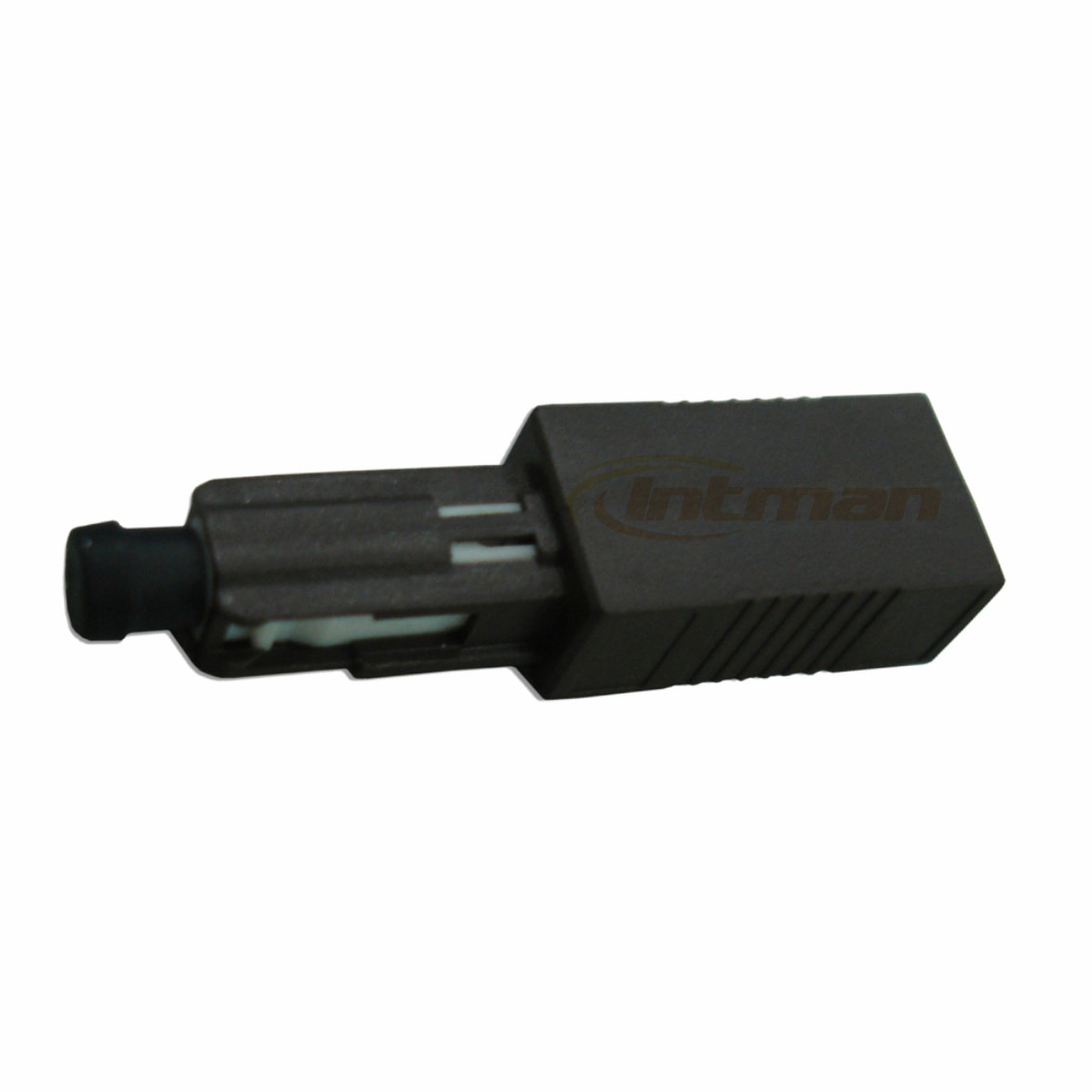

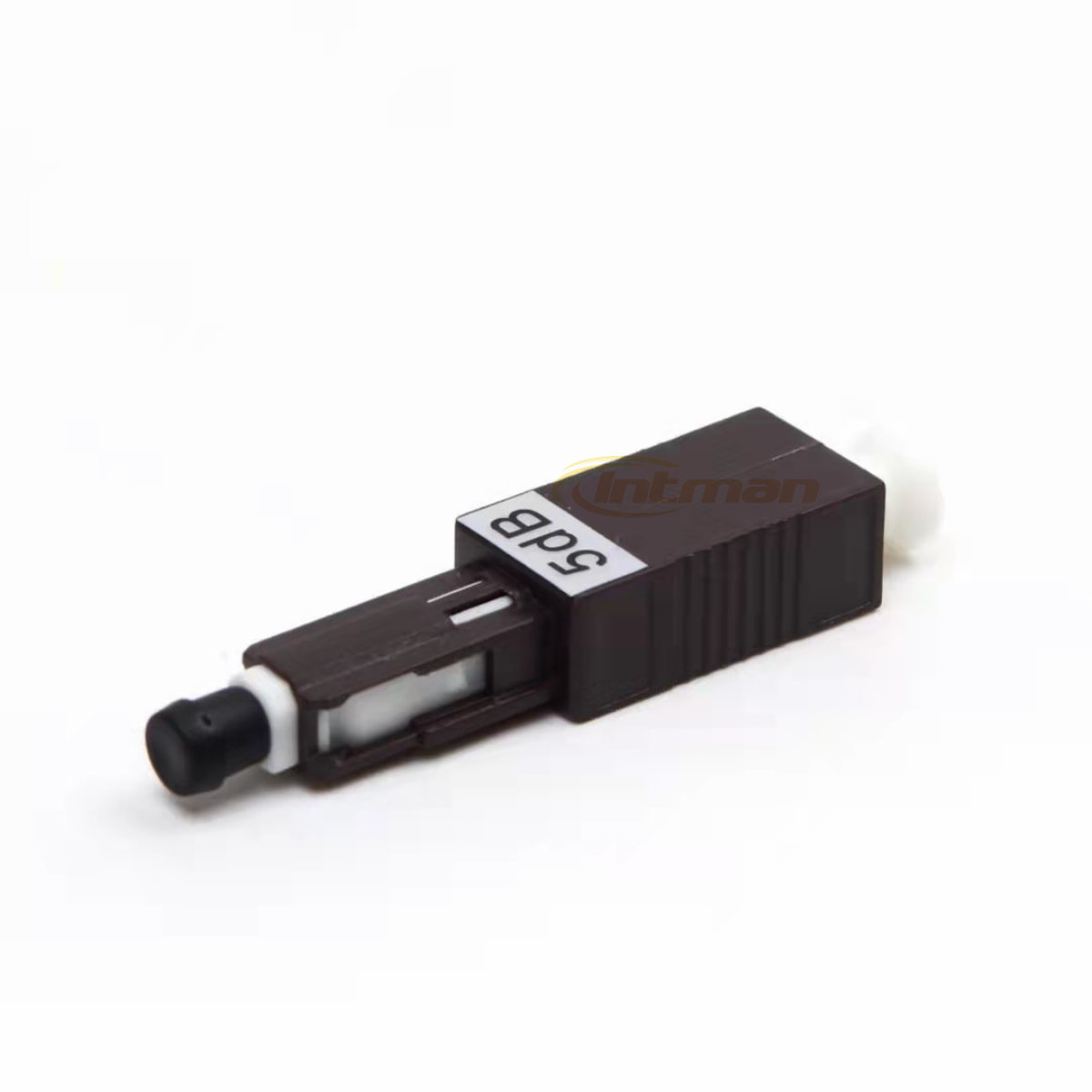

MU/UPC Male to Female Fixed Fiber Attenuator
Description
Product description and application
MU Variable fiber optic attenuators could help simulate distance or actual attenuation in the fiber optic testing work by inserting a calibrated attenuation into the link. Important parameters of variable fiber attenuators include its insertion loss , reflection loss, and attenuation range. Collimator Variable optical attenuator is a useful tool for the optical components power adjustment and systems test.
- DWDM
- Optical sensors
- Test & Measurement
- Telecommunications
SC LC MU FC ST Variable Optical Attenuator Specification Table
| Connector Type | MU/SC/LC/FC/ST | Maximum Optical Input Power | 500mW |
| Transfer Mode | Singlemode | Ferrule Type | Zirconia Ceramic |
| Attenuation Range | 1-25dB | Attenuation Accuracy | ±0.5dB |
| Operating Wavelength | 1240-1620nm (SM); 850nm/1310nm-1550nm(MM) | Polarization Dependent Loss | ≤0.2dB |
| Return Loss | UPC≥55dB,APC≥65dB | Durability | 500 times |
Features
- Wavelength Insensitive
- 1-25dB values definable
- Available with PC, UPC, and APC polish
- Available with single mode, multimode and PM versions
- Low original loss
- Low pricing

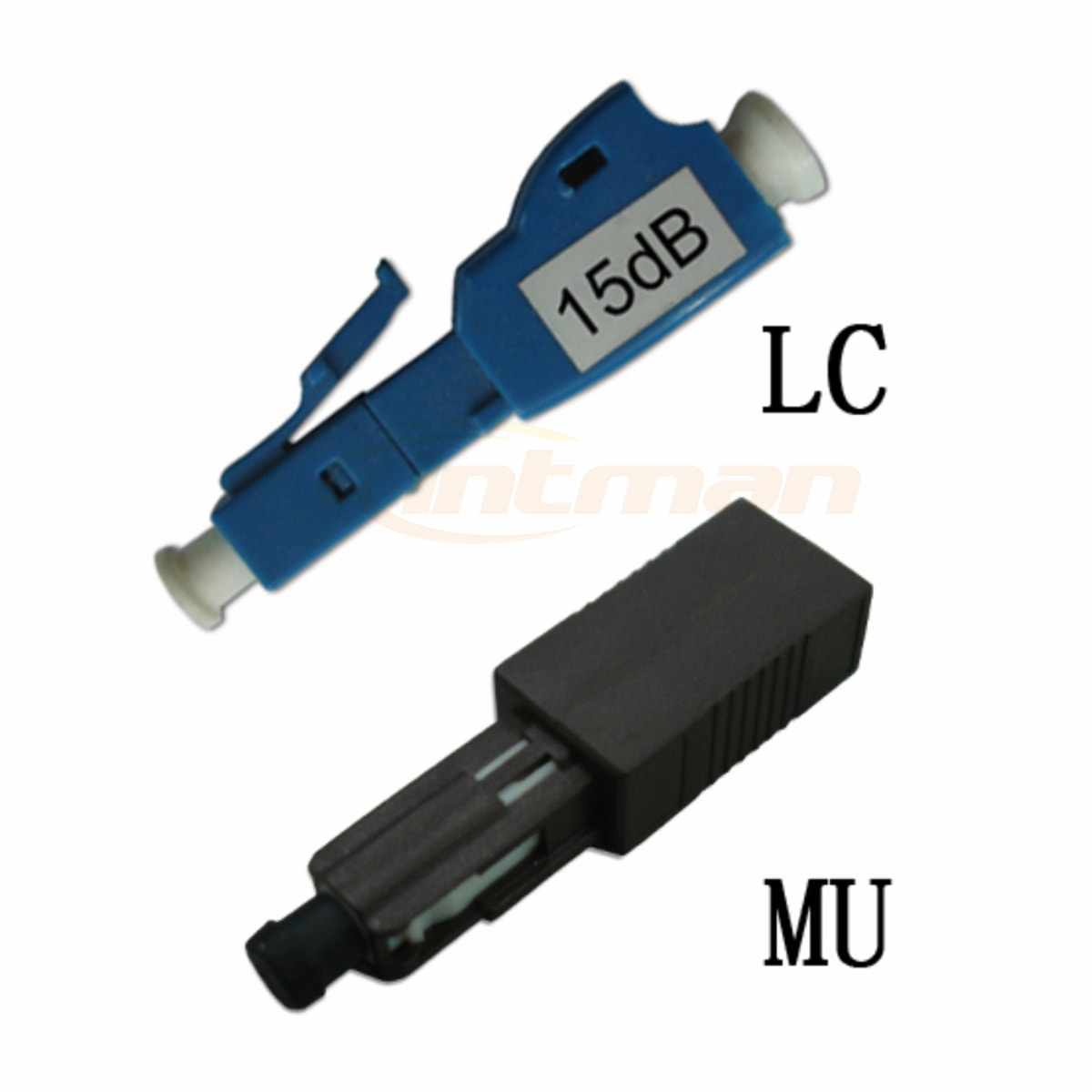

MU FC SC LC ST Variable Optical Attenuator Types
voa variable optical attenuator
variable fiber optic attenuator
