- Name: Plastic Optical Fiber
- Connector: HFBR-4501
- Connector type: Gray
- Cable Diameter: 2.2mm
- Fiber Type:POF cables
- Fiber Count: 1Core
- Cable Jacket: LSZH, PE
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

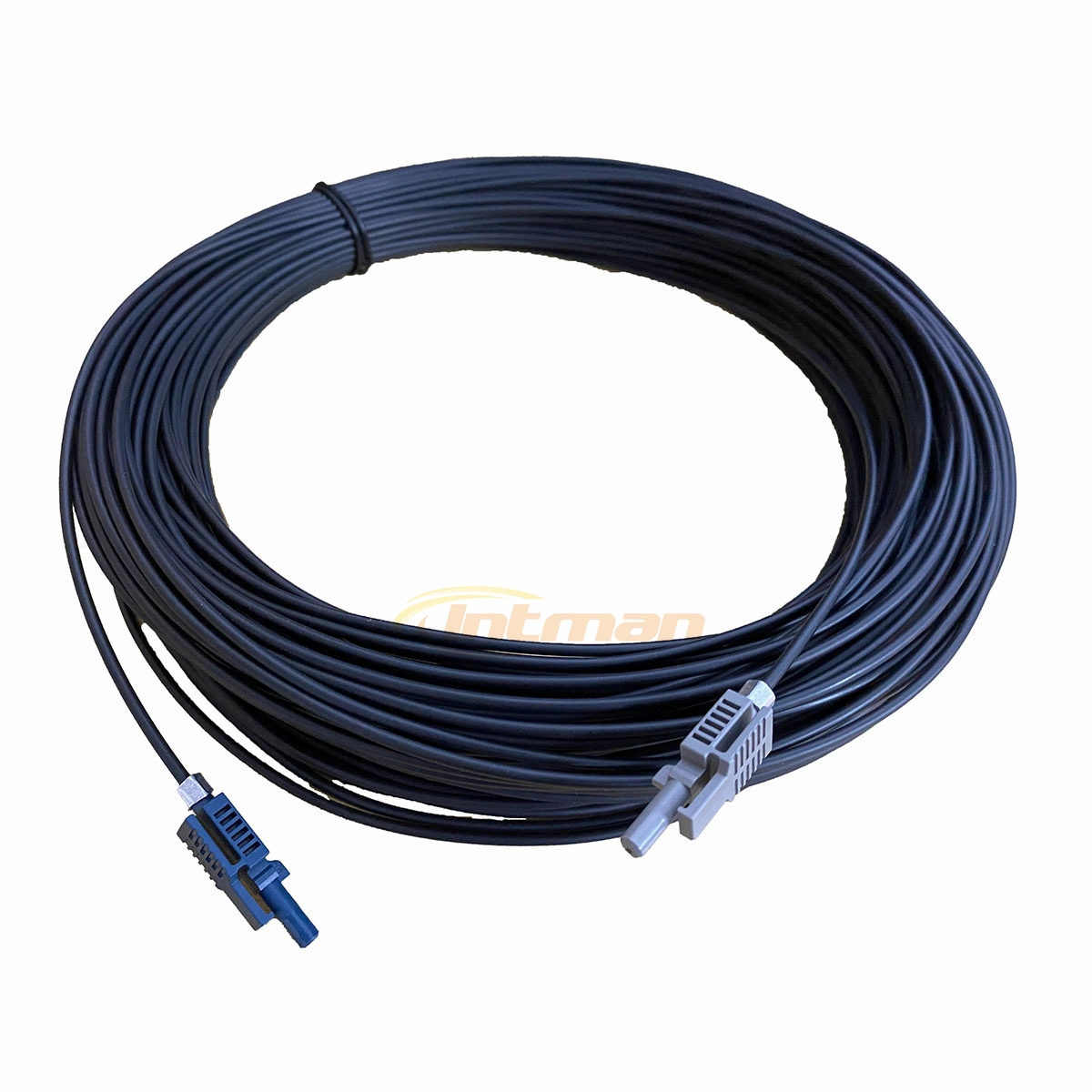

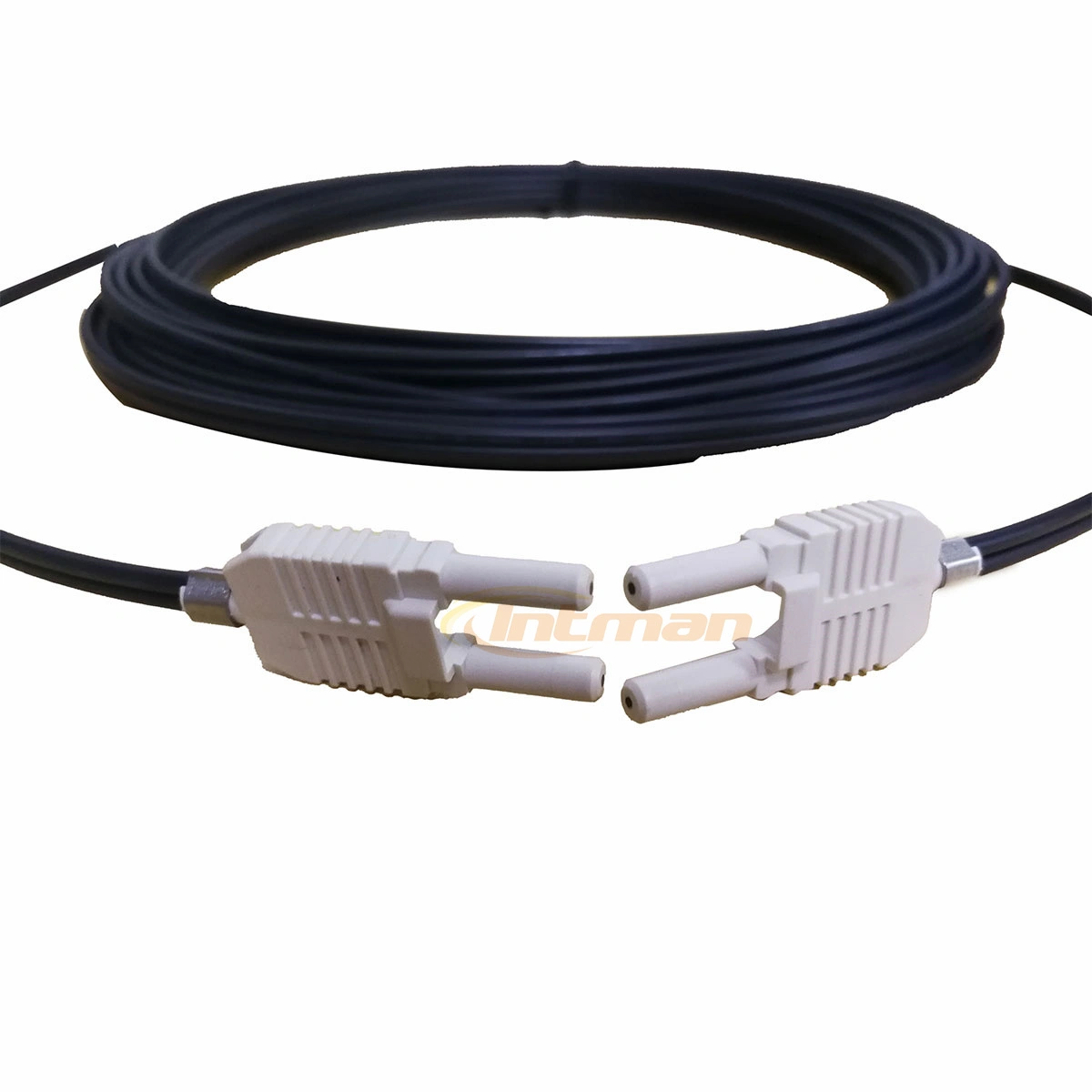

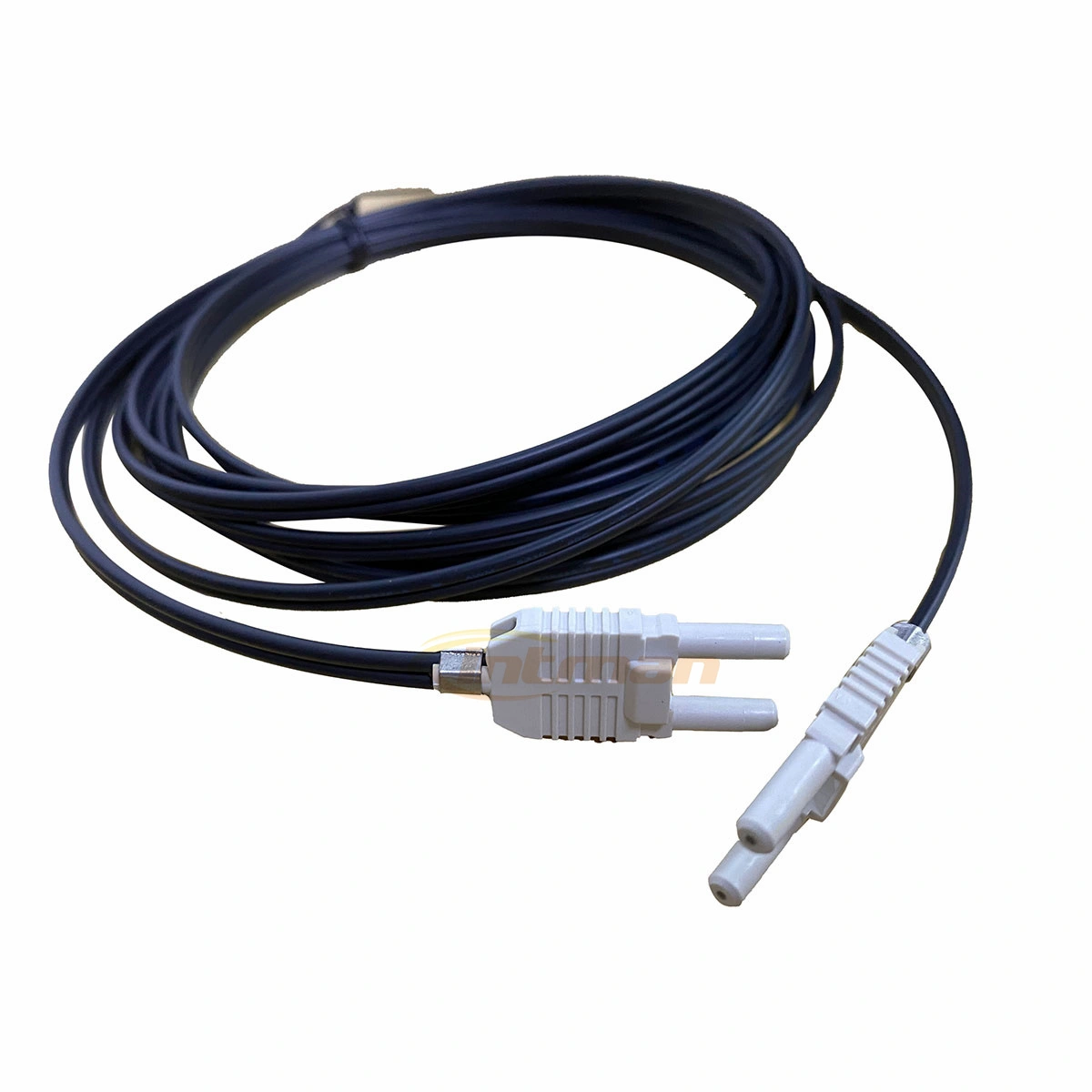

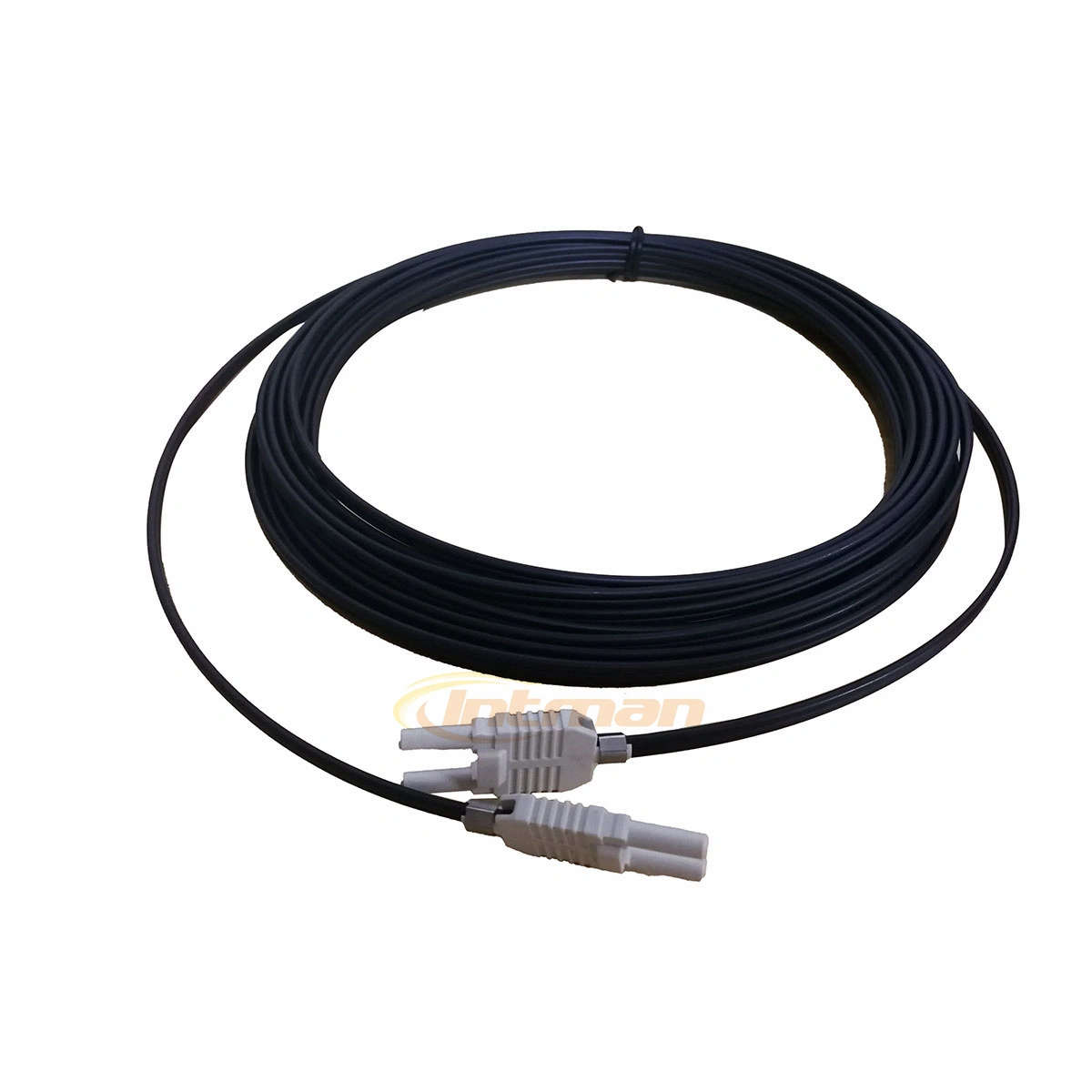

Industrial Control Plastic Optic Fiber POF HFBR4503/4513 Patch Cord
Description
The HFBR-45 series connectors are available in two styles: latching and non-latching. For a duplex connector, two non-latching simplex connectors can be snapped together. The connectors are made of rugged, flame-retardant plastic which is good for industrial and other harsh environments. The HFBR-45 series connectors are for use with Plastic Optical Fiber Only.
Specification Table
| Connector | HFBR4503 | Fiber Diameter | 1.0mm |
| Color | Grey/Blue | Cable Diameter | 2.2mm |
| Jacket | LDPE | Jacket Color | Black |
| Number of Conductores | 1 | Length | 0.5m/1m/2m/5m/Customized |
| Attenuation | ＜180dB/km | Cable Type | Plastic optical fiber cable |
| Operating Temperature | -55~85℃ | Storage Temperature | -55~85℃ |
Plastic Optical Fiber Connectors Description
| HFBR-4501 | Gray Simplex Connector/Crimp Ring |
| HFBR-4511 | Blue Simplex Connector/Crimp Ring |
| HFBR-4503 | Gray Simplex Latching Connector with Crimp Ring |
| HFBR-4513 | Blue Simplex Latching Connector with Crimp Ring |
| HFBR-4506 | Parchment Duplex Connector with Crimp Ring |
| HFBR-4516 | Gray Duplex Latching Connector with Crimp Ring |
| HFBR-4505 | Gray Adapter (Bulkhead/Feedthrough) |
| HFBR-4515 | Blue Adapter (Bulkhead/Feedthrough) |
Features
- Requires no crimp ring or Crimping Tool
- Durable Plastic Material
- Excellent Retention Force
- Symmetry in Non-latching Connector Gives Simplex/Duplex Functionality with the Same part
- Compatible with Avago Versatile Link Family of Connectors and fiber optic components
- 1mm diameter Plastic Optical Fiber (POF) in two grades: low-cost standard POF with 0.22dB/m typical attenuation, or high performance extra low loss POF with 0.19db/m typical attenuation
Applications
These connectors can be used for any application in which plastic optical fiber is used including:
- Industrial data links for factory automation and plant control
- Intra-system links; board to board, rack to rack
- Computer to peripheral data links, PC bus extension
- Automotive Networks
- Proprietary System Interconnects
- Gaming Equipment
- Medical Equipment
- Telecommunications
- Datacommunications
Specification
| ITEM | PARAMETER |
| Connector Type | HFBR-4503 |
| Insertion Loss | ≤0.22dB |
| Short Term Tensile Force(single channel) | 50N |
| Short Term Tensile Force(dual channel) | 100N |
| Short-Term Bend Radius | 25mm |
| Long-Term Bend Radius | 35mm |
| Long Term Tensile Load | 1N |
| Flexing | 1000 cycles |
| Fiber Length | 1m,2m…..any length optional |
